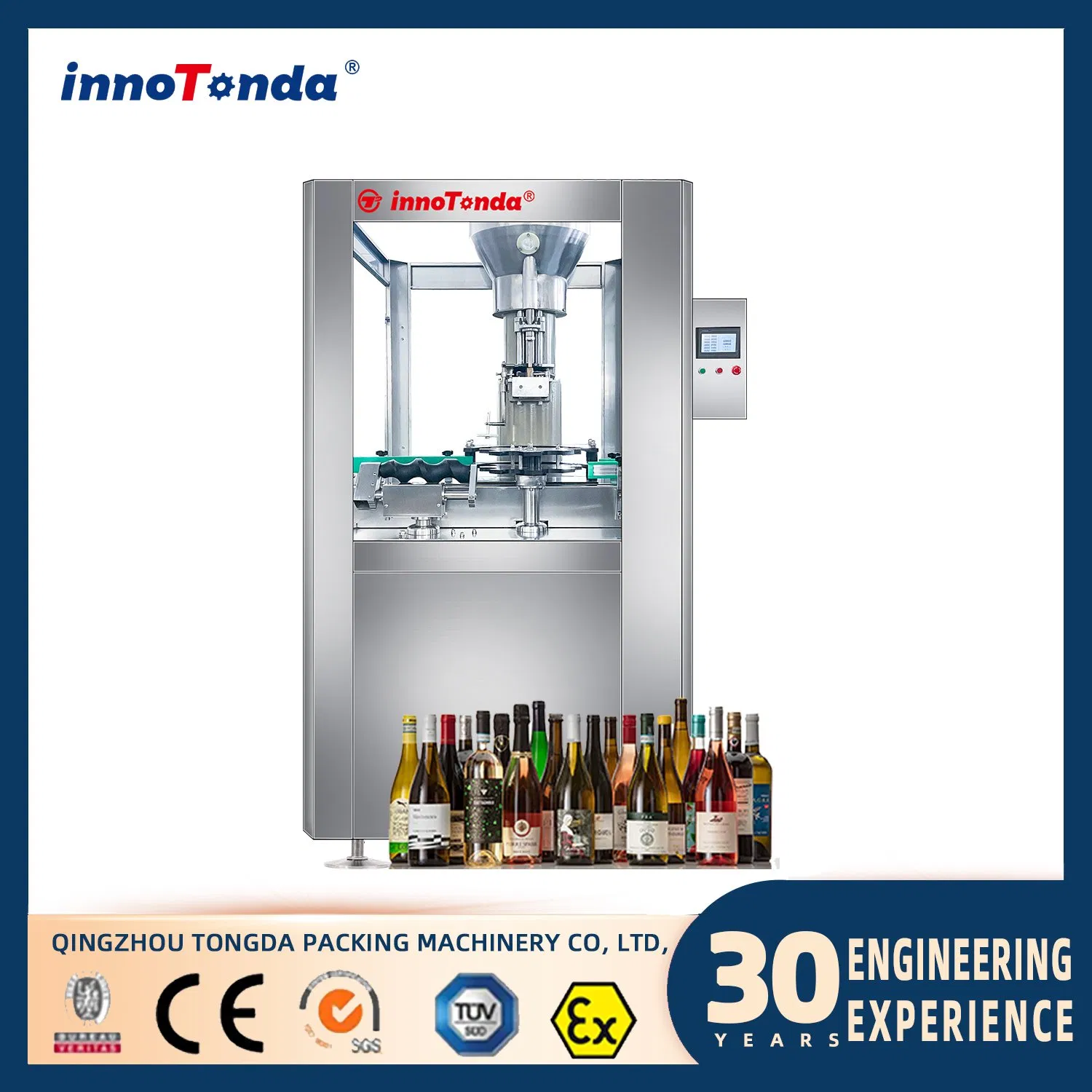

Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
1 / 5
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic
Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic

Liquor Juice Bottle Filler Washing Filling and Corking Capping Sealing Machine Fully Automatic

Customization: Available
After-sales Service: Location Install,Online Guiding
Warranty: 12months
Send Inquiry

Product Description

📋 Basic Information
Model NO.
FDS-1 / FDS-4 / FDS-6
Packaging
Bottles / Wood Carton
Automatic Grade
Automatic
Application
Oil, Tea, Wine, Juice, Alcohol
Product Name
Wine Bottle Corking Machine
Capability
2000-5500 bottles/hour
Bottle Diameter
60-85mm
Bottle Height
250-420mm
Cork Diameter
20.5-23mm
Cork Height
35-45mm
⚙️ Product Description

This machine is primarily designed for soft straight cork capping in glass bottles. Specialized designs can include a nitrogen filling device to maintain product freshness.

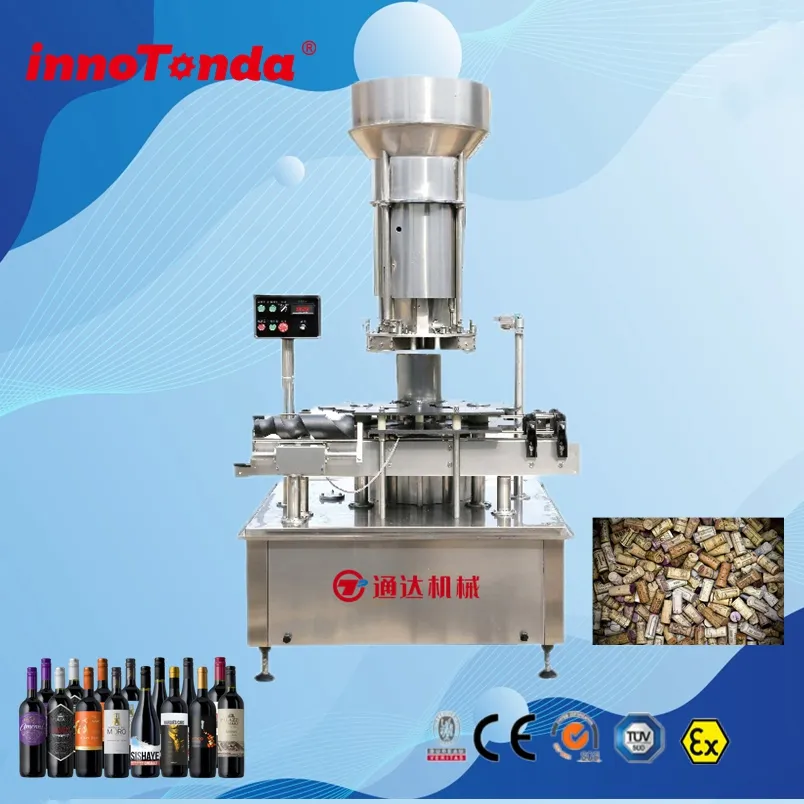

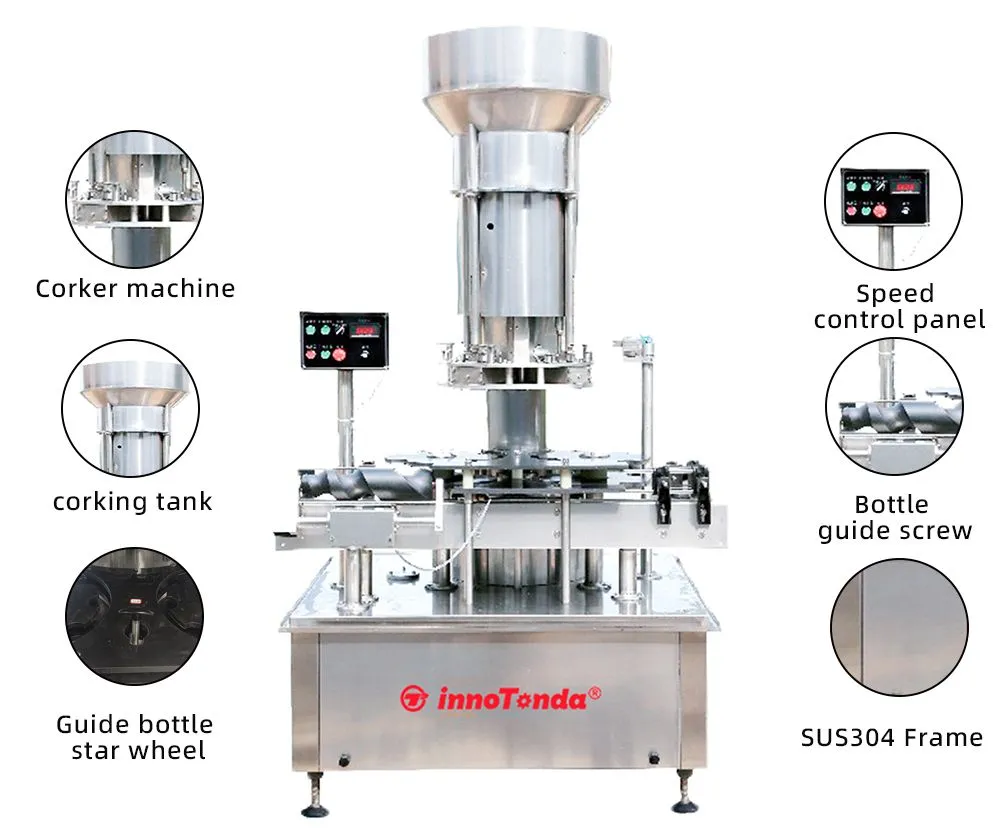

Corking Machine Overview Automatic Sealing Process
📊 Technical Parameters
Model Heads Capacity (b/h) Bottle Specs Cork Specs Power (kw) Dimensions (mm)
Diameter Height Diameter Length
FY-1 1 2000 φ60-φ85mm 250-420mm φ20.5-φ23 35-45 1.5 1150×1150×2100
FY-4 4 4500 φ60-φ85mm 250-420mm φ20.5-φ23 35-45 3.8 1400×1200×2400
FY-6 6 5500 φ60-φ85mm 250-420mm φ20.5-φ23 35-45 3.8 1650×1350×2400
🌟 Core Features & Advantages

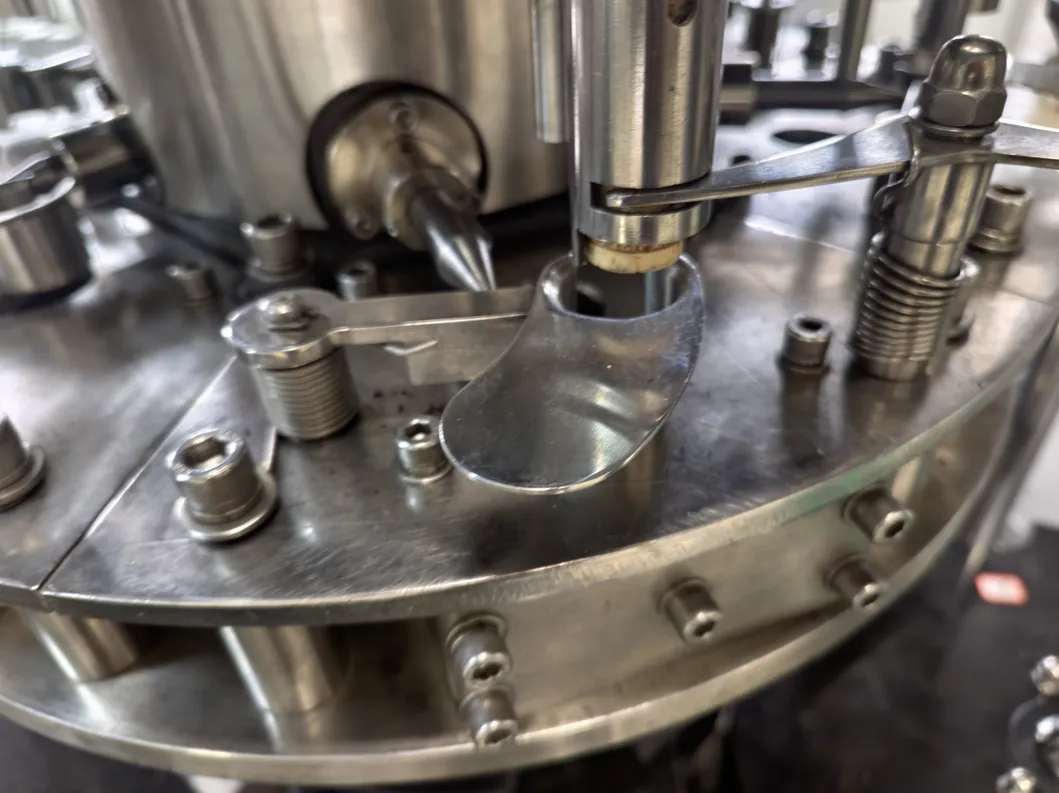

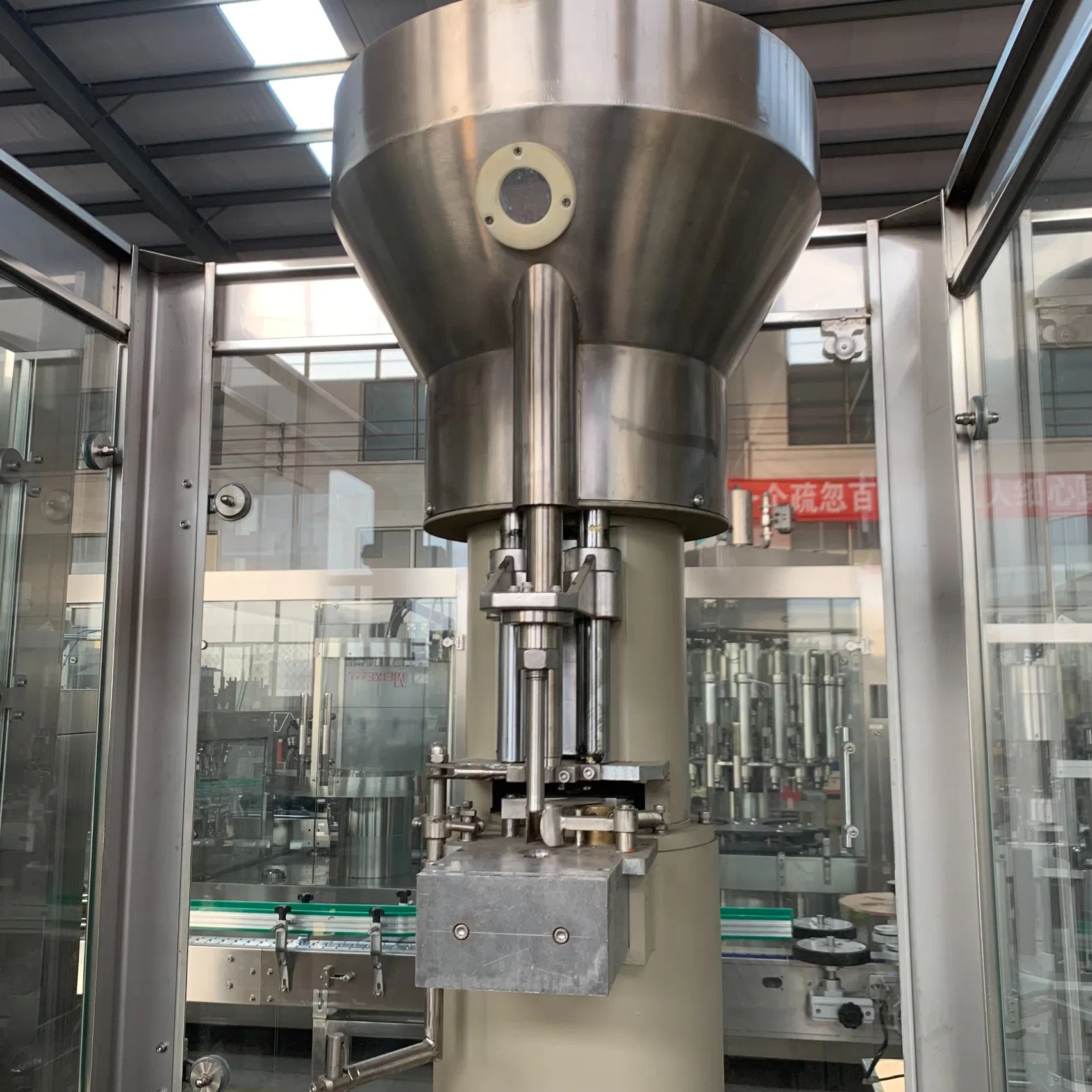

Corking Mechanism
01

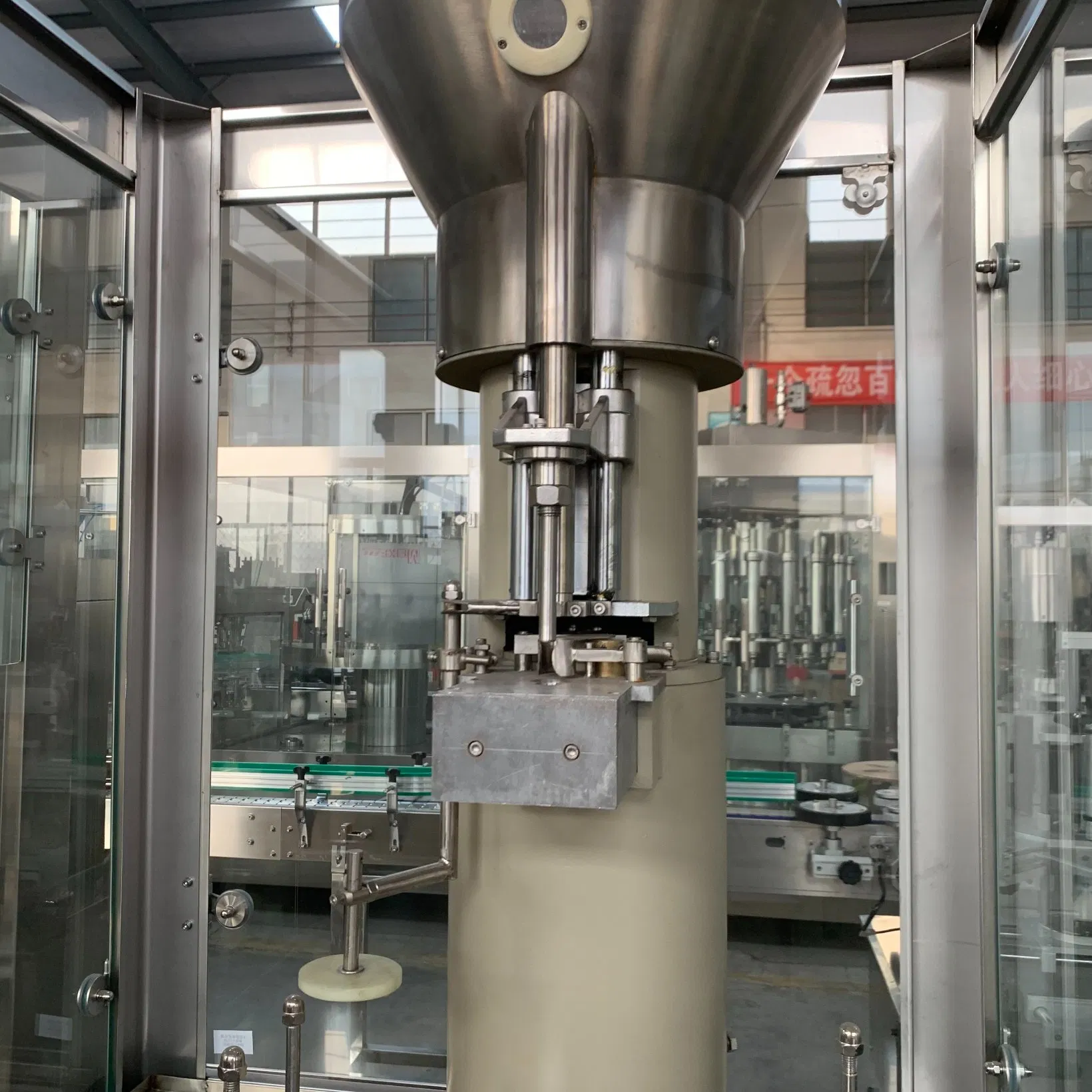

The corking mechanism uses an independent pressing head. Two side sliders compress the cork to the specified diameter for smooth insertion.
02

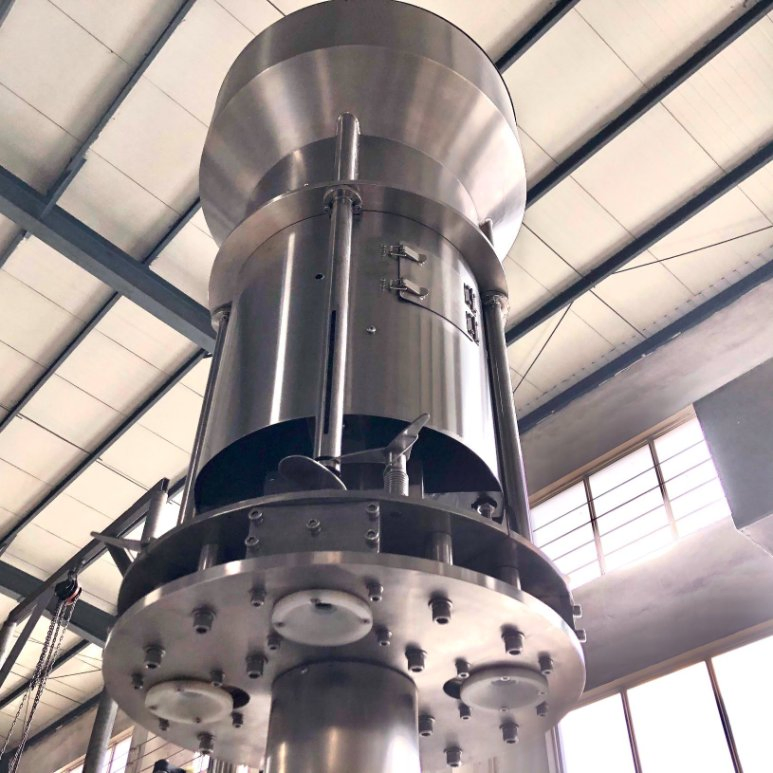

Equipped with an automatic sorting device to organize corks efficiently, reducing labor costs.
03
Features a mechanical "no bottle, no cork" control system to prevent waste and ensure reliability.
04
Compatible with automatic cork feeding machines for a fully integrated production line.

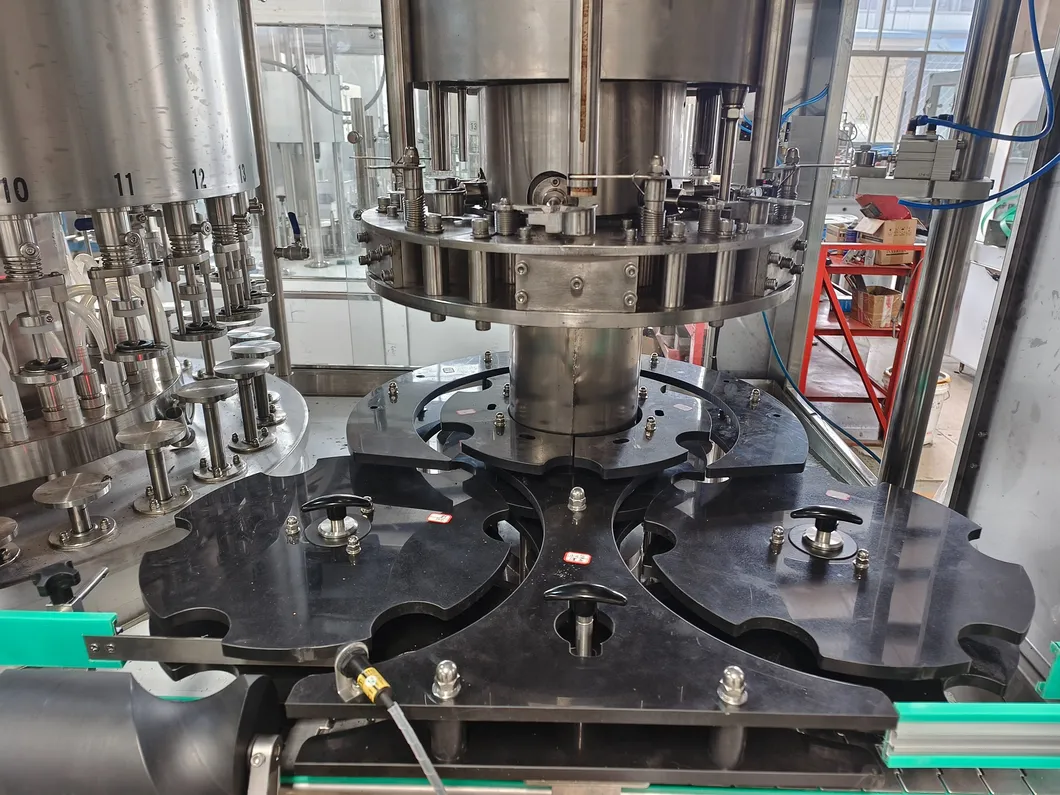

Sorting Device
🥂 Application Versatility
Wine Application
Juice Application
Spirit Application

Suitable for Wine, Juice, Vodka, Alcohol, Olive Oil, Perry, Syrup, and Honey glass bottles.

🔗 Related Packaging Solutions

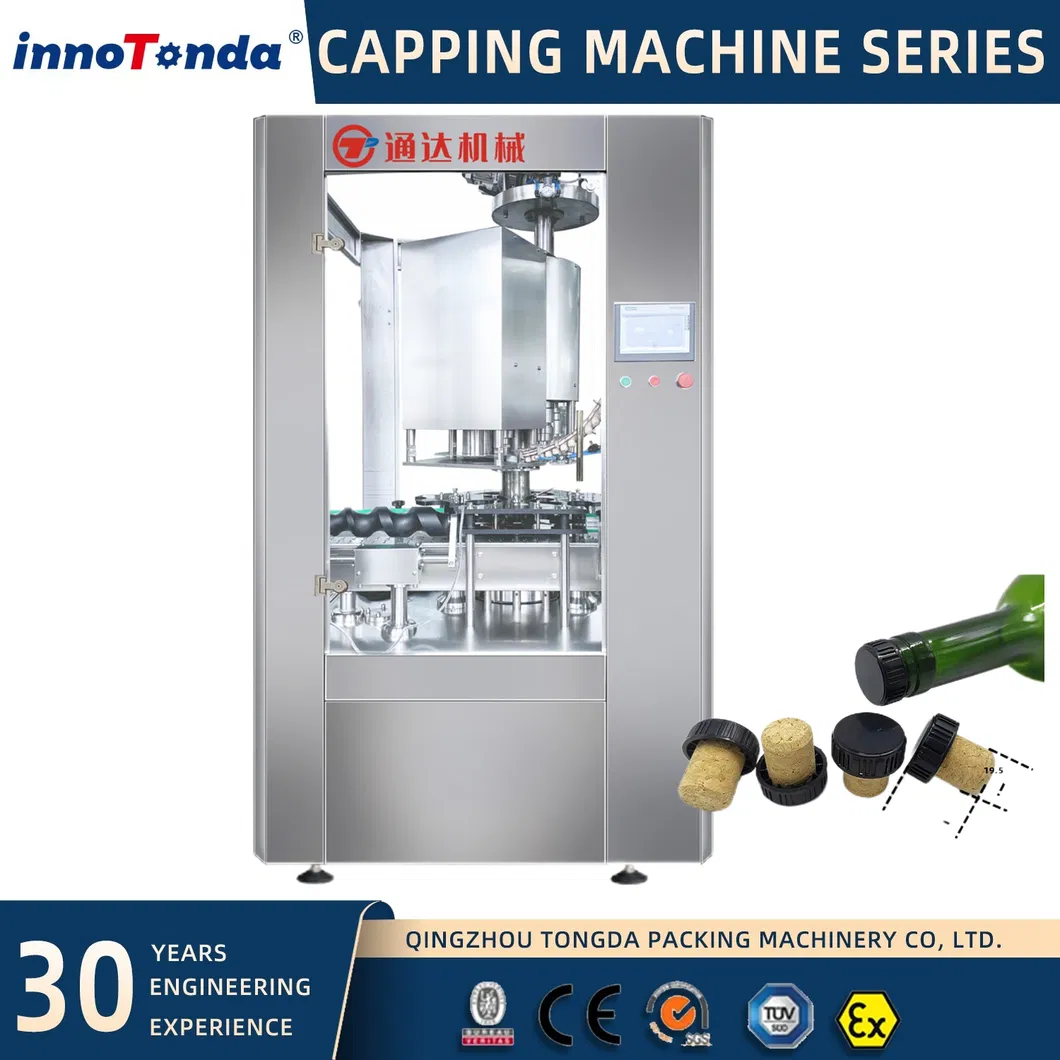

T-Corking Machine

T-Corking Machine

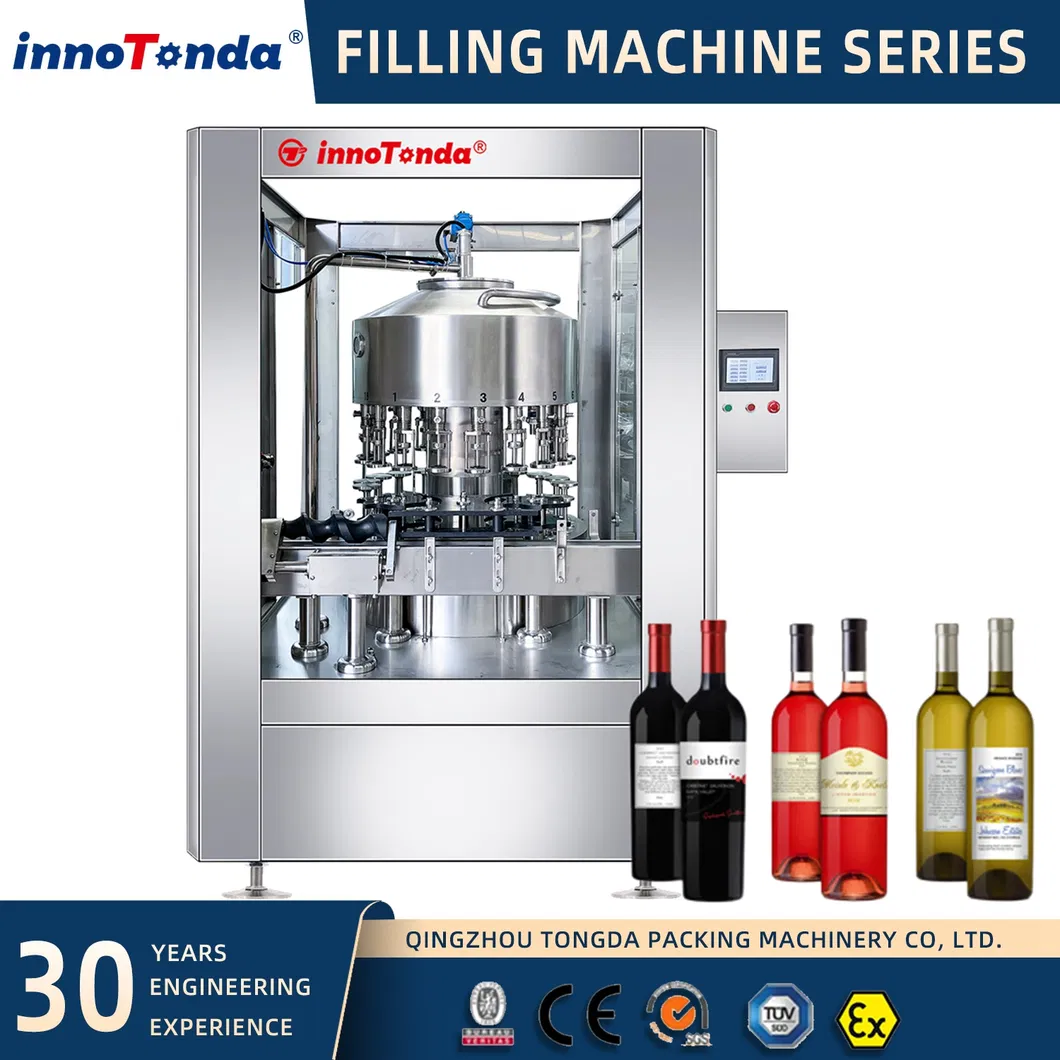

Vacuum Filling Machine

Low Vacuum Filling Machine

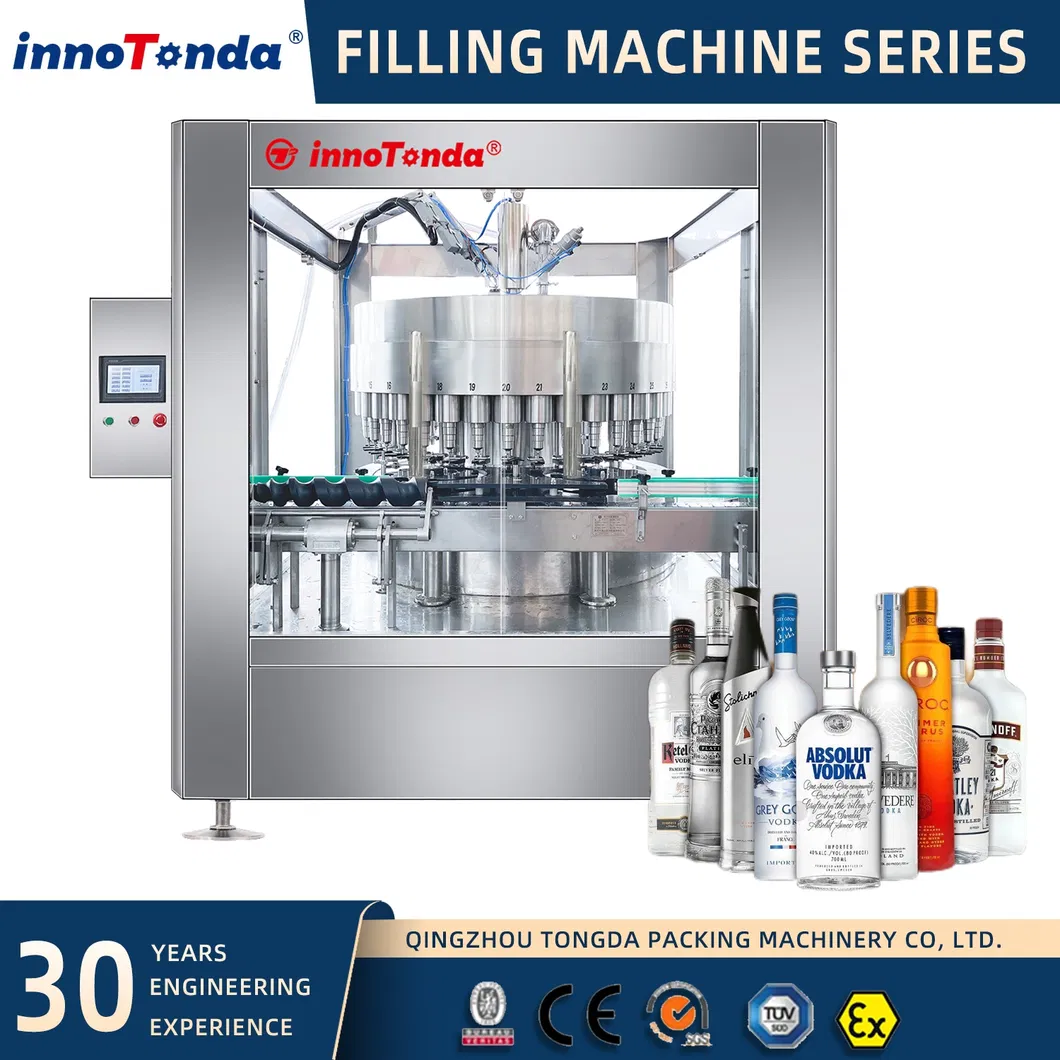

Quantitative Filling Machine

Quantitative Filling Machine

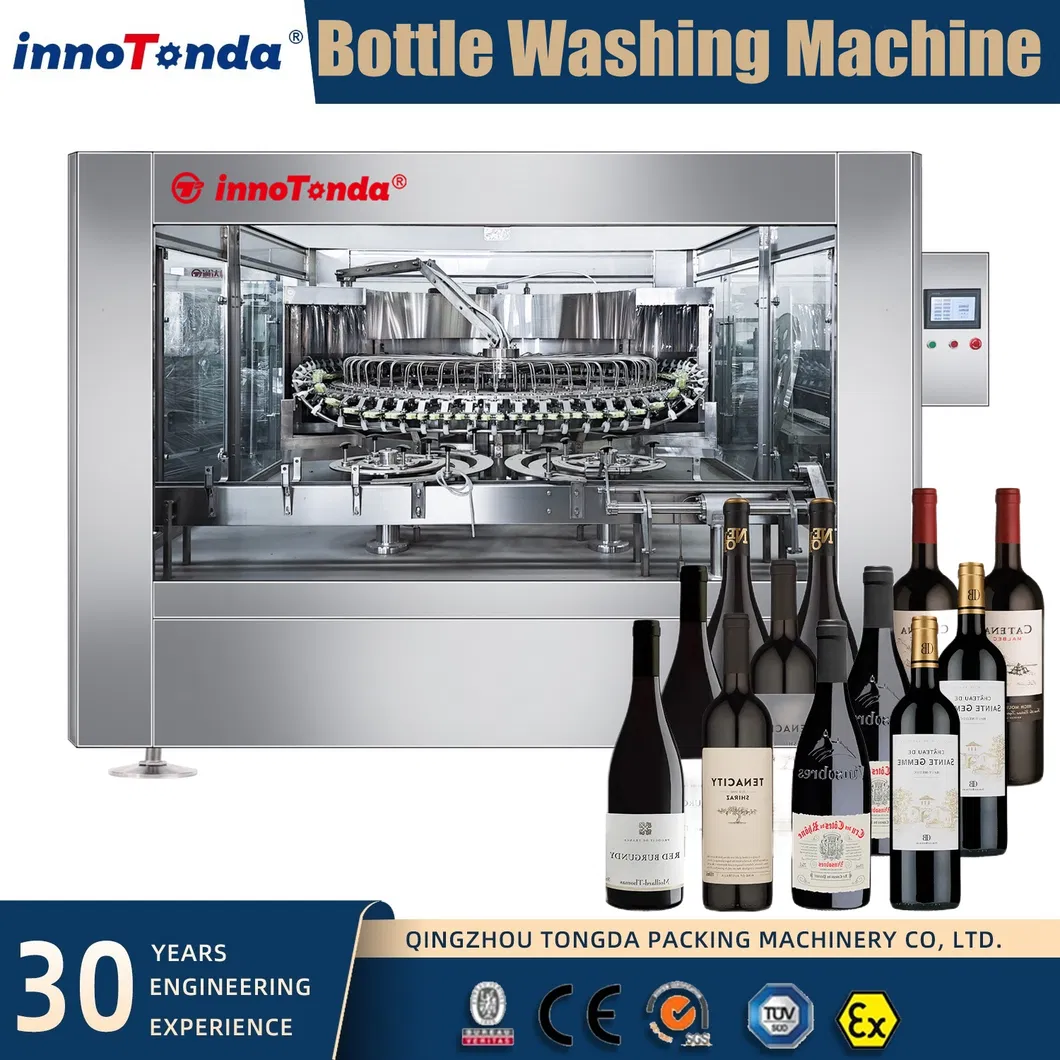

Bottle Washer

Bottle Washing Machine

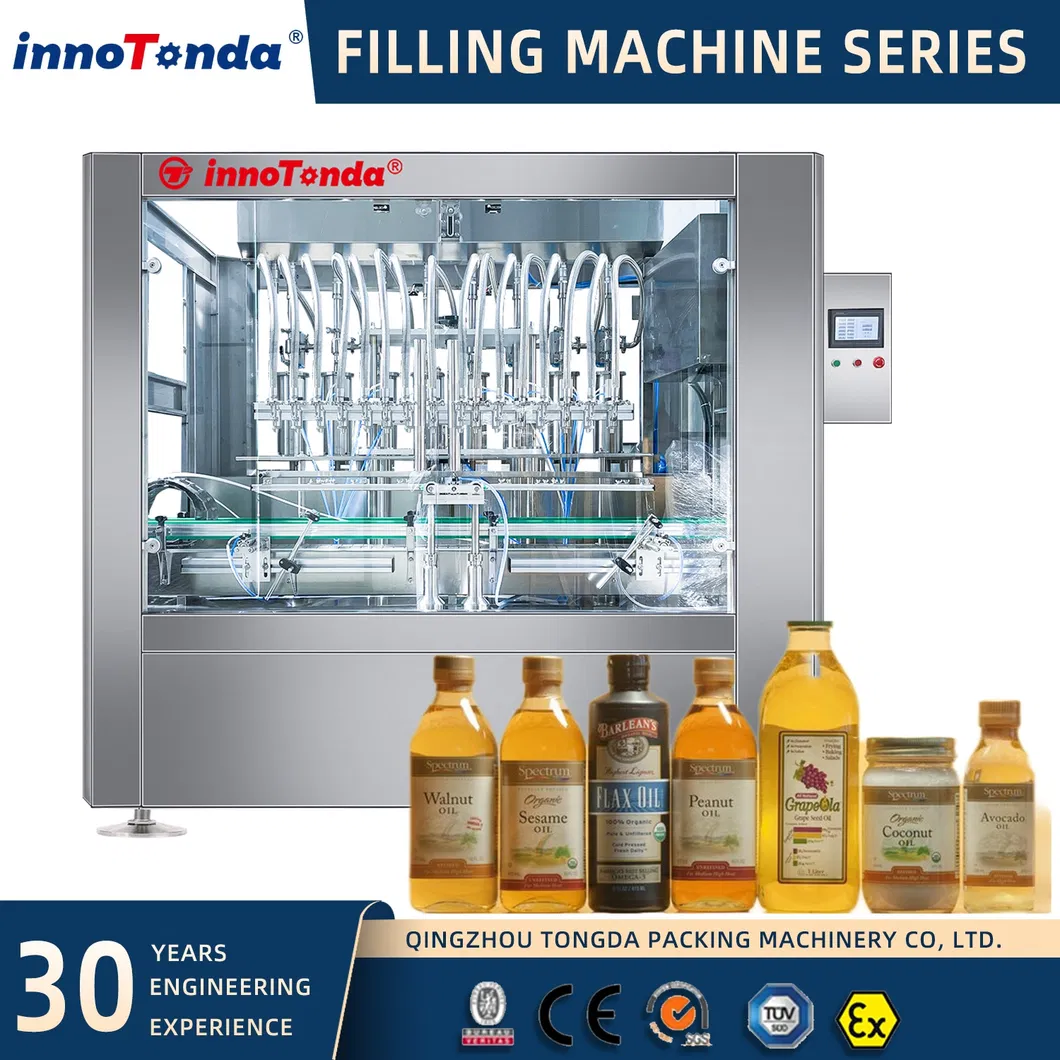

Piston Filler

Linear Piston Filling Machine

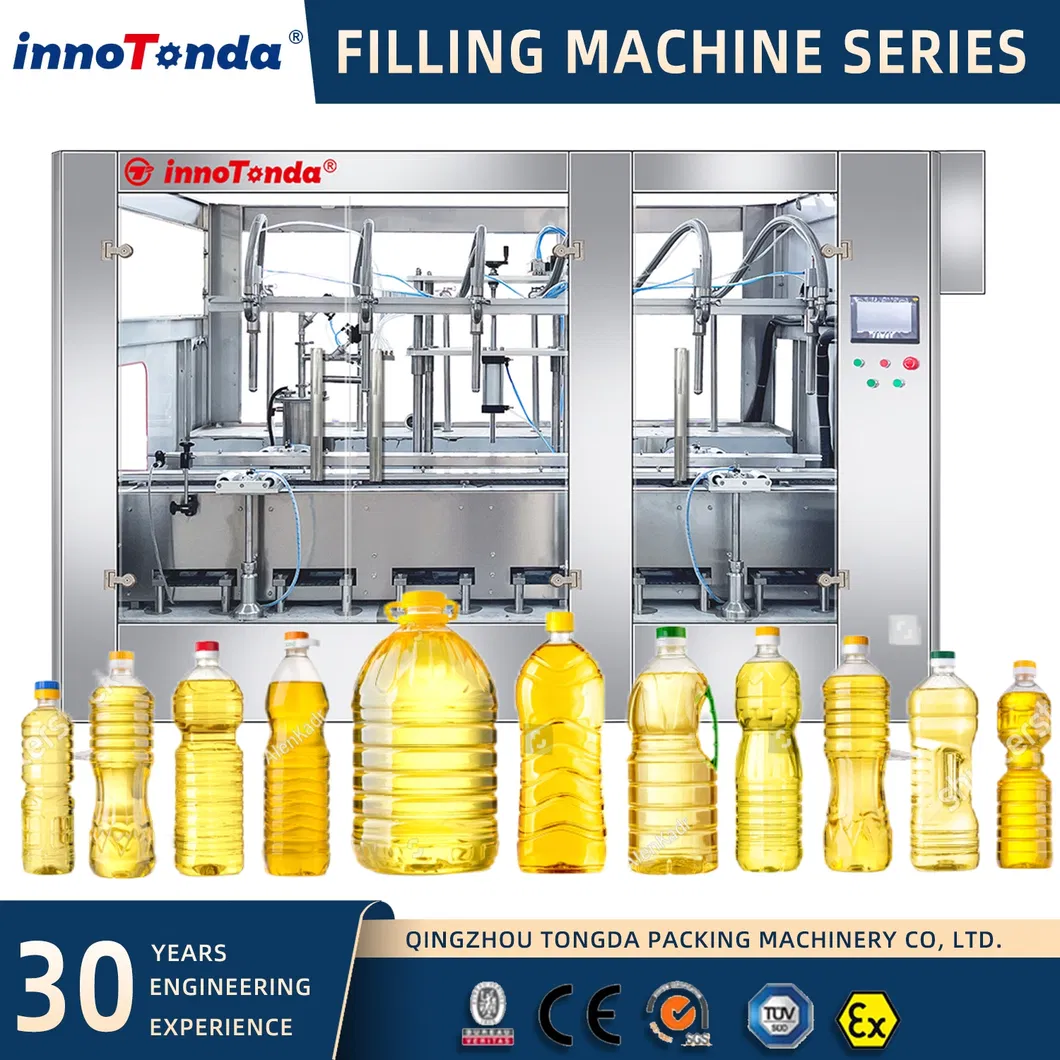

Metering Pump

Linear Metering Pump Machine

📜 Quality Certifications & Shipping

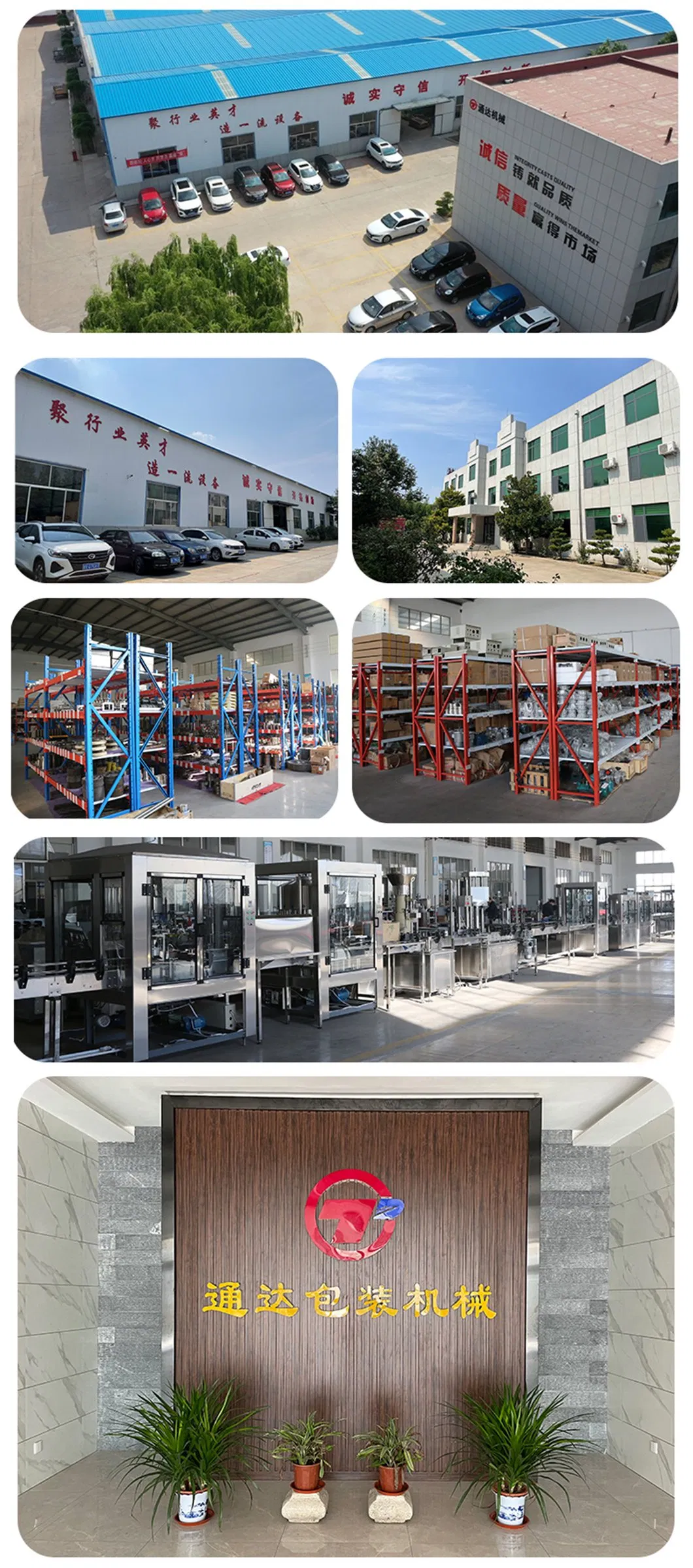

Certifications Packaging and Shipping
❓ Frequently Asked Questions
1. What is your machine sample service?
We provide operation videos of finished machines and welcome factory visits. We can also coordinate visits to existing customer sites to see the equipment in a live production environment.
2. What kind of after-sales support do you offer?
We offer overseas technical support, including installation, commissioning, and operator training. All machines come with a 12-month warranty including free parts and lifelong technical assistance.
3. How are spare parts handled?
Upon project completion, we provide a comprehensive spare parts list for your reference and maintain a stock of essential components for quick delivery.
4. Can I monitor the machine production process?
Yes, we provide regular updates on the manufacturing status. Once completed, you are invited to test the machine at our facility, or we can provide detailed testing videos for your approval.
5. Do you offer customization for specific bottle types?
Absolutely. We design machines based on your specific requirements including material type, power needs, filling methods, and unique bottle shapes. We also offer factory layout consultations.
6. Is the machine compatible with different cork sizes?
The standard model adapts to cork diameters of 20.5-23mm and lengths of 35-45mm, but we can adjust these parameters to meet your specific packaging standards.
