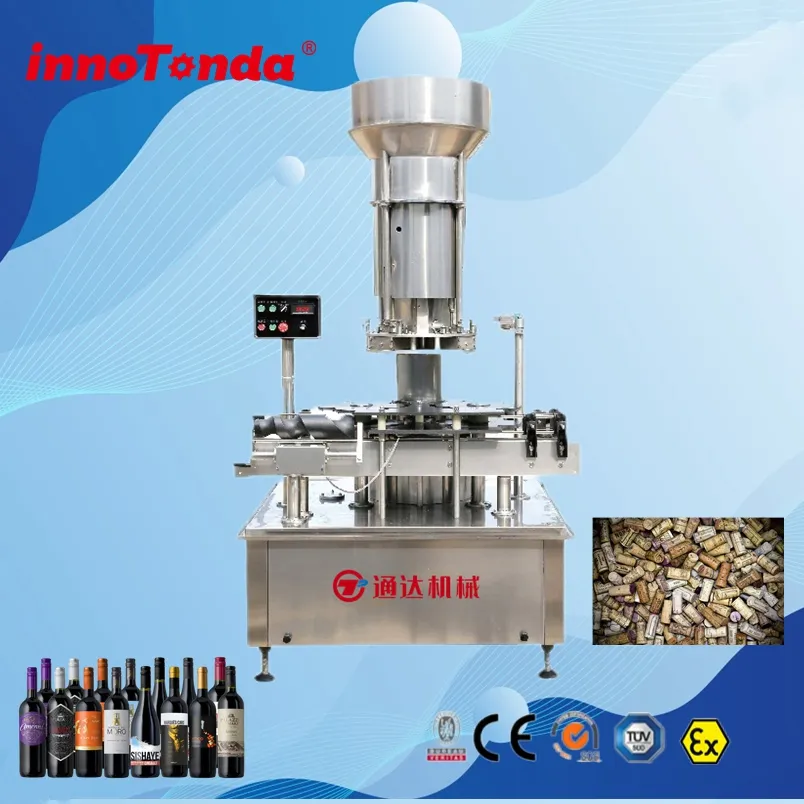

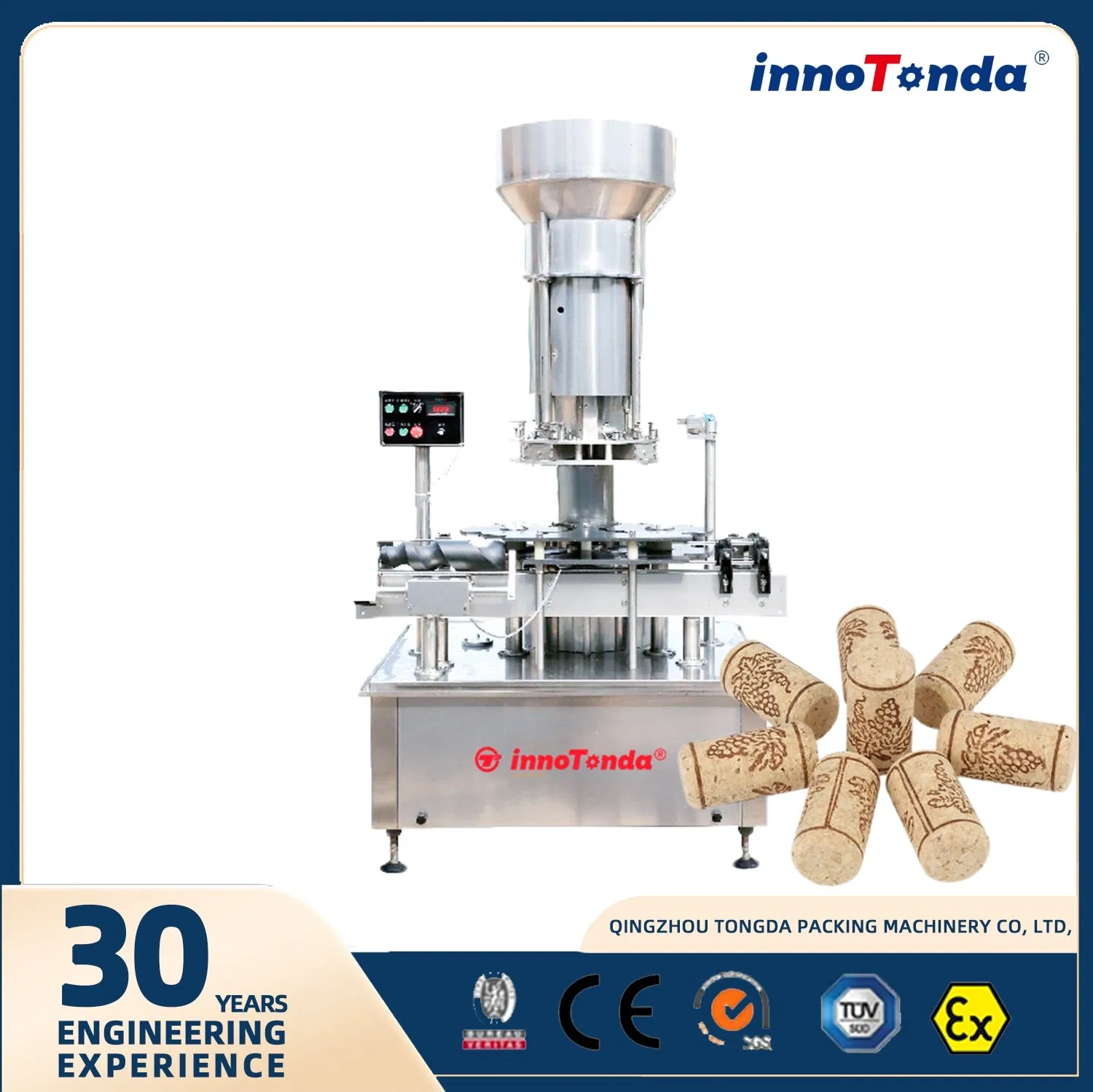

This machine is mainly designed for soft straight cork capping. Some designs include an optional nitrogen filling device to ensure product longevity and quality.
| Model | Head | Production (b/h) | Bottle | Cork | Power (kw) | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Diameter | Height | Diameter | Length | |||||
| FY-1 | 1 | 2000 | φ60-φ85mm | 250-420mm | φ20.5-φ23 | 35-45 | 1.5 | 1150×1150×2100 |
| FY-4 | 4 | 4500 | φ60-φ85mm | 250-420mm | φ20.5-φ23 | 35-45 | 3.8 | 1400×1200×2400 |
| FY-6 | 6 | 5500 | φ60-φ85mm | 250-420mm | φ20.5-φ23 | 35-45 | 3.8 | 1650×1350×2400 |
This machine is primarily used for corking glass bottles with precision and reliability.

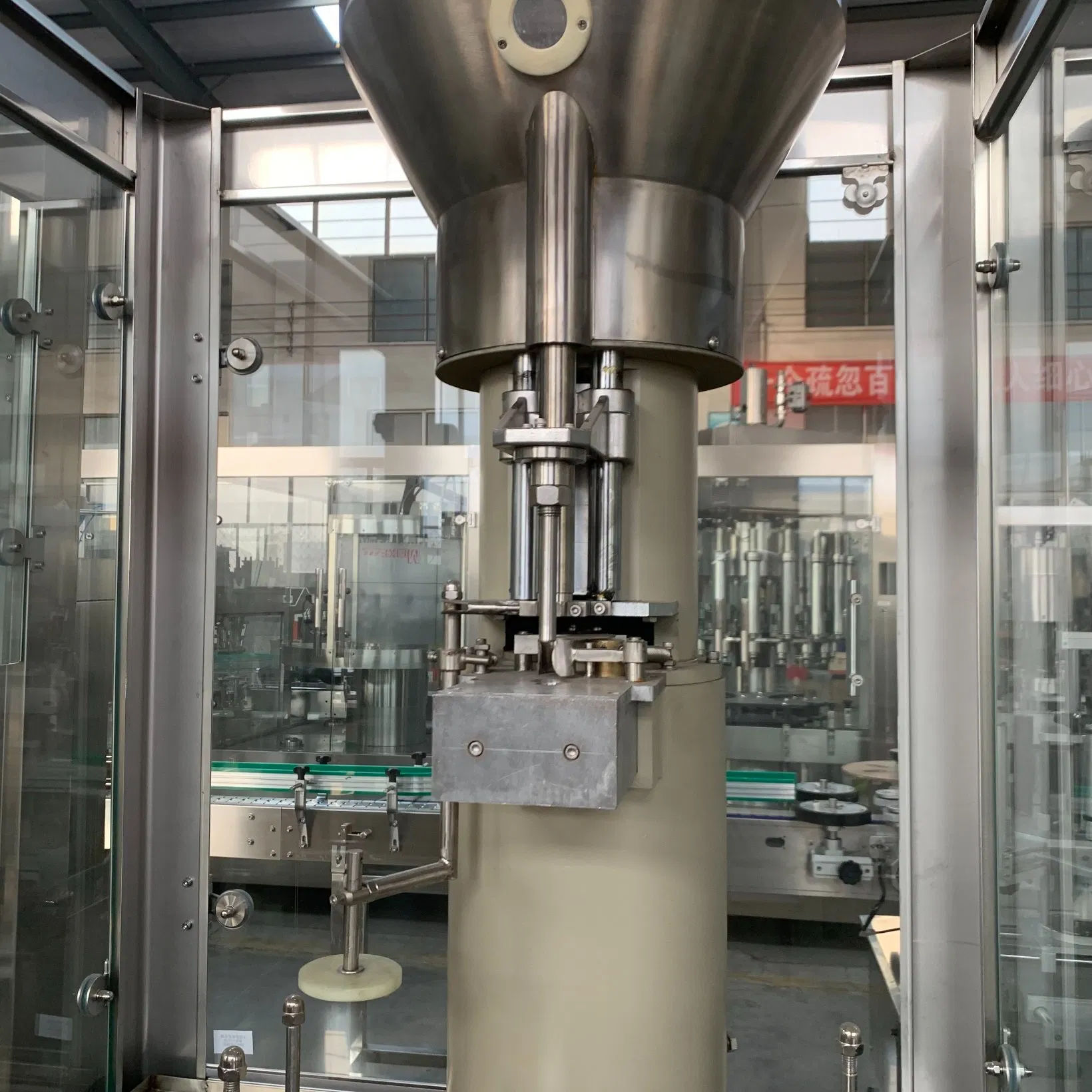

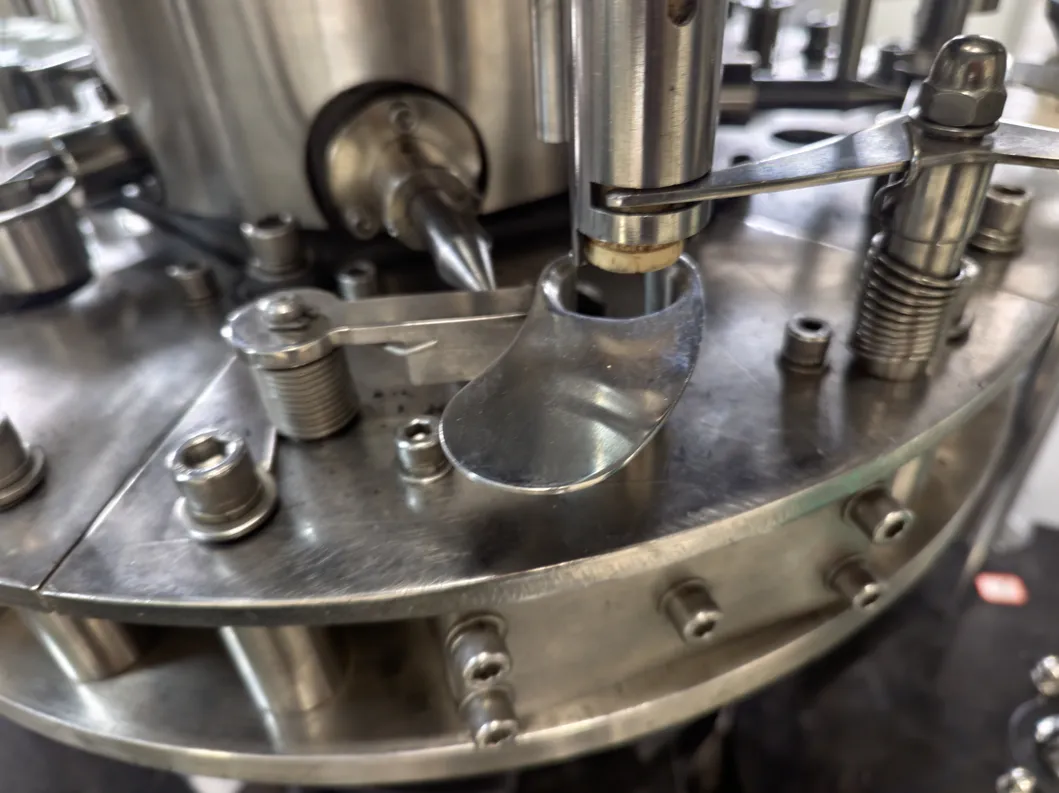

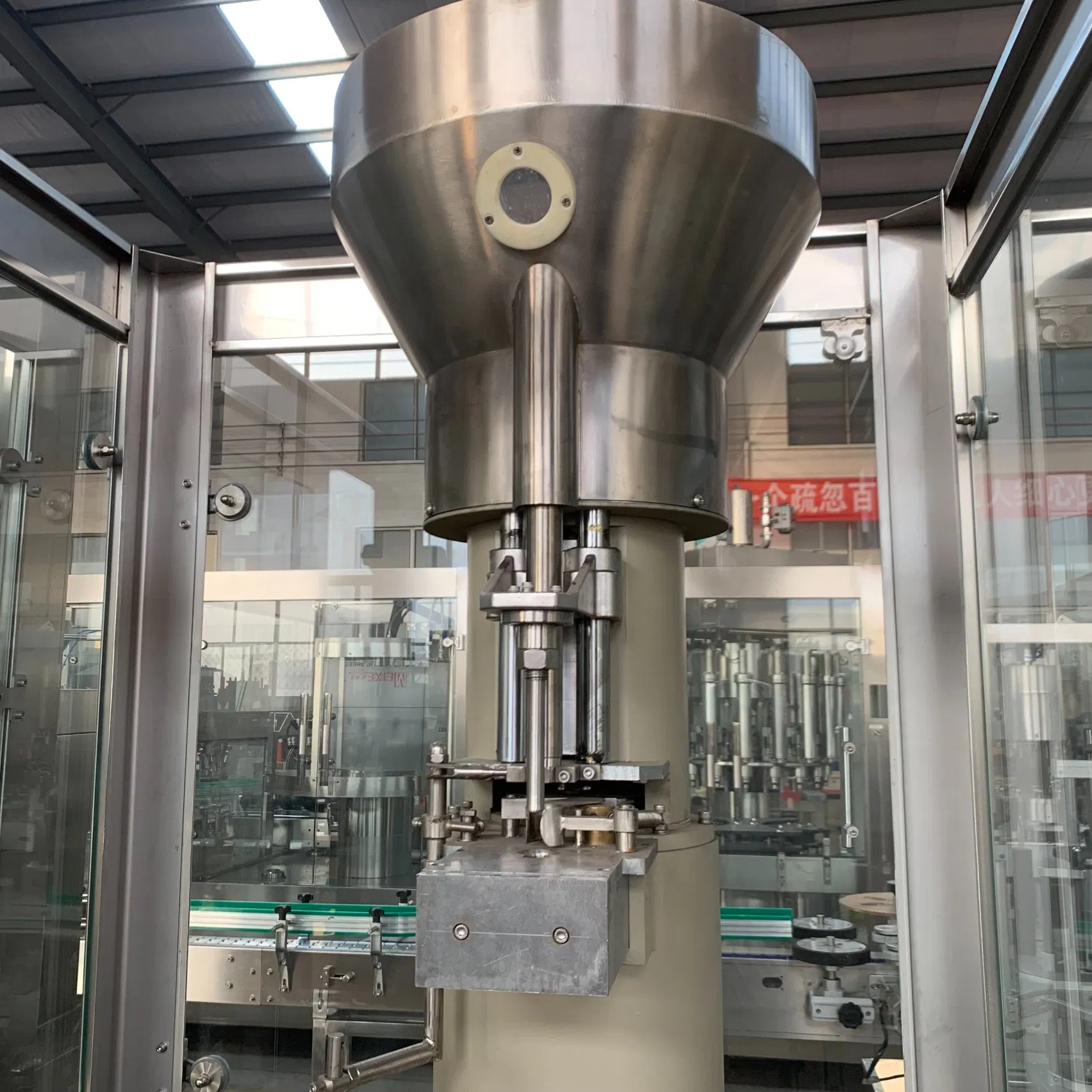

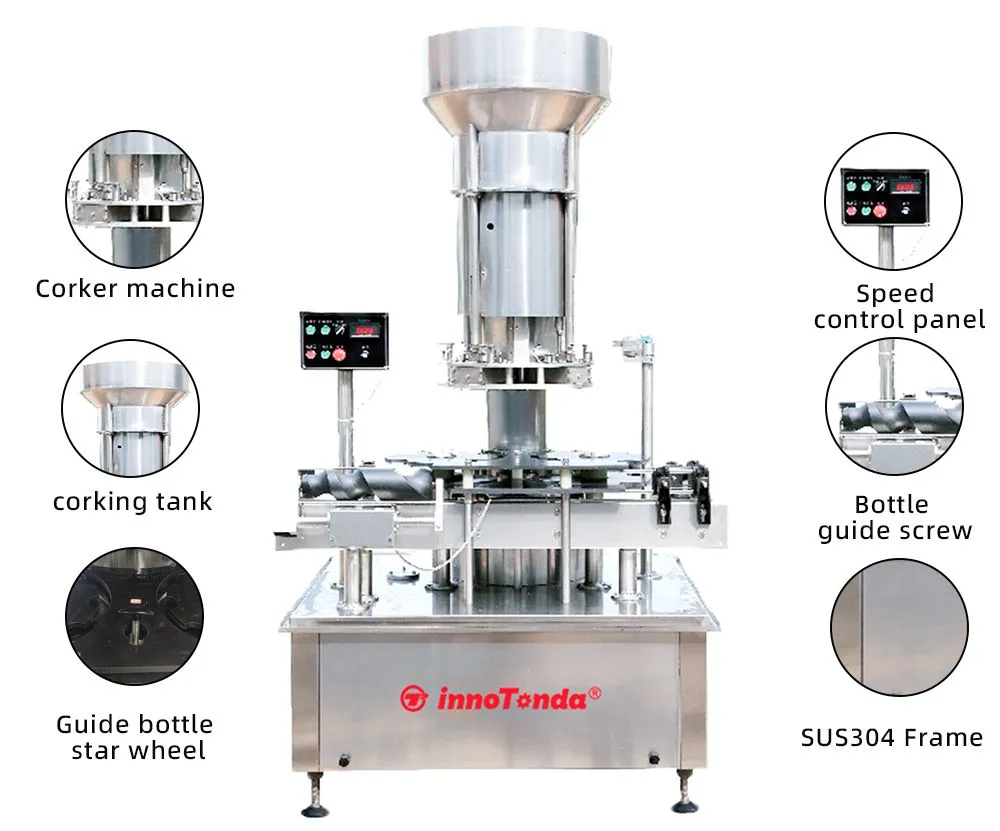

The corking mechanism uses an independent pressing head. Two side sliders compress the cork to the specified diameter for smooth insertion.
Equipped with a cork sorting device that automatically organizes corks, saving labor costs.
Features a mechanical sensor to control cork dropping, ensuring no corks are wasted if no bottle is detected.

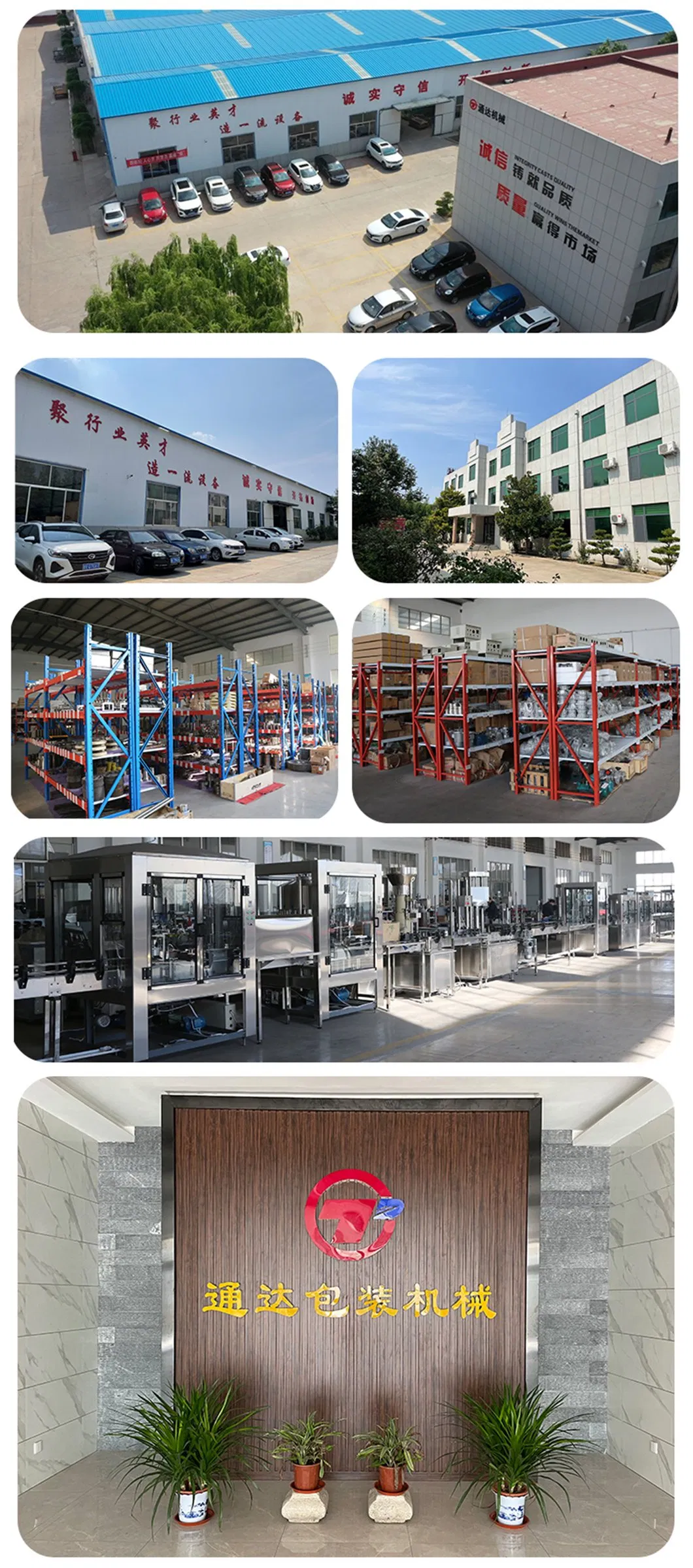

Specializing in liquid filling machinery for spirits, wine, fruit wine, sauces, syrups, edible oils, and fertilizers. Our facilities cover 41,000 m² with a modern 42,000 m² workshop.
Utilizing advanced CNC machining centers and CAD/CAM technologies, we maintain a strict quality control system with ISO 9001, ISO 2000, CE, and ATEX certifications. Our commitment is to remain professional, dedicated, and meticulous in every product we deliver.
Our machinery is trusted in over 30 countries, including the United States, Canada, the UK, Germany, Australia, and the UAE.
We can provide videos of the finished machine or welcome you to visit our factory to see the machines running in person. If permitted, we can also provide contact info for existing customers so you can visit their production sites.
We send technicians overseas for commissioning and operator training. The warranty period is 12 months, during which we provide free parts and technical support. Post-warranty, we continue to offer free technical support and parts at cost.
After final setup and testing, we provide a comprehensive spare parts list for your future reference and maintenance needs.
We provide regular manufacturing updates. Once finished, we invite you for factory testing. Alternatively, we can provide detailed testing videos before arranging shipping.
We design machines based on your specific requirements (material, power, filling type, bottle specs). We also provide professional consultations and factory layout drawings.
Our machinery complies with international standards and holds ISO 9001, ISO 2000, CE, and ATEX certifications to ensure global compliance and safety.
