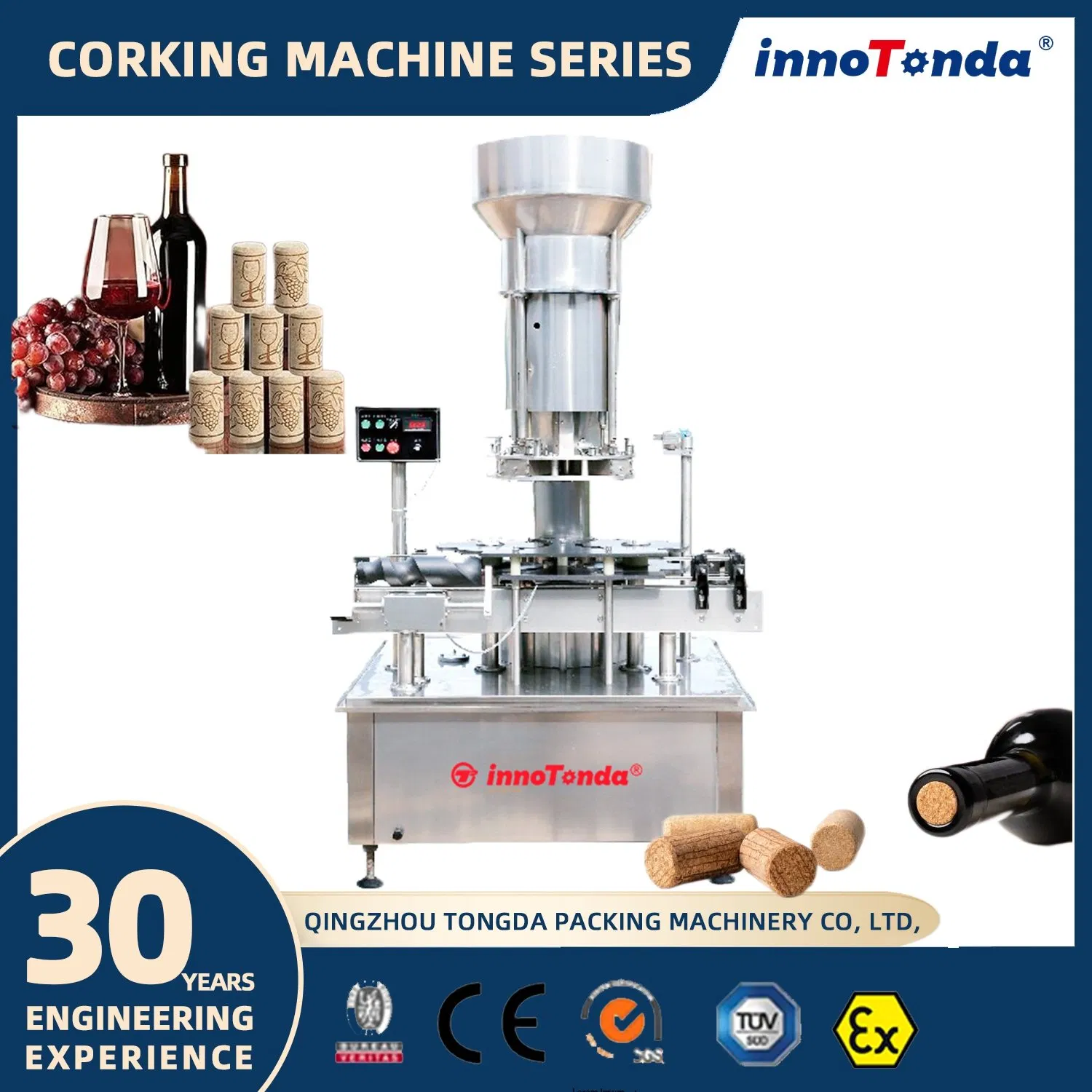

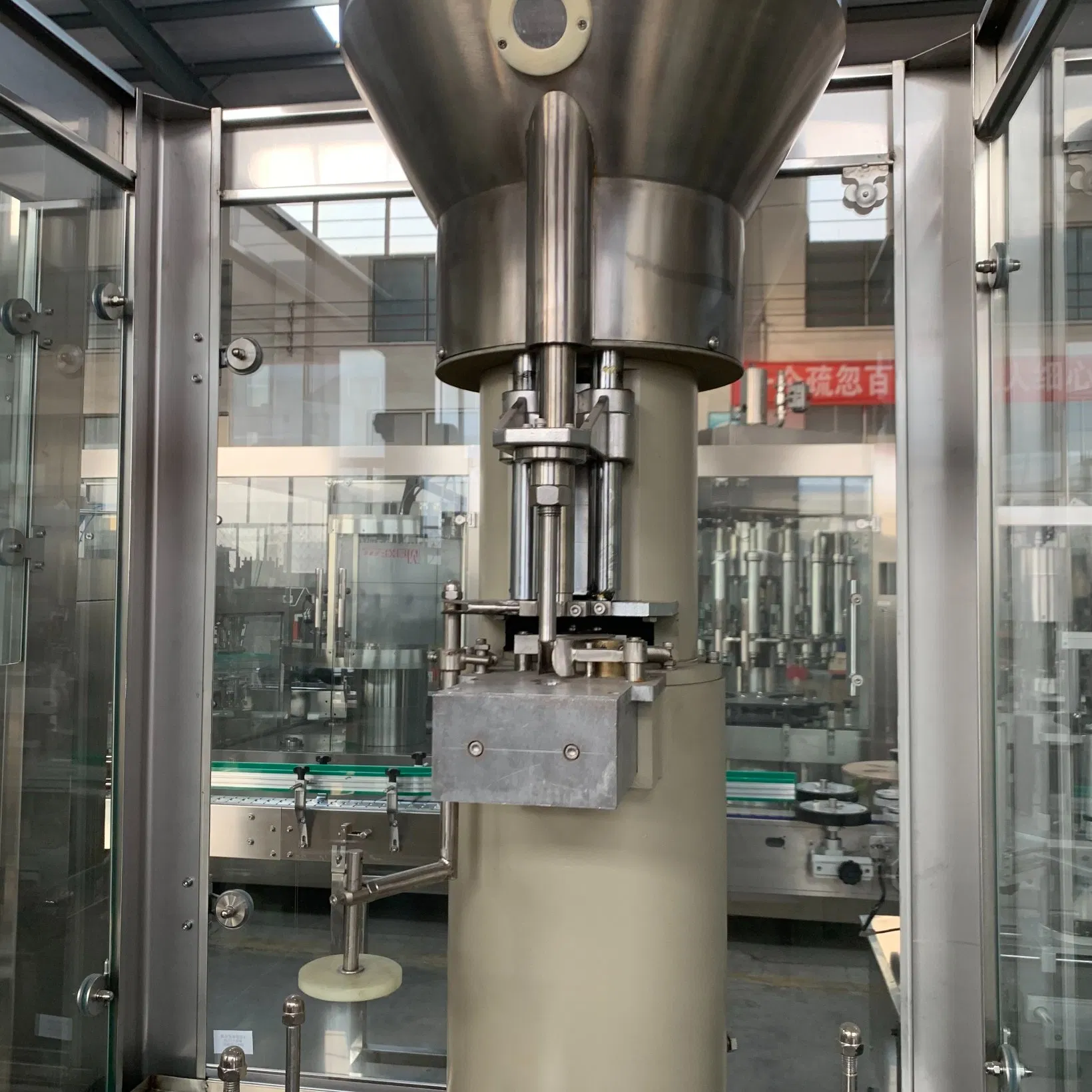

Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
1 / 5
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine
Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine

Bottle Cap Sealing Machine / Automatic Corking Machine / Bottle Capping Machine

Customization: Available
After-sales Service: Location Install,Online Guiding
Warranty: 12months
Send Inquiry

Product Description

📋 Basic Information
Model NO.
FDS-1/FDS-4/FDS-6
Packaging
Bottles
Automatic Grade
Automatic
Packaging Material
Glass
Application
Oil, Wine, Liquid
Type
Sealing Machine
Product Name
Wine Bottle Corking Machine
Capability
2000-5500 bottles/hour
Bottle Diameter
60-85mm
Bottle Height
250-420mm
Cork Diameter
20.5-23mm
HS Code
8422309090
📍 Product Description

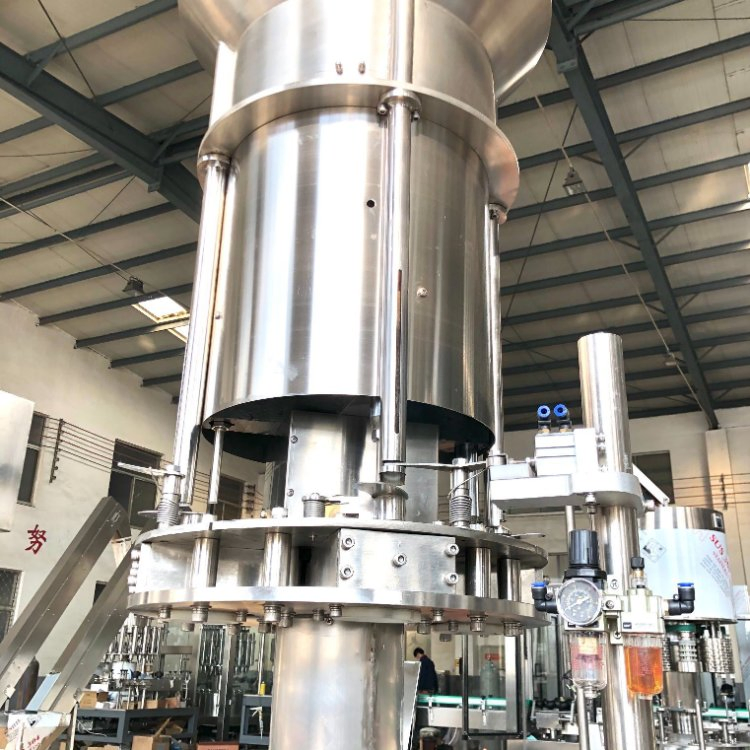

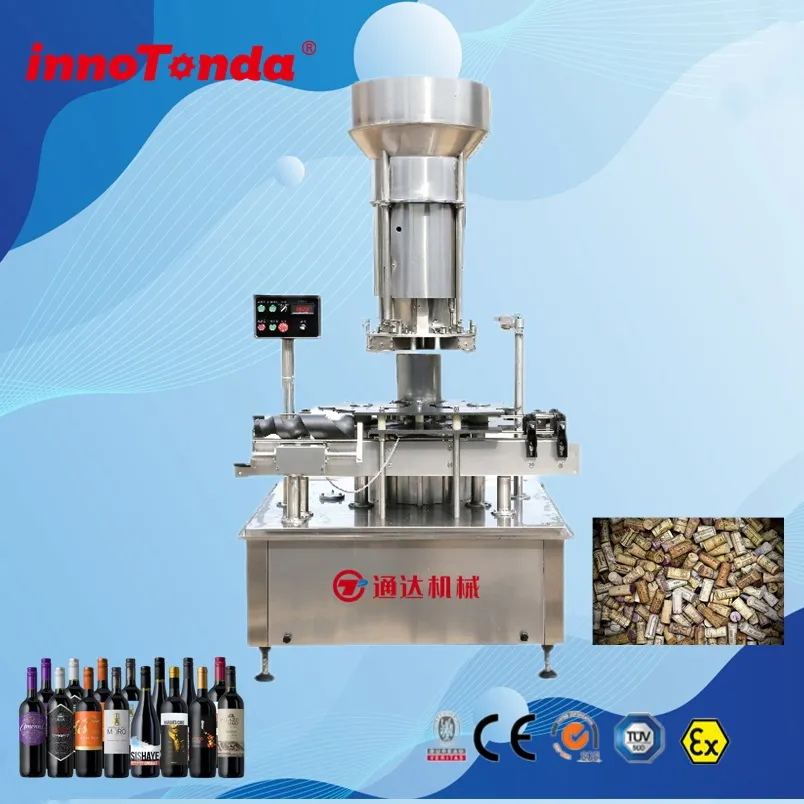

Automatic Corking Machine

Professional solution for soft straight cork capping with optional nitrogen filling device.

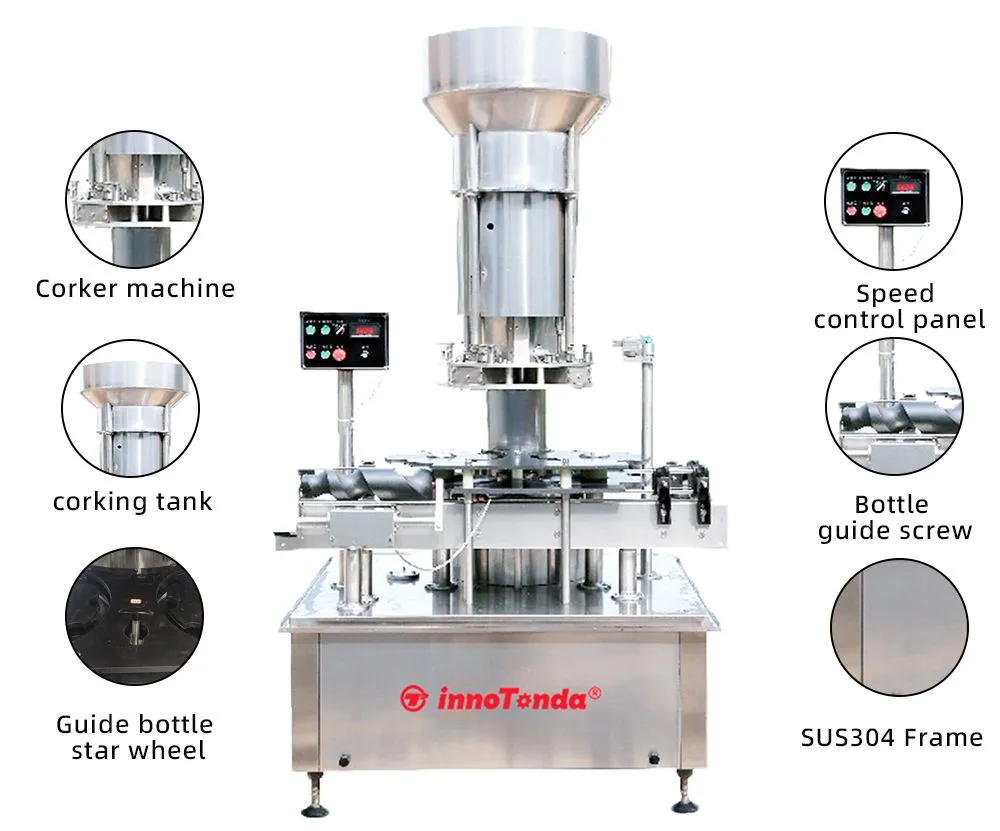

Bottle Sealing Process
⚙ Product Parameters
Model Heads Production (b/h) Bottle Size (mm) Cork Size (mm) Power (kw)
Diameter Height Diameter Length
FY-1 1 2000 φ60-φ85 250-420 φ20.5-φ23 35-45 1.5
FY-4 4 4500 φ60-φ85 250-420 φ20.5-φ23 35-45 3.8
FY-6 6 5500 φ60-φ85 250-420 φ20.5-φ23 35-45 3.8
✔ Key Features & Advantages

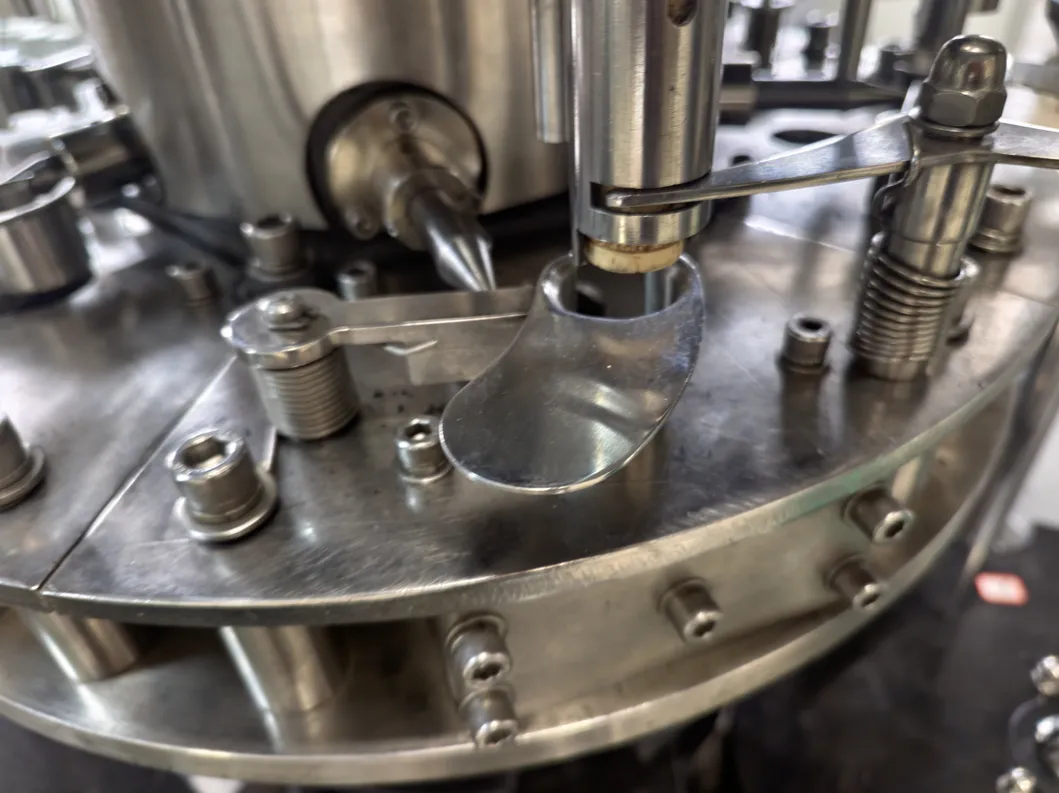

Corking Mechanism
  • 1. Primarily used for corking glass bottles with precision and stability.
  • 2. Independent pressing head design with side sliders to compress corks smoothly.
  • 3. Automatic cork sorting device reduces labor costs and increases reliability.
  • 4. Mechanical control ensures no corks are dropped if no bottle is present.

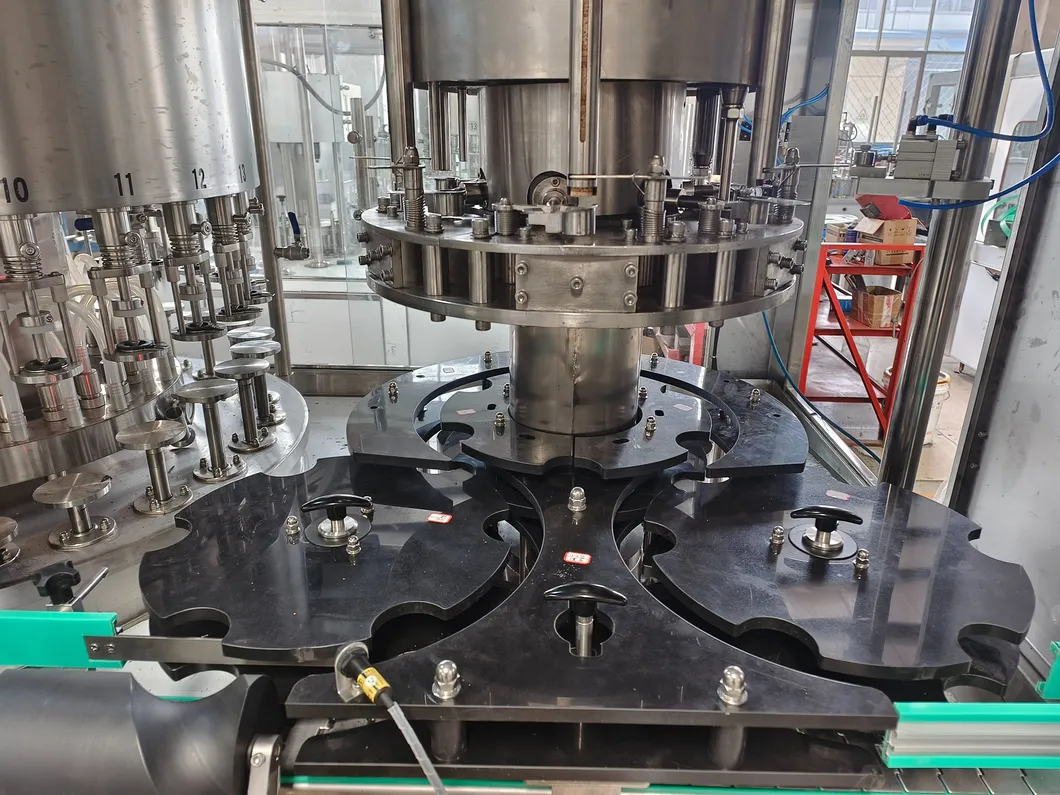

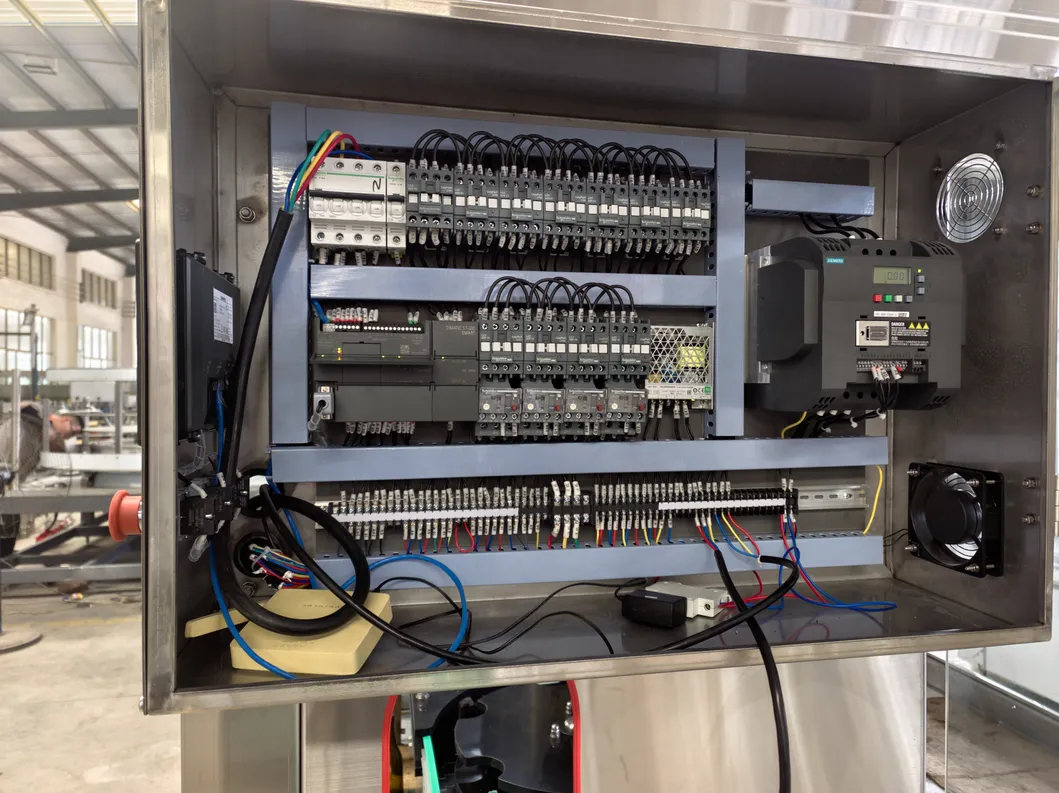

Control System
Automatic Feeding
  • 5. Can be integrated with an automatic cork feeding machine for full automation.
📦 Wide Applications
Wine Application
Vodka Application
Olive Oil Application
🏭 Production Capability

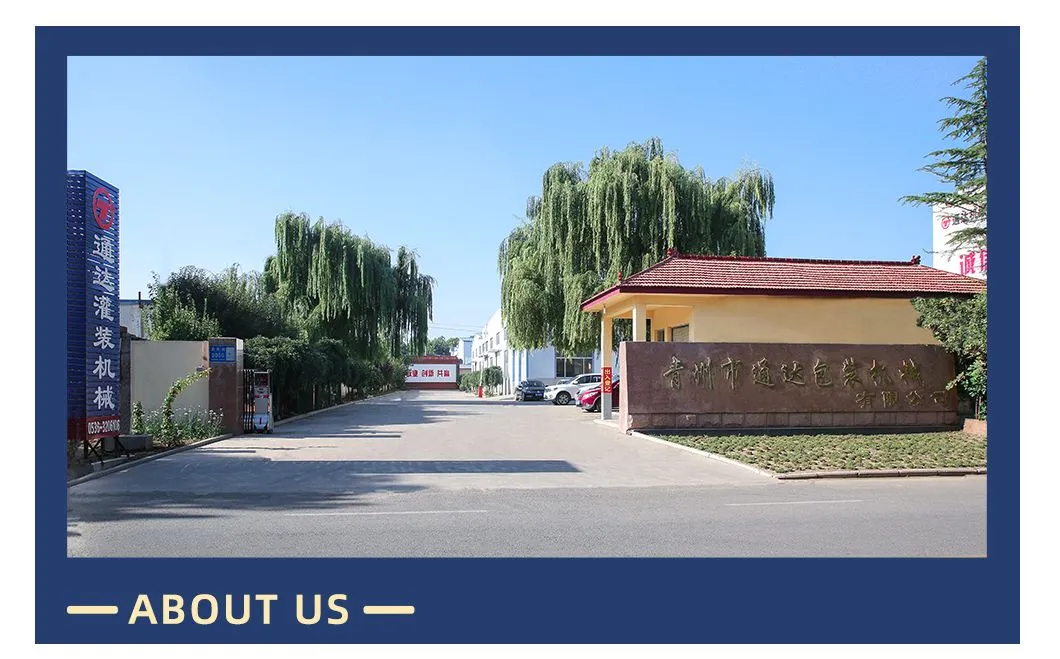

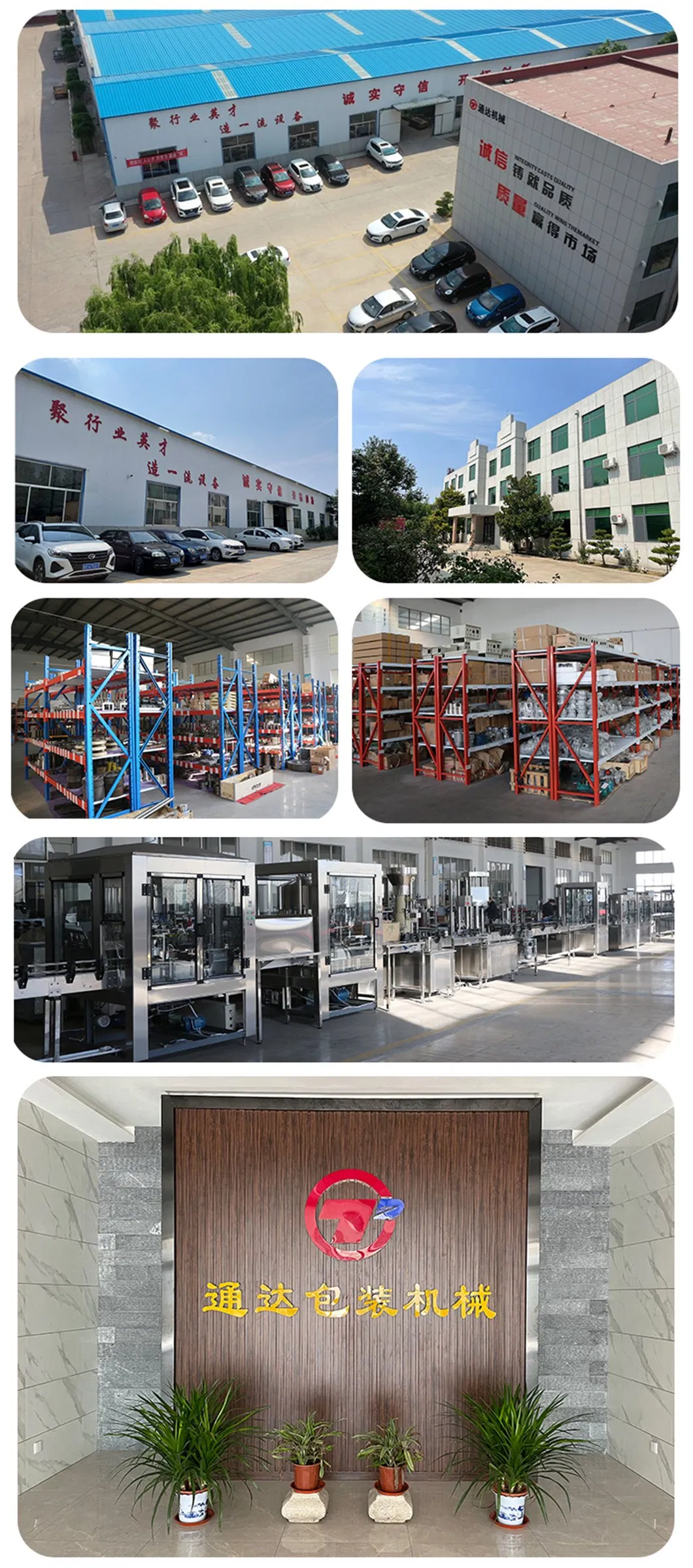

Factory Workshop

Our facility specializes in liquid filling machinery for spirits, wine, fruit wine, sauces, syrups, and edible oils. Equipped with advanced CNC machining centers and utilizing CAD/CAM/CNC technologies, we maintain a strict quality control system and hold ISO 9001, ISO 2000, CE, and ATEX certifications.

🔄 Related Products

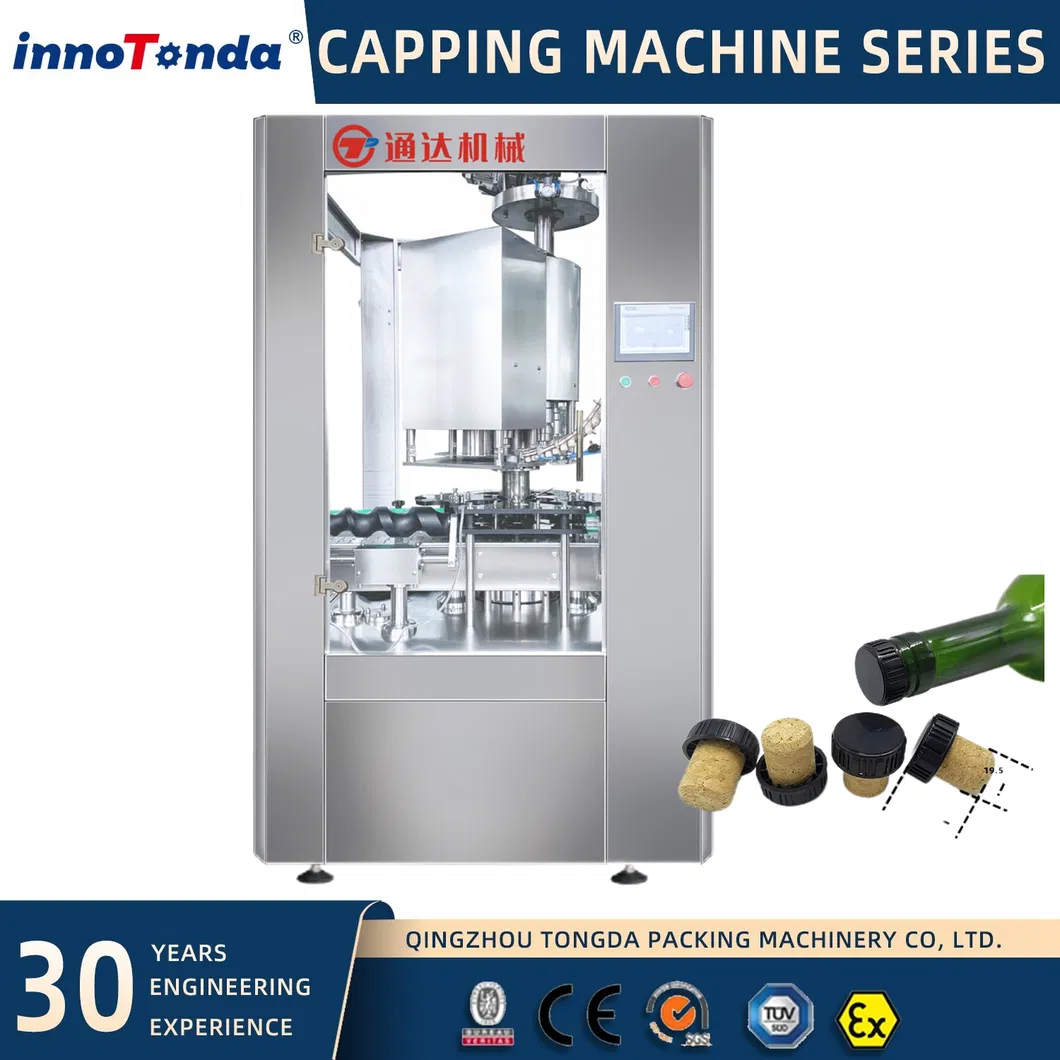

T-Corking Machine
T-Corking Machine

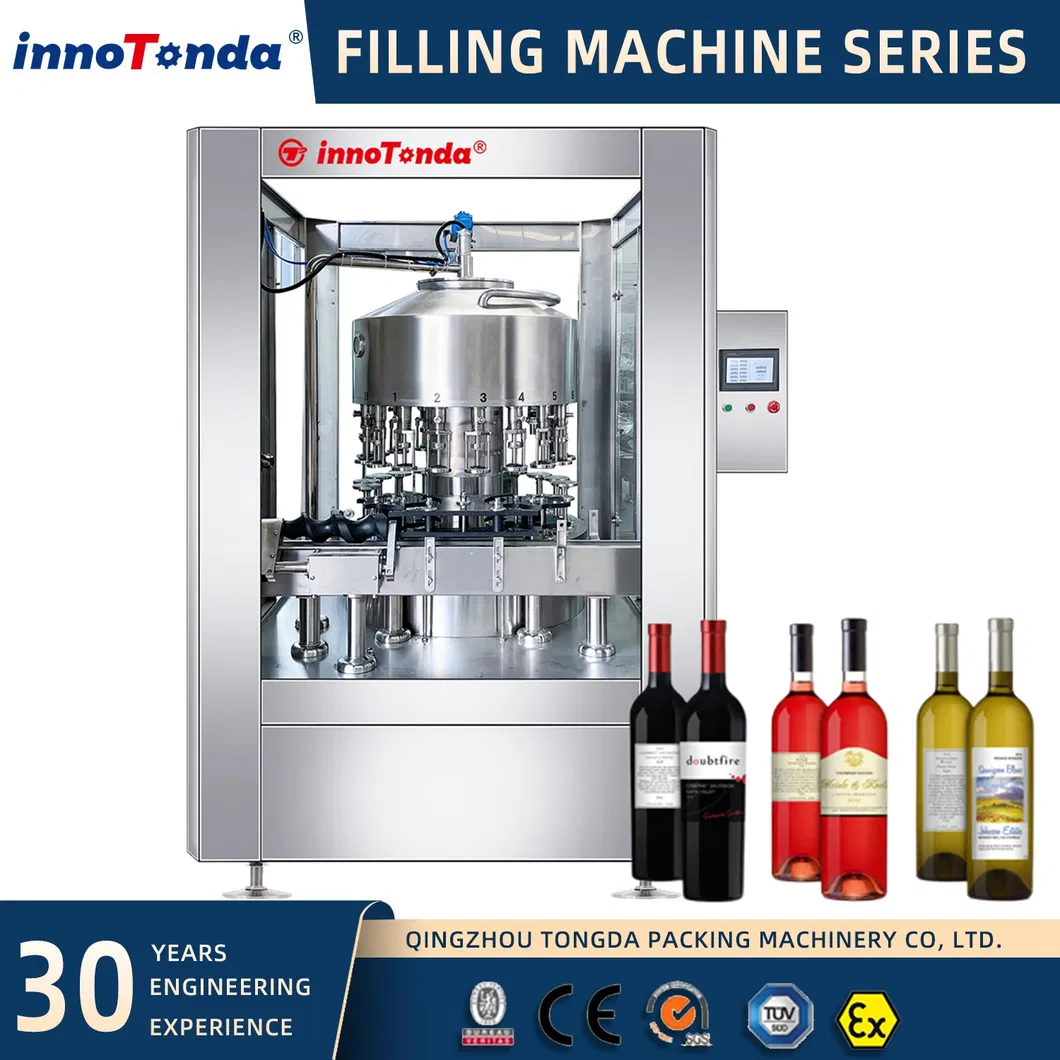

Low Vacuum Filler
Low Vacuum Filling Machine

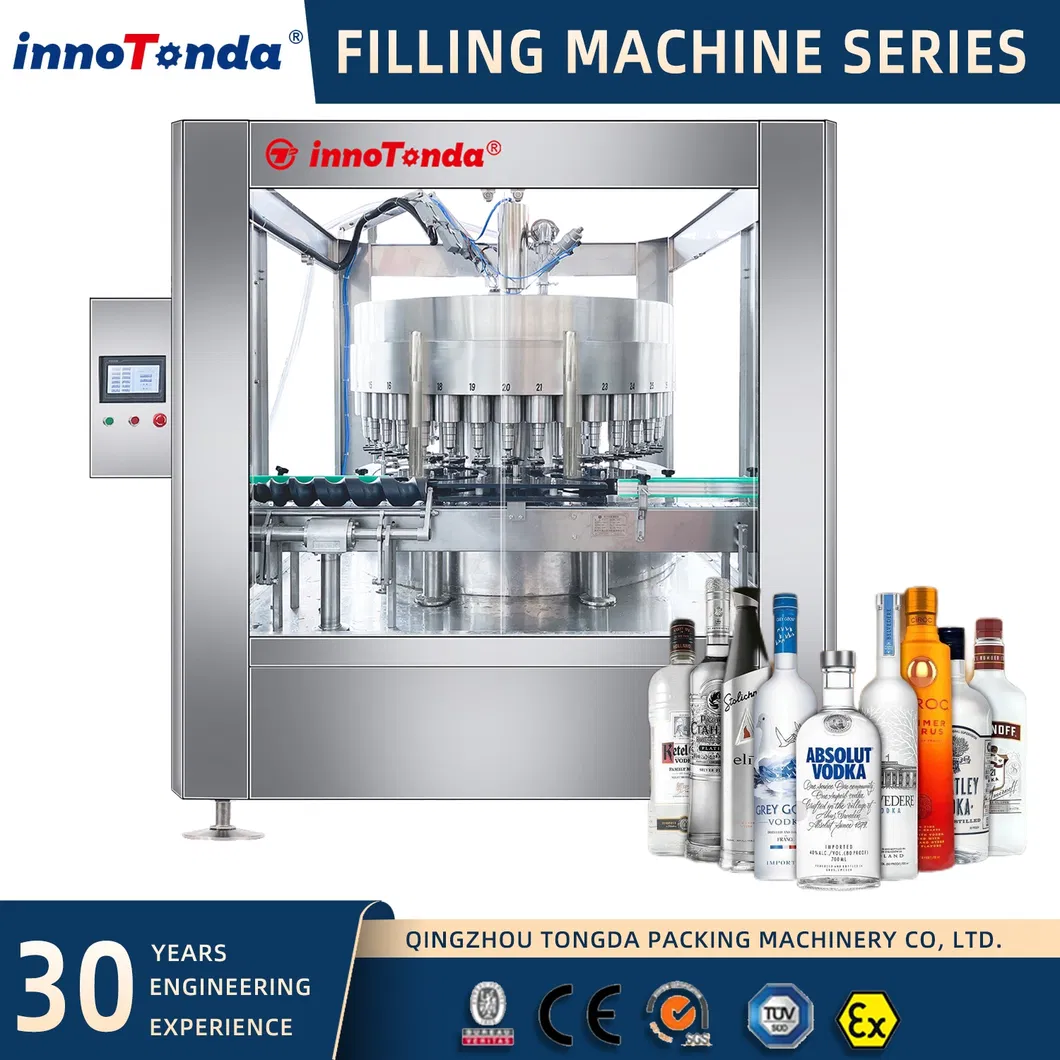

Quantitative Filler
Quantitative Filling Machine

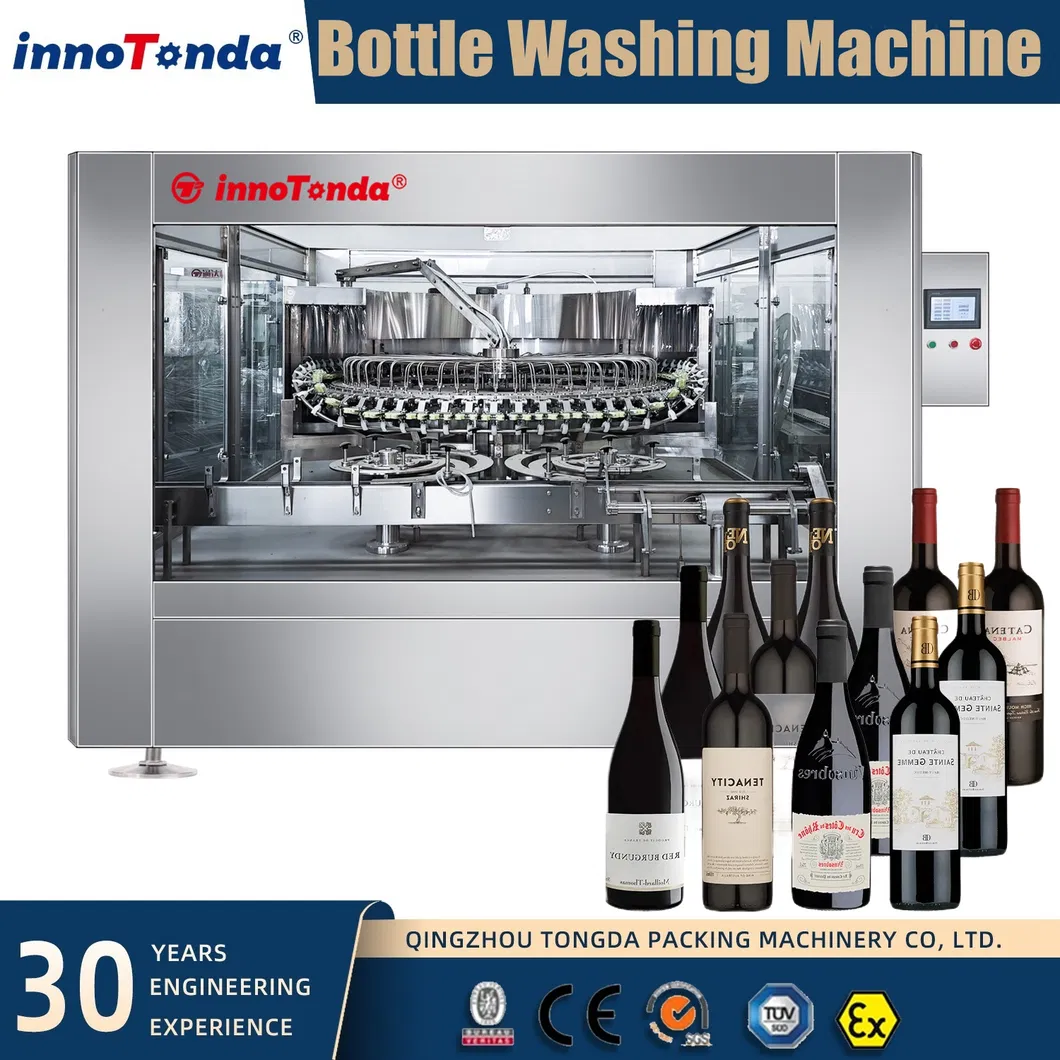

Washing Machine
Bottle Washing Machine

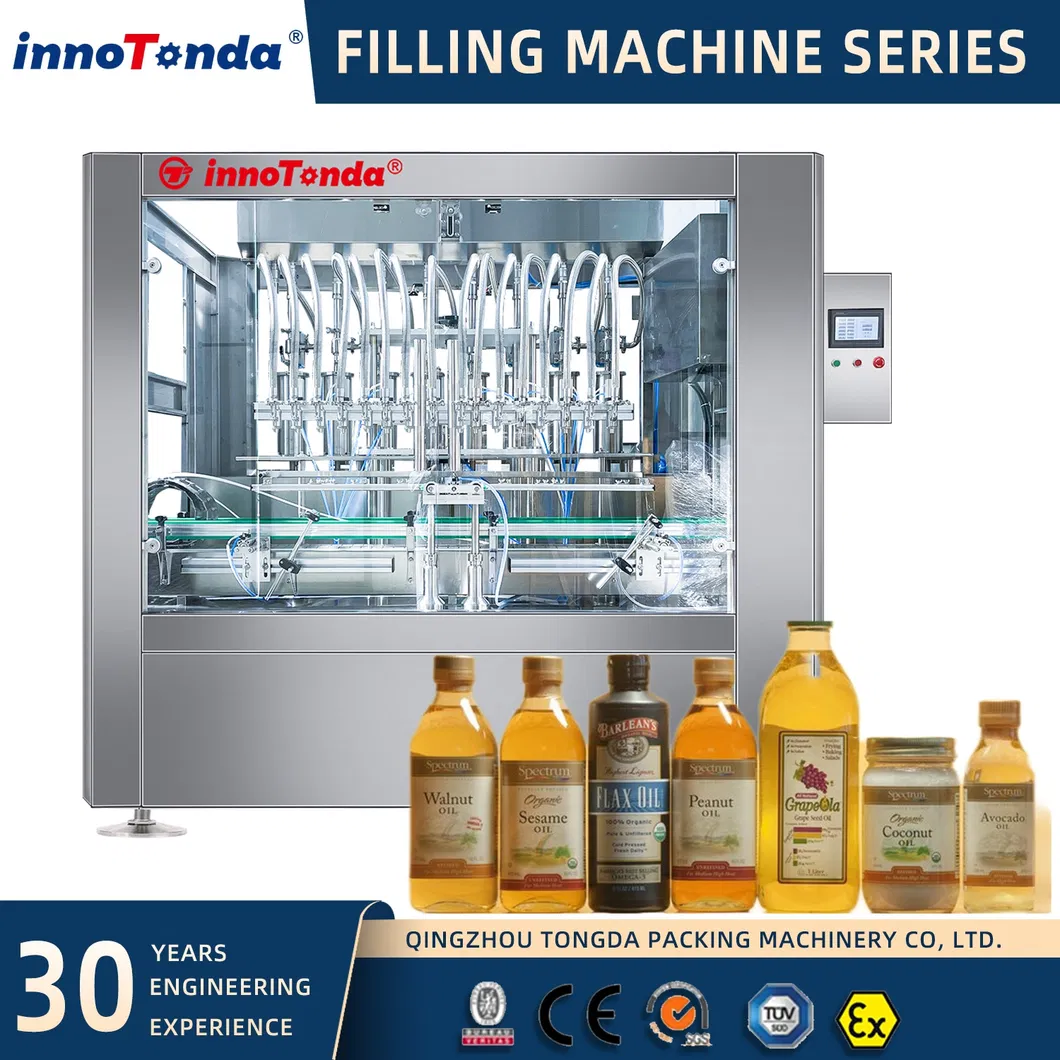

Piston Filler
Linear Piston Filling Machine

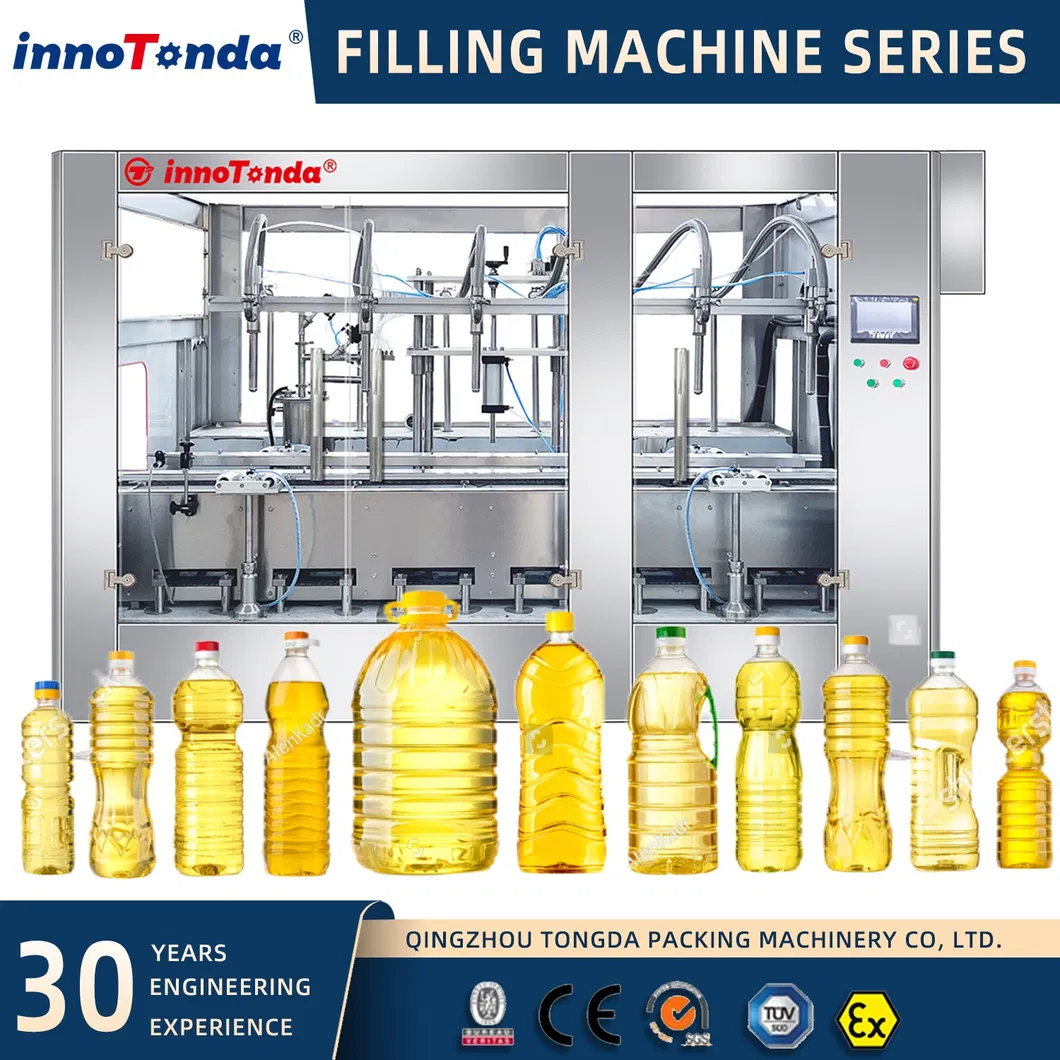

Metering Filler
Linear Metering Pump Filling Machine
📜 Certifications
CE ISO Certification
Industrial Certifications
🚚 Packaging & Shipping

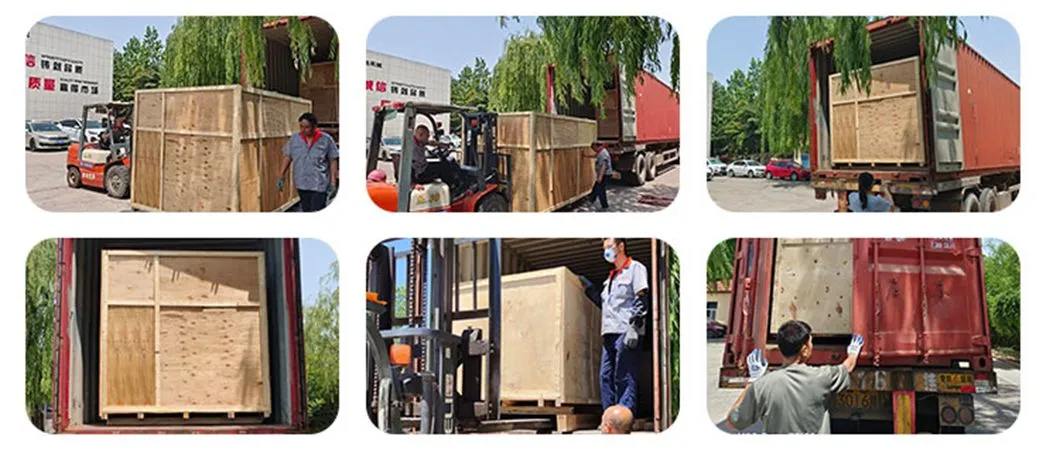

Shipping Package
❓ Frequently Asked Questions
1. What is your sample service for machines?
We provide videos of finished machines and welcome factory visits. We can also provide contact info for existing customers to visit their sites upon their permission.
2. What kind of after-sale support do you offer?
We provide overseas technician support for commissioning and operator training. A 12-month warranty is included, providing free parts and technical support during this period.
3. Are spare parts readily available?
Yes, upon completion of the order, we provide a detailed spare parts list for your reference to ensure long-term maintenance.
4. How is the production process monitored?
We update buyers regularly on manufacturing status. Once finished, we invite buyers for factory testing or send comprehensive testing videos before shipping.
5. Can you customize machines to specific needs?
Absolutely. We design machines based on your specific requirements (material, power, filling type, bottle style) and provide professional factory layout drawings.
6. What materials are your machines compatible with?
Our equipment is designed for various liquids, including wine, juice, vodka, syrups, alcohol, honey, and edible oils, primarily for glass bottle sealing.
