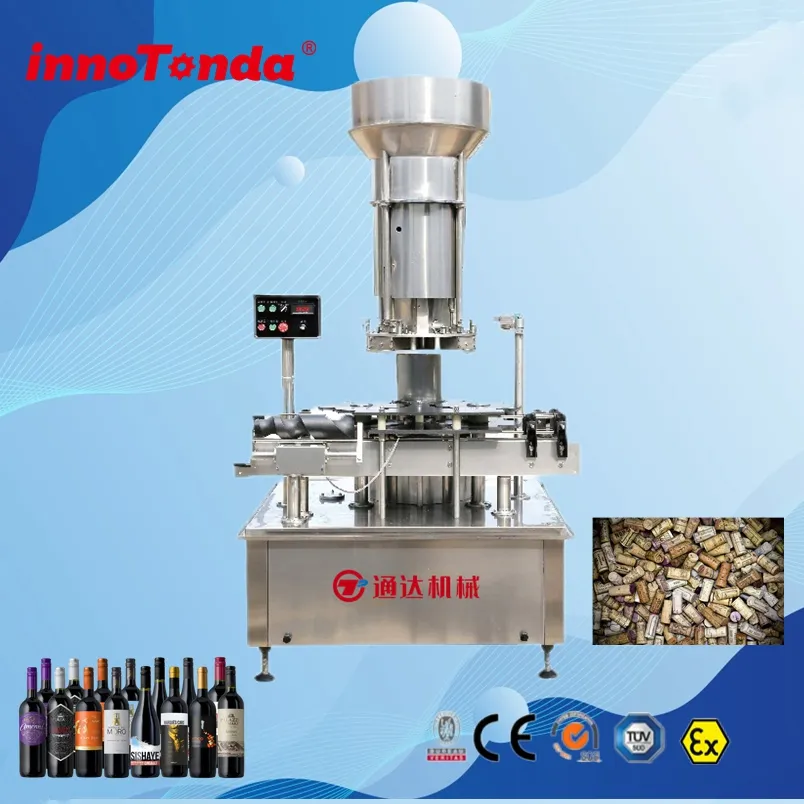

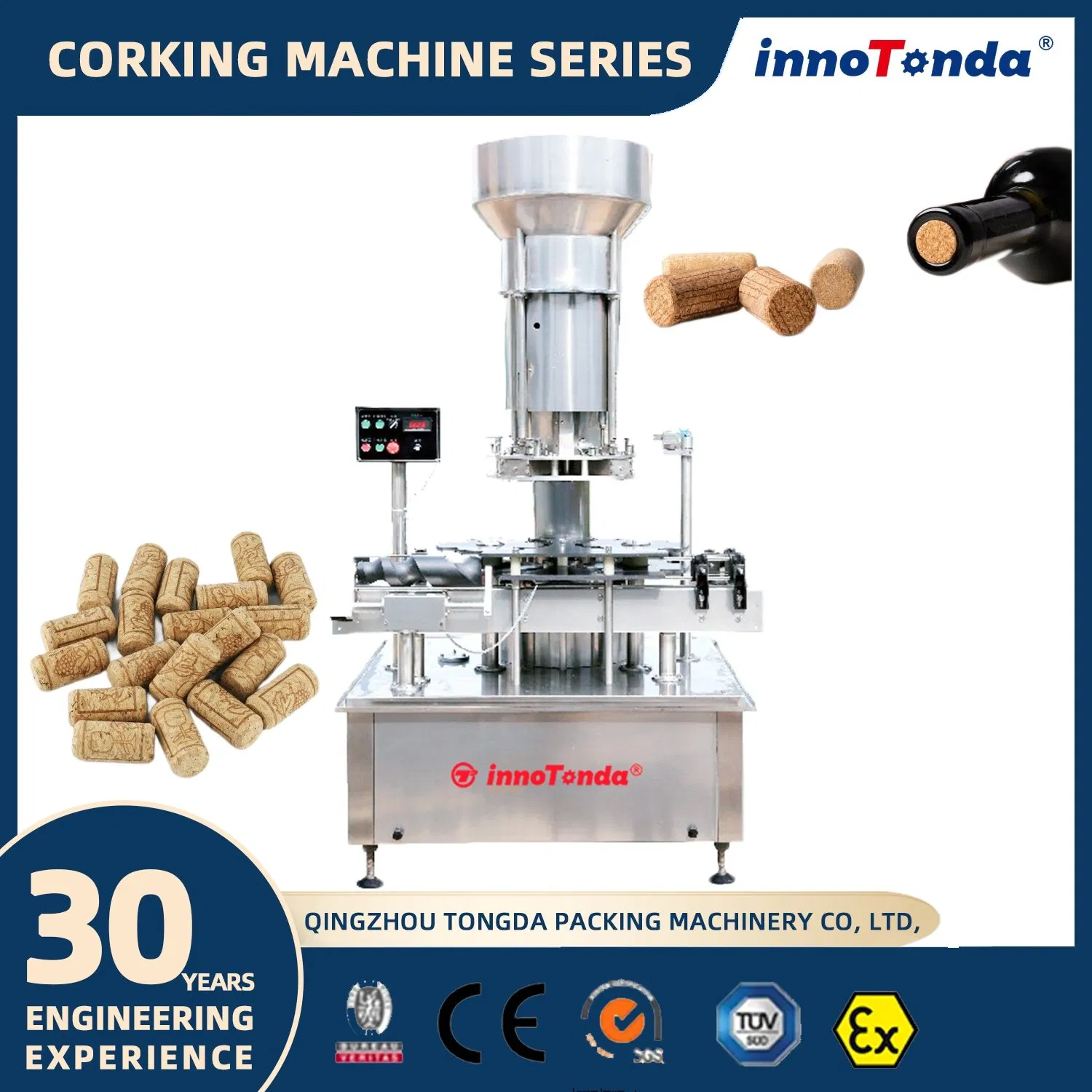

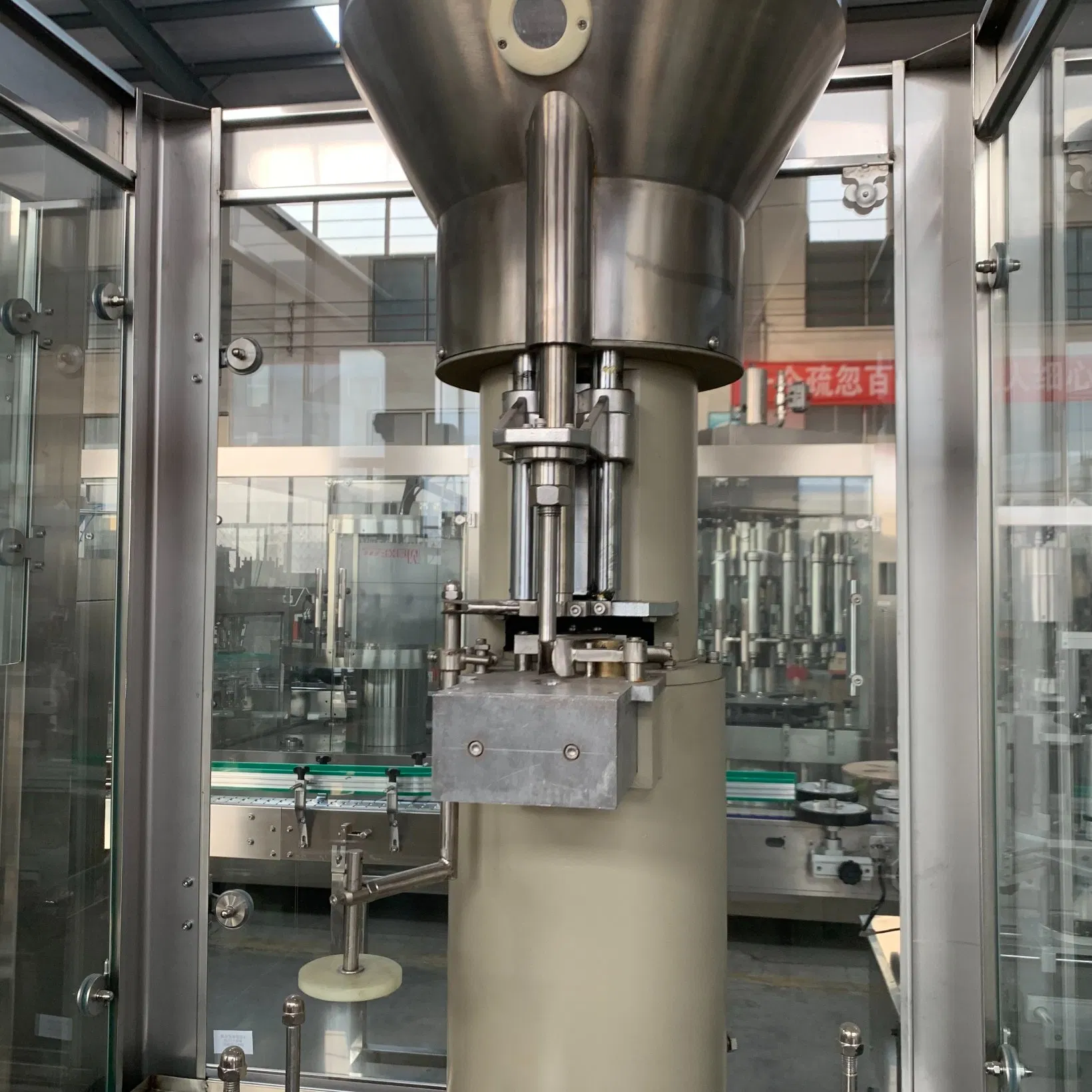

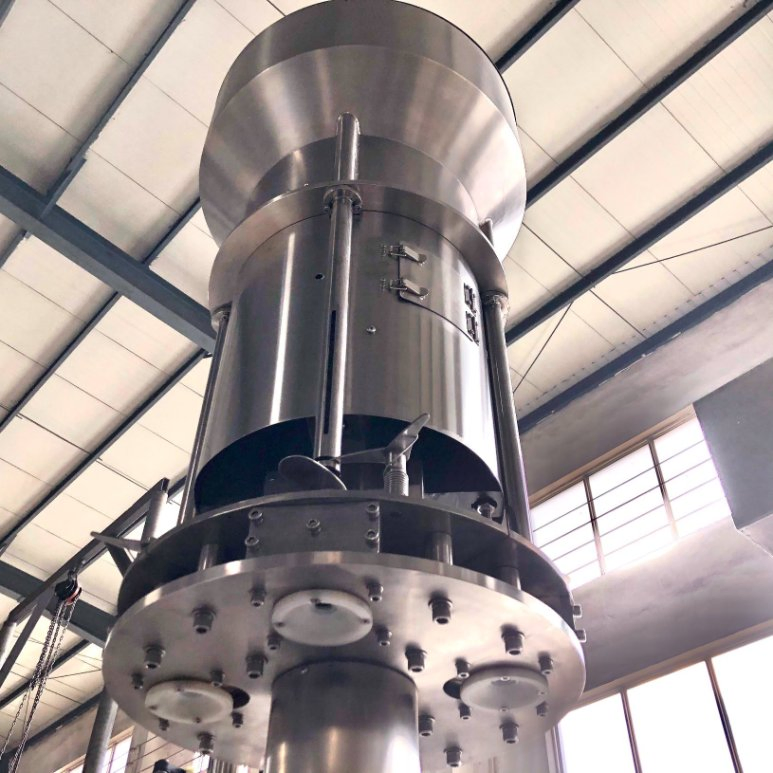

China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
1 / 5
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine
China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine

China Factory Automatic Wine Cork Assembly Corking Glass Spirits Champagne Bottle Corking Machine

Customization: Available
After-sales Service: Location Install,Online Guiding
Warranty: 12months
Send Inquiry

Product Description

Basic Information
Model NO.
FDS-1/FDS-4/FDS-6
Packaging
Bottles
Automatic Grade
Automatic
Packaging Material
Glass
Application
Oil, Wine, Spirits, Juice, etc.
Capability
2000-5500 bottles/hour
Bottle Diameter
60-85mm
Bottle Height
250-420mm
Cork Diameter
20.5-23mm
Cork Length
35-45mm
Product Description

This machine is primarily designed for soft straight cork capping for glass bottles. Some designs include an integrated nitrogen filling device to preserve product quality.

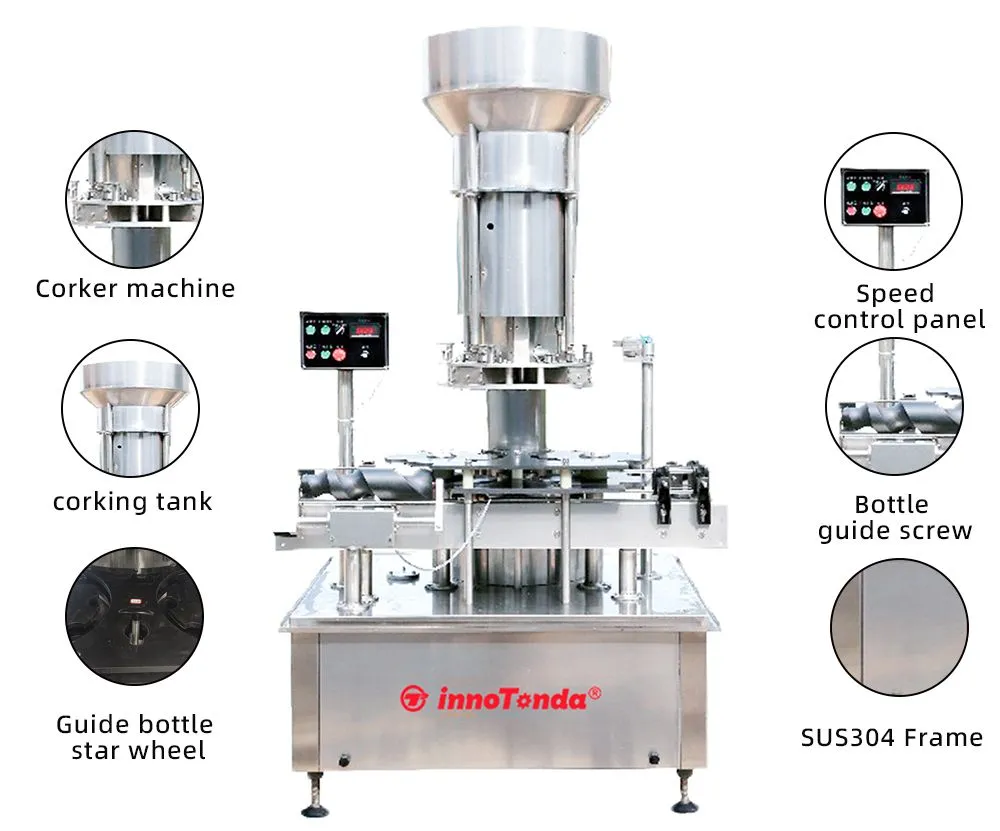

Automatic Wine Corking Machine Corking Process
Technical Parameters
Model Head Production (b/h) Bottle Dia Bottle Height Cork Dia Cork Length Power (kw) Dimensions (mm)
FY-1 1 2000 φ60-φ85 250-420 φ20.5-φ23 35-45 1.5 1150×1150×2100
FY-4 4 4500 φ60-φ85 250-420 φ20.5-φ23 35-45 3.8 1400×1200×2400
FY-6 6 5500 φ60-φ85 250-420 φ20.5-φ23 35-45 3.8 1650×1350×2400
Key Features & Highlights
⚙️

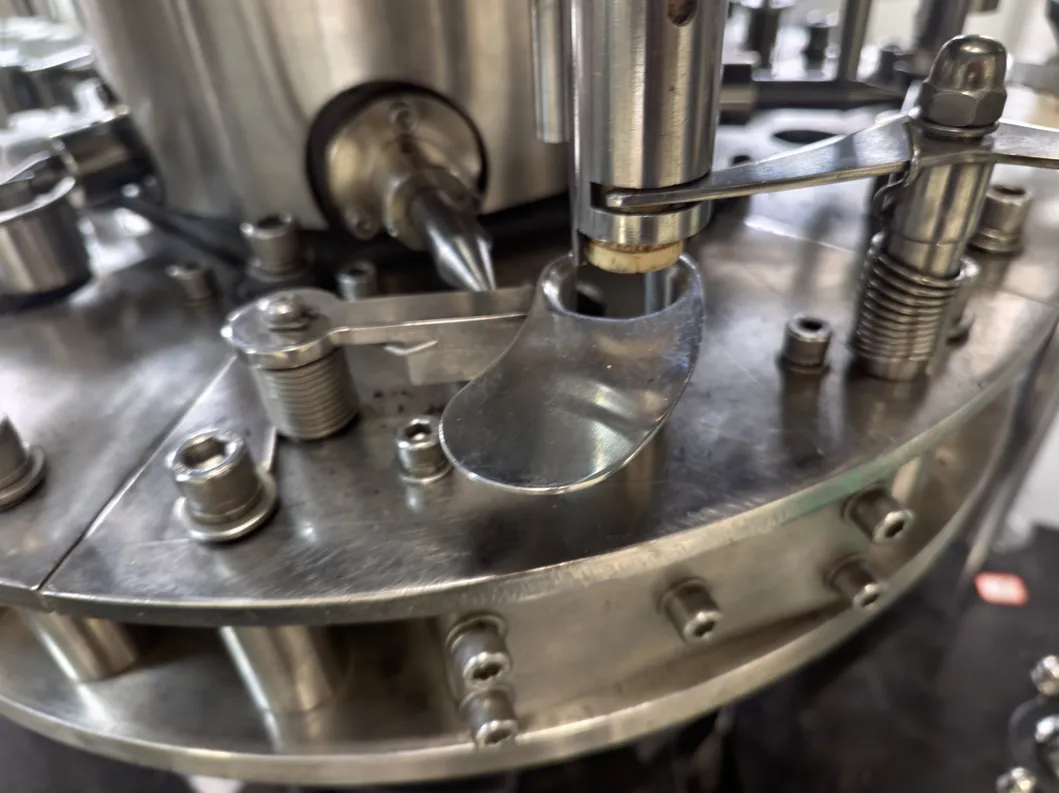

Precision Corking: The mechanism uses an independent pressing head with two side sliders that compress the cork to a specified diameter for smooth insertion.
🔄
Automatic Sorting: Equipped with a cork sorting device that organizes corks automatically, saving labor and increasing reliability.
🛡️
Safety Control: Includes a mechanical device to control cork dropping, ensuring corks only fall when a bottle is present.
🚀
Expandable: Can be equipped with an automatic cork feeding machine for fully automated line integration.

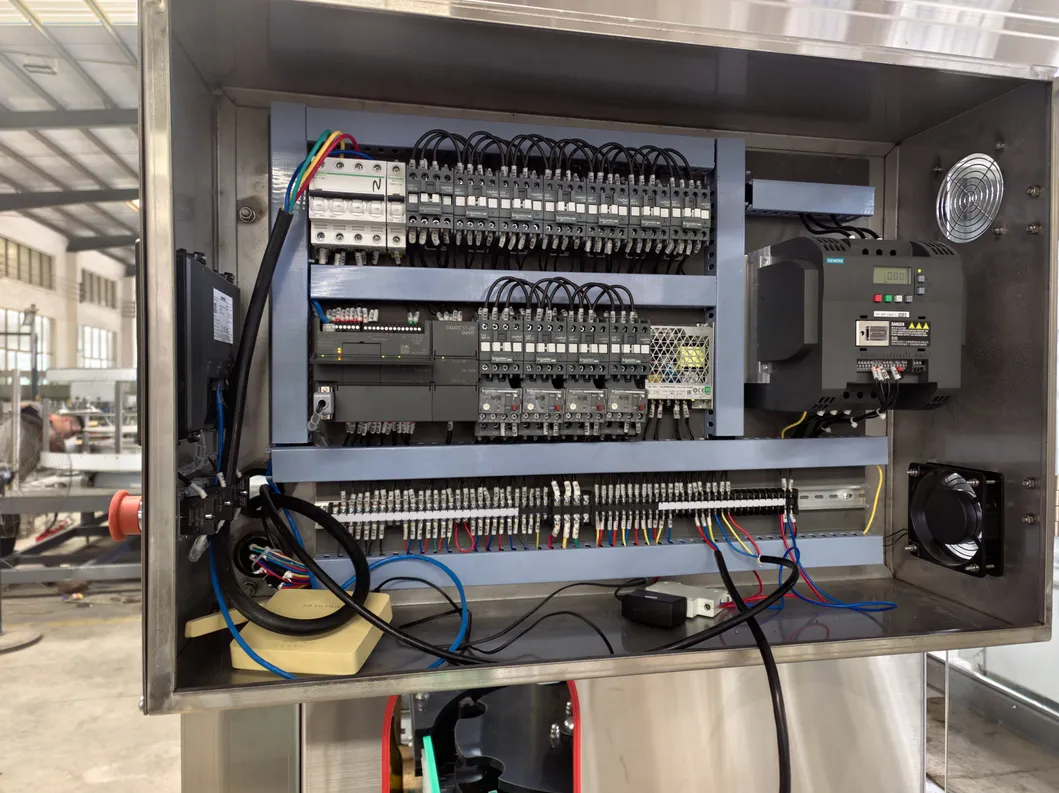

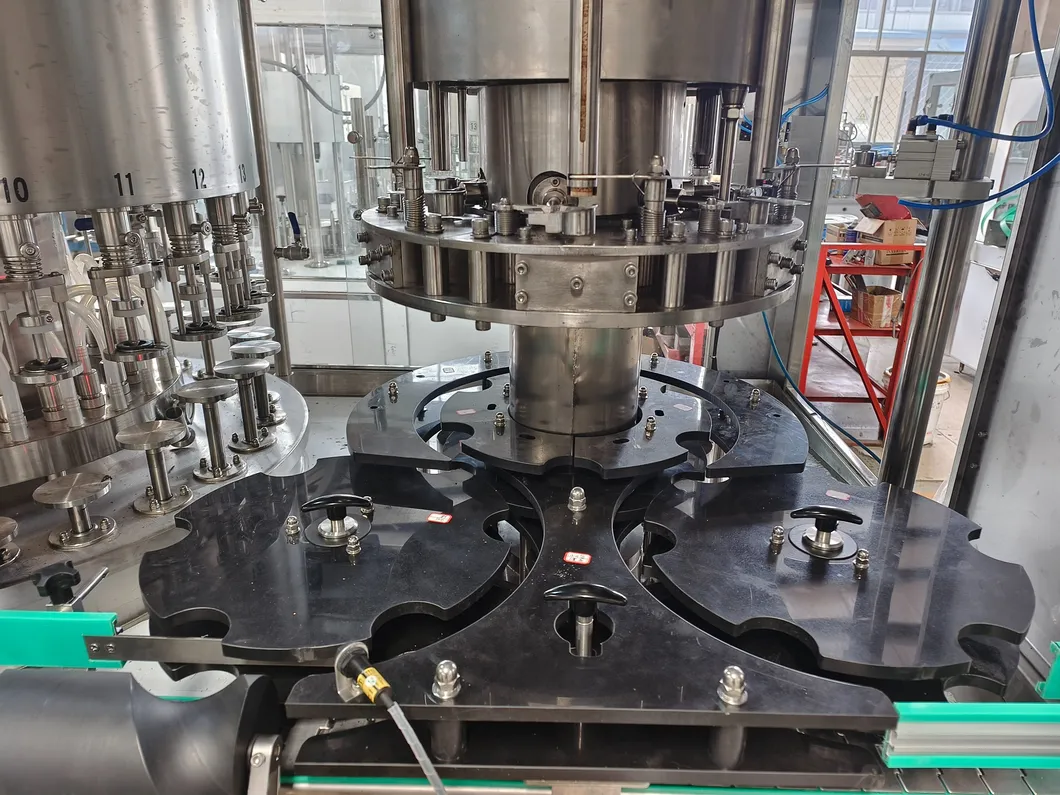

Feature 1 Feature 2 Feature 3
Related Equipment

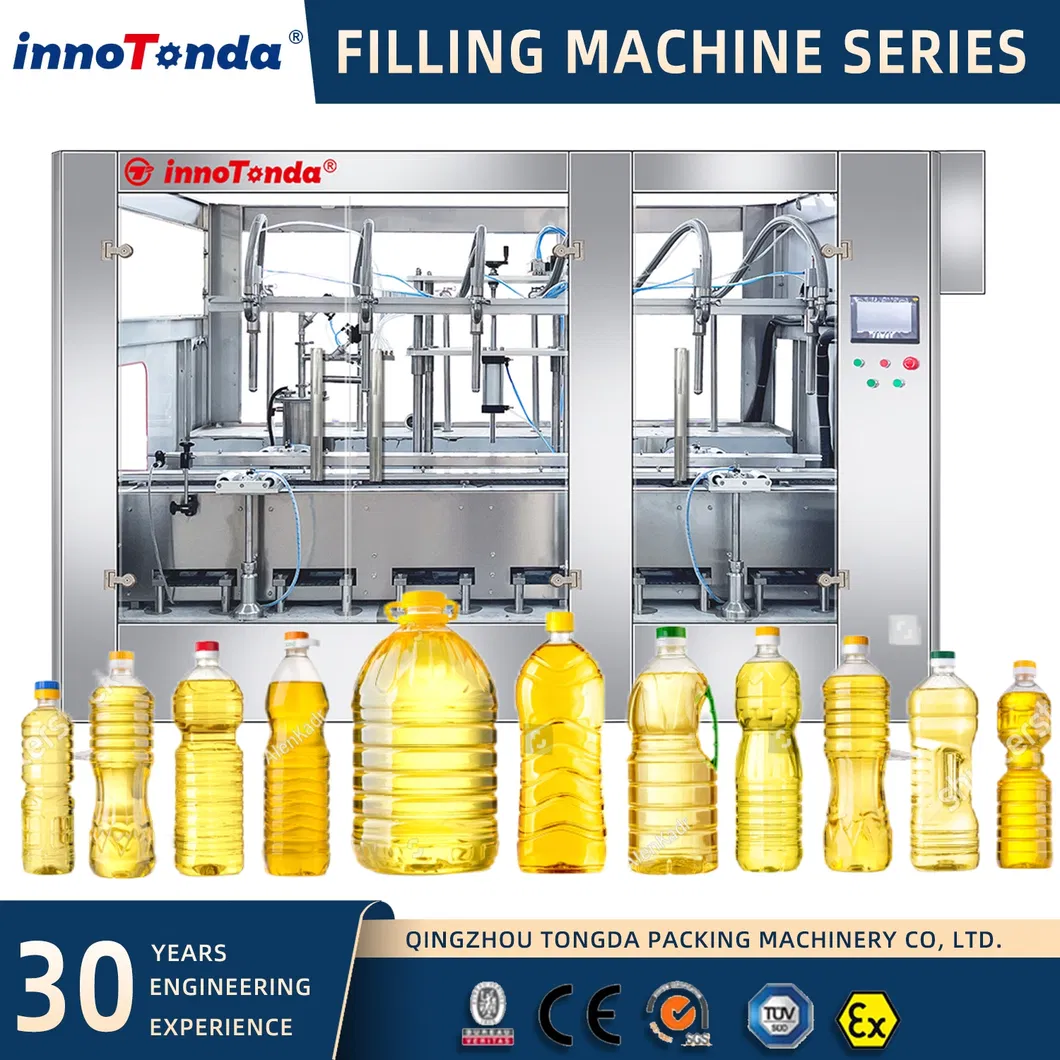

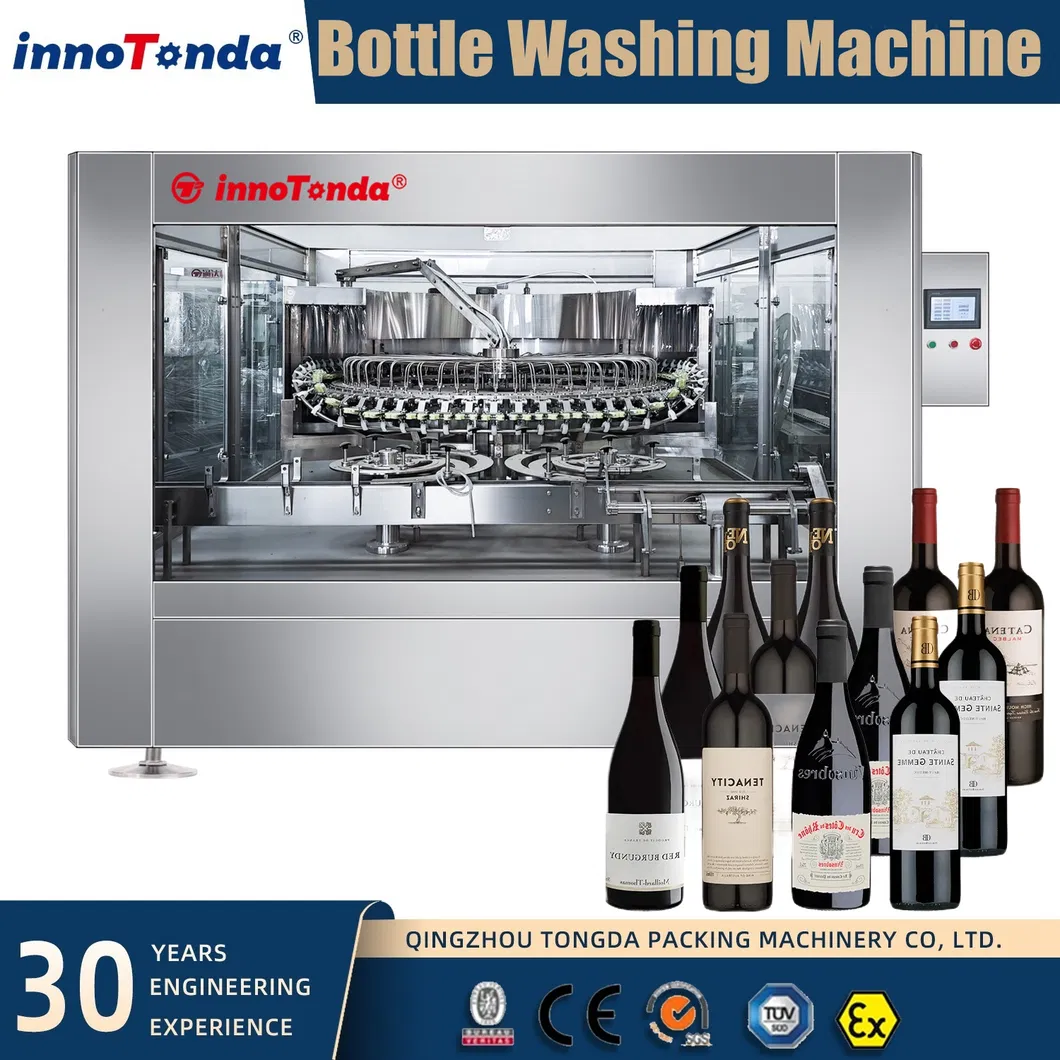

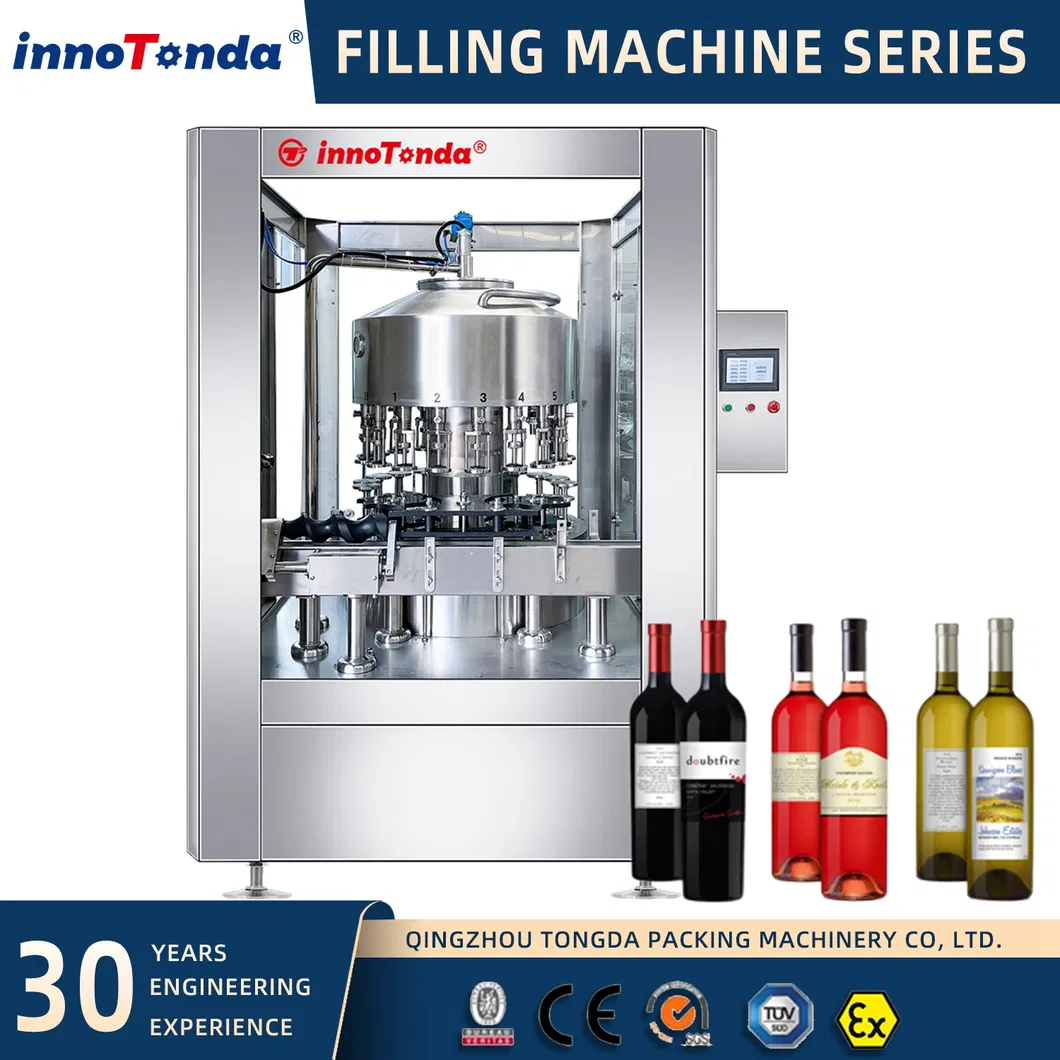

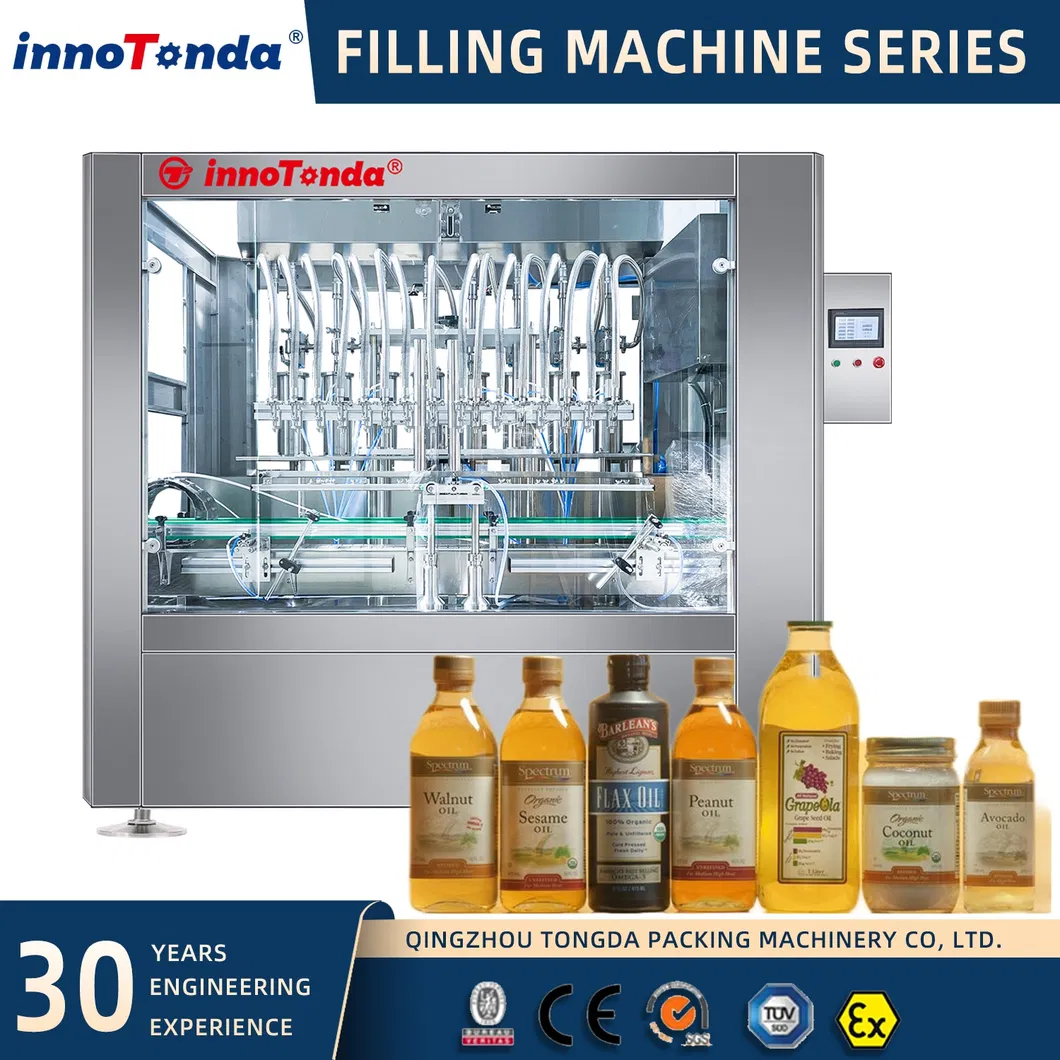

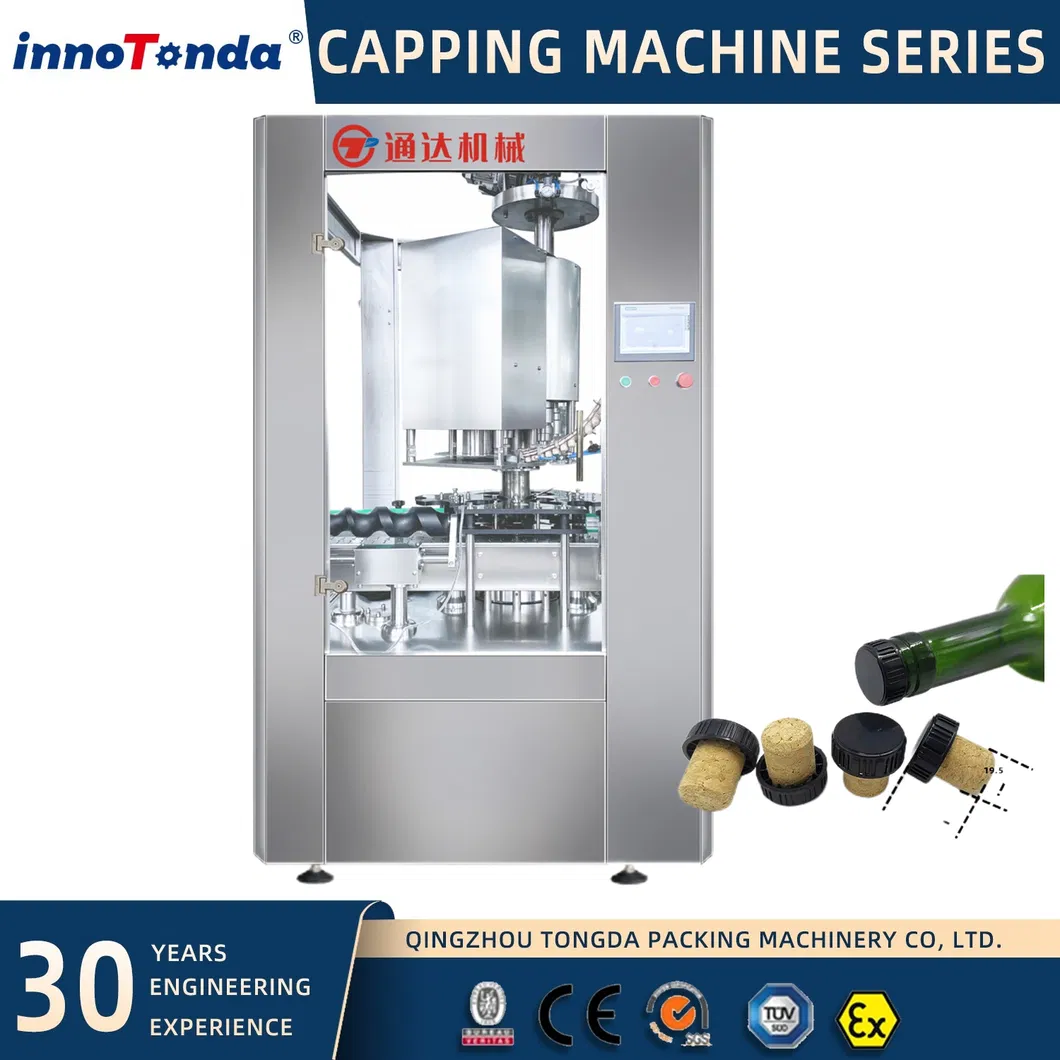

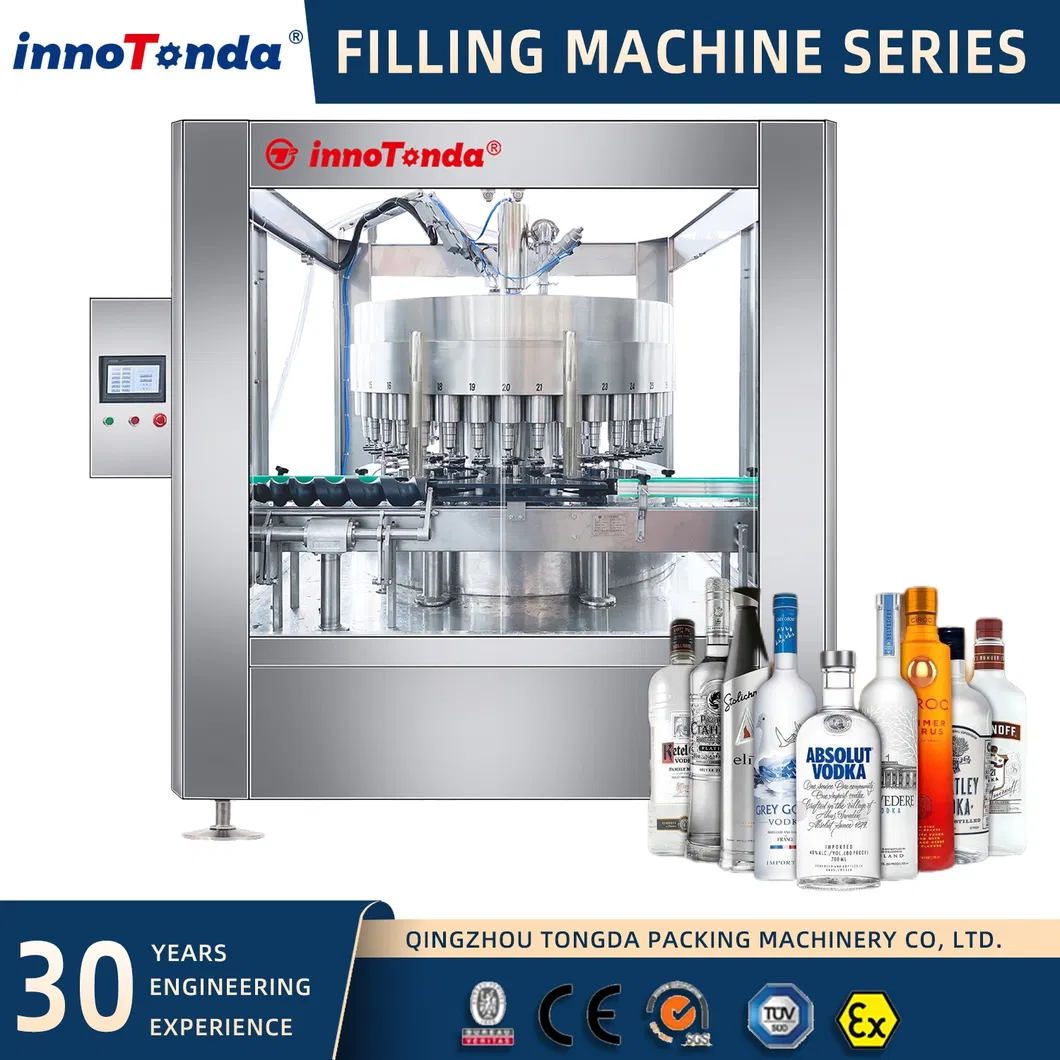

T-Corking Machine Vacuum Filling Machine Quantitative Filling Machine Bottle Washing Machine Piston Filling Machine Metering Pump Filler
Certifications & Quality Control
Certificates Quality Standard
Packaging & Shipping
Packaging
Frequently Asked Questions
1. What is your sample service? We provide videos of finished machines or invite you to visit our facility to see the equipment in operation. We can also provide contact info for existing customers (with their permission) for site visits.
2. What is your after-sale service? We offer overseas technician support for commissioning and training. The warranty period is 12 months, during which we provide free parts and technical support. Post-warranty, we offer free technical consultation with parts at cost.
3. How about the spare parts? Once all equipment is finalized, we provide a comprehensive spare parts list for your long-term reference and maintenance.
4. What services are provided during production? We provide regular updates on the manufacturing process. Buyers are invited to factory testing upon completion. We can also provide detailed testing videos prior to arranging shipment.
5. How do you customize your services? We design machinery based on your specific requirements (material, power, filling type, bottle shapes). We offer professional consultation and can provide factory layout drawings.
6. Are the machines compatible with different bottle types? Yes, our machines are designed to adapt to various bottle heights (250-420mm) and diameters (60-85mm) commonly used in the wine and spirits industry.
