📋Overview & Basic Info
Model NO.
FDS-1 / FDS-4 / FDS-6
Application
Oil, Tea, Vegetable, Wine, Spirits
Capability
2000-5500 bottles/hour
Adapted Bottles Dia.
60-85mm
Adapted Bottles Ht.
250-420mm
📍Product Description

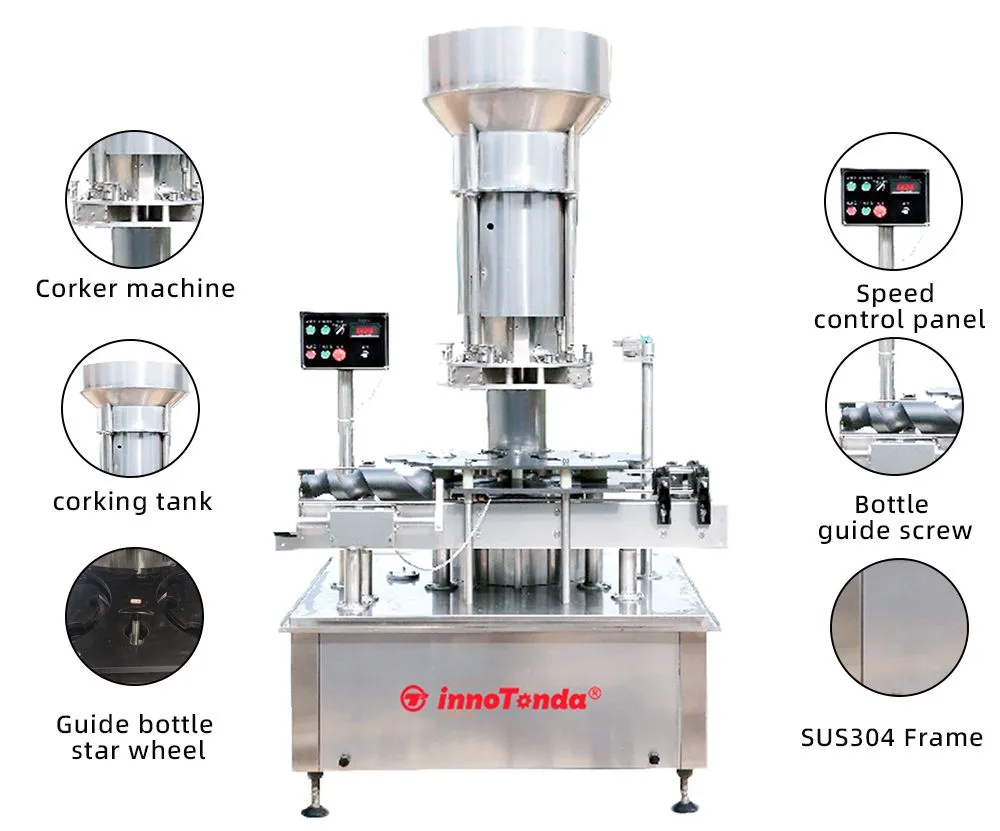

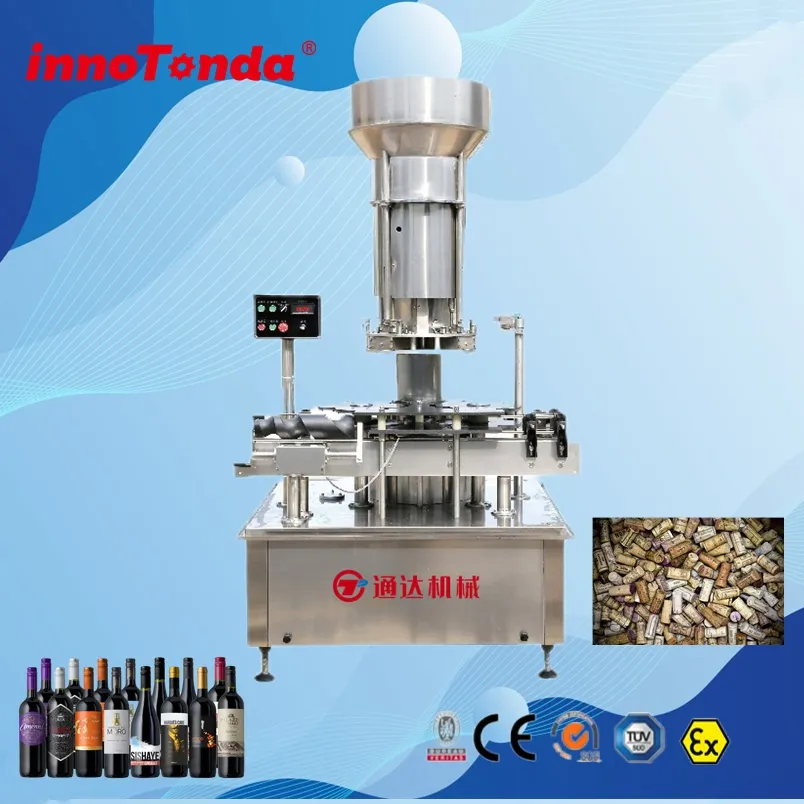

This specialized machinery is designed for soft straight cork capping processes. It features high efficiency and optional configurations such as nitrogen filling devices to ensure product longevity and quality.
⚙Technical Parameters
| Model |
Heads |
Capacity (b/h) |
Bottle Dia (mm) |
Bottle Ht (mm) |
Power (kw) |
Dimensions (mm) |
| FY-1 |
1 |
2000 |
φ60-φ85 |
250-420 |
1.5 |
1150×1150×2100 |
| FY-4 |
4 |
4500 |
φ60-φ85 |
250-420 |
3.8 |
1400×1200×2400 |
| FY-6 |
6 |
5500 |
φ60-φ85 |
250-420 |
3.8 |
1650×1350×2400 |
✔Key Features & Mechanism
1

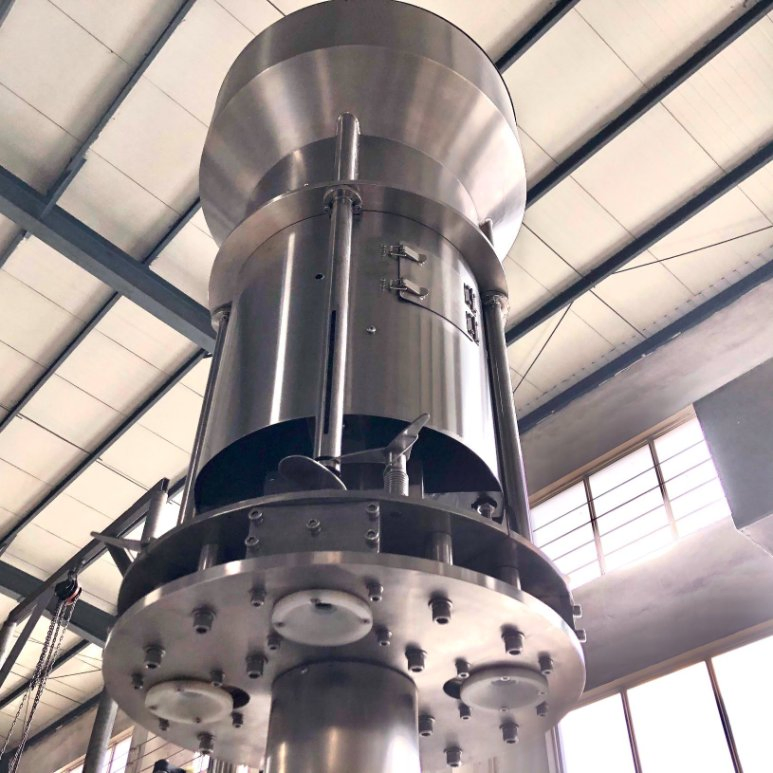

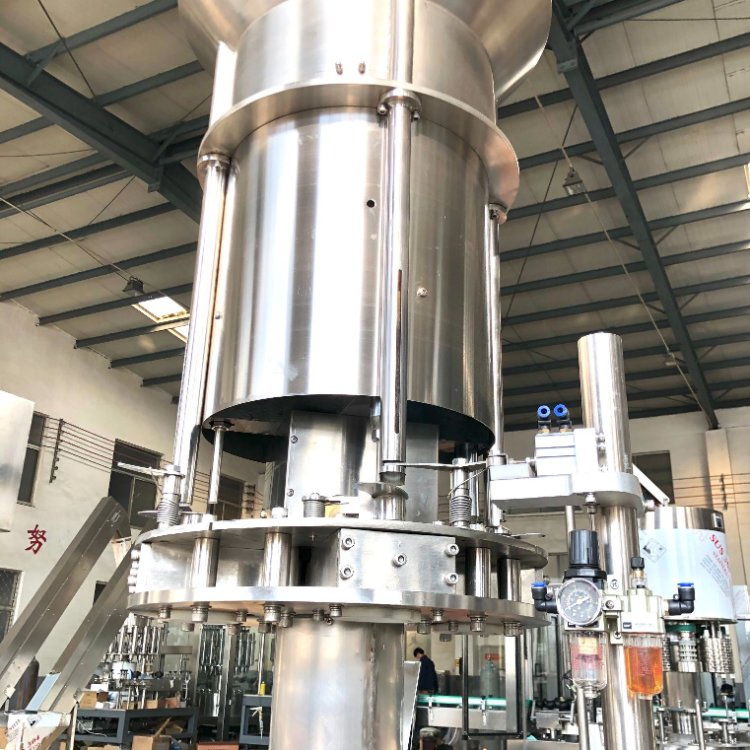

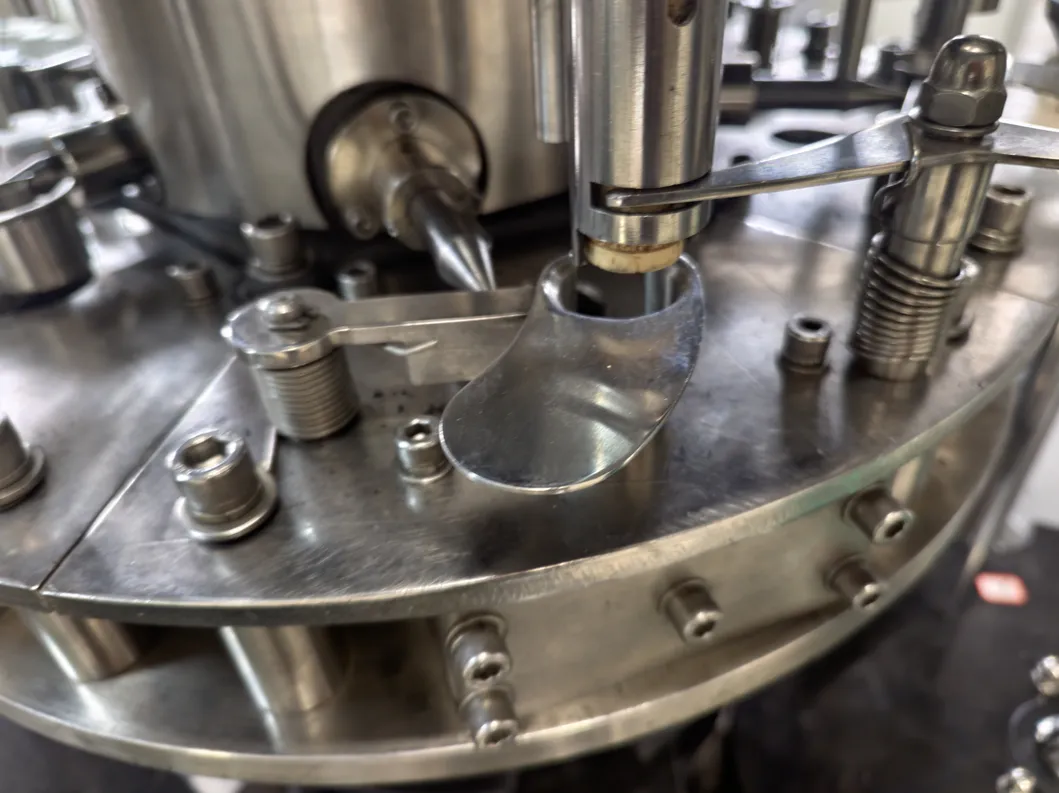

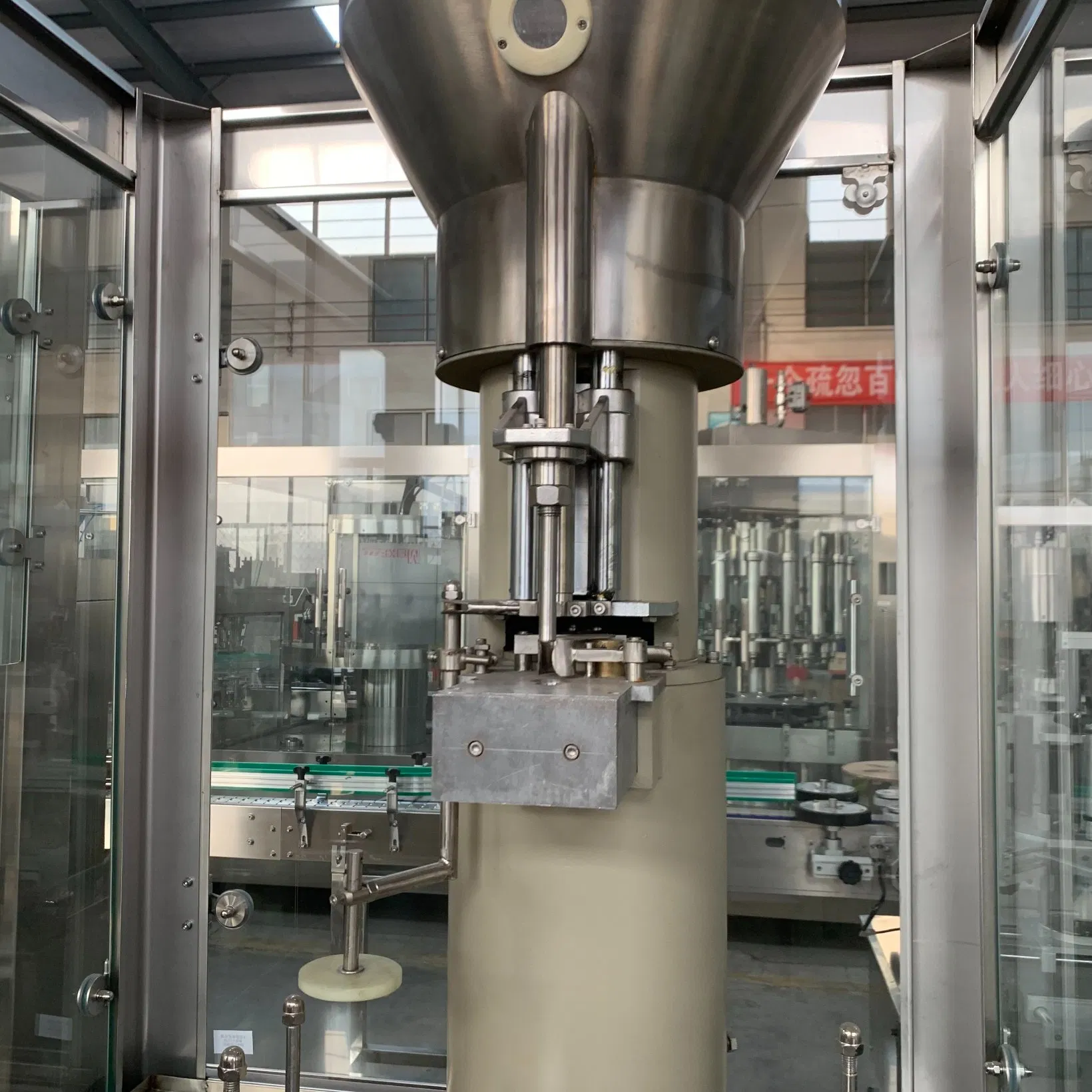

The corking mechanism uses an independent pressing head. Two side sliders compress the cork to the specified diameter for smooth insertion.
2

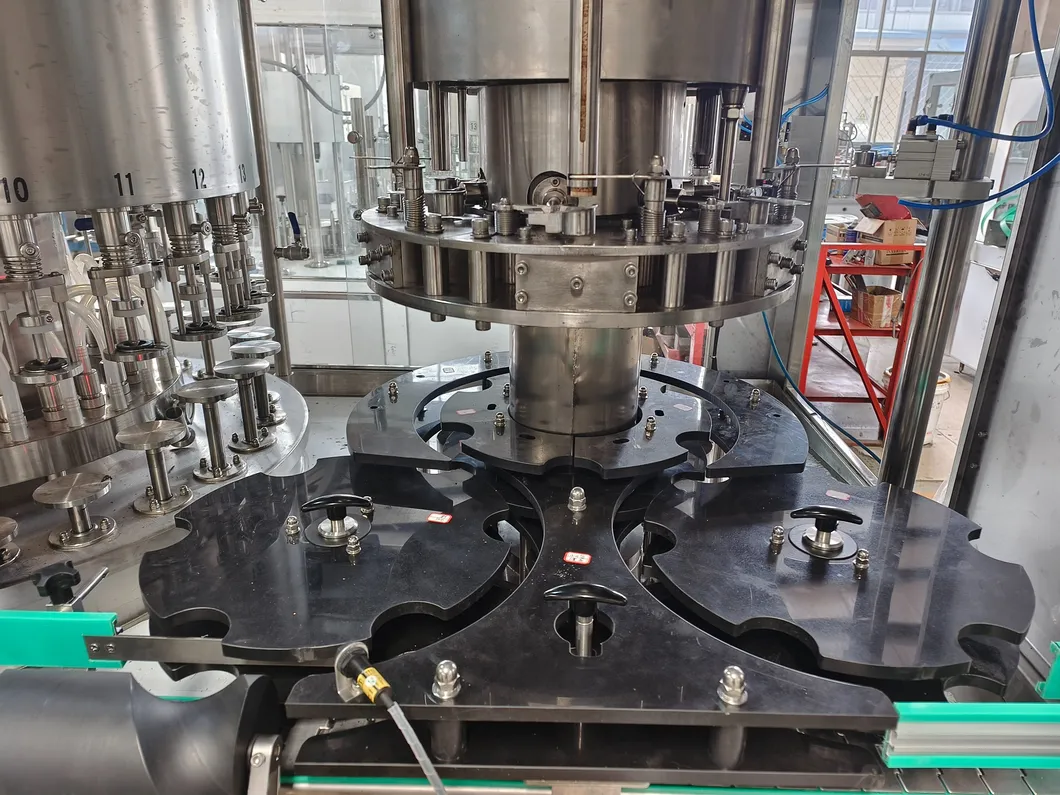

Equipped with an automatic cork sorting device, significantly reducing labor intensity and increasing reliability.
3
Mechanical sensor control ensures that no corks are dropped if no bottle is detected on the line.
🌐Wide Application
Suitable for Wine, Juice, Vodka, Alcohol, Olive Oil, Perry, Eiswein, Syrup, and Honey bottles.
🏭Manufacturer Profile

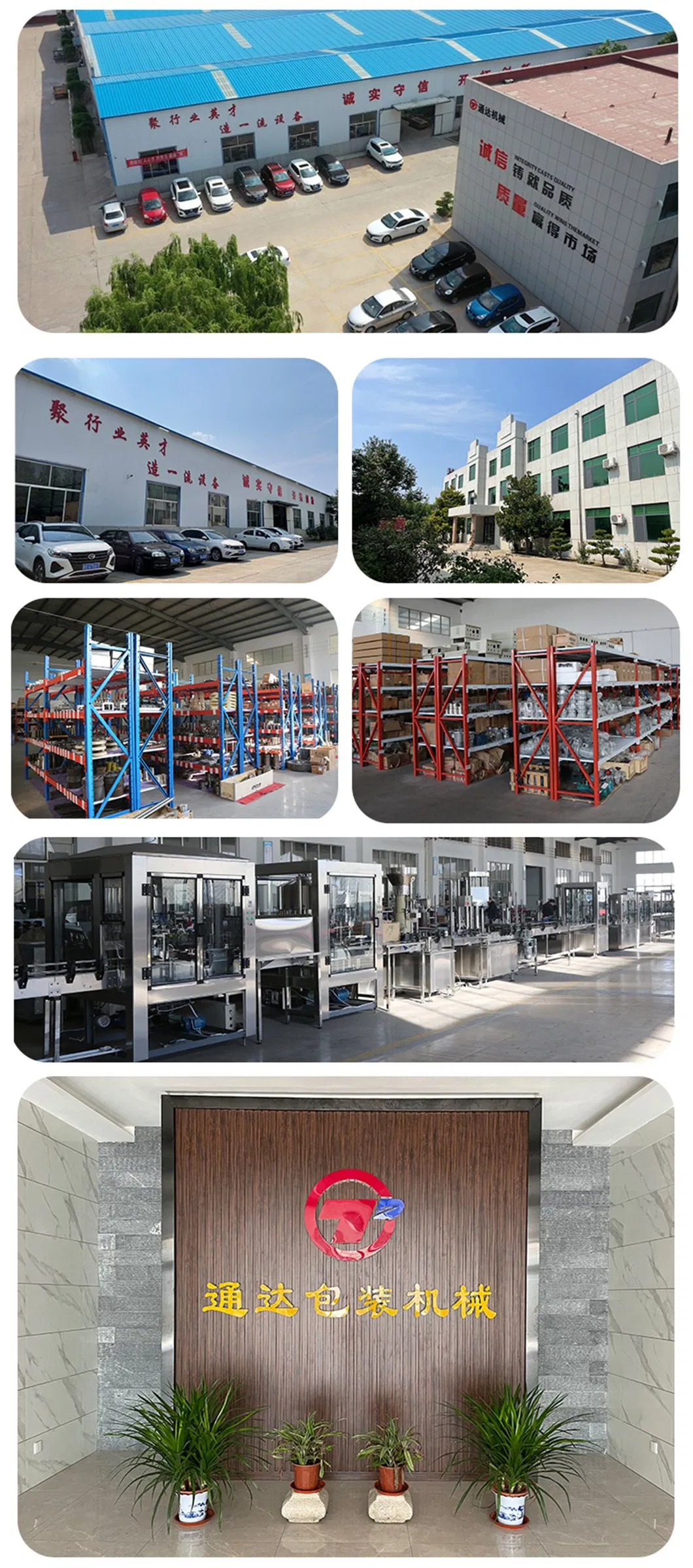

Our facility specializes in liquid filling machinery for a variety of sectors including spirits, wine, sauces, and edible oils. The workshop covers a vast area equipped with advanced CNC machining centers. Utilizing CAD/CAM/CNC technologies, we maintain a strict quality control system.
The factory holds ISO 9001, ISO 2000, CE, and ATEX certifications. With a focus on being "professional and dedicated," our equipment is trusted in over 30 countries worldwide, including the US, UK, Germany, and Australia.

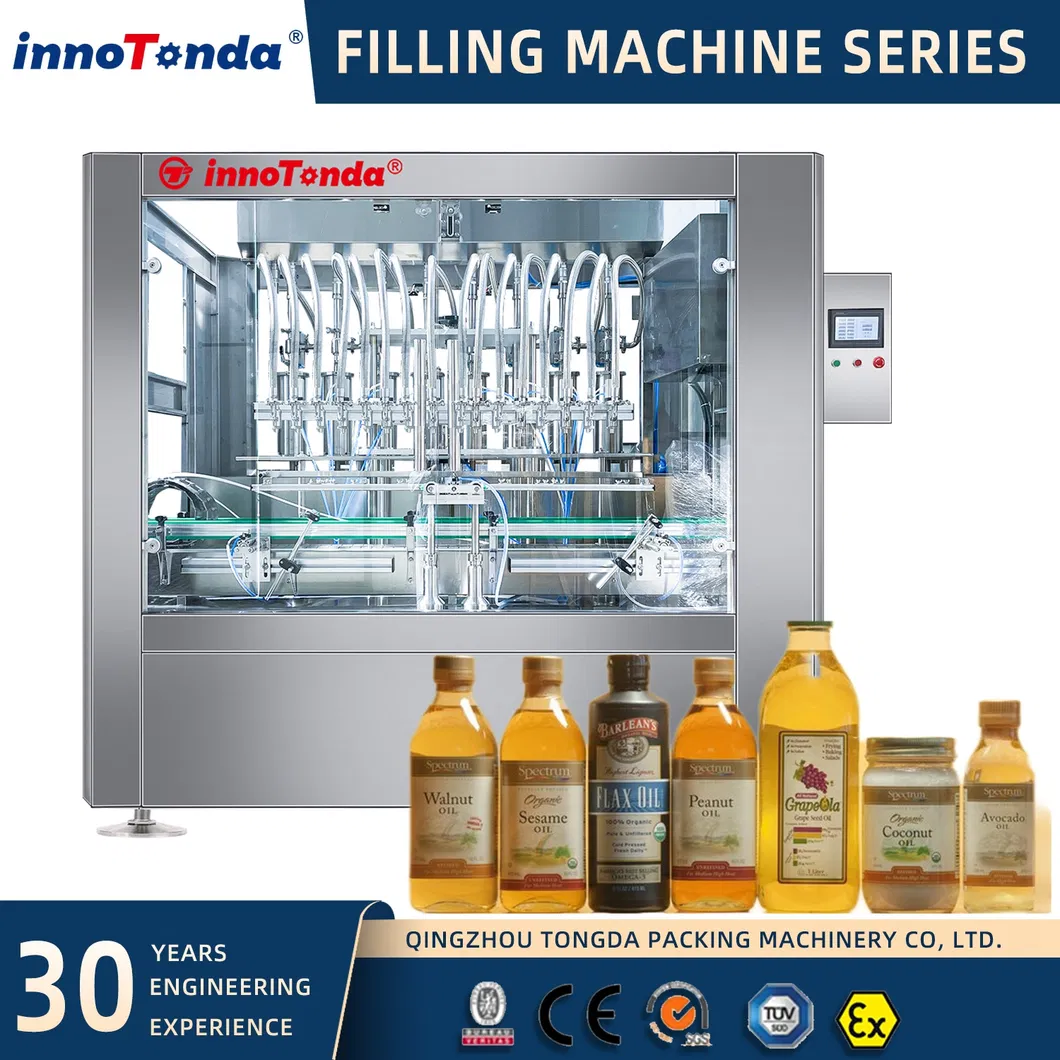

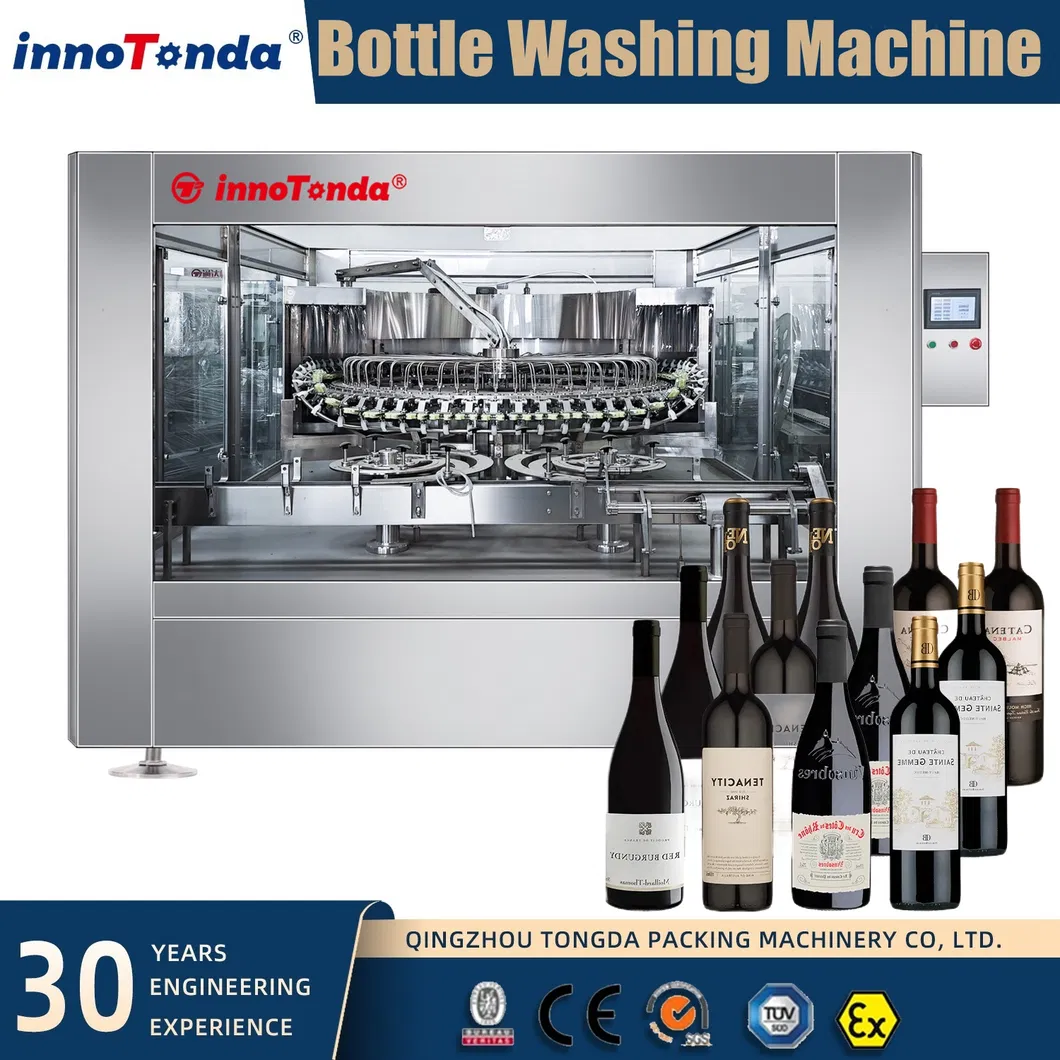

📦Related Packaging Solutions
❓Frequently Asked Questions
What is your sample service?
We can provide videos of finished machines or invite you to visit our facility to see the equipment in operation. We can also provide references from existing customers upon their permission.
What is your after-sale service policy?
We provide technician deployment for installation and training. Our standard warranty is 12 months, during which spare parts and technical support are free. Post-warranty, we continue to offer free technical consultation.
How are spare parts handled?
Upon project completion, we provide a comprehensive spare parts list for your reference to ensure minimal downtime.
What services do you provide during production?
We provide regular updates on the manufacturing process and invite buyers to factory tests. Testing videos are provided if on-site inspection is not possible.
How do you customize services?
We design machines based on specific requirements (material, power, bottle type). We also offer factory layout consulting and free technical support.
