Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
1 / 5
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions
Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions

Pre-Engineered & High Strength Customized ISO EU Steel Structure Box-Shaped Column Linking Corridor for Educational Institutions

Customization: Available
Install: Online Guidance
Mobility: Fixed
Send Inquiry

Product Description

Project Overview

Model NO.
SPS-CRD-MB-0004
Usage
Building Platforms
Application
Corridor
Drawing Design
Autocad, Tekla, Pkpm
Certification
ISO, CE
Surface Treatment
Painted or Galvanized
Connection Form
Bolt Connection
Earthquake Resistance
Grade 8
Life Time
50 Years
Steel Grade
Q235, Q345, Q355
Production Capacity
3000 tons/Month

Product Description

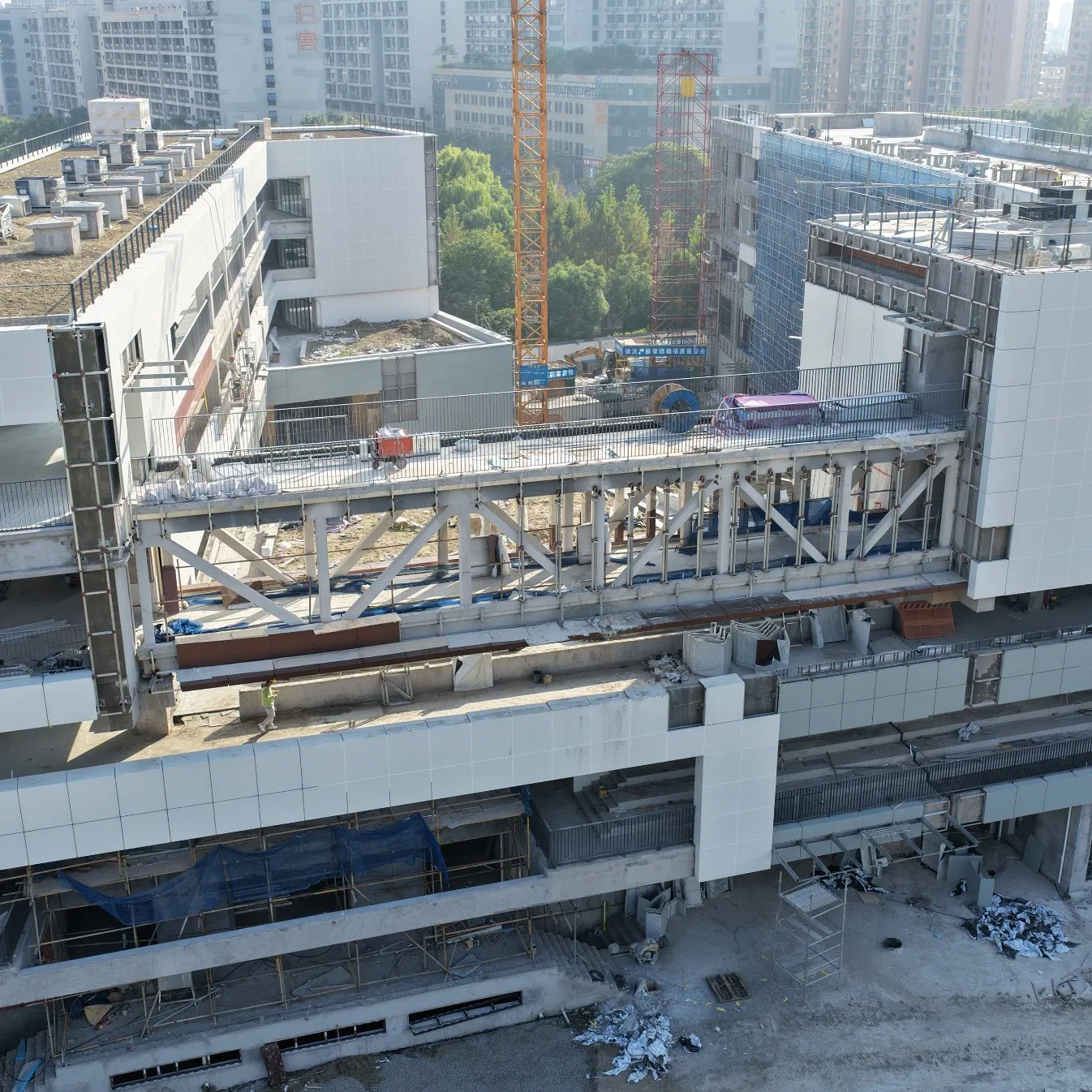

Steel Structure Corridor

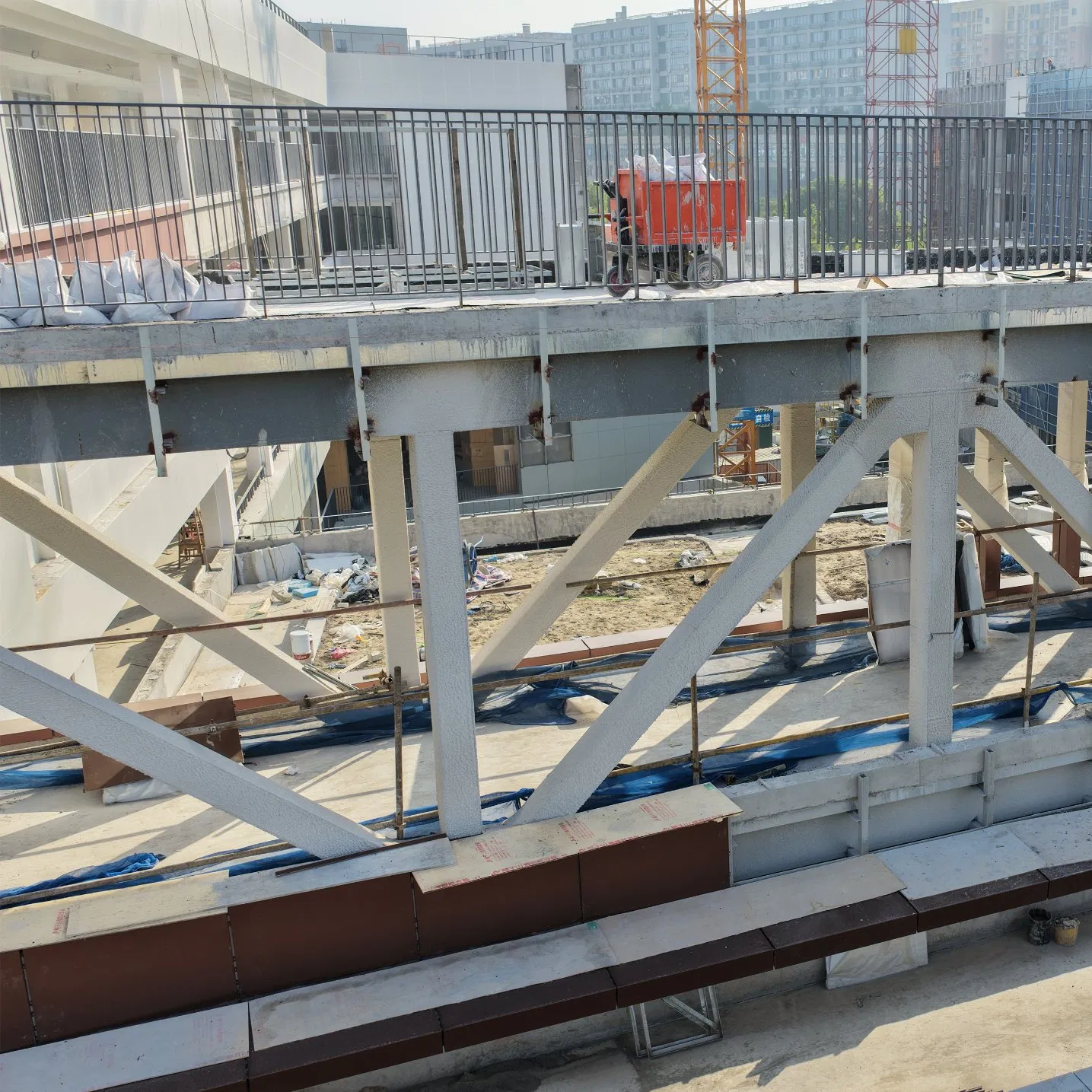

Professional Steel Box Truss Structure

  • Material: High-strength Q355B Steel.
  • Structural Components: Welded box sections and H-shaped steel members for maximum rigidity.
  • Dimensions: 25.76 m (Length) × 4.2 m (Width) × 3.9 m (Height), spans divided into six sections.
  • Fire Protection: Coated with white non-intumescent fireproof paint (GB50205-2008 standards).
  • Access: Integrated 3.35 m × 2.4 m roller shutter.

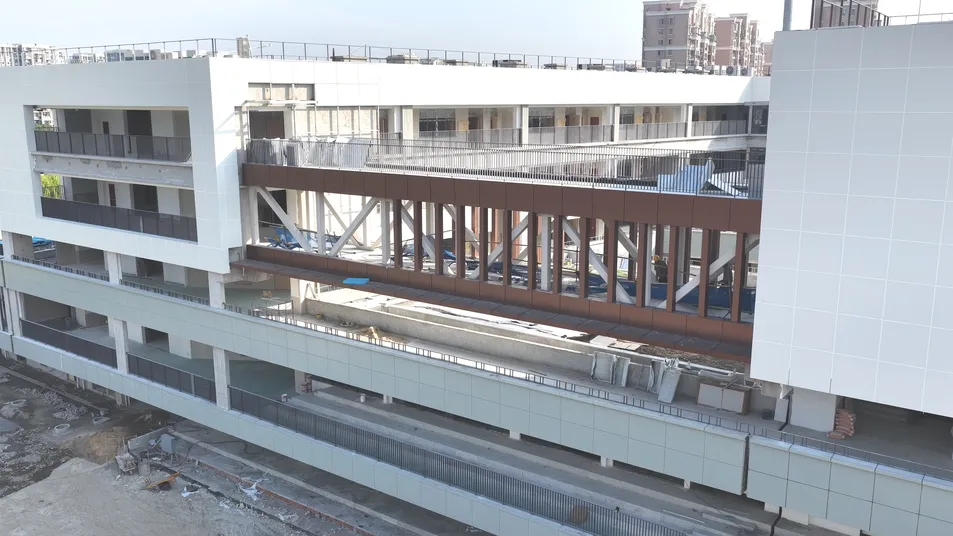

Gallery 1

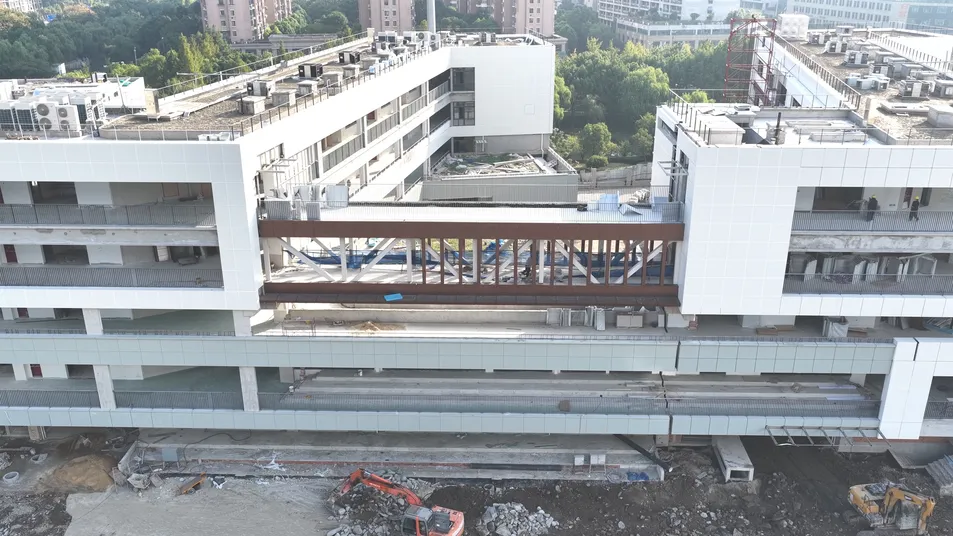

Gallery 2

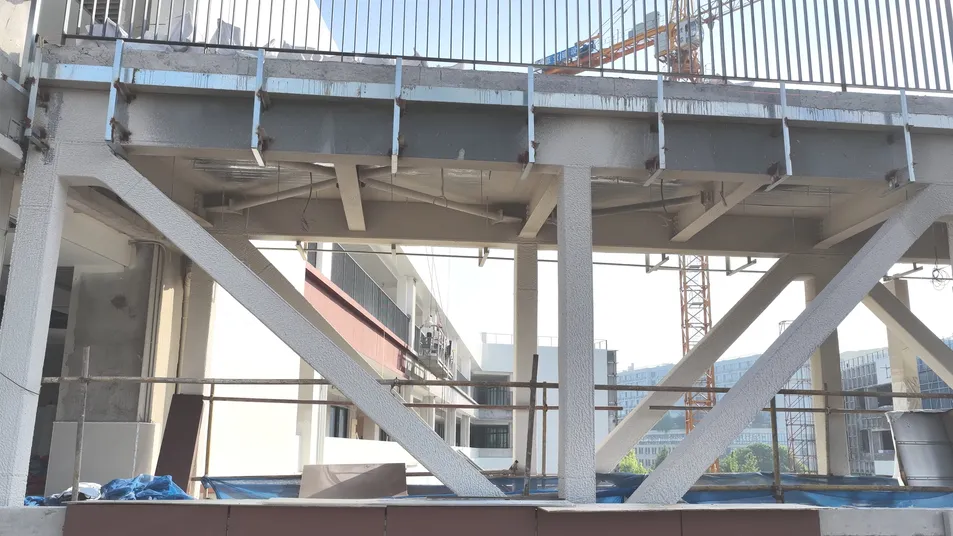

Gallery 3

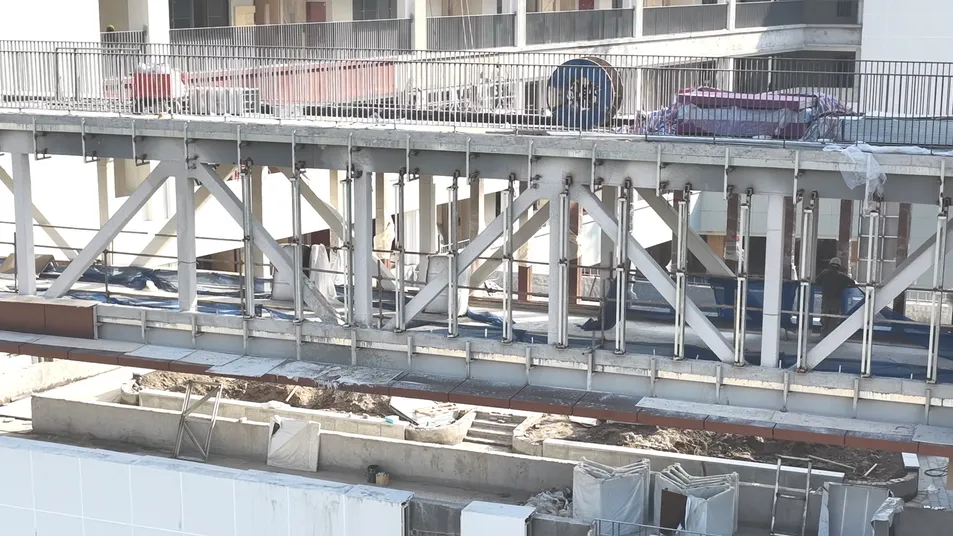

Gallery 4

Technical Parameters

Category Description
Structural SystemSteel Box Truss Structure
Steel TypeQ355B
Dimensions25.76m (L) × 4.2m (W) × 3.9m (H)
Length/SpansLength: 25.76m, divided into 6 spans
Roller Shutter3.35m (W) × 2.4m (H)
Surface TreatmentWhite Non-intumescent Fireproof Coating
StandardGB50205-2008

Customization Requirements

To provide an accurate design and quotation, please confirm the following details:

  • Project Location: Destination country and port.
  • Dimensions: Length × Width × Eave Height, Roof Slope.
  • Design Loads: Maximum wind speed and snow load requirements.
  • Insulation: EPS, Fiberglass Wool, Rock Wool, or PU Sandwich Panels (50-150mm).
  • Openings: Quantity and position of doors and windows.

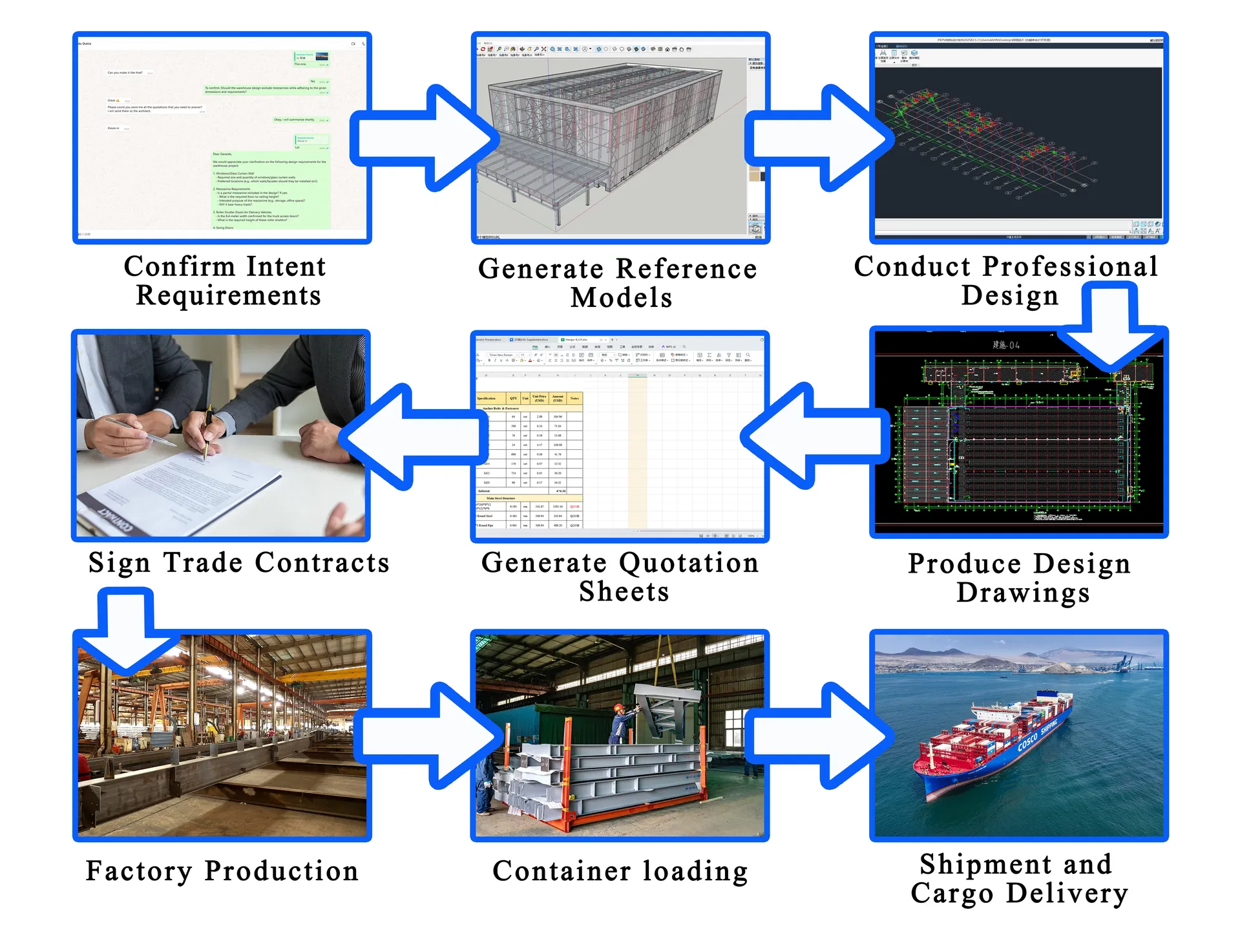

Custom Design

Production Process & Collaboration

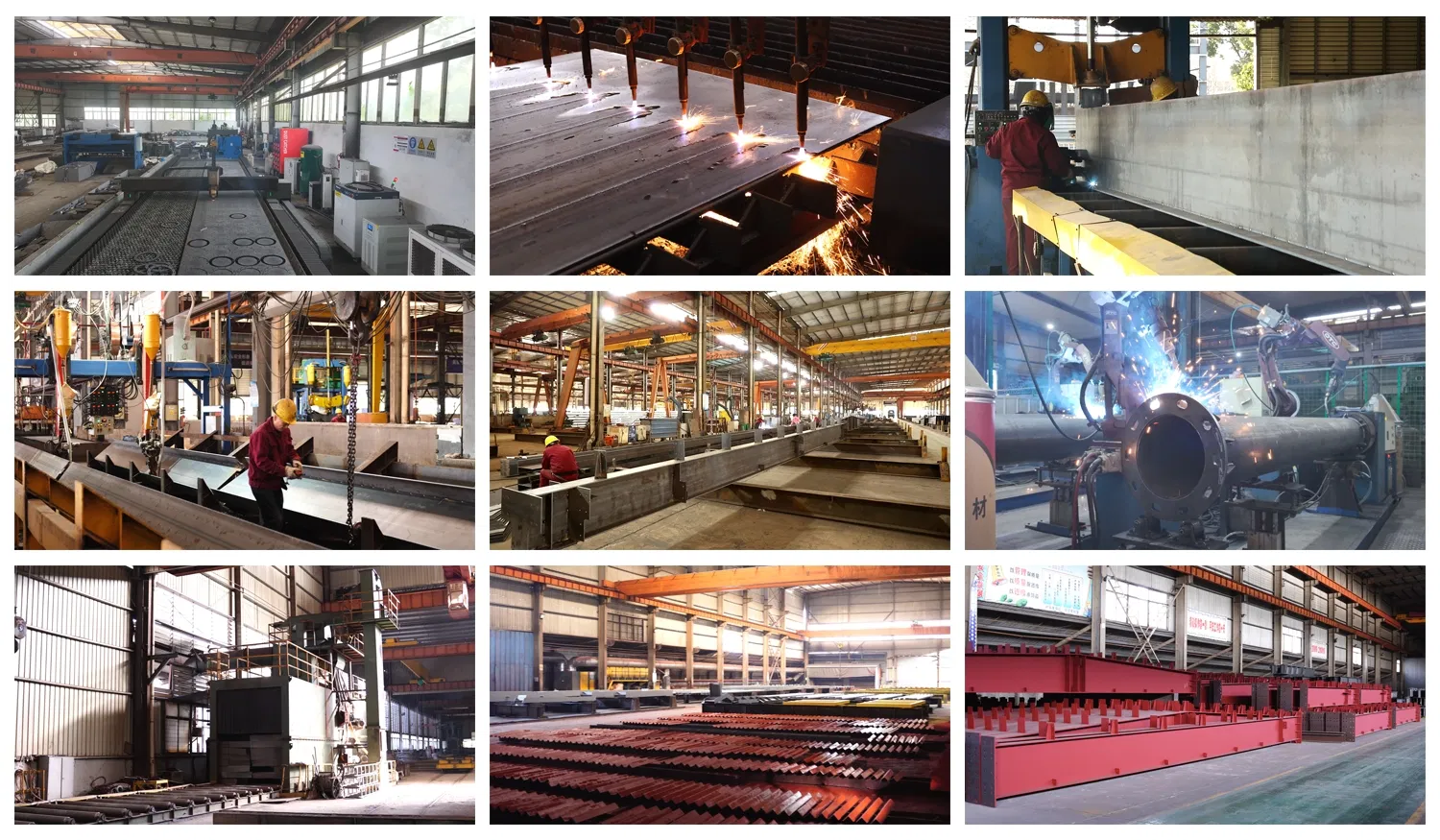

Production Process

Our service process includes 3D Modeling, Engineering Design, Transparent Quotation, Strict Production Quality Control, and Professional Installation Support.

Global Partners
Certifications

Frequently Asked Questions

Q: Is your company a factory or trade company? A: We are a professional factory established for over twenty years, offering competitive pricing and high-quality steel products.
Q: How can I get a quotation? A: You can provide your existing drawings or share your project requirements with us. We typically respond with a detailed proposal within 12 hours.
Q: What is your production cycle time? A: The standard production time is approximately 20 days, depending on project complexity and customization needs.
Q: How is the product quality controlled? A: We maintain a strict inspection system for weld quality, paint thickness, and structural dimensions, certified under ISO9001:2015 and EU EN 1090 standards.
Q: Do you provide installation support? A: Yes, we provide detailed erection drawings, remote technical guidance, and support to ensure your project is completed smoothly.
Q: What kind of steel grades do you use? A: We primarily use high-strength Q235, Q345, and Q355 steel grades based on the structural requirements of the building.
