| Model NO. | OSS-BM-FB-0054 |
| Hardness | Full Hard |
| Material | Metal |
| Standard | EN, GB |
| Style | Sloped Roof |
| Surface Treatment | Customized, Painted |
| Drawing Design | Autocad, Tekla |
| Certification | ISO, CE |
| Construction Member | Box-Shaped Beam, Box-Shaped Column |
| Transport Package | Steel Pallet and Shipping in Container |
| Specification | Customization |
| Production Capacity | 3000tons/Month |

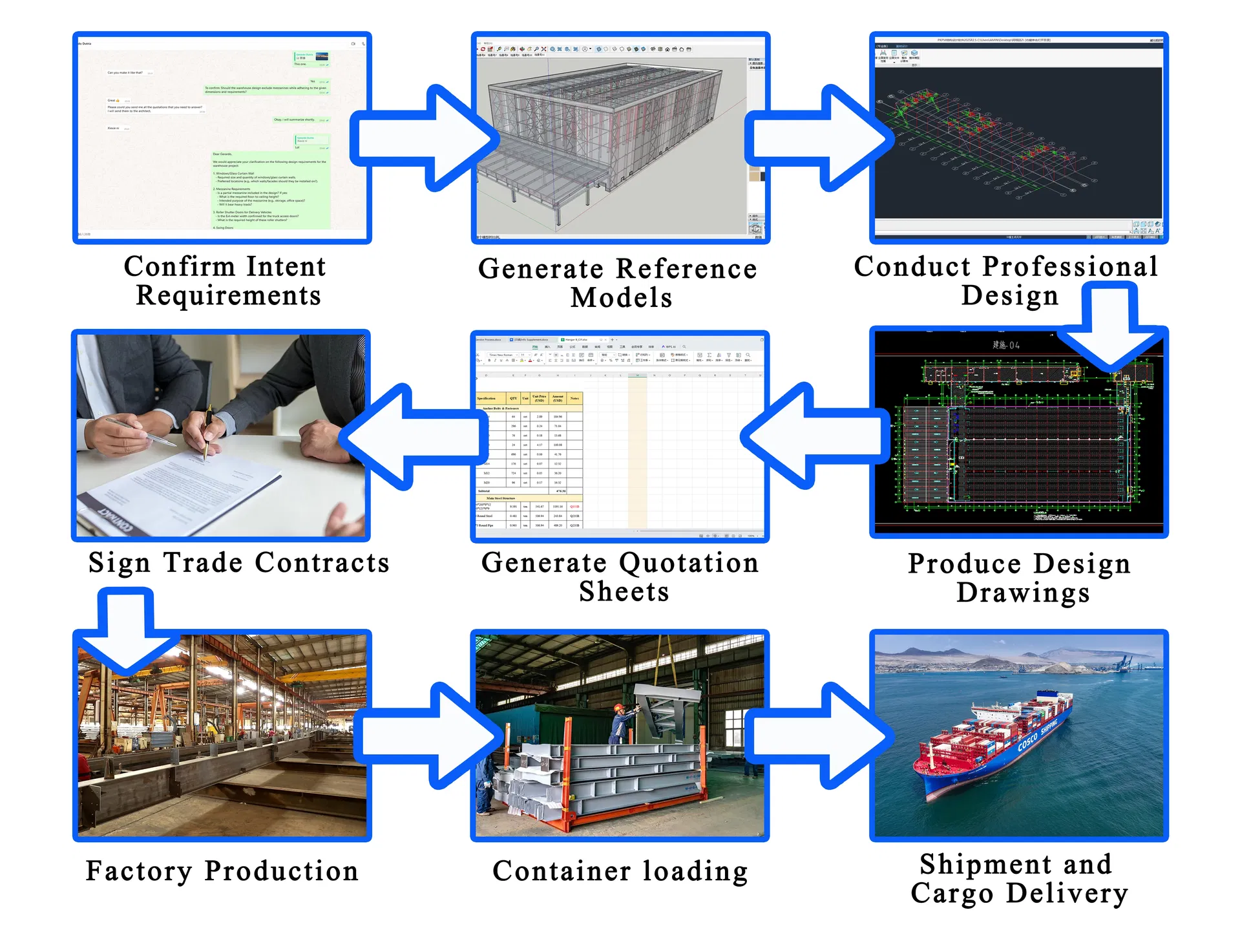

Create a detailed 3D model based on your requirements to clearly visualize the project and avoid potential design errors in advance.
Perform structural design using professional software, fully considering local conditions such as wind load, snow load, and seismic requirements.
Provide a clear and comprehensive quotation based on the finalized design, ensuring full transparency of costs.
After your approval, we finalize all technical details and commercial terms, followed by contract signing.

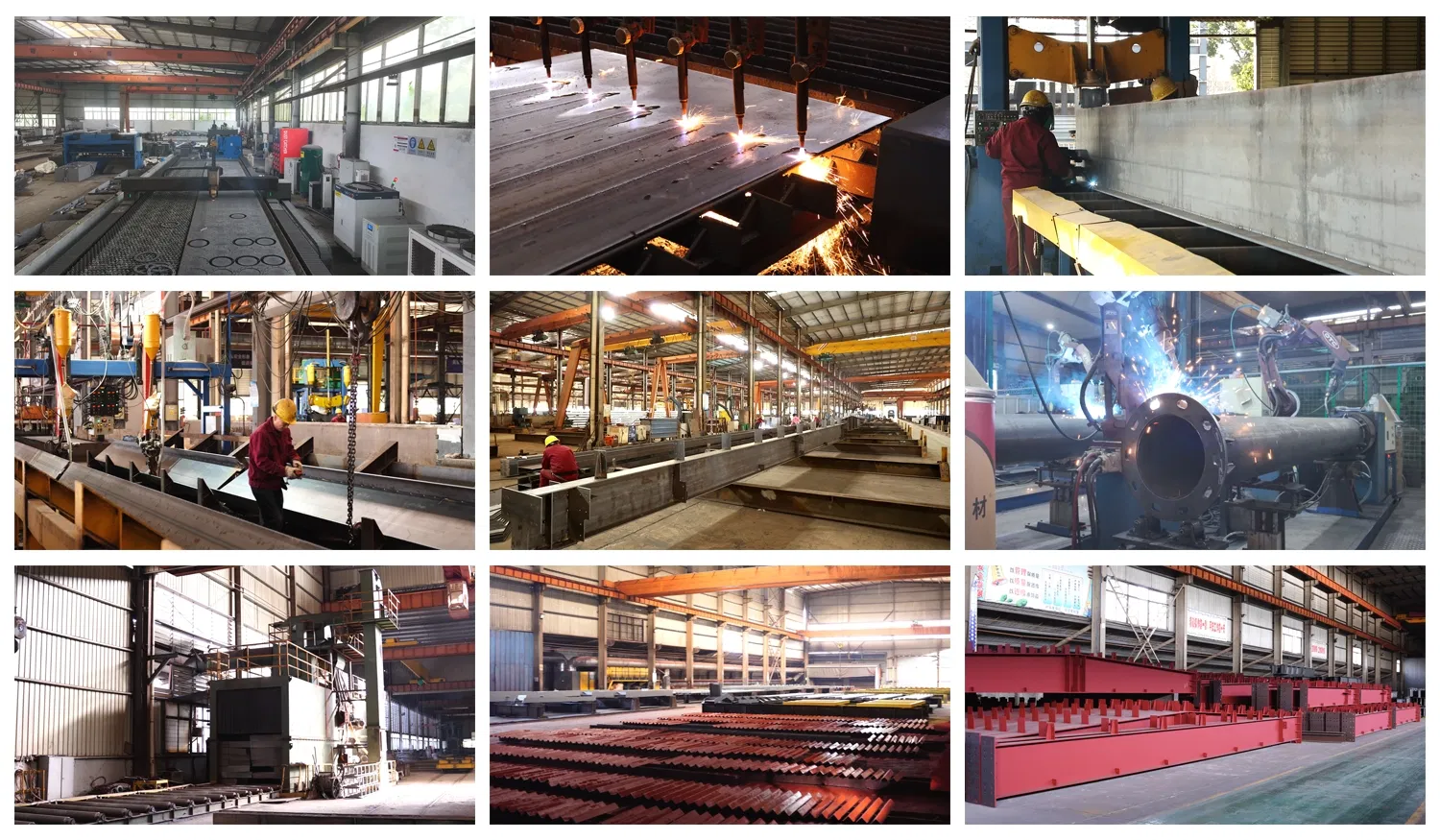

Arrange manufacturing strictly in accordance with approved drawings, with quality control throughout the process.
Handle export procedures and organize shipment to ensure safe and timely delivery.
Provide erection drawings, remote installation guidance, and technical support to assist you in completing the project smoothly.
To provide you with an accurate design and quotation, please confirm the following information:

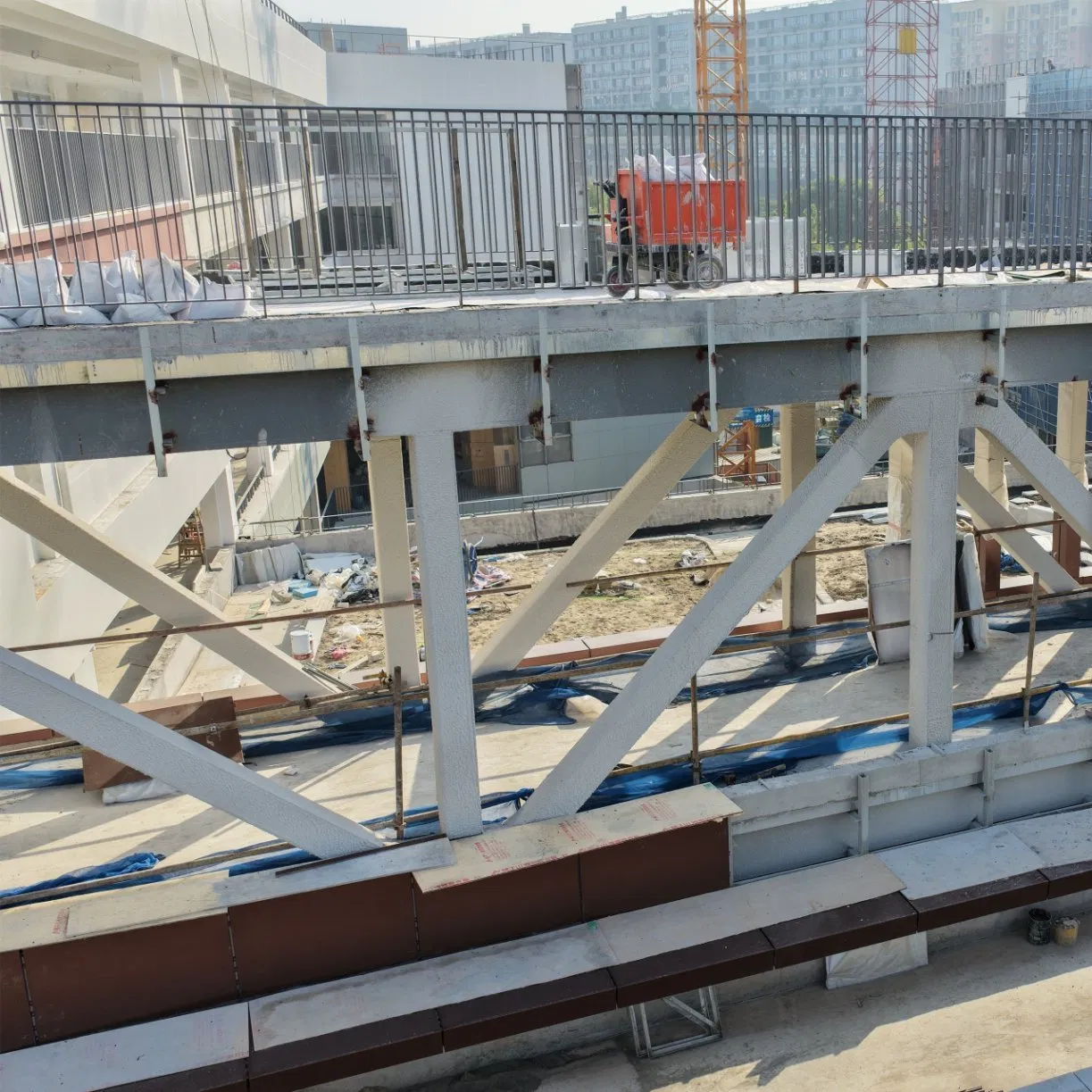

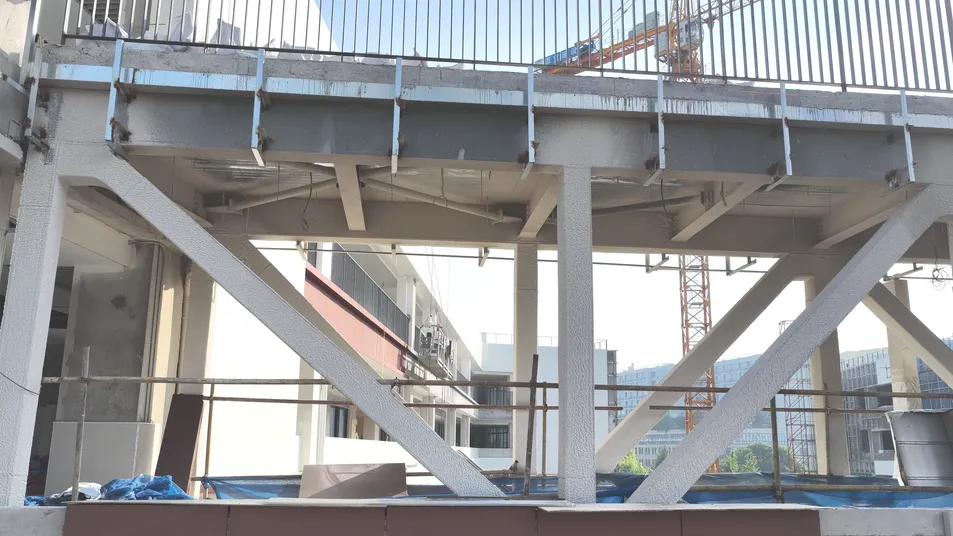

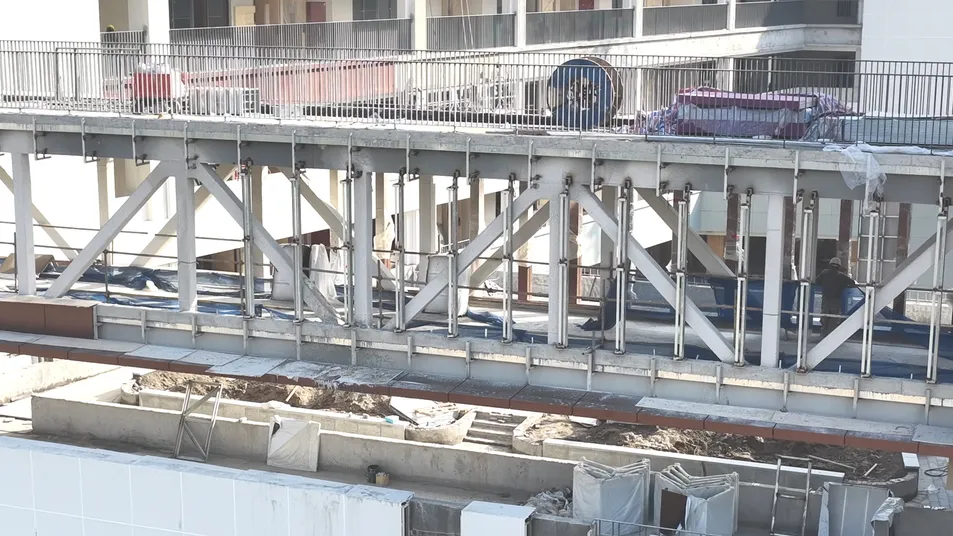

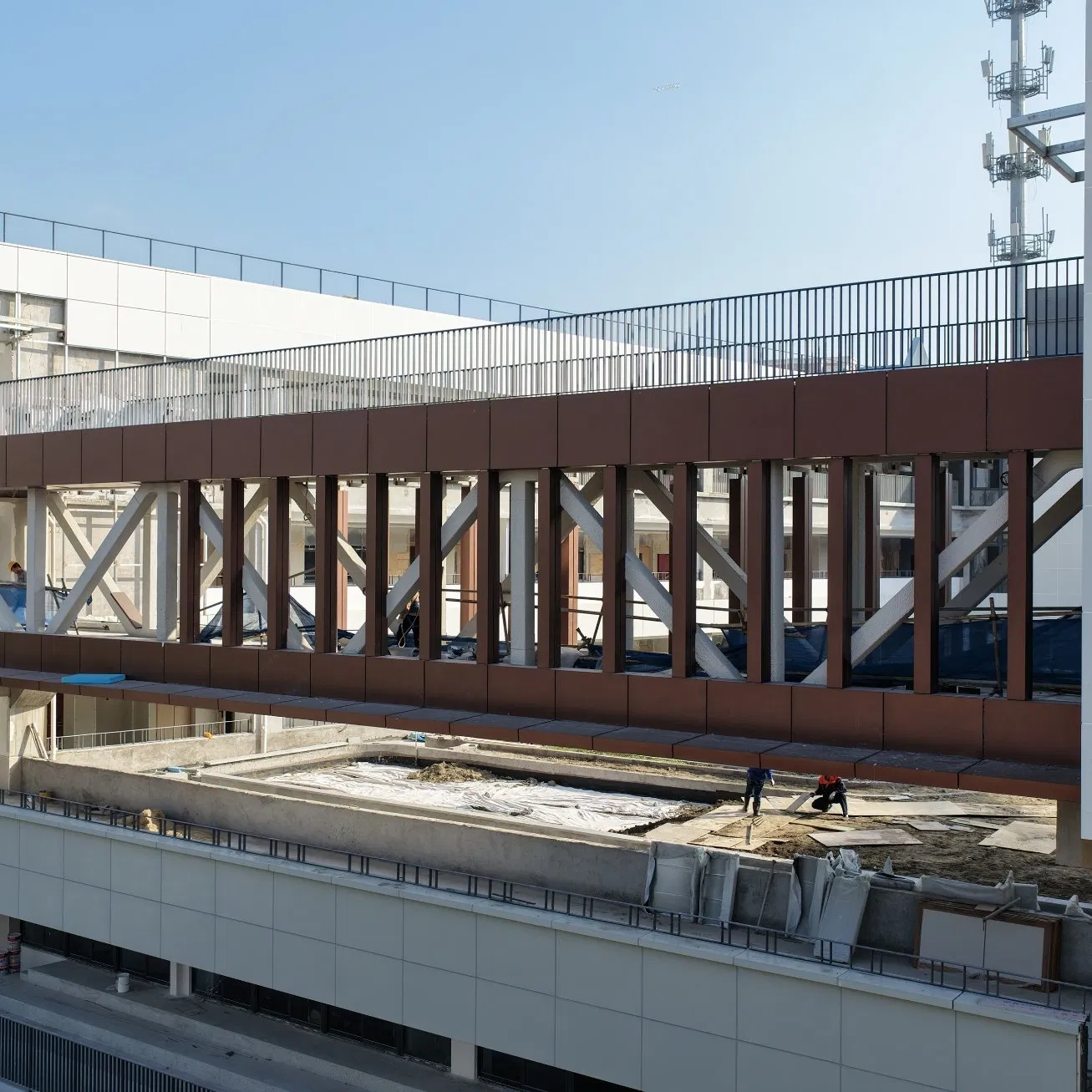

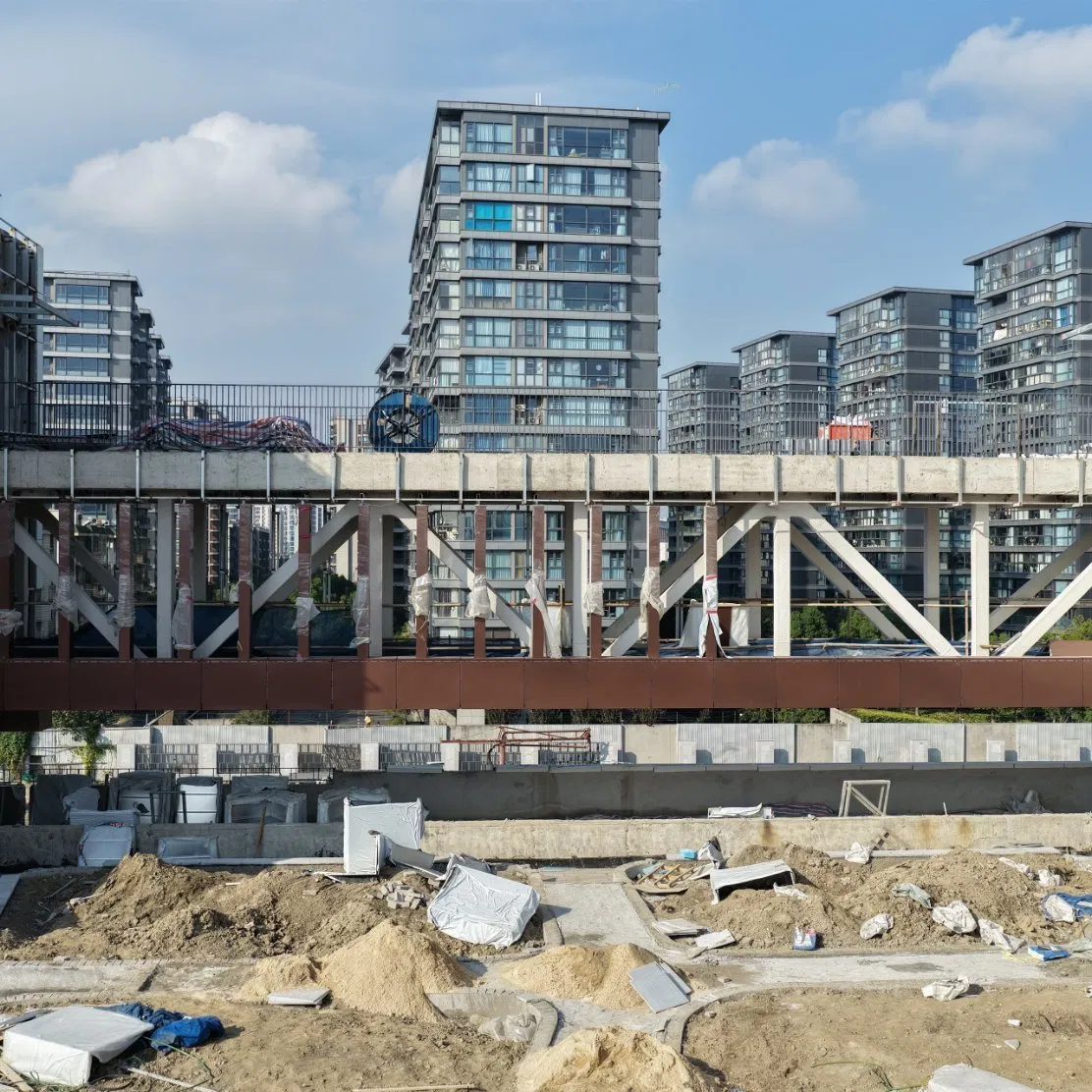

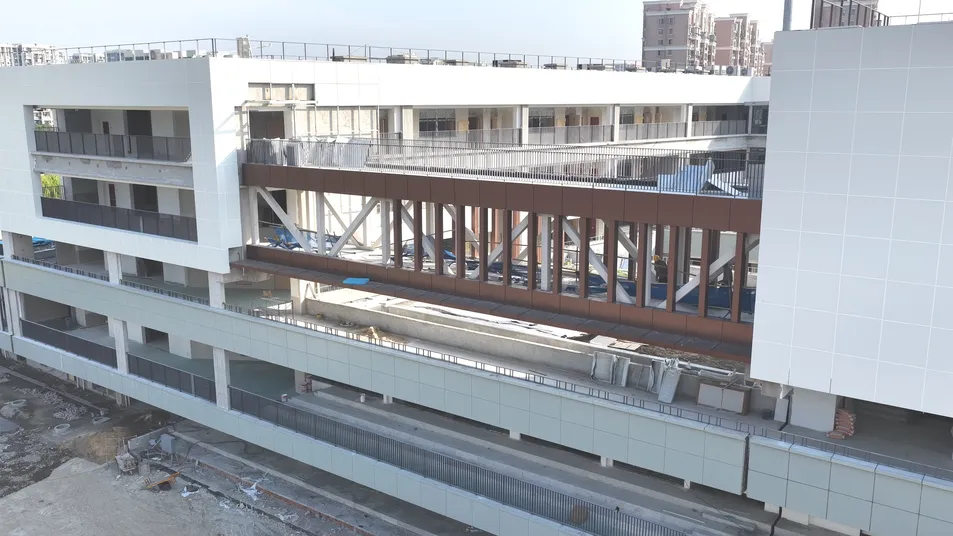

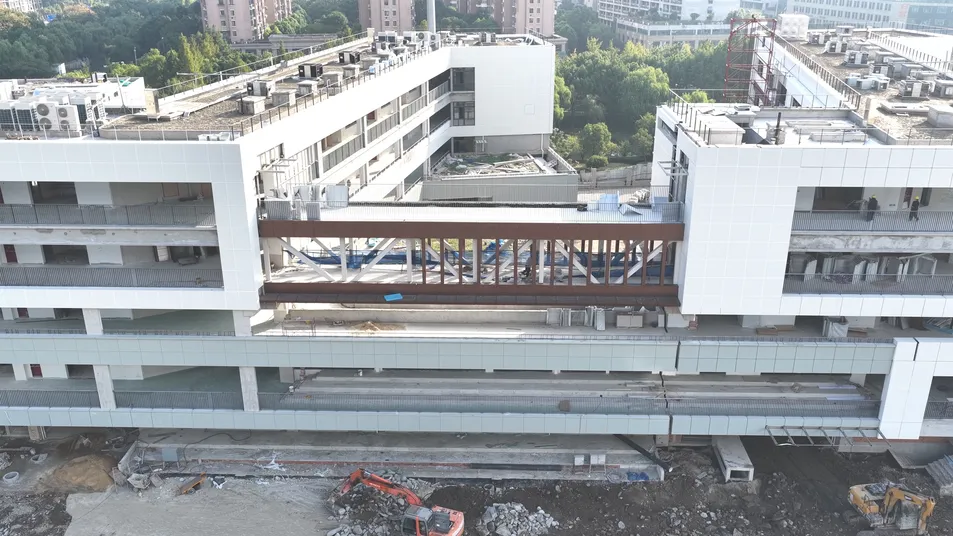

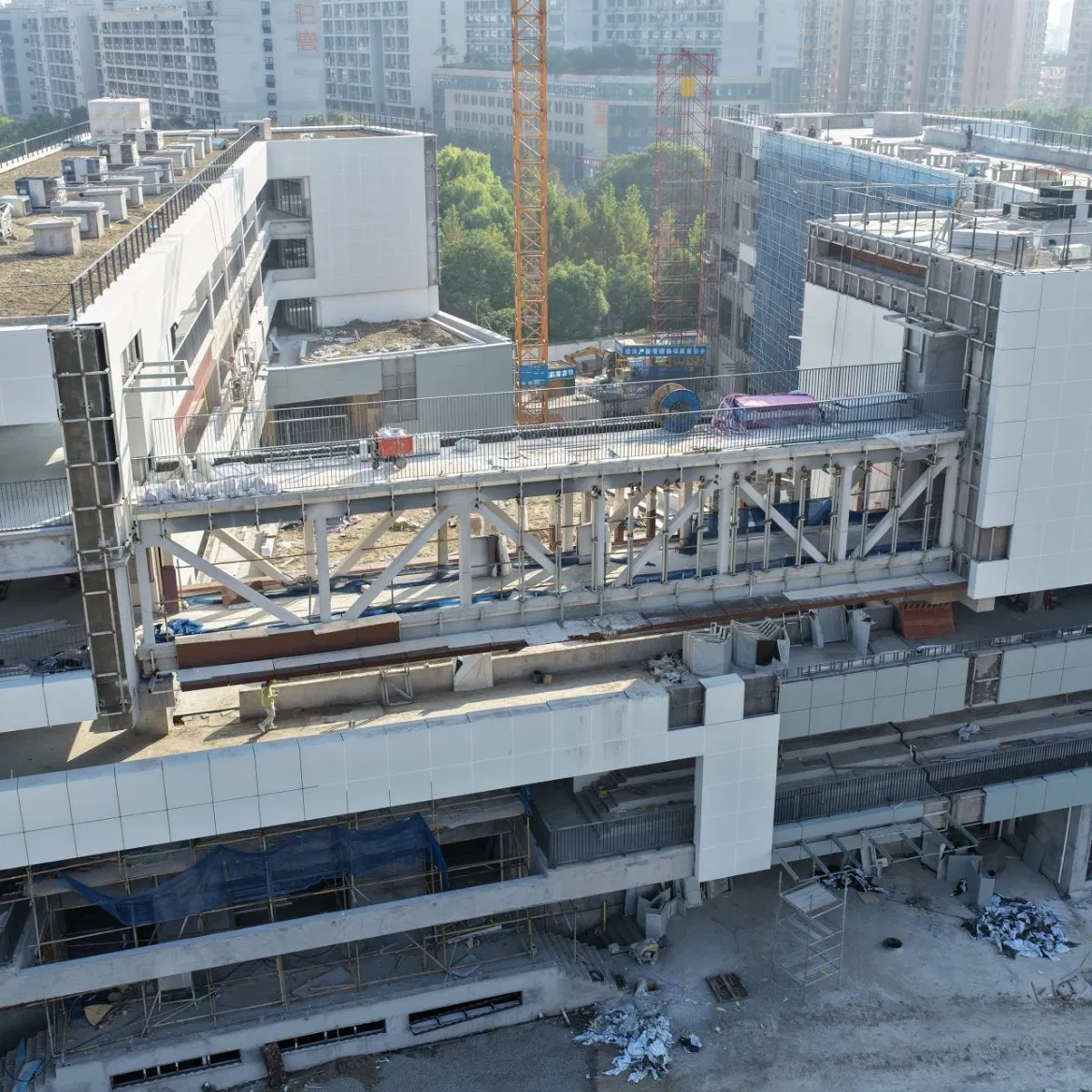

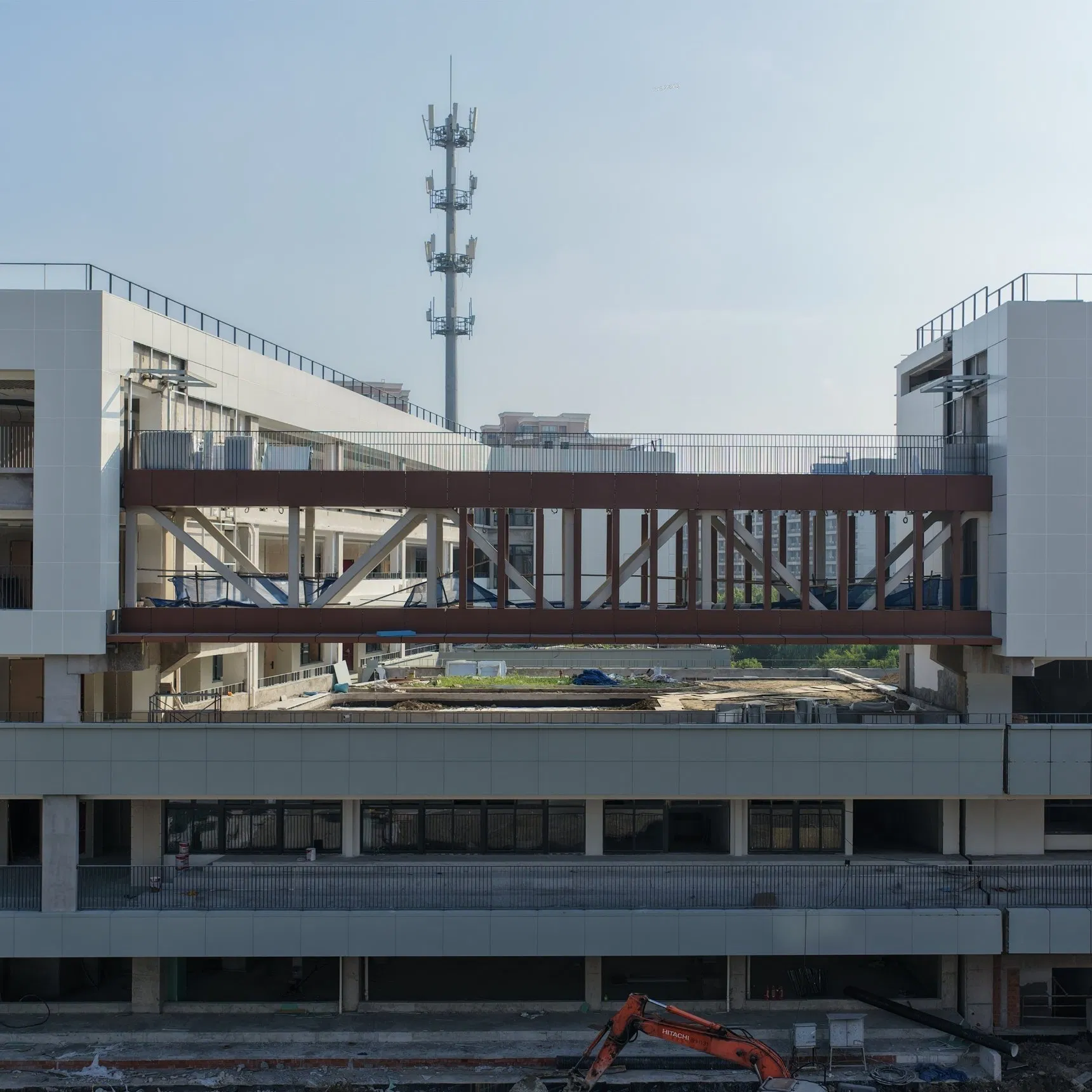

This corridor adopts a steel box truss structure made of Q355B steel. Main members use welded box sections and H-shaped steel, providing high strength and rigidity.
| Category | Description |
| Structural System | Steel Box Truss Structure |
| Steel Type | Q355B |
| Dimensions | 25.76m (L) × 4.2m (W) × 3.9m (H) |
| Length/Spans | Length: 25.76m, divided into 6 spans |
| Height | 3.9m |
| Roller Shutter | 3.35m (W) × 2.4m (H) |
| Surface Treatment | White Non-intumescent Fireproof Coating |
| Steel Materials | Welded Box Sections and H-shaped Steel Members |
| Standard | GB50205-2008 |
