55 Gallon Steel Barrel Making Machine Painting Drying Line

1 / 1

55 Gallon Steel Barrel Making Machine Painting Drying Line

Transmission Type:	Flexible
Rhythm:	3-4 Drums/Minute
Automatic Production Line:	Comprehensive

Send Inquiry

Product Description

Basic Specifications

Model NO.

Painting Drying Line

Production Scope

Product Line

Flexible Production

Lean Production

Certification

ISO, CE

Automation

Application

Dairy Products, Oil

Driven Type

Hydraulic

Function

Making Steel Drum or Barrel

Specification

220L

Origin

China

Capacity

5 sets/Year

55 Gallon Steel Barrel Painting Drying Line

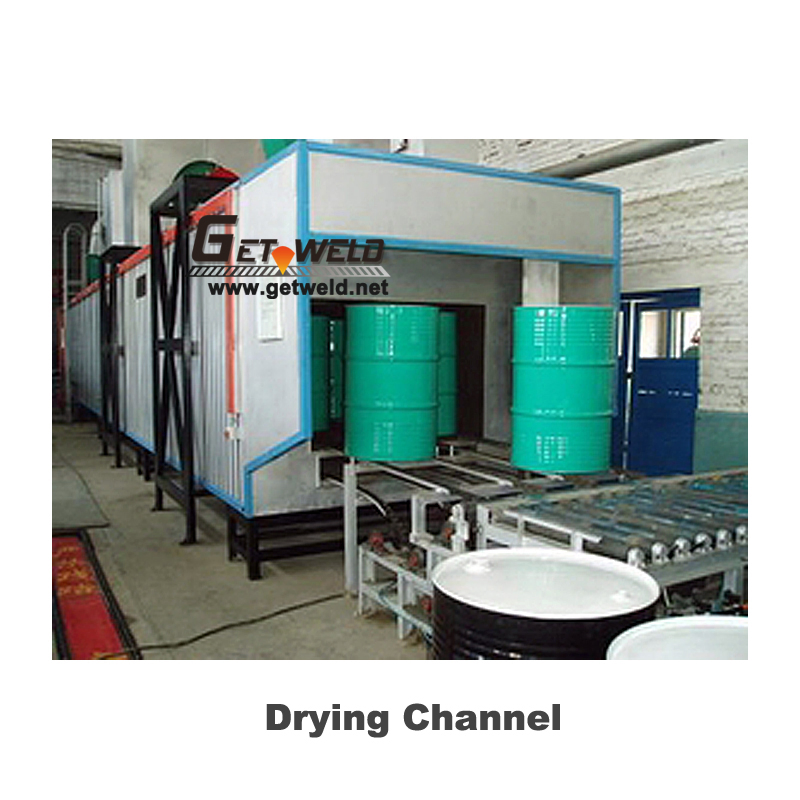

1. Drying Channel Specifications

Dimensions: L24M x W2.2M x H2.1M
Heating Method: Burning oil heating system
Heating Units: 2 sets (Primary components made in Italy)
Oil Consumption: Max 80L/h (for both sets)
Temperature Range: Adjustable from room temperature up to 200ºC
Control Precision: ±5 ºC action precision
Heat-up Time: ≤ 20 minutes (from 20 ºC)
Insulation Performance: Surface temperature rise < 10ºC when internal temperature is 200ºC

2. Drying Transport System

Chain Type: 216A double pitch roller chain
Configuration: 3 rows layout
Total Length: 34 meters
Operating Speed: 0.4 - 2.5m/min (Adjustable)
Distributor Units: 1 set for in-line, 1 set for out-line
Out-line Transport: 1 set (20m length)
Drying Orientation: Vertical orientation

3. Integrated Control System

Purpose: Synchronized control of drying channel temperature and transport speed
Quantity: 1 complete control box set

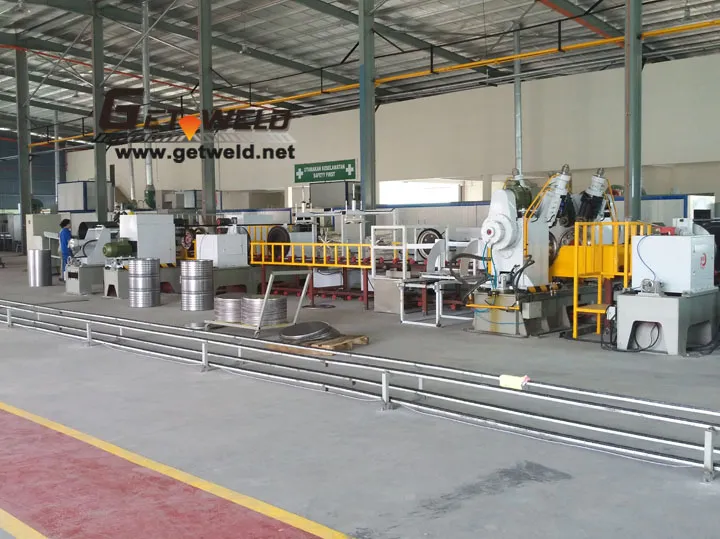

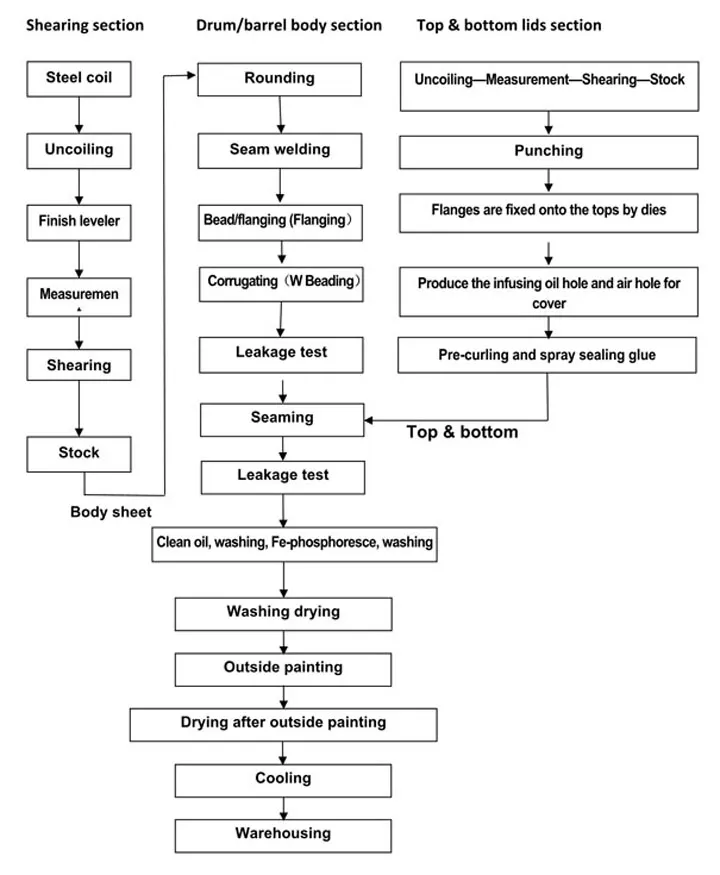

Production Process & Equipment Display

Frequently Asked Questions

How do you ensure equipment quality?

We utilize a strong design and technical team that monitors every stage of production. Our QC department inspects each procedure, and we can customize designs to meet your specific requirements.

How can I obtain an accurate quotation for this machine?

Please provide detailed information about your workpiece, including technical drawings or your required daily output capacity.

What are the heating capabilities of the drying channel?

The system uses oil-burning heat units (Italian made) capable of reaching 200ºC from room temperature in under 20 minutes, with a temperature precision of ±5 ºC.

What is the shipping process from China?

We can ship machinery to your designated port via sea freight. Customers may specify their own freight forwarders or negotiate shipping methods with us.

What are the standard payment and warranty terms?

Terms include a 30% down payment upon ordering and a 12-month warranty following delivery. We provide 24-hour online technical support via email and digital platforms.

Can the transport speed be adjusted for different production needs?

Yes, the transport speed is fully adjustable between 0.4m/min and 2.5m/min via the integrated control system to match your specific production requirements.
