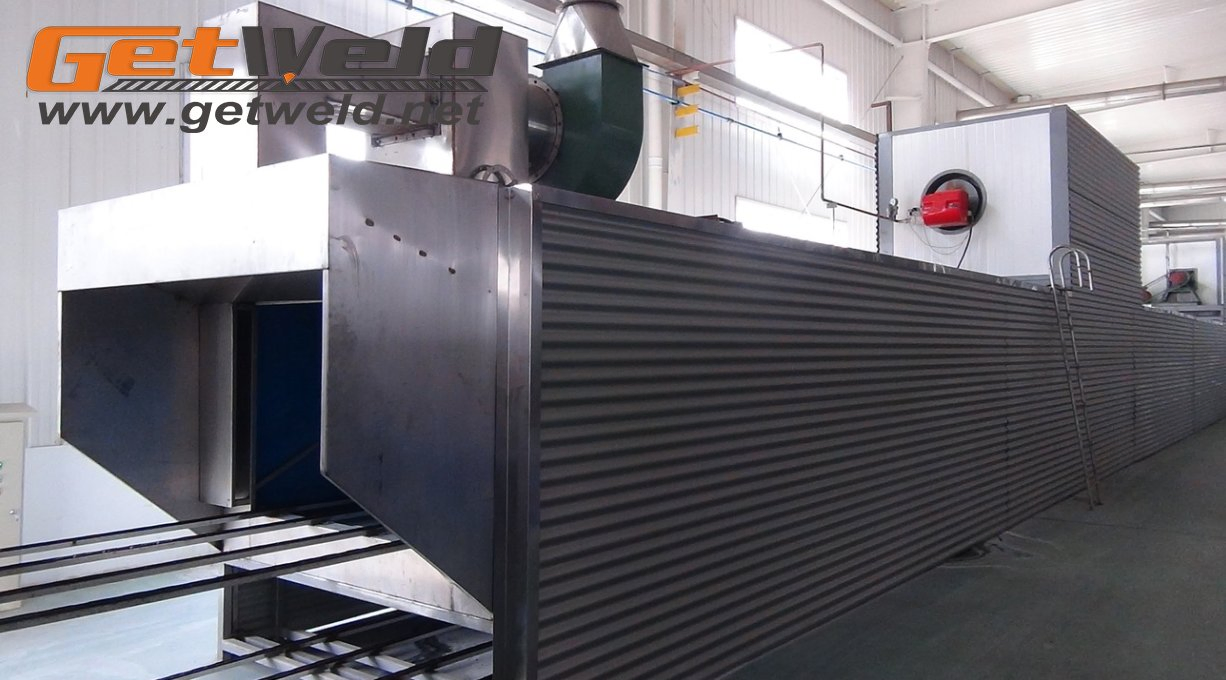

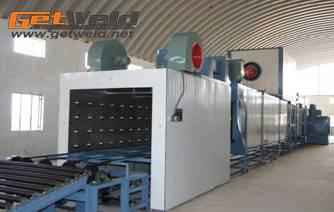

1. Drying Channel Specifications
- Dimensions: L24M x W2.2M x H2.1M
- Heating Method: Burning oil to heat
- Heat Machine Units: 2 sets (main parts made in Italy)
- Oil Consumption: Max 80L/h (for 2 sets)
- Working Temperature: Room temperature to 200ºC (adjustable)
- Temperature Precision: ±5 ºC
- Rising Temperature Time: ≤ 20min (from 20 ºC)
- Heat Preservation: Surface temperature rise less than 10ºC when internal is 200ºC
2. Drying Transport System
- Chain Type: 216A double pitch roller chain
- Rows: 3 transport rows
- Total Length: 34m
- Transport Speed: 0.4 - 2.5m/min
- Drying Type: Vertical
- Equipment: In-line/Out-line distributors and 20m out-line transport set
