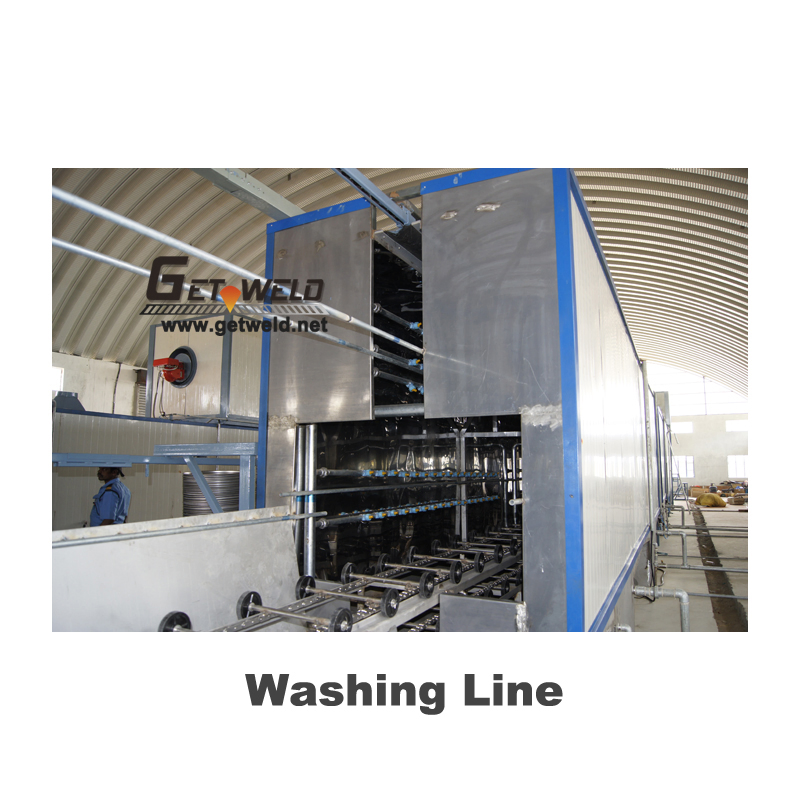

Steel Drums/Barrels Production Line Automatic Washing and Drying Room
(1) Rain Spray Channel
Wash equipment technology processes designed for efficient cleaning.
(2) Wash Transportation System
- Length: 42.25m
- Type: Drums transported forward and rotated automatically
- Speed: 0.5-4m/min (Adjustable via electric-magnet)
- Chain Material: 304 Stainless steel
- Wheel Shaft: 2Cr13 Stainless steel
- Rail: 304 Stainless steel
(3) Drying Channel
- Dimension: L8M x W1.5M x H1.7M
- Heating Method: Burning oil (System made in Italy)
- Oil Consumption: 30kg/h
- Work Temperature: Room temperature to 120 ºC
(4) Drying Transportation
- Length: 34m
- Type: Continuous flow system
- Material: Carbon steel chain and wheel shaft
- Heating System: Steam heating (Steam temperature > 100 ºC)
(5) Turning Machine
Purpose: Automatically positions drums from horizontal to vertical for the painting transport chain after cleaning.
(6) Intelligent Control Box
Comprehensive set to monitor channel liquid temperature, transport speed, and liquid supply within the wash line.
❓ Frequently Asked Questions
How do you ensure the quality of the production line?
We have a strong design and technical team that ensures the production process at every stage. Our QC team inspects each procedure thoroughly. We can also customize the design to meet your specific requirements.
What is the production capacity of this washing and drying line?
The system is designed for high efficiency with a production capacity of 5-10 pieces per minute, suitable for 220L steel drums.
What information is needed for an accurate quotation?
Please provide detailed information regarding the workpieces, such as technical drawings or your required daily output capacity.
How is the equipment shipped from China?
We can ship the machinery to your designated port by sea. Customers may specify their own freight forwarders or negotiate shipping methods with us.
What are the warranty and after-sales terms?
We provide a 12-month warranty following delivery. We offer 24-hour online support via email and other communication tools to assist with any technical queries.
What are the standard payment and delivery terms?
Standard terms include a 30% down payment upon order. Typical delivery time is approximately 3 months after the receipt of the formal order.
