Washing Line for Steel Drum Production Line

Production Scope:	Product Line
Automation:	Automation
Application:	Dairy Products, Oil

Send Inquiry

Product Description

Basic Specifications

Model NO.

Washing Line

Driven Type

Hydraulic

Function

Making Steel Drum or Barrel

Mode of Operation

Special Product Packaging

Service

Engineers Available Overseas

Transmission

Flexible

Production Line

Comprehensive Automatic

Certification

ISO, CE

Production Mode

Lean Production

Rhythm

3-4 drums/Minute

Specification

220L

Origin

China

Product Description

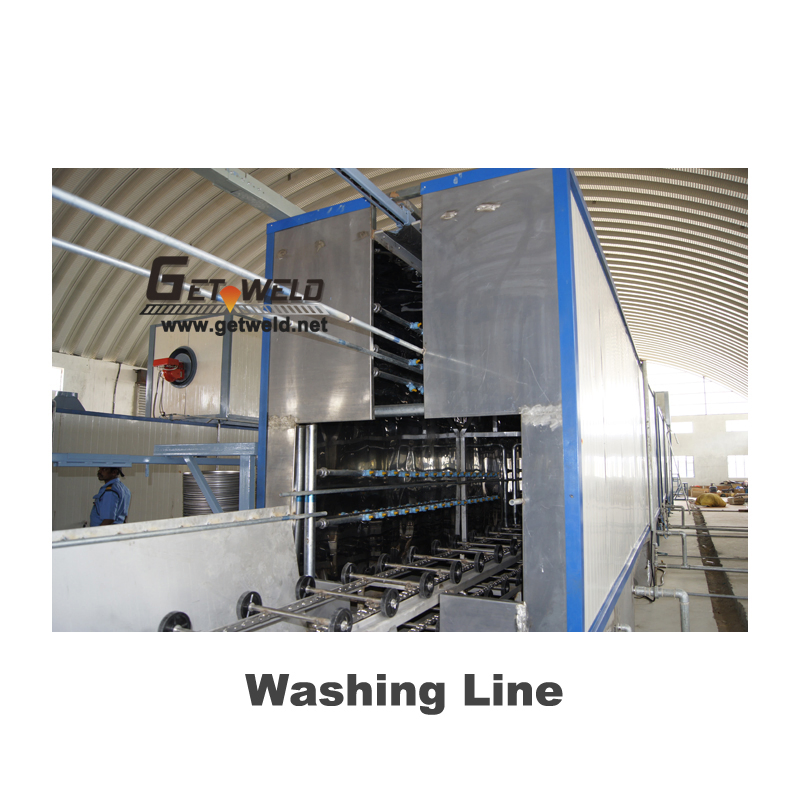

Washing Line For Steel Drum Production Line

Rain Spray Channel

Advanced wash equipment technology processes for efficient drum cleaning.

Wash Transportation

Length: 42.25m
Type: Drums transported ahead with self-rotation
Speed: 0.5-4m/min (Adjustable)
Motor: Electric-mange, stepless speed adjustment
Material: 304 Stainless steel chain & rail, 2Cr13 shaft

Drying Channel

Dimensions: L8M; W1.5M; H1.7M
Heating Way: Oil burning (Italian technology)
Oil Consumption: 30kg/h
Work Temp: Room temperature to 120 ºC

Drying Transportation

Length: 34m
Type: Consistent with wash line rotation system
Speed: 0.5-4m/min
System: Steam heating (Temp > 100 ºC)
Material: Carbon steel chain, shaft, and rail

Turning & Control Systems

Turning Machine: Transitions drums from horizontal to vertical position for painting.

Control Box: Integrated system for liquid temperature, transport speed, and supply management.

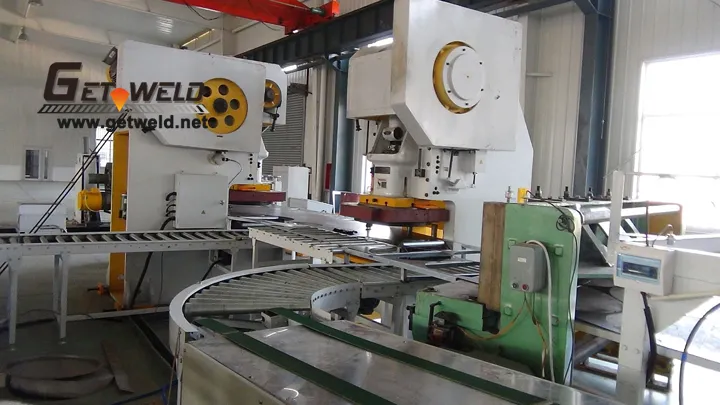

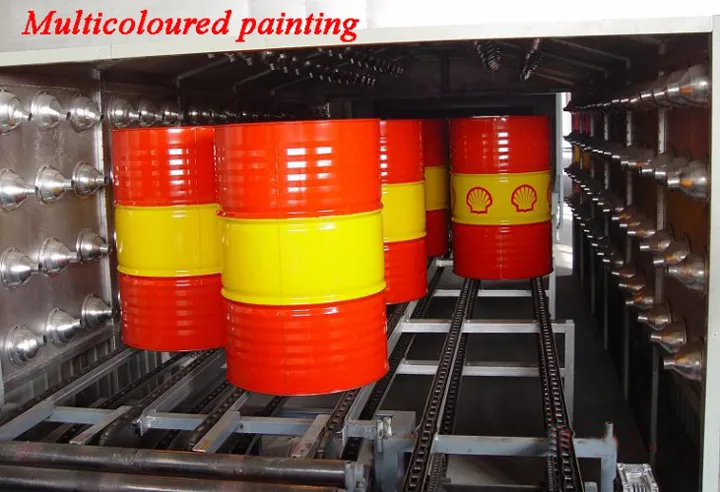

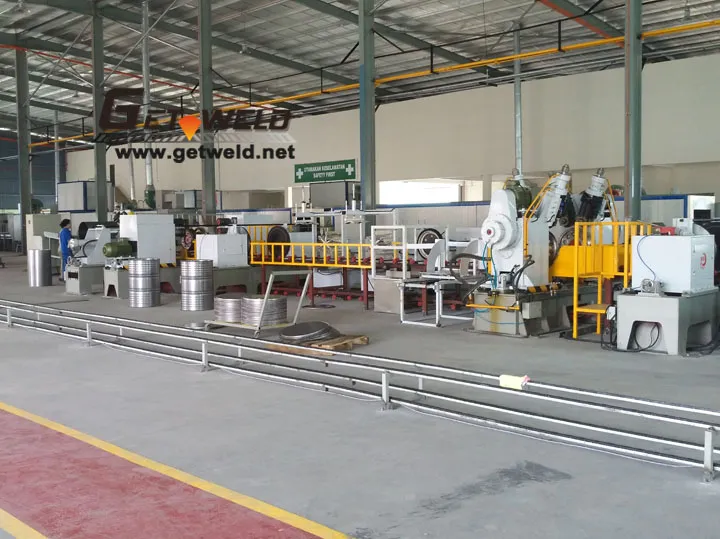

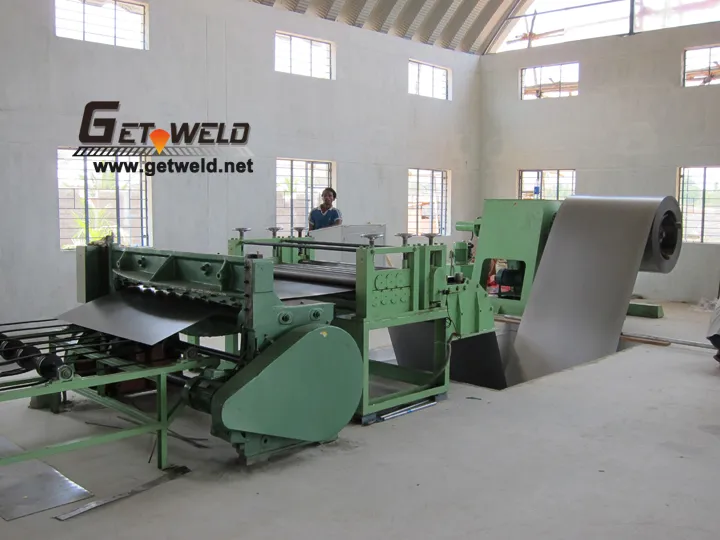

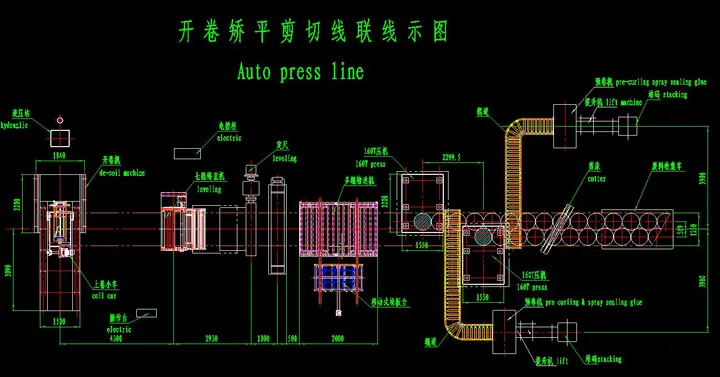

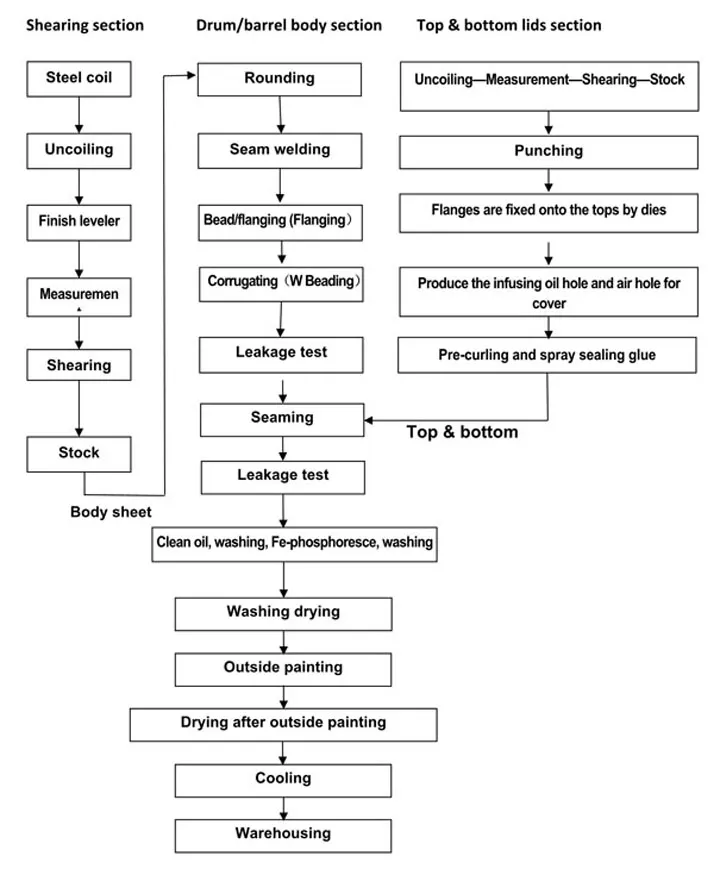

Production Process

Frequently Asked Questions

How is the quality of the production line ensured?

We utilize a strong design and technical team. Every production stage is monitored, and our QC team inspects each procedure to ensure compliance with requirements.

What information is needed for an accurate quotation?

Please provide detailed workpiece specifications, including technical drawings or your expected daily output requirements.

What are the shipping options from China?

Machines can be shipped to your port by sea. Customers may specify their preferred freight forwarders or negotiate shipping methods with us.

What are the standard payment terms?

Standard terms require a 30% down payment upon order placement, with the remaining balance as per the formal agreement.

What is the delivery timeline and warranty?

Delivery typically takes 3 months after receipt of a formal order. We provide a 12-month warranty following delivery, supported by 24-hour online technical service.

Can the machinery be customized?

Yes, our technical team can design and manufacture the washing line and production equipment specifically to meet your industrial requirements.
