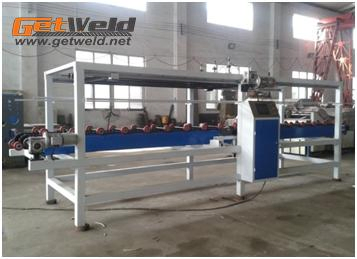

55 Gallon Steel Drum Line -- Painting Booth/Spraying Chamber

After-sales Service:	Engineers Available to Service Machinery Oversea
Automation:	Automation
Production Scope:	Parts Production Line

Send Inquiry

Product Description

Basic Information

Application

Dairy Products, Oil

Driven Type

Hydraulic

Function

Making Steel Drum or Barrel

Transmission Type

Flexible

Production Line

Comprehensive Automatic

Certification

ISO, CE

Flexible Production

Lean Production

Rhythm

Flow Production Line

Warranty

1 Year

Specification

220L

Production Capacity

100 pieces/Year

Origin

China

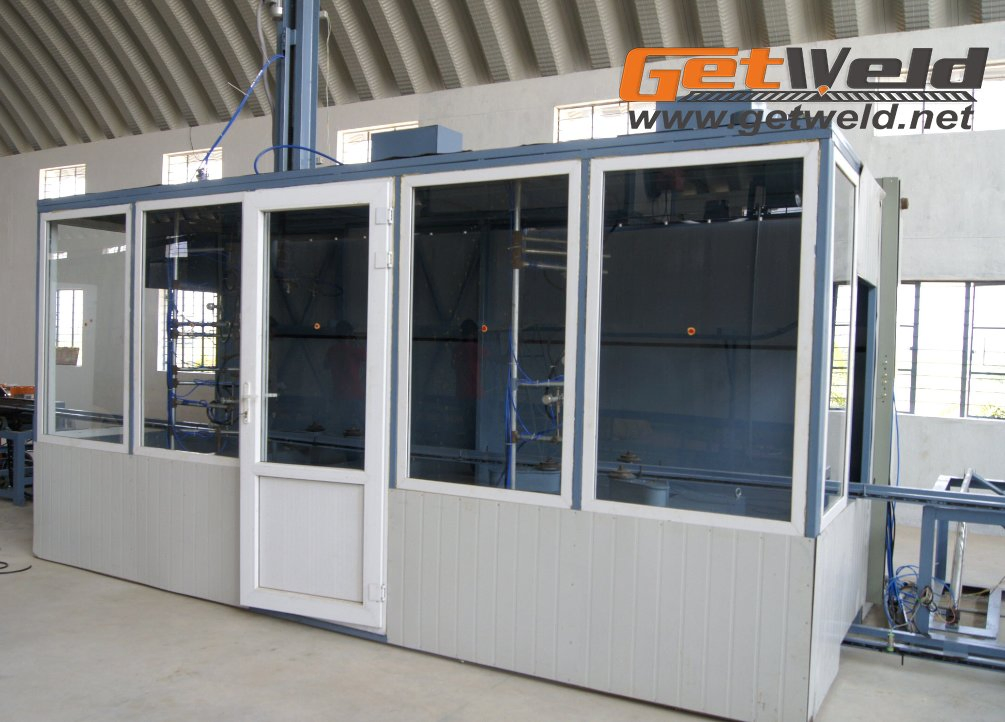

Painting Booth & Spraying Chamber Details

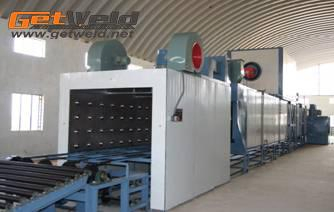

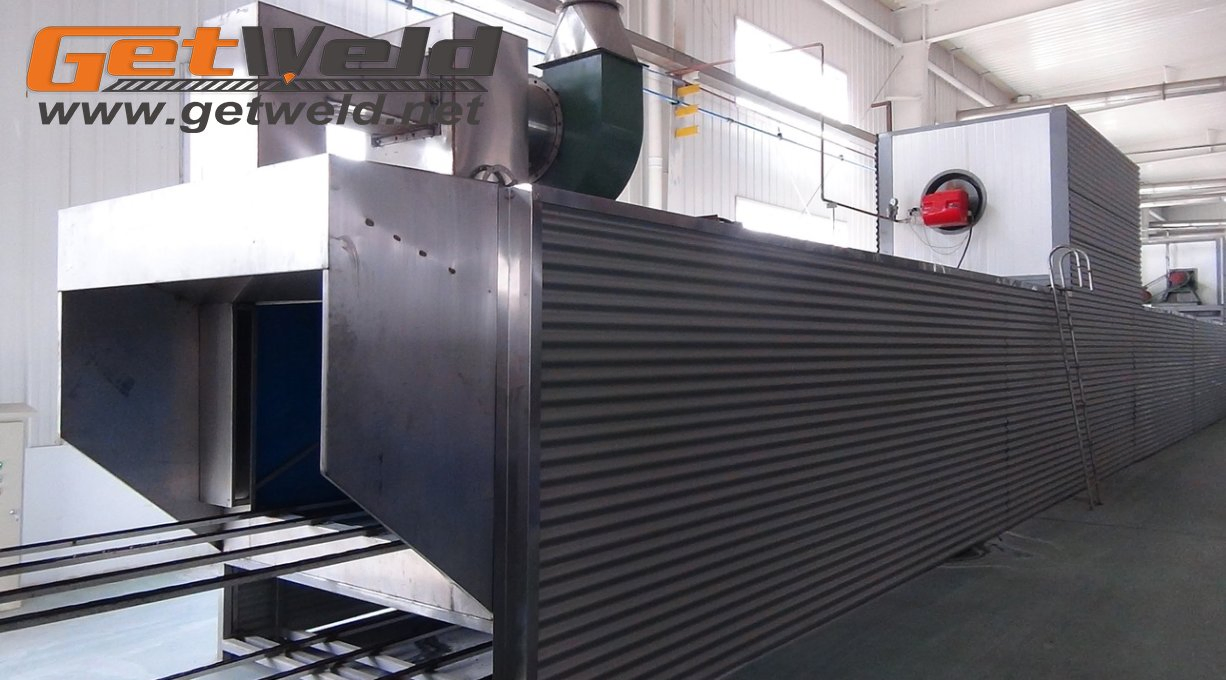

1. Drying Channel Specifications

Size: L24M x W2.2M x H2.1M

Heat Method: Oil-burning heating system

Heat Units: 2 sets (Main components manufactured in Italy)

Oil Consumption: Max 80L/h (for 2 sets)

Work Temperature: Room temperature to 200ºC (continuously adjustable)

Control Precision: ±5 ºC action precision

Rising Time: ≤ 20min (from 20 ºC)

Heat Preservation: Surface temperature rise < 10ºC when internal is 200ºC

2. Drying Transport System

Chain Type: 216A double pitch roller chain

Transport Rows: 3 rows configuration

Chain Length: 34m total

Transport Speed: Adjustable 0.4-2.5m/min

Distributors: 1 set in-line, 1 set out-line

Output Transport: 1 set (20m) for steel drums

Drying Type: Vertical configuration

3. Intelligent Control Box

Function: Precise control of drying channel temperature and transport speed

Quantity: 1 complete set

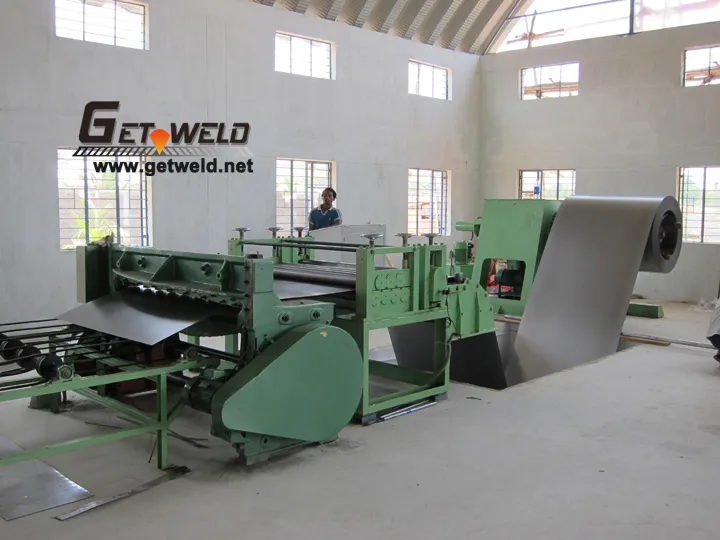

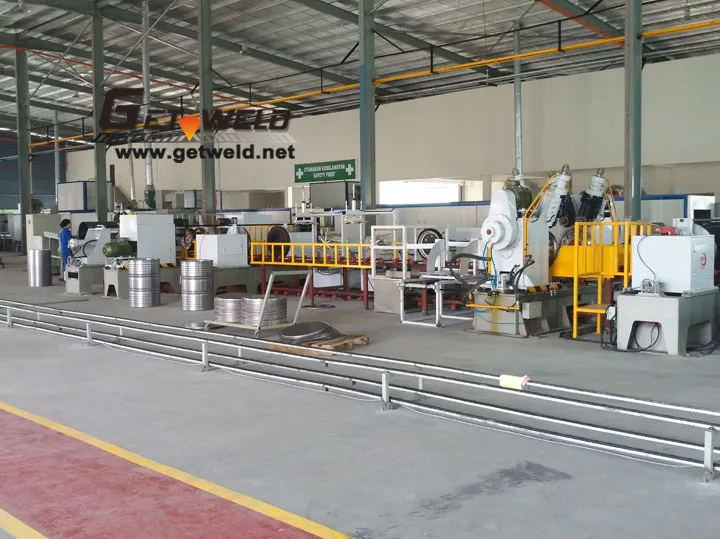

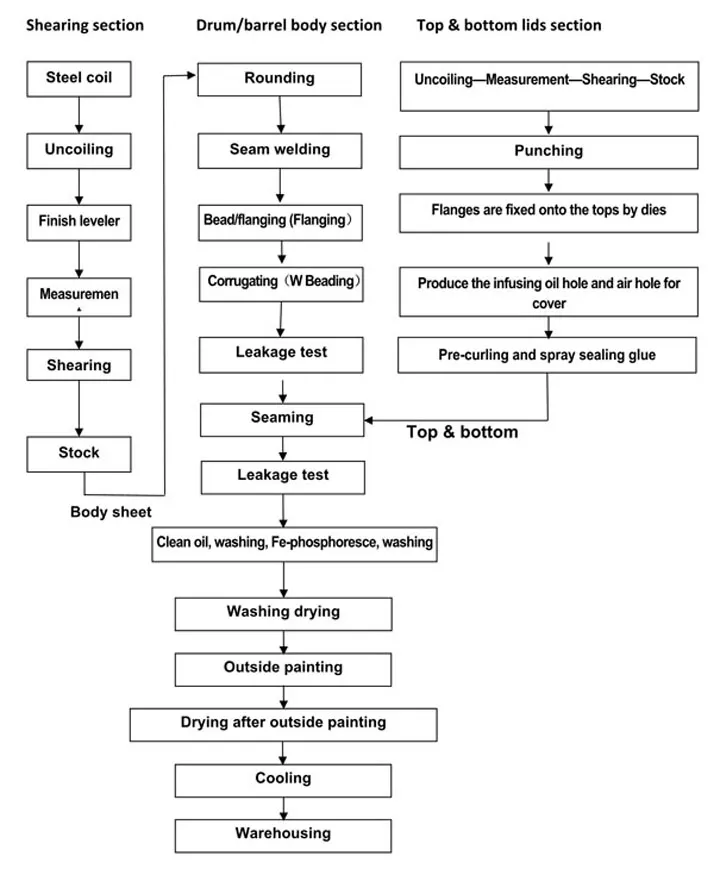

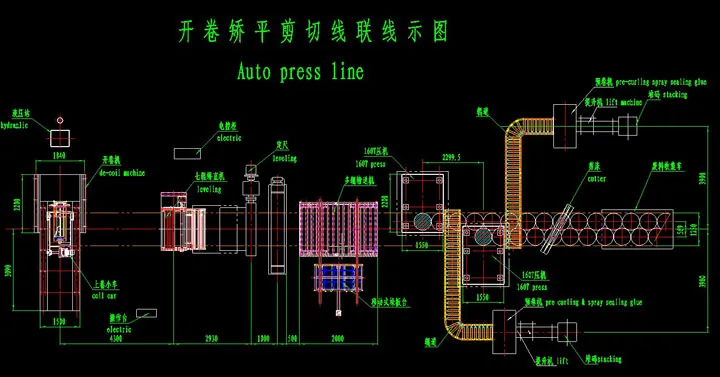

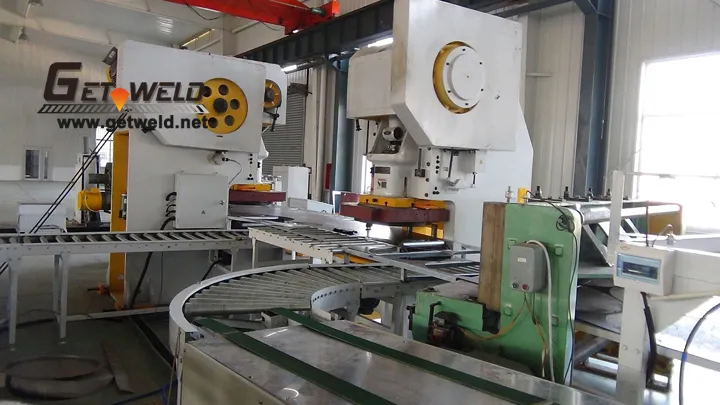

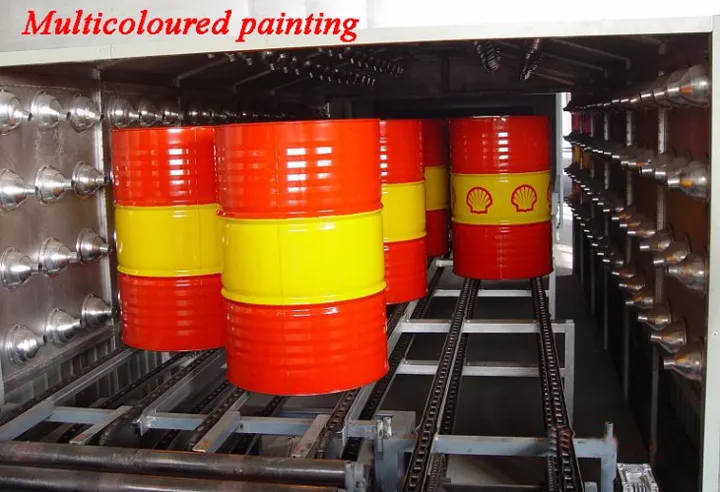

Production Process Display

Frequently Asked Questions

How is the quality of the drum production line ensured?

We utilize a strong design and technical team that monitors the production process at every stage. Our QC department inspects each procedure thoroughly to ensure the final product meets your requirements.

What information is needed for an accurate quotation?

To provide a precise quote, please share details of the workpiece, including technical drawings and your expected daily output capacity.

What are the heating capabilities of the drying channel?

The system uses oil-burning heating units (manufactured in Italy) capable of reaching 200ºC from room temperature in less than 20 minutes, with a control precision of ±5 ºC.

What are the standard payment and delivery terms?

Standard terms include a 30% down payment upon order. Delivery typically takes approximately 3 months after receipt of the formal order.

What warranty and after-sales support is provided?

We provide a 12-month warranty following delivery. Online support is available 24 hours a day to assist with any technical inquiries via various communication channels.

Can the production line be customized for specific drum sizes?

Yes, while the standard specification is for 220L (55 Gallon) drums, the equipment can be designed and manufactured according to your specific industrial requirements.
