Painting Booth/ Spraying Chamber for Steel Drum/Barrel Production Line

1 / 5

Painting Booth/ Spraying Chamber for Steel Drum/Barrel Production Line

Production Scope:	Parts Production Line
Automation:	Automation
After-sales Service:	Engineers Available to Service Machinery Oversea

Send Inquiry

Product Description

Basic Information

Driven Type Hydraulic

Function Steel Drum Painting Machine

After-Sales Service Overseas Engineers Available

Transmission Type Flexible

Production Line Comprehensive Automatic

Certification ISO, CE

Production Style Lean Production

Rhythm 3-4 drums/Minute

Warranty 1 Year

Package Carton

Specification 200L

Production Capacity 100 pieces/Year

Product Description

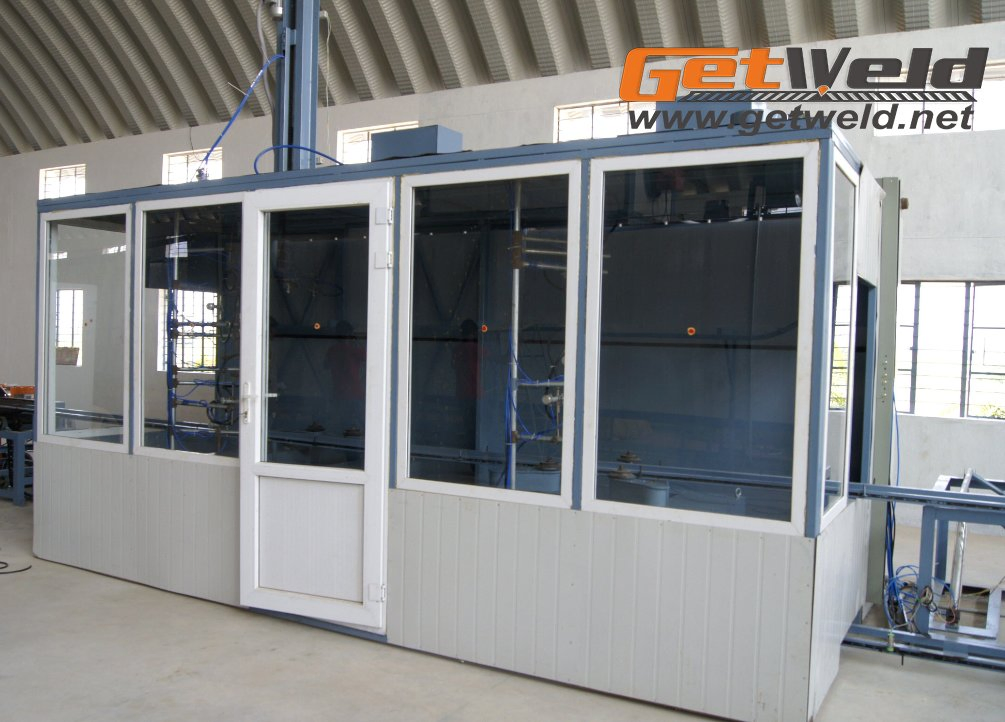

Painting Booth / Spraying Chamber Details

Painting Room Size: L2200mm; W4000mm; H2400mm
Cleaning Method: Drying and water running
Material: Stainless steel plate for drying parts, carbon steel for others
Finish: Waterproof inner paint; Acid alcohol magnetic outer paint
Machinery: 2 sets of Vertical 3-wheel turning machines; 1 set Transport chain (L7000m)
Equipment: 3 sets Paint machines; 14 sets Paint guns; 2 sets Heaters (USA made)

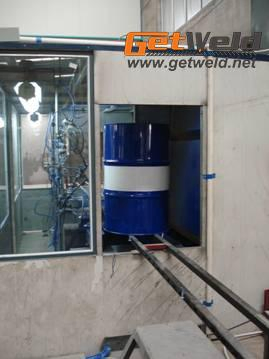

Paint Type: Drums vertical spraying.

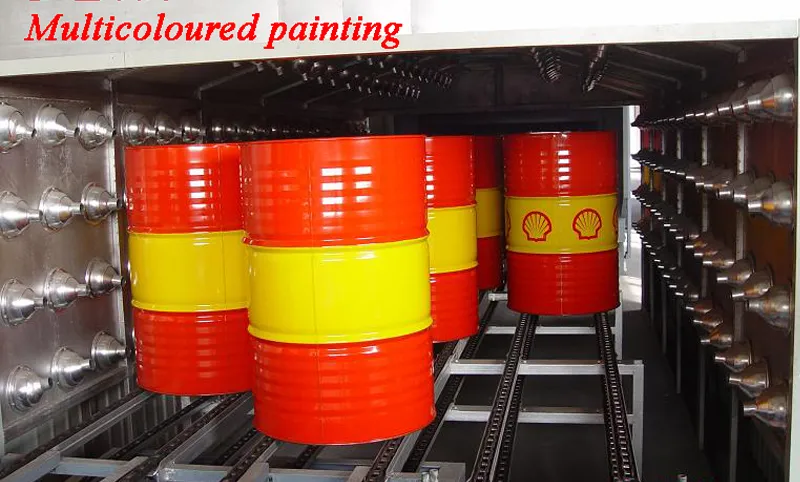

Color Configuration: Drum cover, bottom, and ends in one color; middle body in another color. Precision connection with ribbon mixture less than ±1mm.

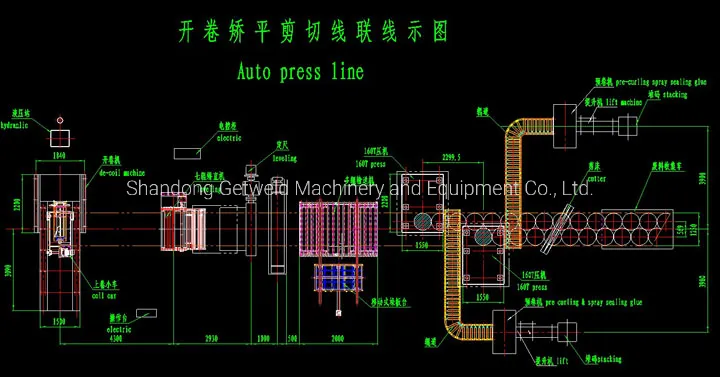

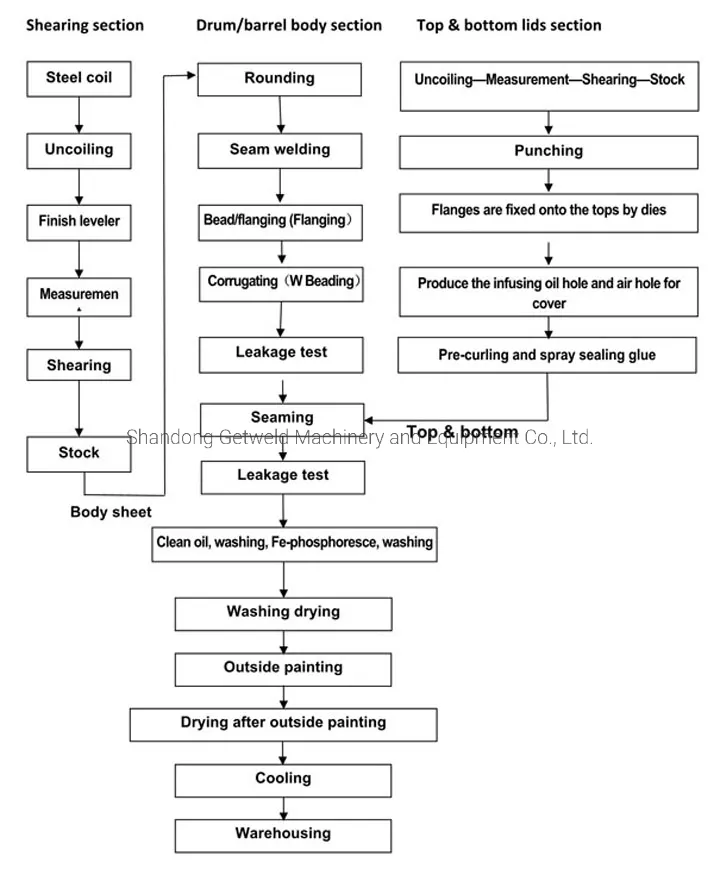

Main Production Machinery

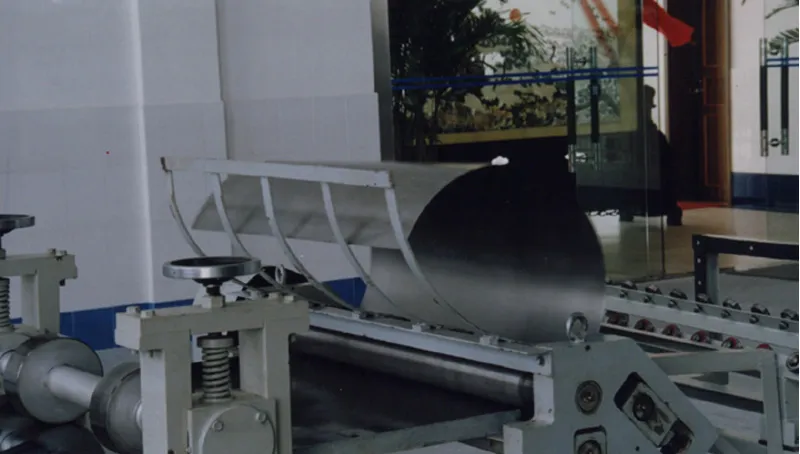

1. Rolling Machine 3 rollers type, driven by motor with adjustable radius. Equipped with special guide plates to minimize edge gaps. Unit power: 2.2 KW.

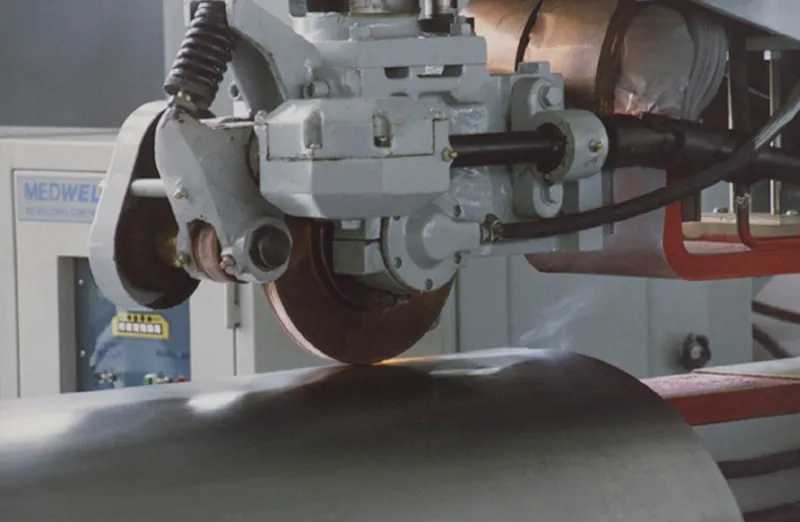

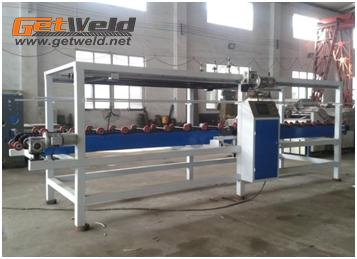

2. Auto Welding Machine Connects rounded drum bodies via seam welding. Manual operation required. Power capacity: 150KVA.

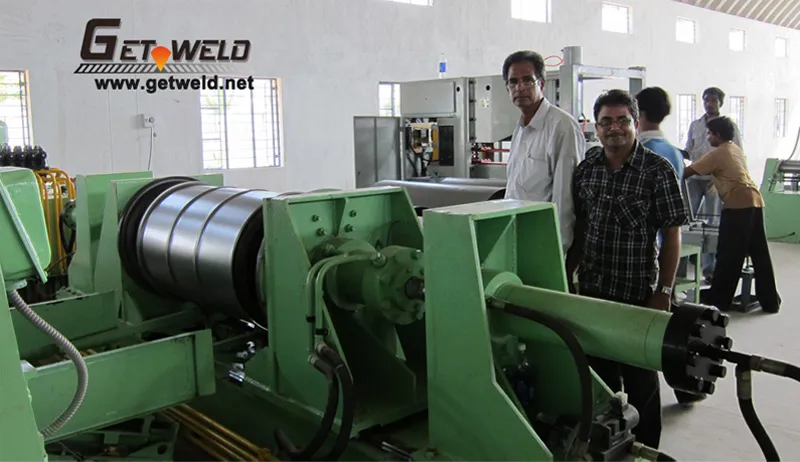

	3. Extrusion Flange & Beading Forms the flange and beading simultaneously using forming mold plates. PLC controlled with hydraulic driving. High precision for cold rolling steel. Unit power: 22 KW.

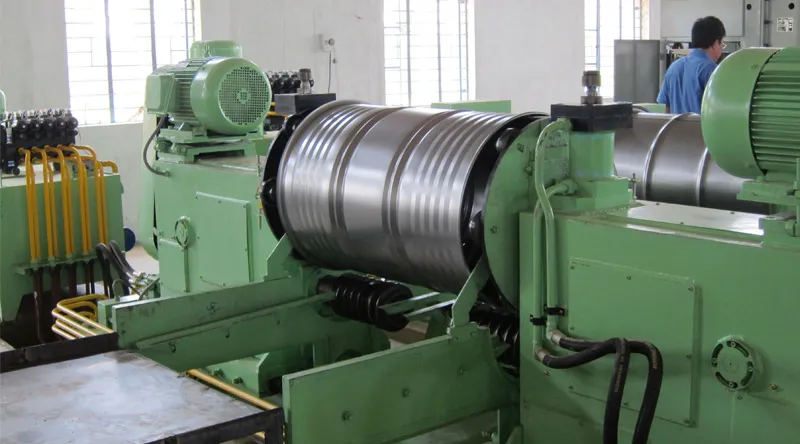

4. Corrugating Machine Forms W-type corrugation from both ends. Features internal and external rolls driven by motor and hydraulic cylinders. PLC controlled. Unit power: 22.5 KW.

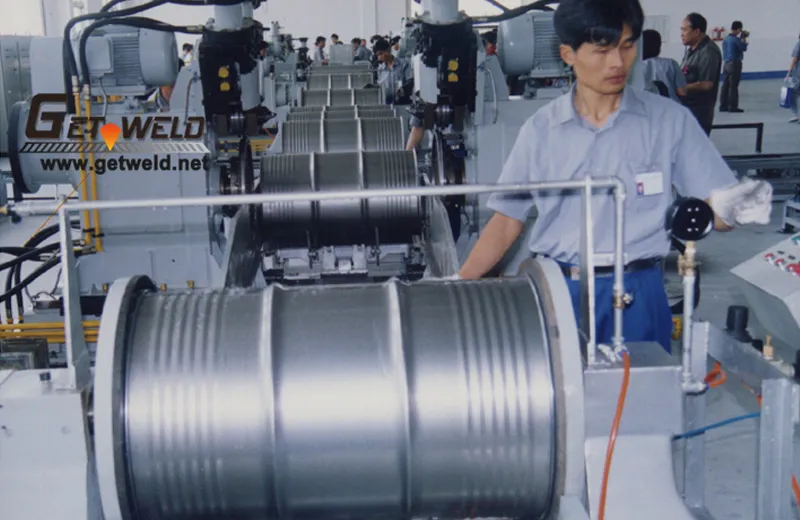

	5. Leakage Testing Machine Horizontal air pressure test (0.03Mpa). Options include PLC controlled hydraulic units or simplified pneumatic testing machines.

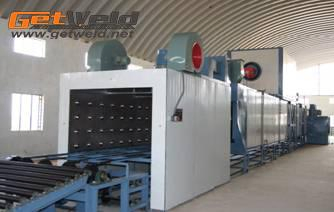

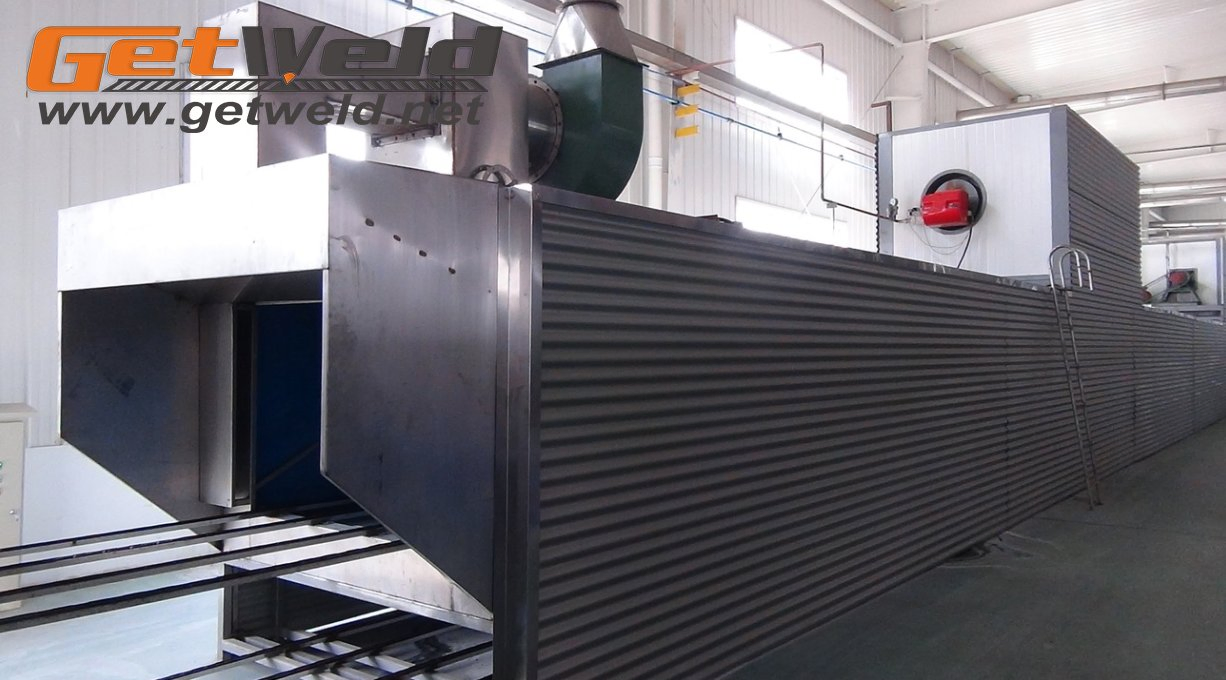

6. Drying Line Oil-heated system (Italian main parts). Operates from room temp up to 200ºC with ±5ºC precision. Rapid rising time (≤20min).
