Product Description

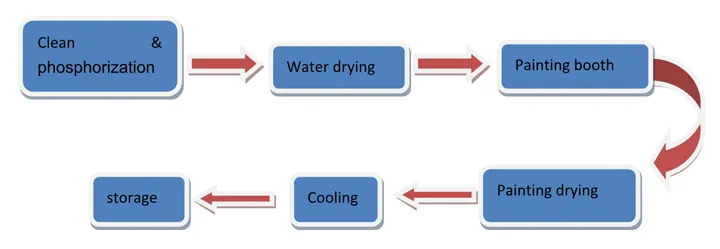

Rear Section Quipment for Steel Drum Production Line

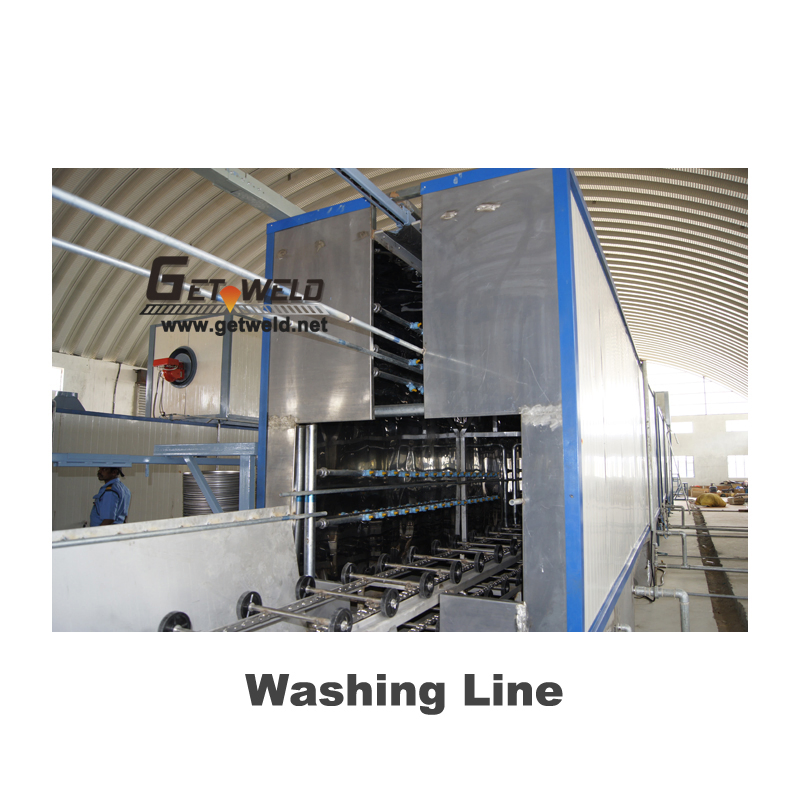

💧 1. Washing Line
- Rain spray channel: Based on wash equipment technology processes.
- Wash transportation: Length 42.25m; Speed 0.5-4m/min. Drums rotate during transport.
- Motor: Electric-magnetic, stepless speed adjustment.
- Materials: 304 Stainless steel chain and rail; 2Cr13 wheel shaft; casting iron wheels.
- Drying channel: L8M x W1.5M x H1.7M; Burning oil heating (Italy origin); 30kg/h consumption.
- Work temperature: Room temperature to 120 ºC.
- Drying Transportation: 34m length; Carbon steel chain and rail.
- Turning machine: Changes drum position from horizontal to vertical after cleaning.
- Control box: 1 set for temperature, speed, and liquid supply control.

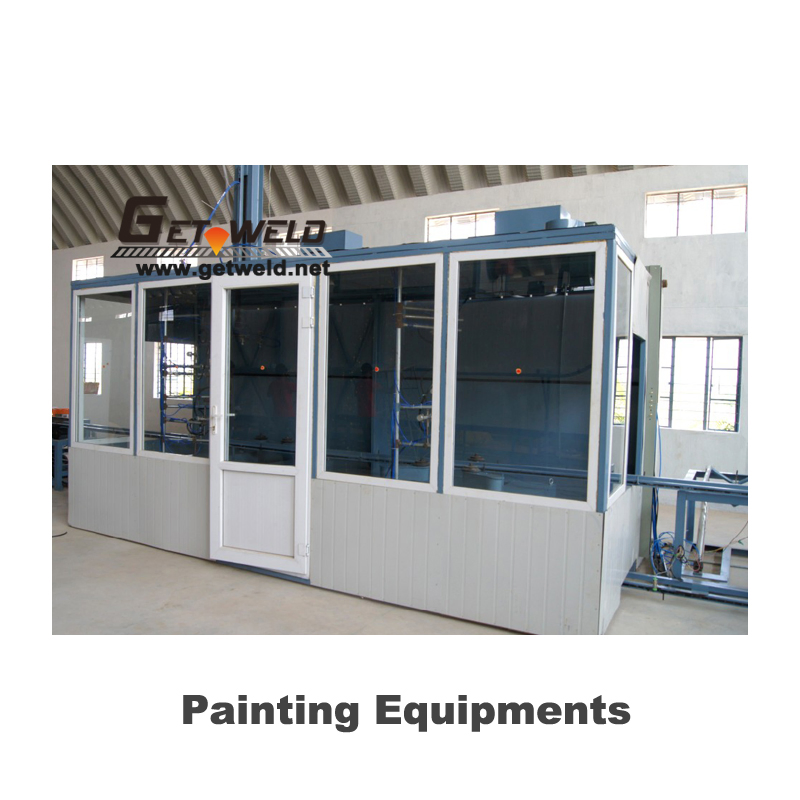

🎨 2. Painting Equipments
- Painting room: L2200mm; W4000mm; H2400mm. Uses drying and water running cleaning methods.
- Materials: Stainless steel drying plates; carbon steel body; waterproof inner paint.
- Components: 2 sets vertical 3-wheel turning machines; 1 set 7000m transport chain.
- Hardware: 3 sets paint machines; 14 sets paint guns; 2 sets paint heaters (USA origin).
- Paint Type: Vertical drum painting; multi-color support for cover, bottom, and body end sections.
- PLC Control: 1 set for painting and transport synchronization.

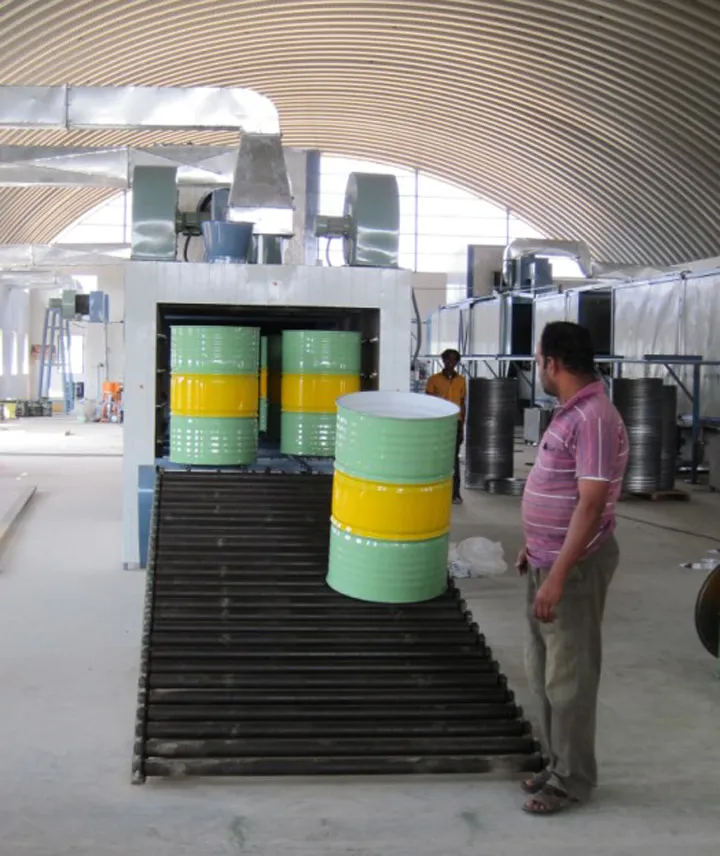

🔥 3. Vertical Steel Drums Drying & Solidify Equipment
- Drying channel: L24M; W2.2M; H2.1M. Burning oil heating system (Italy main parts).
- Capacity: 2 heating units; Max oil consumption 80L/h.
- Temperature: Room temp to 200ºC (Adjustable); Precision ±5 ºC.
- Rising Time: ≤20min (from 20ºC).
- Transport Chain: 216A double pitch roller chain; 3 rows; 34m length.
- Speed: 0.4-2.5m/min.

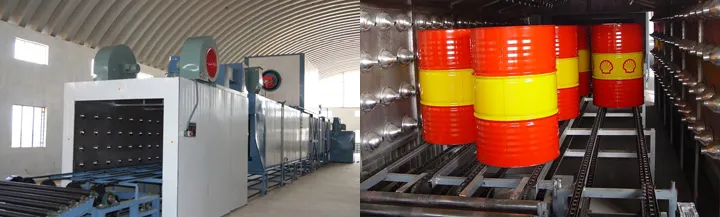

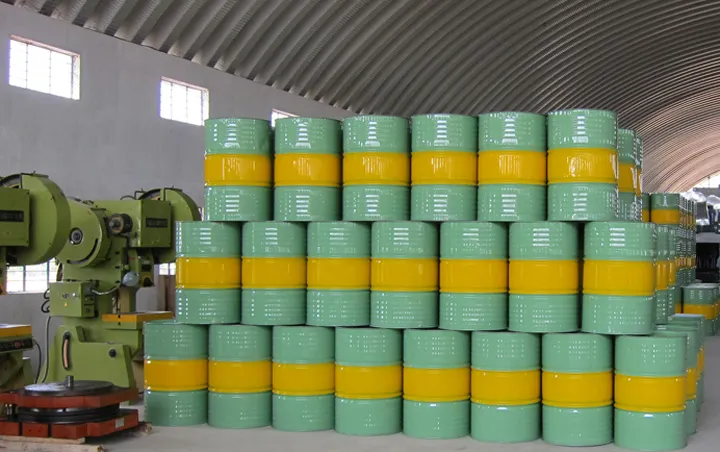

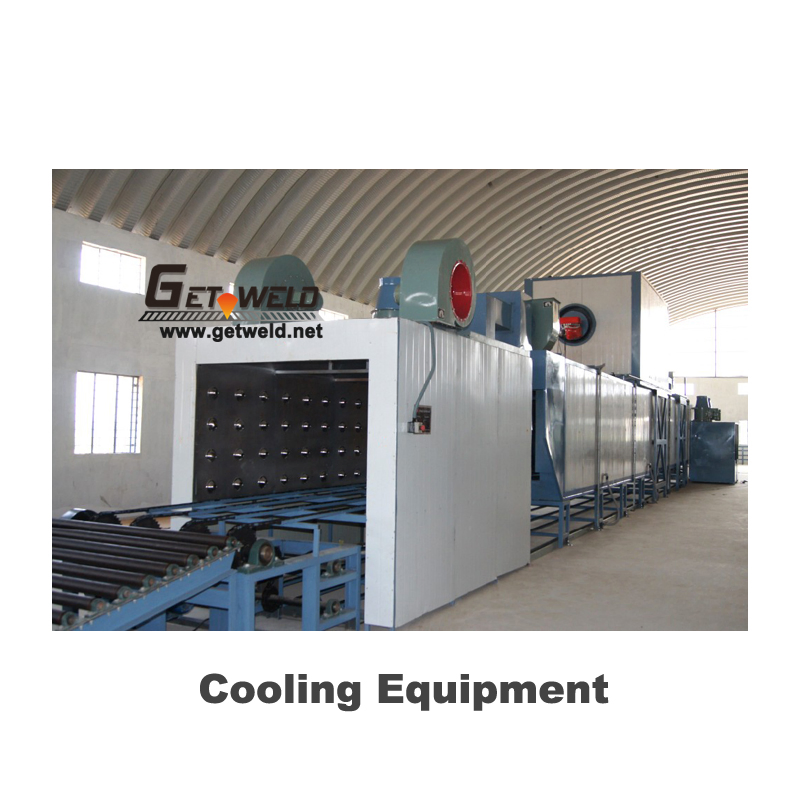

❄️ 4. Cooling Equipment
⚙️ Digital controlled Uncoiling/ Flattening/Dislocation Pressing Line
Frequently Asked Questions
Q: How do you ensure quality?
A: We have a strong design and technical team. Our team monitors the production process at every stage, and our QC inspects each procedure. We can customize the design and manufacture according to your specific requirements.
Q: How to get an accurate quotation?
A: Please provide details of the workpiece, such as technical drawings or your required daily production output.
Q: What are the shipping options?
A: Equipment is typically sent by sea. Customers can specify their own freight forwarders or we can negotiate the most efficient shipping method.
Q: What are the payment terms and warranty?
A: We require a 30% down payment. Delivery time is approximately 3 months after the formal order. We provide a 12-month warranty following delivery and offer 24-hour online technical support.
Q: Can the production line handle different drum sizes?
A: Yes, the system is designed for flexibility. While optimized for 220L drums, our technical team can provide specifications for various production scopes.
Q: Do you offer post-delivery technical support?
A: Absolutely. We provide comprehensive documentation and 24/7 online support via email and digital communication channels to ensure smooth operation.
