Steel Drum/Barrel Cleaning and Washing Line

1 / 1

Steel Drum/Barrel Cleaning and Washing Line

Automation:	Automation
Application:	Dairy Products, Oil
Driven Type:	Hydraulic

Send Inquiry

Product Description

Basic Specifications

Model NO.

washing line

Function

Making Steel Drum or Barrel

Mode of Operation

Special Product Packaging

After-Sales Service

Engineers Available Overseas

Transmission Type

Flexible

Production Line

Comprehensive Automatic

Certification

ISO, CE

Flexible Production

Lean Production

Production Scope

Product Line

Rhythm

3-4 drums/Minute

Specification

220L

Production Capacity

5 sets/Year

★

Steel Drum/Barrel Cleaning and Washing Line

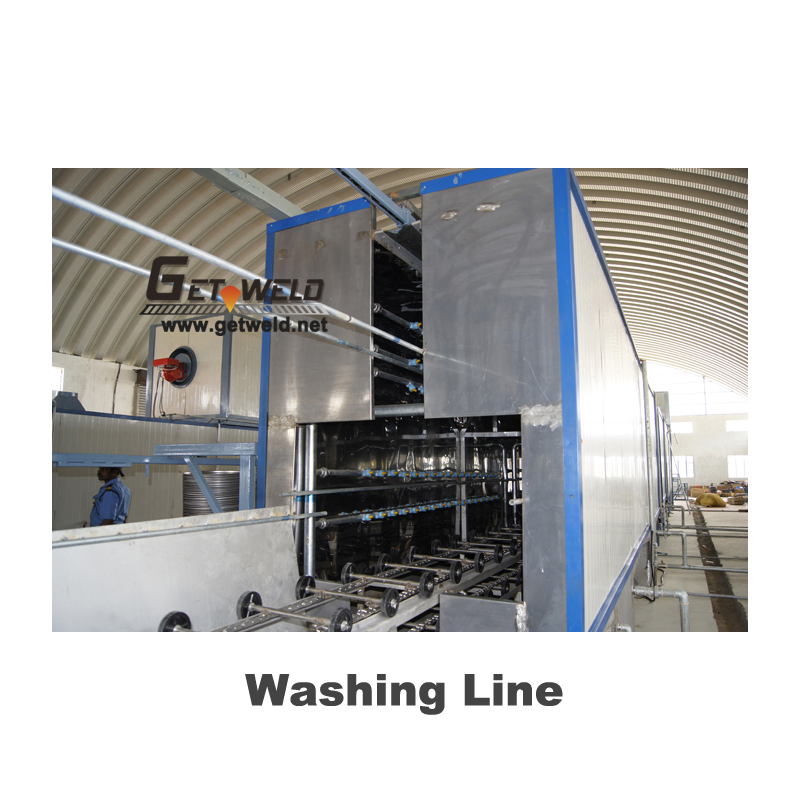

(1) Rain Spray Channel

Advanced wash equipment technology processes for thorough cleaning.

(2) Wash Transportation System

Length: 42.25m | Speed: 0.5-4m/min
Type: Drums rotate while moving forward.
Materials: 304 Stainless Steel chain and rail; 2Cr13 stainless steel wheel shaft.

(3) Drying Channel

Dimensions: L8M x W1.5M x H1.7M
Heating: Burning oil (made in Italy) | Consumption: 30kg/h
Working Temp: Room temperature to 120 ºC

(4) Drying Transportation

Length: 34m | Speed: 0.5-4m/min
Heating System: Steam heating (over 100 ºC)
Material: Carbon steel construction.

(5) Turning Machine

Purpose: Automatically transitions drums from horizontal to vertical positions for the painting line.

(6) Control Box

Integrated system to monitor liquid temperature, transport speed, and liquid supply.

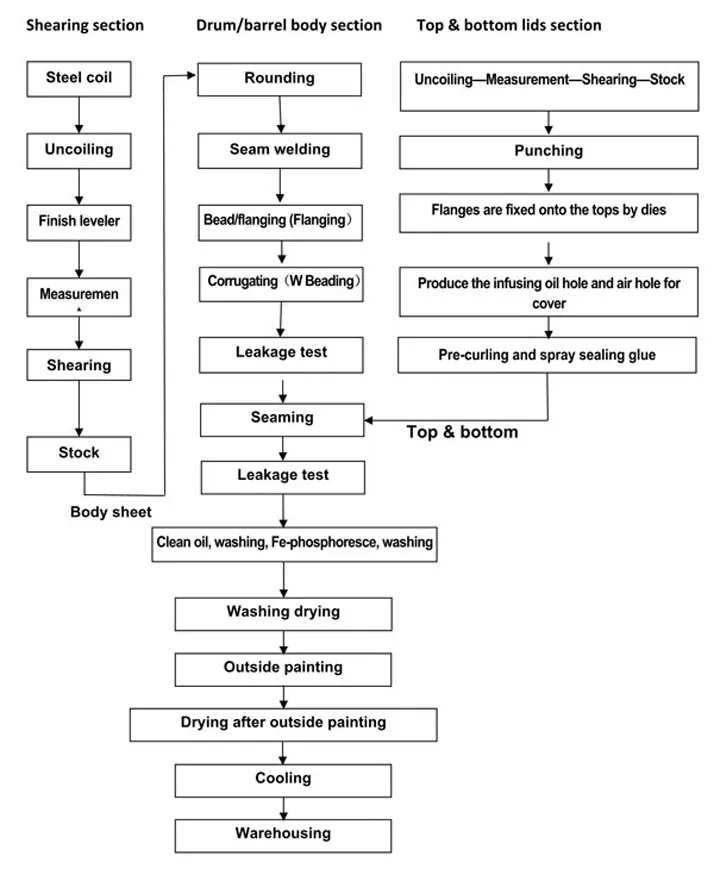

Production Process & Equipment

Frequently Asked Questions

How do you ensure the quality of the washing line?

We have a strong design and technical team that oversees every stage of production. Our QC team inspects each procedure to ensure it meets requirements. We can also customize designs based on your specific needs.

What is the production capacity and rhythm?

The system is designed for a rhythm of 3-4 drums per minute, specifically optimized for 220L steel drums. The annual production capacity for the line itself is approximately 5 sets per year.

What heating methods are available for the drying channel?

The drying system can be powered by burning oil (utilizing high-quality Italian burners with a consumption of ~30kg/h) or via a steam heating system where steam temperatures exceed 100 ºC.

How can I get an accurate quotation for my project?

Please provide detailed information regarding your workpieces, including technical drawings and your required daily output capacity.

What are the shipping and delivery terms?

We ship machines from China by sea. Delivery time is typically 3 months after receiving a formal order. Customers can specify their own freight forwarders or negotiate shipping methods with us.

What is the warranty period for this equipment?

We offer a 12-month warranty following delivery. Additionally, we provide 24-hour online support via email and other communication tools to assist with any technical inquiries.
