⚙️ Basic Info.
After-sales Service
Engineers Available to Service Machinery Overseas
Application
Dairy Products, Oil
Function
Making Steel Drum or Barrel
Mode of Operation
Special Product Packaging
Production Capacity
100pieces/Year
📝 Product Description
Washing Line For Steel Drum Production Line
1 Rain Spray Channel
Please refer to the technical process form for detailed wash equipment parameters.
2 Wash Transportation
- Length: 42.25m
- Type: The drums transported go ahead and rotated itself
- Speed: 0.5-4m/min
- Motor: Electric-mange, no step/class to adjust speed
- Materials: 304 Stainless steel chain & rail, 2Cr13 stainless steel wheel shaft, casting iron wheel
3 Drying Channel
- Dimensions: L8M; W1.5M; H1.7M
- Heating Way: Burning oil to be heated (System made in Italy)
- Oil Consumption: 30kg/h
- Work Temperature: Room temperature to 120 ºC
4 Drying Transportation
- Length: 34m
- Type: Same as wash line
- Speed: 0.5-4m/min
- Motor: Electr.-magn. No step/class to adjust speed
- Materials: Carbon steel chain, wheel shaft, and rail; casting iron wheel
- Heating System: Channel liquid steam heating (Steam temperature > 100 ºC)
5 Turning Machine
Use Purpose: After drum cleaning, the machine positions the drums from horizontal to vertical for the painting transport chain.
6 Control Box
Configuration: 1 Set (controls channel liquid temperature, transport speed, and liquid supply in the wash line).

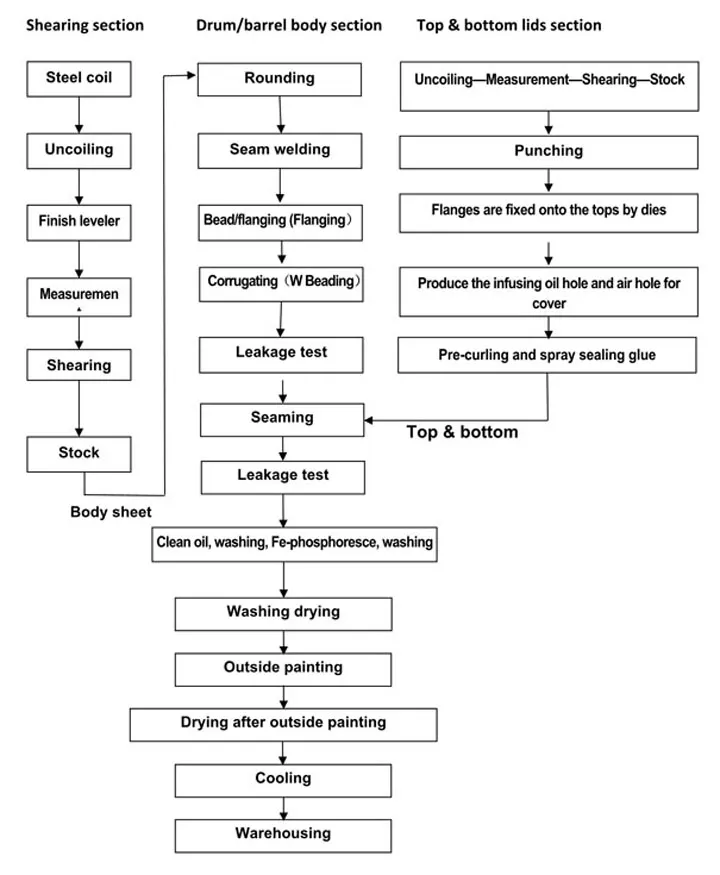

🏭 Production Process
❓ Frequently Asked Questions
How do you ensure product quality?
We have a strong design and technical team. Our team monitors the production process at every stage, and our QC department inspects each procedure thoroughly. We can also customize the design and manufacturing based on your specific requirements.
How can I obtain an accurate quotation?
To provide an accurate quote, please share details of the workpiece, such as technical drawings or your required daily production output.
What are the shipping options from China?
We can ship machinery to your designated port by sea. Customers may specify their preferred freight forwarders or negotiate other shipping methods with us.
What are the standard payment and warranty terms?
Standard terms include a 30% down payment upon order. The delivery time is typically 3 months after the formal order. We provide a 12-month warranty following delivery and offer 24-hour online support via email and digital platforms.
What is the production capacity of this washing line?
The standard production capacity is approximately 100 pieces per year, specifically designed for 220L steel drum or barrel production.
What applications is this machinery suitable for?
This equipment is primarily used in the production of steel drums for dairy products, oil packaging, and other special product packaging needs.
