Steel Drum Production Production Line Painting Booth/Spraying Chamber

Production Scores:	Multiple Varieties
Production Continuity:	Continuous
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Automation

Automatic

Driven Type

Hydraulic

Application

Dairy Products, Oil

Function

Making Steel Drum or Barrel

Specification

220L

Production Capacity

100 pieces/Year

Origin

China

After-sales Service

Engineers Available Overseas

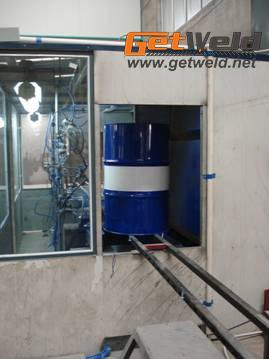

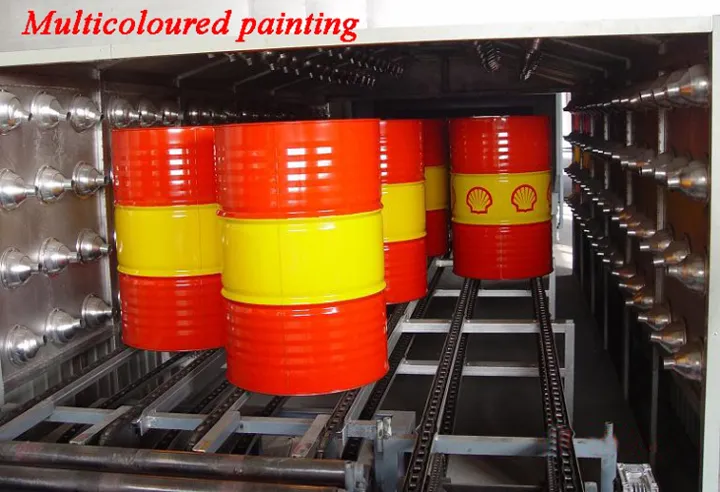

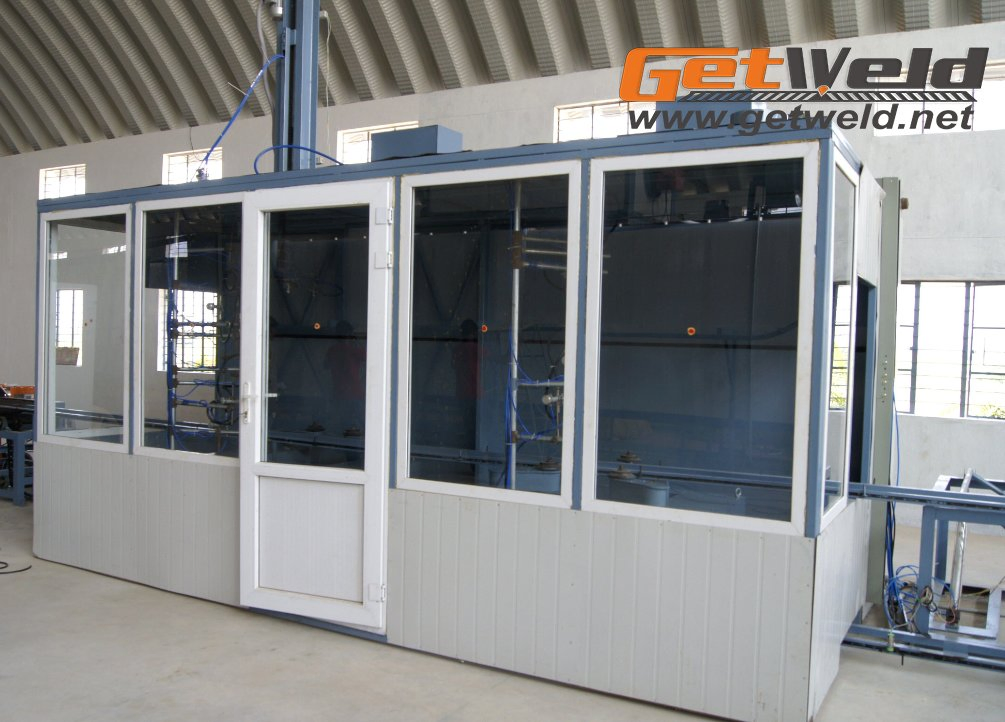

Steel Drum Production Painting Booth & Spraying Chamber

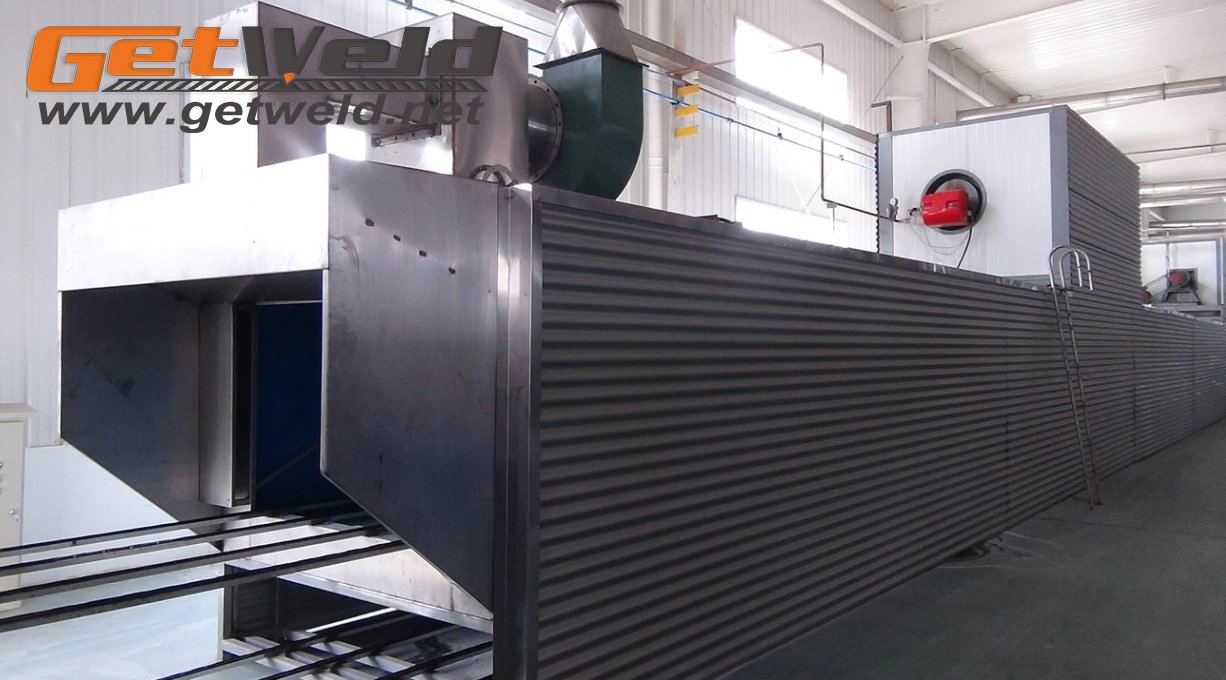

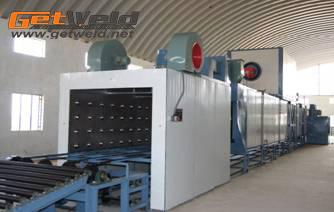

1. Drying Channel Specifications

Size: L24M x W2.2M x H2.1M

Heating Method: Burning oil to heat

Heat Machine Unit: 2 sets (Main components made in Italy)

Oil Consumption: Max 80L/h (for 2 sets)

Working Temperature: Room temp to 200ºC (Adjustable)

Temperature Precision: ±5 ºC

Heat-up Time: ≤ 20 min (from 20 ºC)

Insulation: External surface rises < 10ºC when internal is 200ºC

2. Drying & Transport System

Chain Type: 216A double pitch roller chain

Transport Layout: 3 rows; Total length 34m

Operation Speed: 0.4 - 2.5m/min

Distributor Units: 1 set In-line, 1 set Out-line

Out-line Transport: 1 set (20m)

Drying Type: Vertical

3. Intelligent Control Box

Purpose: Precision control of drying channel temperature and transport speed

Configuration: 1 Complete Set

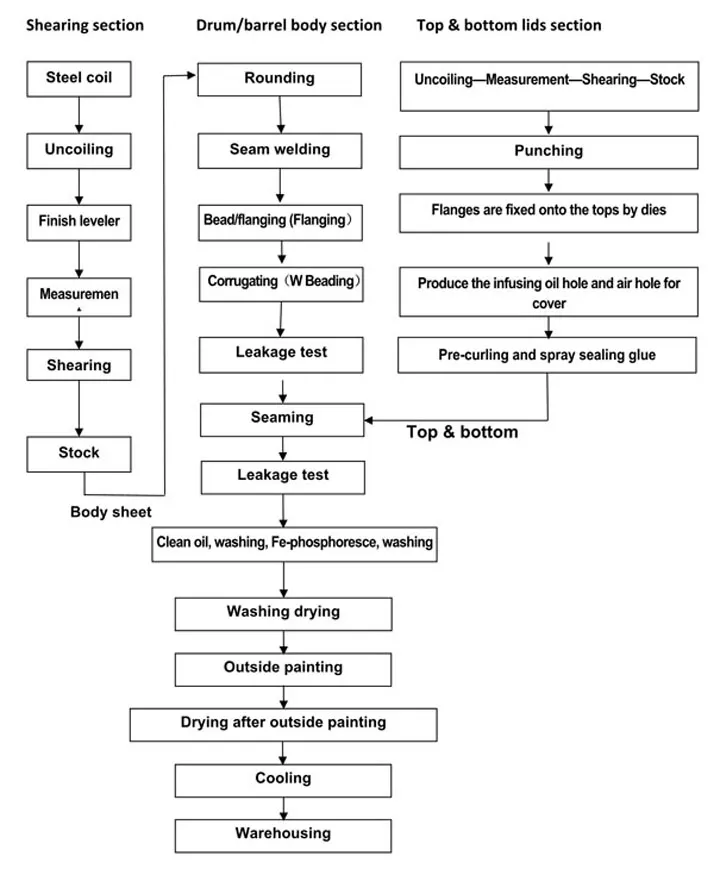

Production Process Gallery

Frequently Asked Questions

How do you ensure the quality of the machinery?

We maintain a professional design and technical team that monitors every stage of the production process. Our Quality Control (QC) department inspects each procedure to ensure all equipment meets specific requirements.

What information is needed for an accurate quotation?

To provide a precise quote, please share the details of your workpiece, including technical drawings or your required daily production output.

What are the available heating methods and temperature capabilities?

The system utilizes an oil-burning heating method (with Italian-made units). It can reach temperatures from room level up to 200ºC with an action precision of ±5 ºC.

What are the logistics and shipping options from China?

We arrange sea freight to your designated port. Customers may specify their preferred freight forwarders or we can negotiate the most suitable shipping methods.

What are the standard payment and warranty terms?

Our standard terms include a 30% down payment upon order. We provide a 12-month warranty following delivery, supported by 24-hour online technical service via email and digital communication.

What is the typical production and delivery timeline?

The delivery time is approximately 3 months following the receipt of a formal order, which includes time for manufacturing, testing, and preparation.
