Automatic Pet Plastic Bottle Recycle Washing Crushing Machine Line for Recycled Industry

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
HR-1000
Material
Plastic Bottle / PET
Screw
Single-Screw
Automation
Full Automation
Certification
CE
Capacity
1000kg/H
Crushing Type
Wet Crushing
Washing Type
Hot Washing
Final Product
Clean PET Flakes
Flakes Size
12-20mm
Product Description

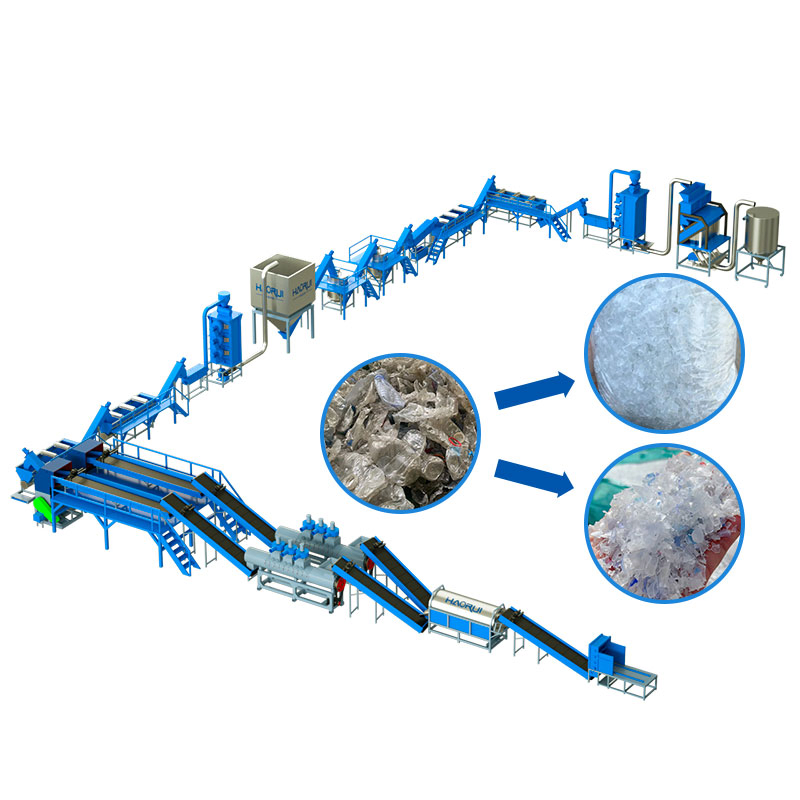

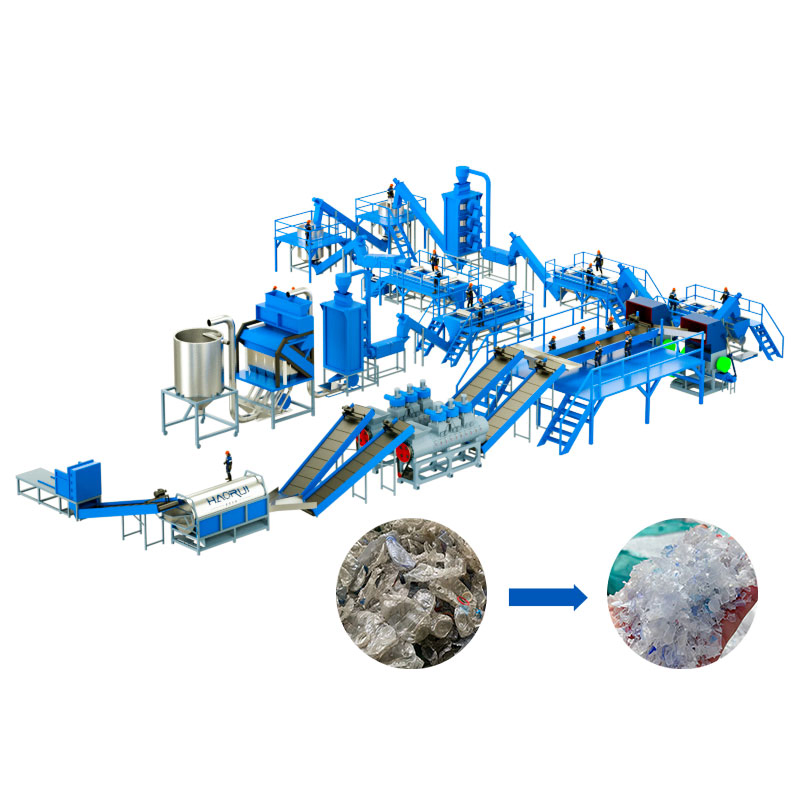

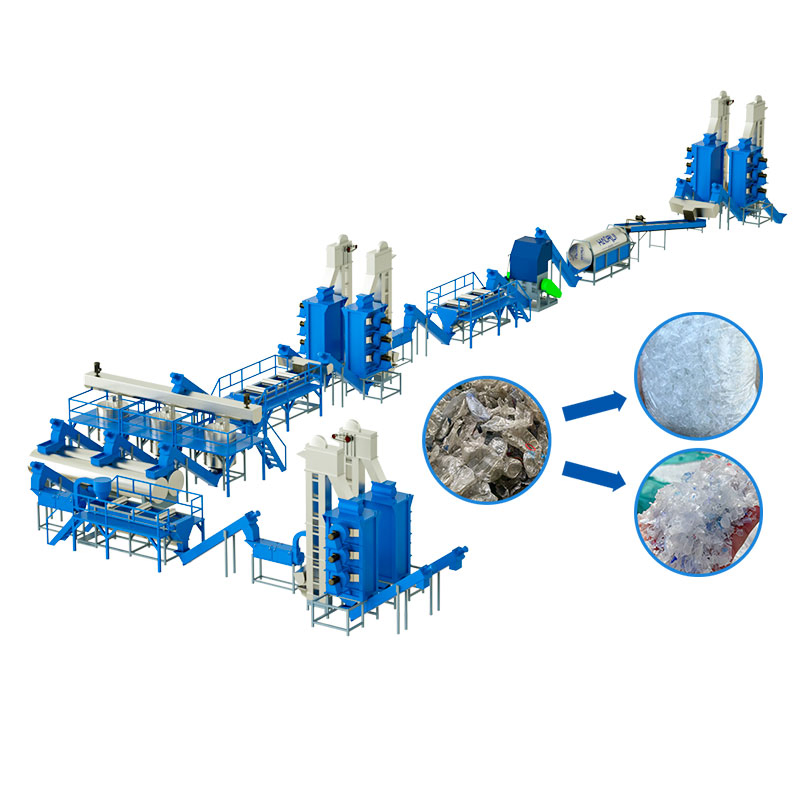

PET Bottle Recycling & Washing Line Profile

Our production line specializes in the crushing, washing, and recycling of waste PET bottles (such as mineral water and soft drink bottles). This system is engineered to transform contaminated PET bottles into clean, dry, and high-purity PET flakes.

Main Applications:
Recycled Polyester Filament (Fiber Grade), PET Strapping, Sheets, and Bottle-to-Bottle (Food Grade) recycled materials.
  • Input Materials: Post-consumer PET bottles (baled or loose).
  • Output Materials: High-purity rPET Flakes.
  • Key Processes: Label Removing, Crushing, Washing, and Dewatering.
Technical Specifications
Type Capacity Power Factory Area Weight
500800kg/h80kw~150kw500sqm20t
10001500kg/h100kw~200kw800sqm20t
20002500kg/h200kw~250kw1200sqm30t
30003500kg/h300kw~350kw1500sqm40t
50005500kg/h500kw~600kw2000sqm50t
60006500kg/h600kw~800kw3000sqm70t
Quality Indicators & Systems
End Product Quality:
• Moisture Content: < 1%
• PVC Content: < 100 ppm (Min 30ppm)
• Label & Impurity: < 0.03%
• Flake Size: 12mm / 14mm / 16mm (Customizable)

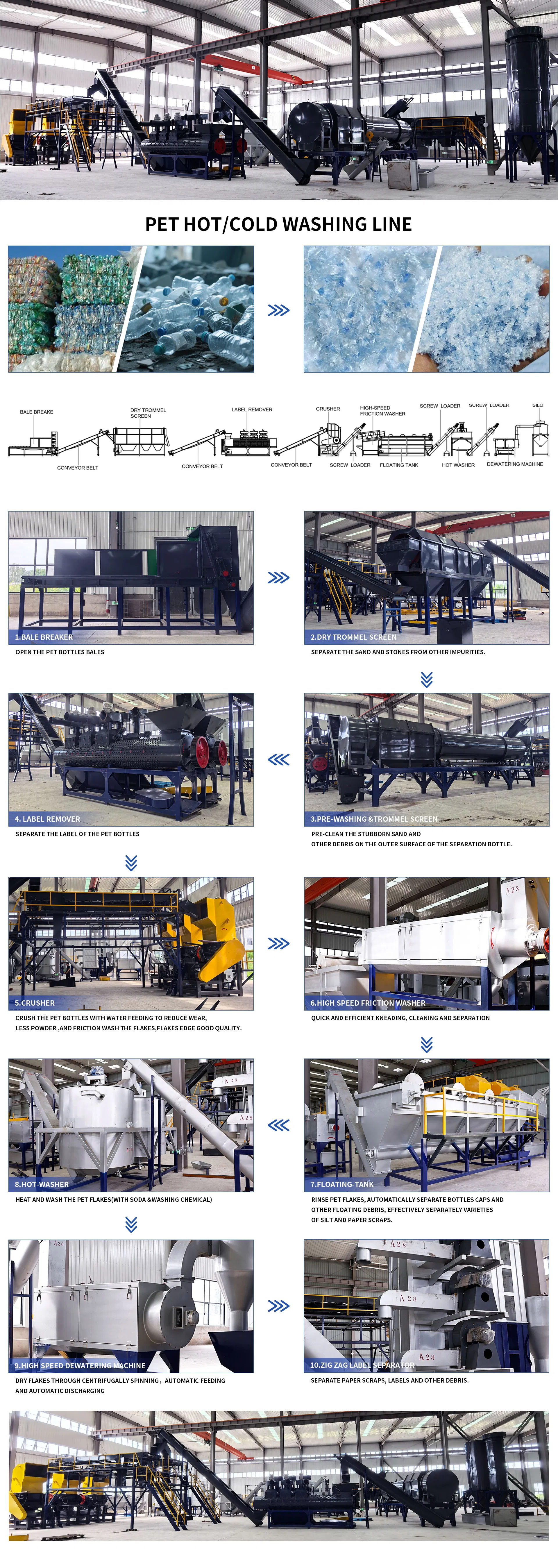

System Details
Certifications & Capabilities

With over 30 years of experience and a 15-person R&D team, our machine designs are unique. We have helped over 80 clients globally solve their plastic recycling investment needs. Our systems integrate European precision with robust engineering to remove sand, oil, and labels with unrivaled efficiency.

Service & Logistics
After-Sales Support:
  • Free insurance for goods.
  • 24 hours online problem solving.
  • English manuals and technical video support.
  • On-site installation and staff training available.

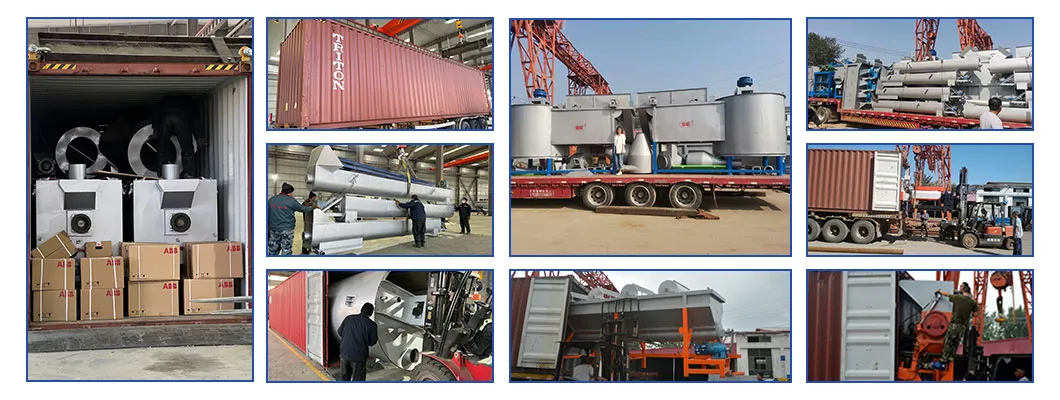

Packaging & Shipping:
  • Secure film, pallet, or wooden case packing.
  • Loading photos provided for record.
  • Direct delivery to client warehouse.
Frequently Asked Questions
Q: What is the production capacity of the PET washing lines?
A: We provide scalable solutions with standard capacities ranging from 500 kg/h to 7,000 kg/h, designed for Fiber Grade or Food Grade (B2B) flakes.
Q: What is the purity and moisture level of the final flakes?
A: Our technology ensures moisture content is less than 1%, and PVC contamination can be reduced to less than 100 ppm (or as low as 30ppm with specialized separators).
Q: How does the system remove labels and stubborn glue?
A: The process uses a mechanical Label Remover followed by an Intensive Hot Washing System using heated water and automated chemical dosing to dissolve residues.
Q: What are the key stages of the automated recycling process?

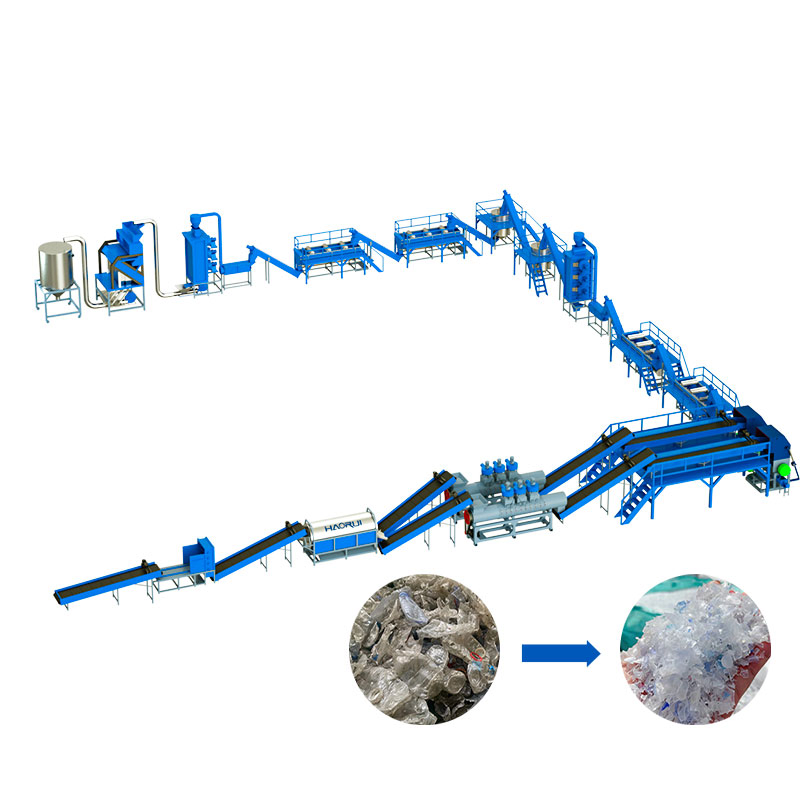

A: The line includes bale opening, trommel sifting, label stripping, manual sorting, crushing with water, sink-float separation, hot washing, friction scrubbing, and centrifugal drying.
Q: What after-sales and installation support do you provide?
A: We offer free CAD plant layouts, one-stop recycling solutions, and on-site commissioning by professional engineers across 88 countries.
Q: What is the standard lead time and warranty?
A: Standard production time is 30 to 70 days. All equipment is backed by a 1-year warranty and lifetime technical support.
