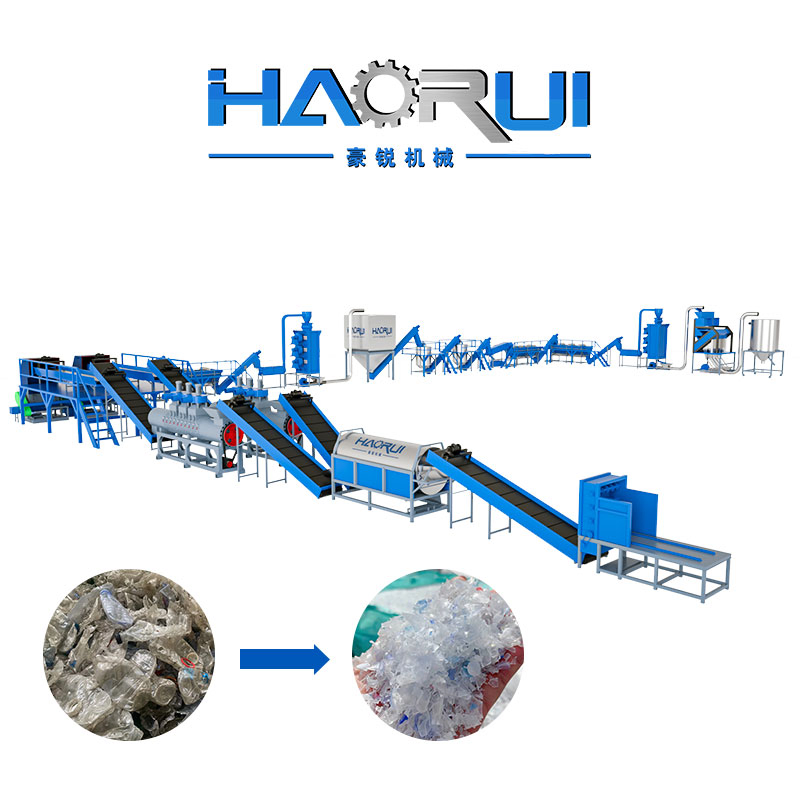

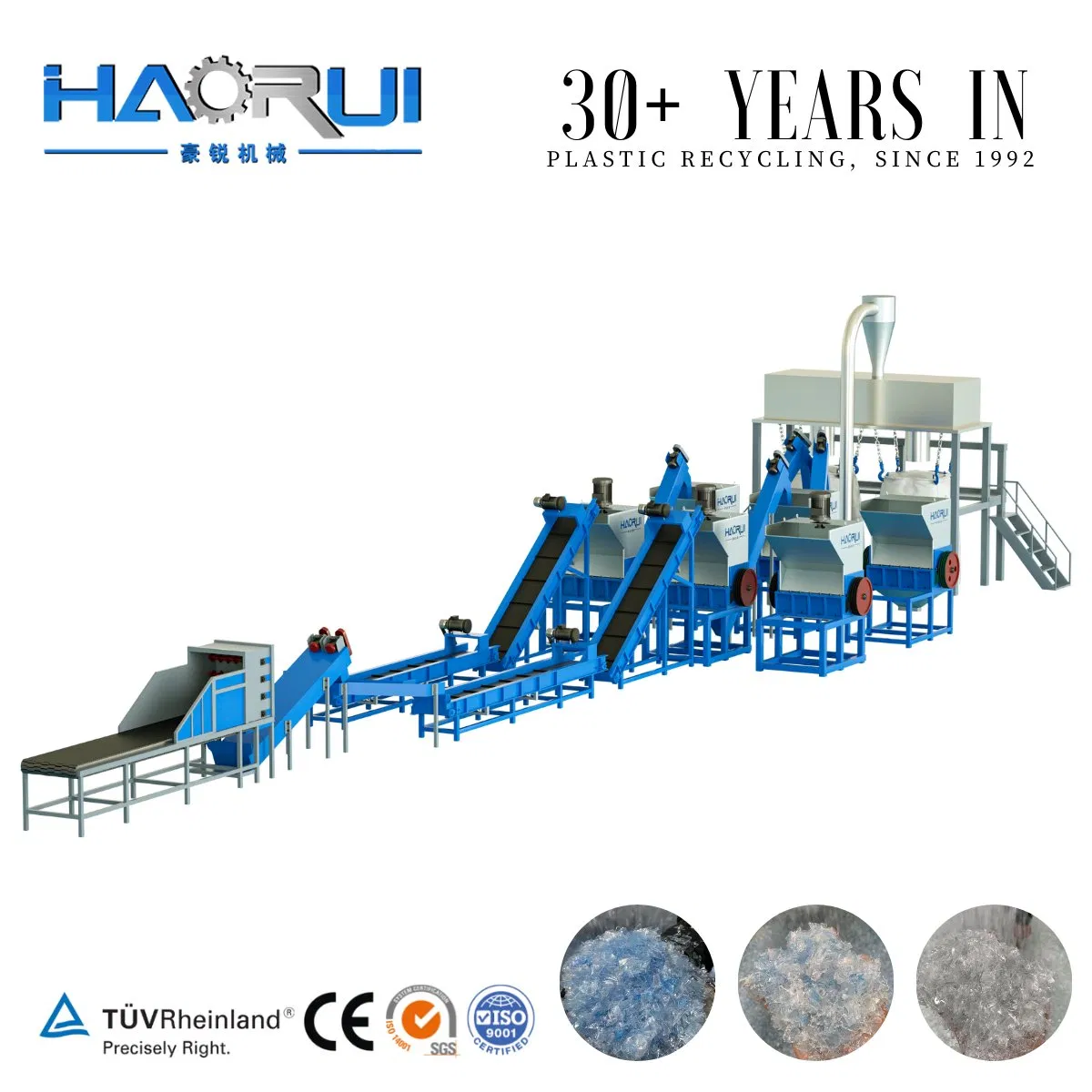

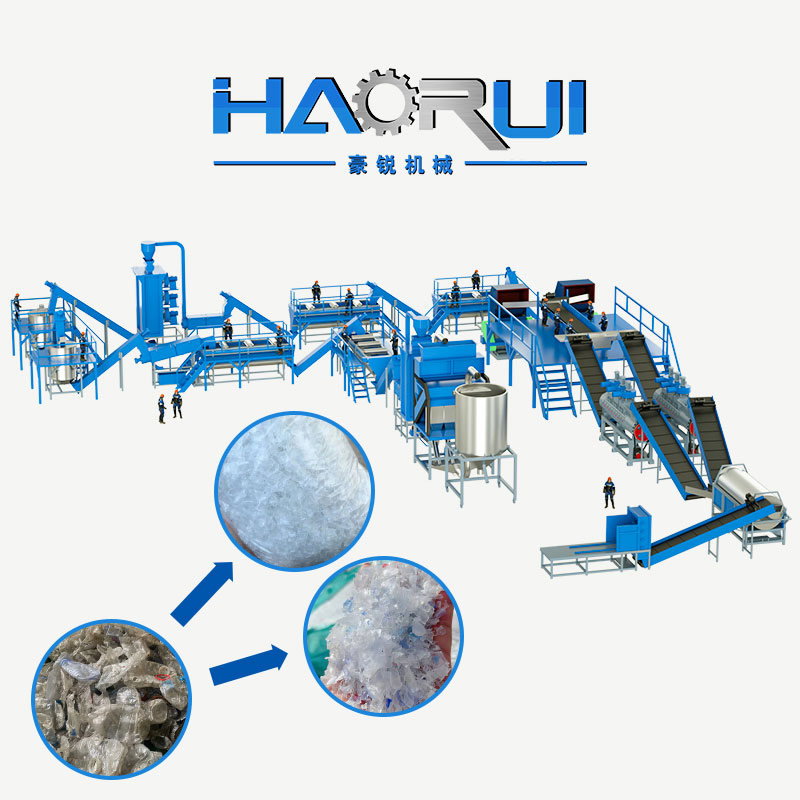

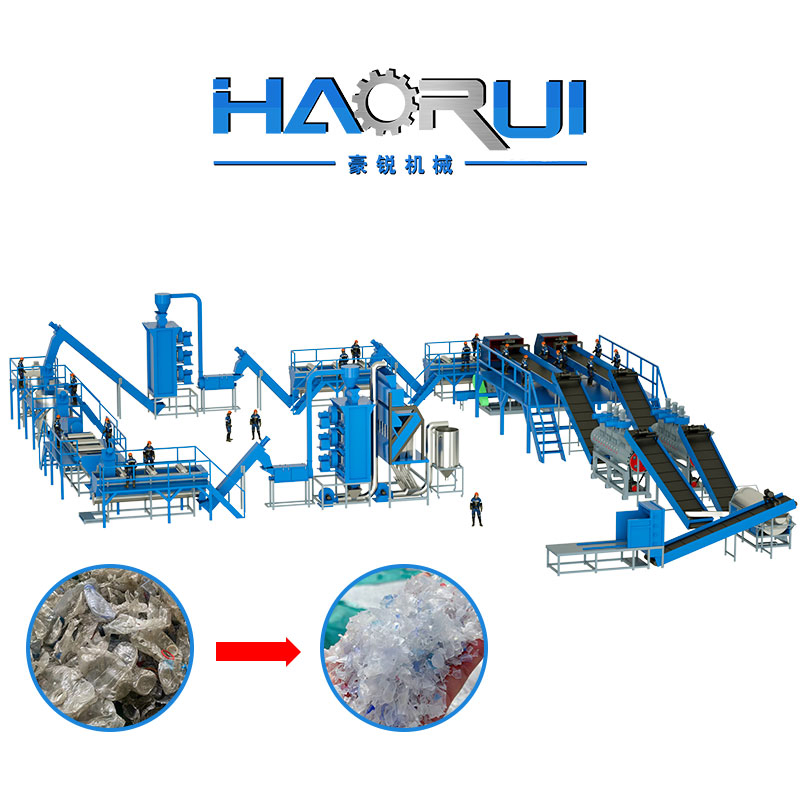

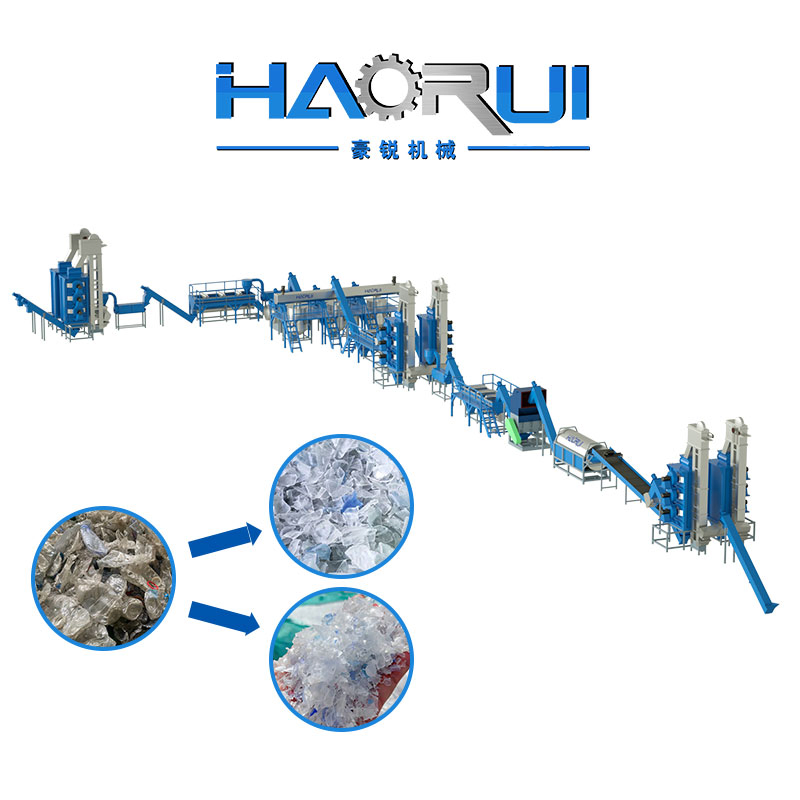

Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
1 / 5
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line
Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line

Factory Pet Flake Plastic Bottles Bottle Recycling Wash Recycle Recycling Machine Line

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HR-2000
Material
Plastic Bottle (PET)
Screw
Single-Screw
Automation
Full Automation
Certification
QS, ISO9001:2008, CE
Capacity
500-6000kg/H
Final Product
Clean PET Flakes
Moisture
Less Than 1%
PVC Content
Less Than 100 Ppm
Machine Material
Carbon Steel or Stainless Steel 304
Product Description

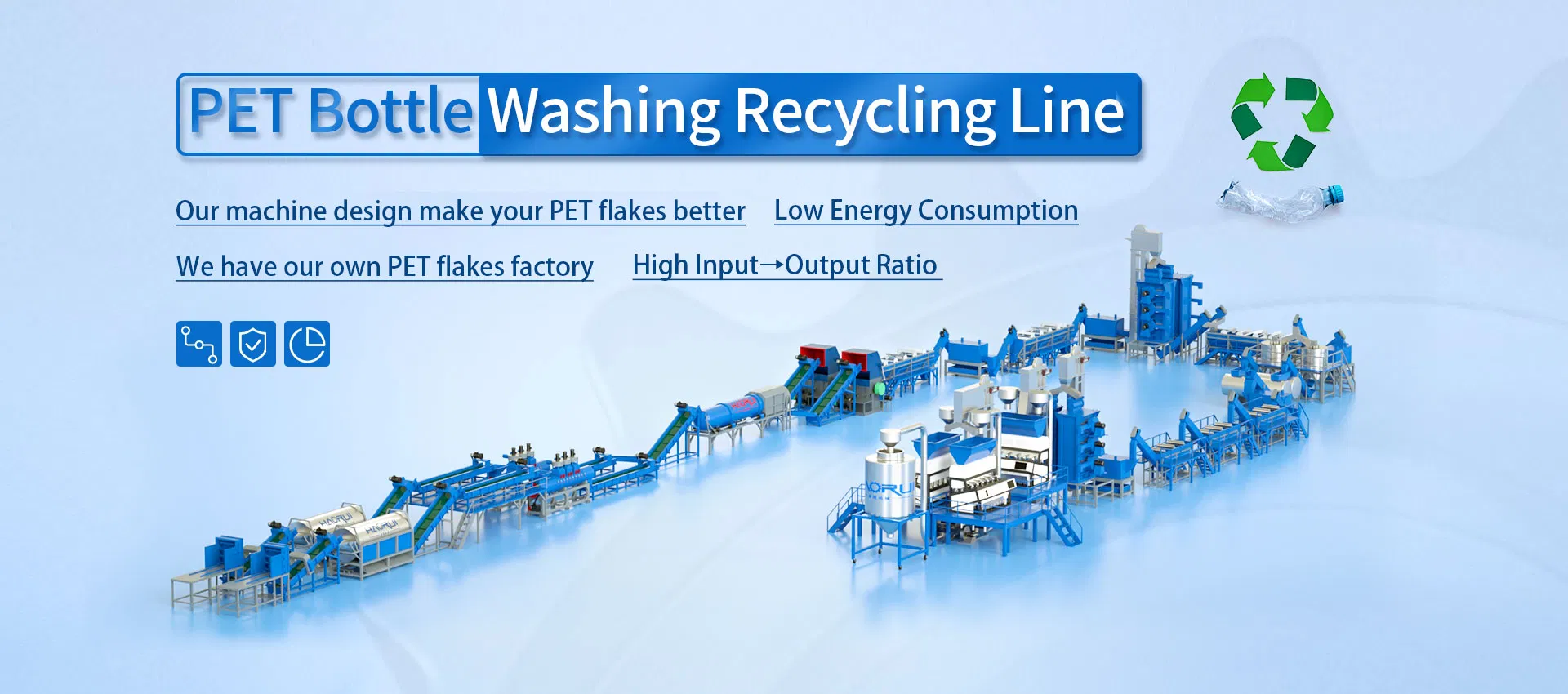

Recycling Machine Line
💡
PET Bottle Recycling & Washing Line
This production line is engineered to transform contaminated post-consumer PET bottles (mineral water, soft drink bottles) into clean, dry, and high-purity PET flakes suitable for various industrial applications.

Primary Applications: Recycled Polyester Filament (Fiber Grade), PET Strapping, Sheets, and Bottle-to-Bottle (Food Grade) materials.

  • Input Materials: Baled or loose post-consumer PET bottles.
  • Output Materials: High-purity rPET Flakes.
  • Step-by-Step Process: Label removal, Crushing, Washing, and Drying.
Technical Specifications
Type Capacity Power Factory Area Weight
500800kg/h80kw~150kw500sqm20t
10001500kg/h100kw~200kw800sqm20t
20002500kg/h200kw~250kw1200sqm30t
30003500kg/h300kw~350kw1500sqm40t
50005500kg/h500kw~600kw2000sqm50t
End Product Quality Indicators
Moisture Content: < 1%
PVC Content: < 100 ppm (Min 30ppm)
Label & Impurity: < 0.03%
Flake Size: 12mm / 14mm / 16mm (Customizable)

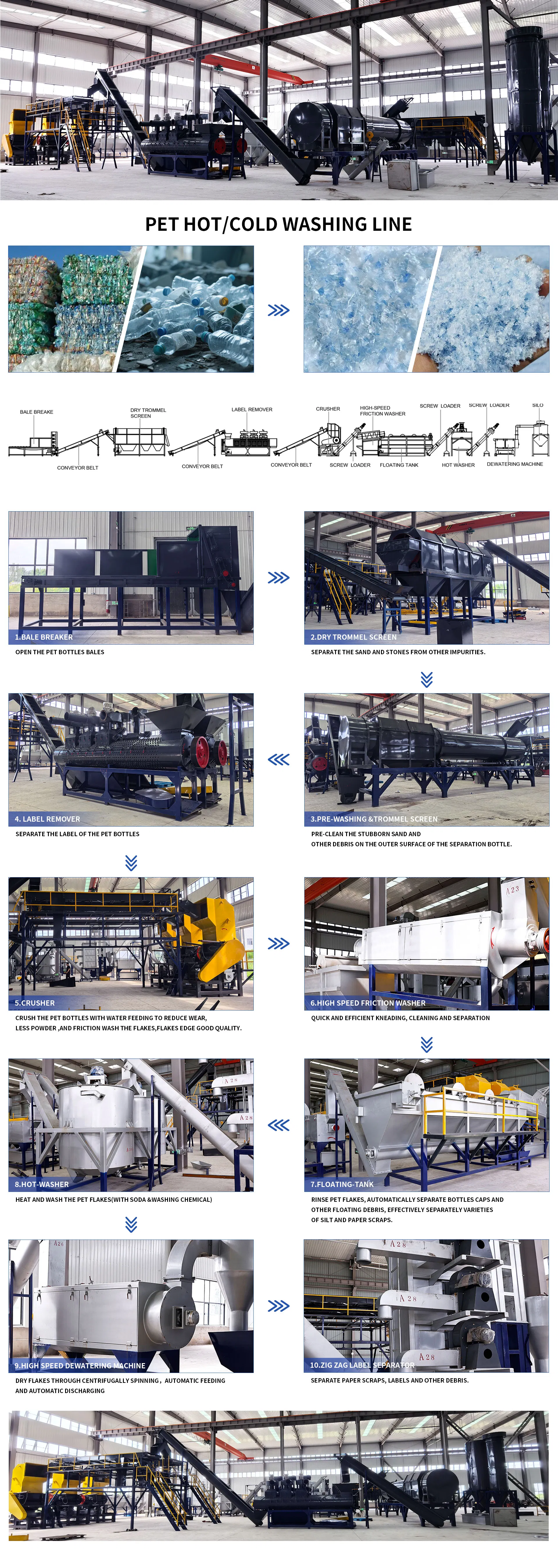

Recycling Process Details
Advanced Recycling Solutions

Our systems deliver high-end modular solutions for the entire spectrum of plastic recycling. We integrate precision engineering to ensure the lowest possible PVC, glue, and metal content.

⚙️
Core Systems:
1. PET Bottle Washing: Label scraping, high-temp alkaline washing, and multi-stage rinsing.
2. PP/PE Flexible & Rigid Line: Versatile modular platform for films and industrial containers.

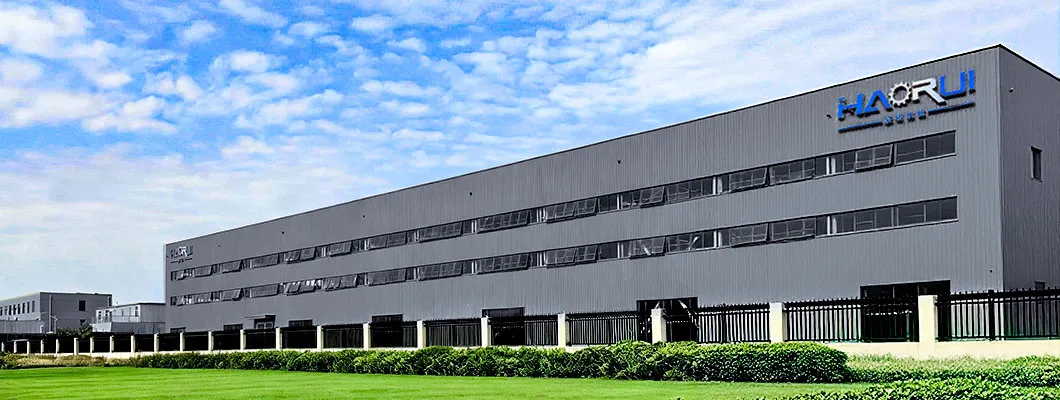

Facility Overview
Machine Operation
Certifications & Quality Assurance
Certification Banner
Detailed Certificates
Support Services
  • 24-hour online technical support and problem-solving.
  • Comprehensive English manuals and installation videos provided.
  • On-site engineer dispatch for commissioning and staff training.
  • Customized CAD plant layouts to match specific facility conditions.
Packaging & Shipping
Shipping Logistics

Ensuring fast transportation without damage through film, pallet, or wooden case packing.

Frequently Asked Questions
What is the production capacity of the PET washing lines?
We provide scalable solutions with standard capacities ranging from 500 kg/h to 7,000 kg/h, designed for Fiber Grade or Food Grade (B2B) flakes.
What purity levels can be achieved?
Our technology ensures moisture content is less than 1%, and PVC contamination can be reduced to less than 100 ppm (or as low as 30ppm with specialized separators).
How does the system handle labels and glue?
The process uses a mechanical Label Remover followed by an Intensive Hot Washing System with heated water and automated chemical dosing to dissolve organic residues.
What are the key stages of the automated process?
The line includes bale opening, trommel sifting, label stripping, crushing, sink-float separation, hot washing, friction scrubbing, and centrifugal drying.
What support is provided for installation?
We offer free CAD plant layouts and have professional engineers available for on-site installation, commissioning, and staff training globally.
What is the standard lead time and warranty?
Standard production time is 30 to 70 days. All equipment is backed by a 1-year warranty and lifetime technical support.
