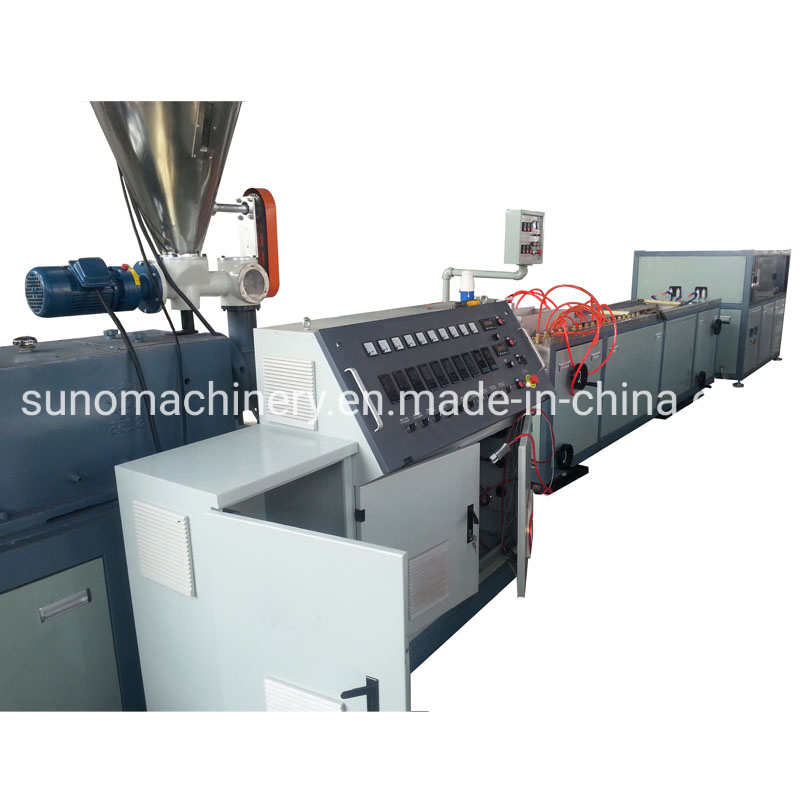

PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
1 / 5
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line
PVC Wiring Duct Profile Production Line

PVC Wiring Duct Profile Production Line

Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
SJSZ-55/110, SJ-65/30
Type
Profile Extruder
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Automation
Automatic
Screw
Single-Screw / Twin-Screw
Motor
China Famous Brand, Siemens
AC Driver
Delta, Siemens, ABB
Product Description
PVC Wiring Duct Profile Production Line
This production line is designed for high-efficiency manufacturing of PVC wiring ducts. It can adopt either SJSZ series twin-screw extruders or single-screw extruders based on specific production requirements.
  • PLC control system for reliable and stable operational performance.
  • Comprehensive auxiliary equipment: vacuum calibration, cooling unit, haul-off unit, cutting machine, and stacker.

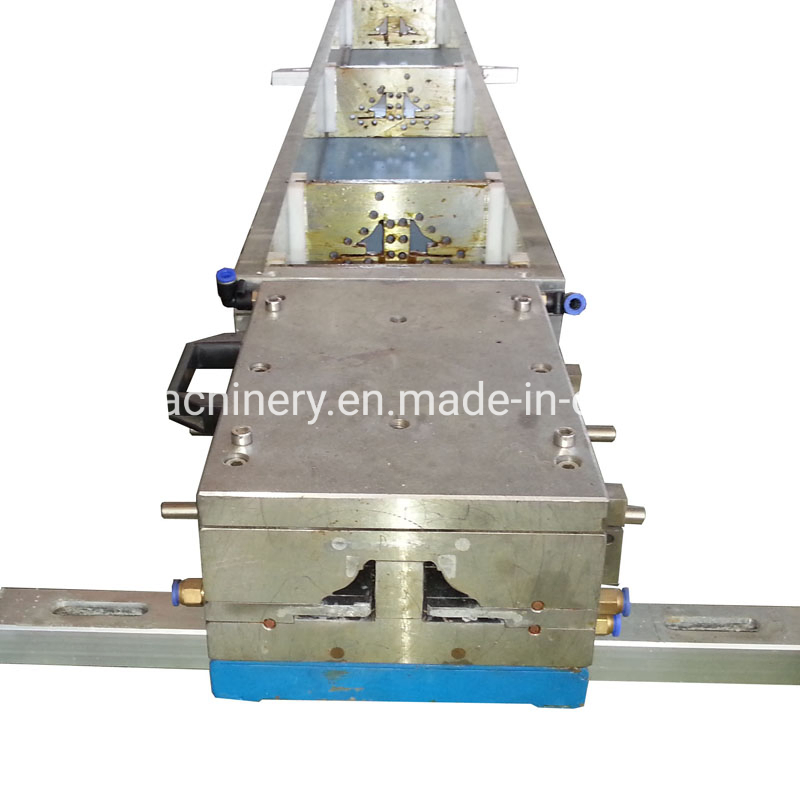

  • Calibration unit equipped with powerful cooling devices for perfect profile shaping.
  • Caterpillar style haul-off unit with imported reducer and inverter for stable traction.
  • Automatic cutting machine with length setting for high precision.
  • Protective stacker design to prevent product damage during handling.
Detailed Photos

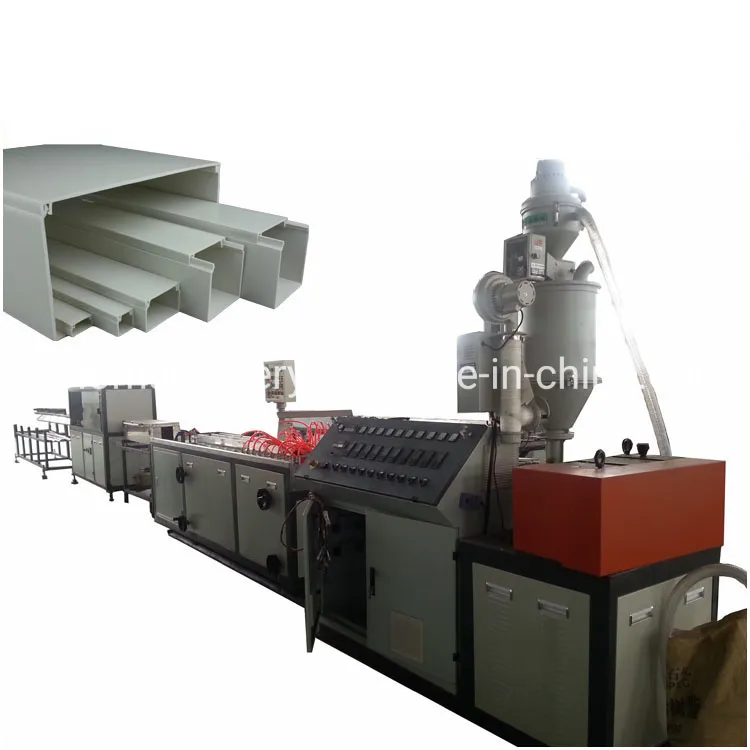

Duct Production Line 1

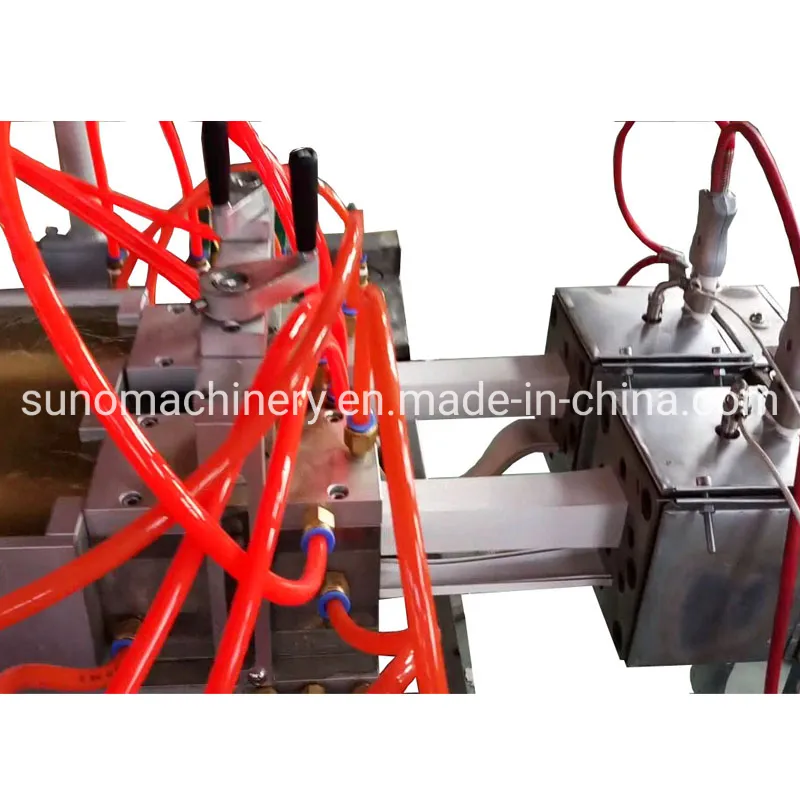

Duct Production Line 2

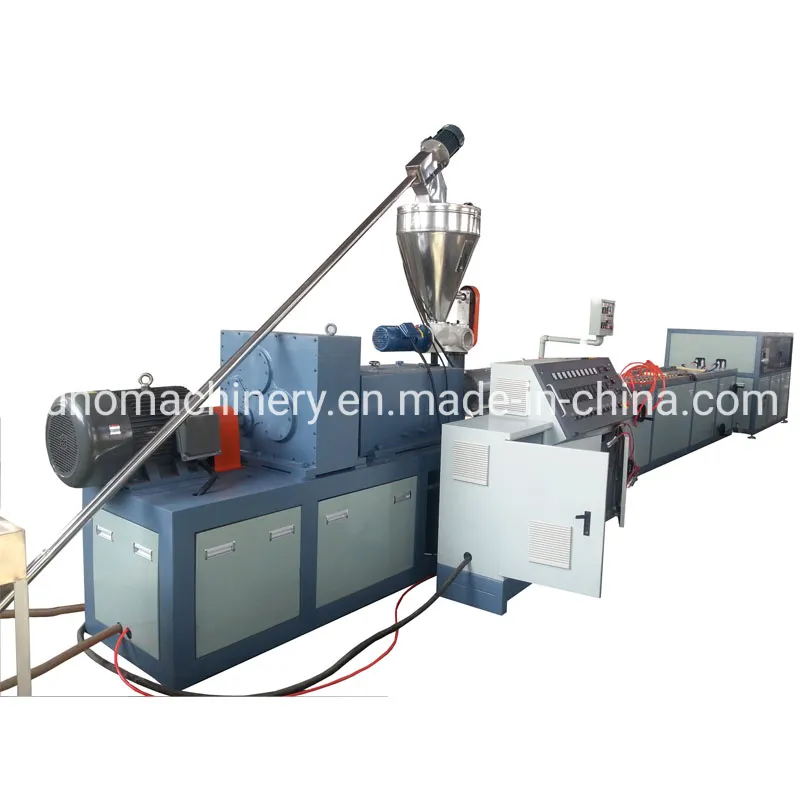

Duct Production Line 3

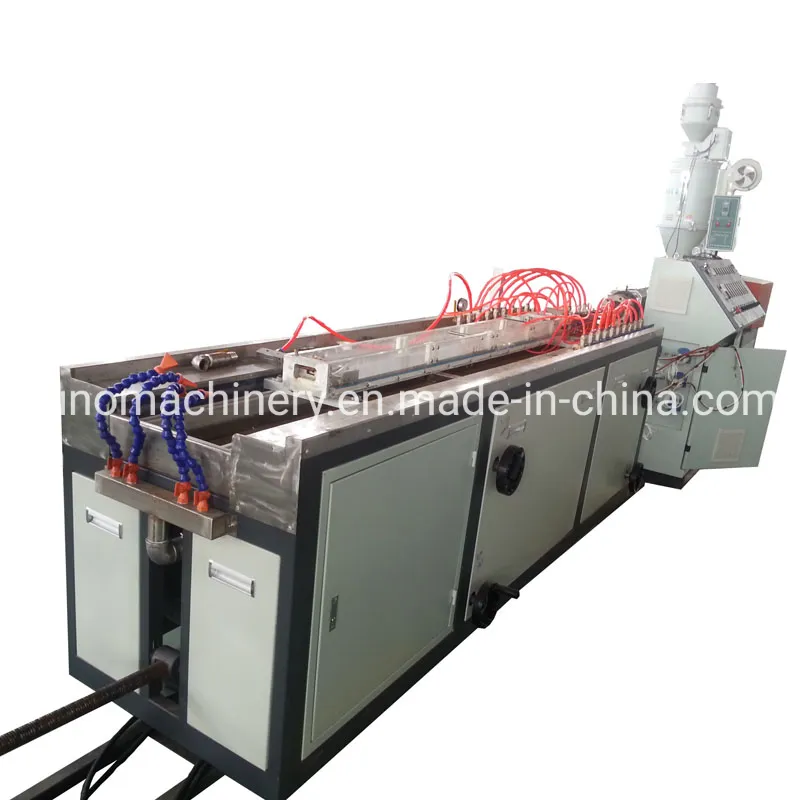

Duct Production Line 4

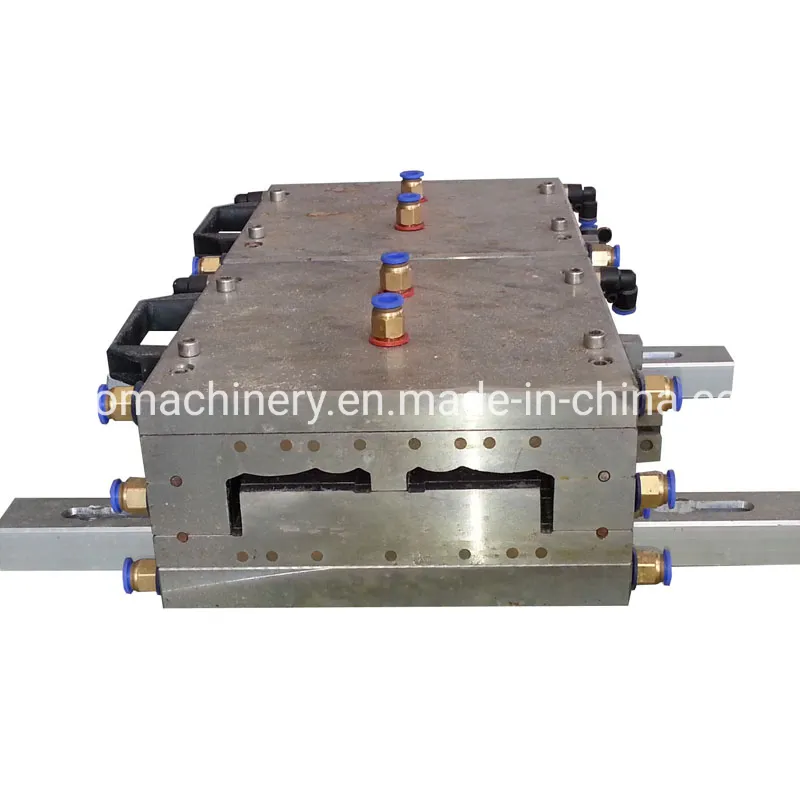

Duct Production Line 5
Product Parameters
Machine Model L/D Ratio Screw Speed (r/min) Motor Power (KW) Capacity (kg/h)
SJSZ-55/110 55/110 0-65 22 80-120
SJ-65/30 30/1 0-65 15 50-80
Technical Features & Usages

Raw Materials: Made from rigid PVC stabilized with unleaded stabilizers. The material is self-extinguishing and UV resistant.

Resistance: Highly resistant to low concentration acids, oils, and fuels. Suitable for various industrial environments.

Applications:

  • Used in domestic air conditioning systems for copper pipes and electric cables.
  • Suitable for both indoor and outdoor installation.
  • Double-locked symmetric halves to prevent accidental dismantling.

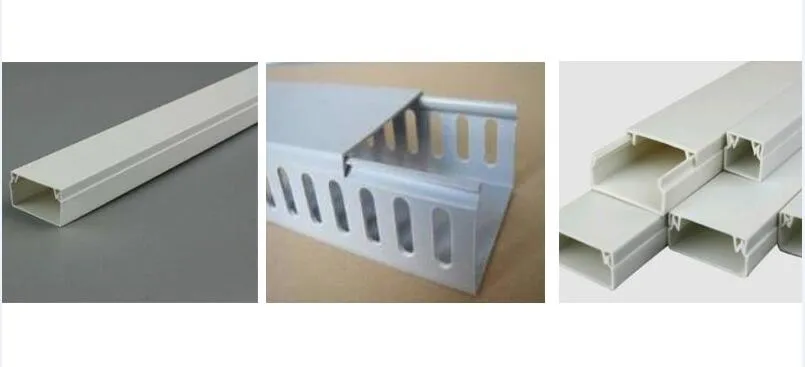

Duct Application
Packaging & Shipping

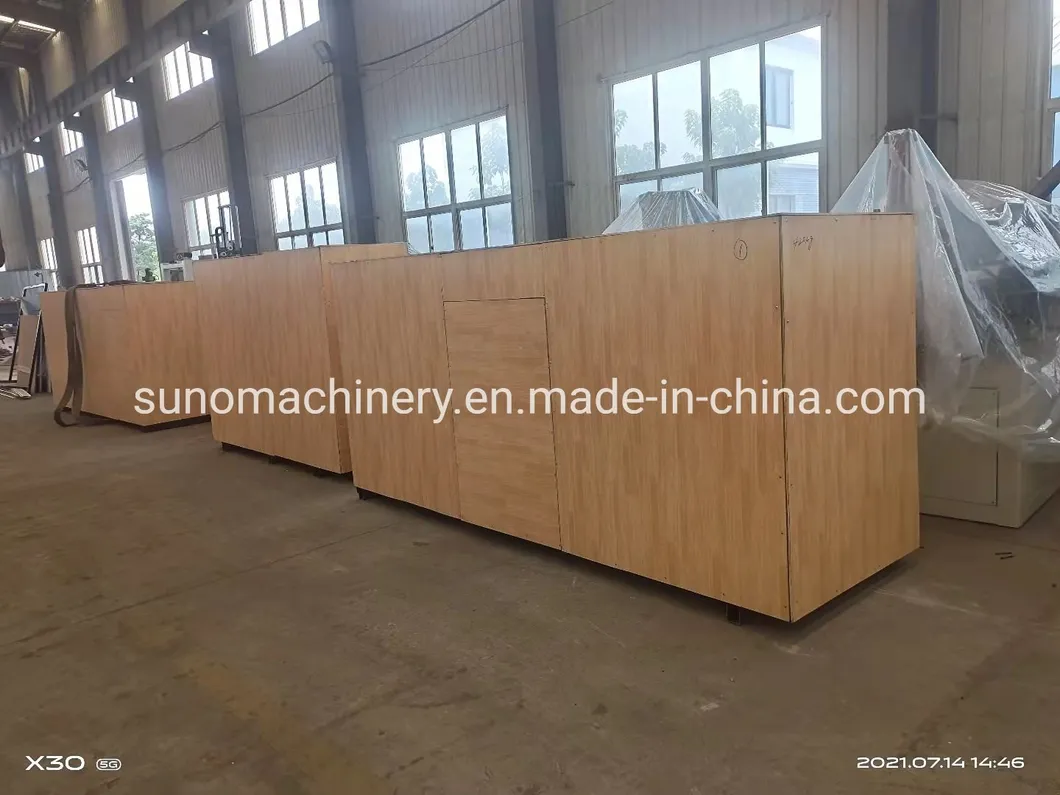

Packaging 1
Shipping 2
Loading 3
Manufacturing Excellence

Our production facility focuses on researching and providing professional technical services for plastic machinery. We specialize in plastic pipe, profile, and sheet extrusion lines, ensuring high-quality output and continuous innovation for global customers.

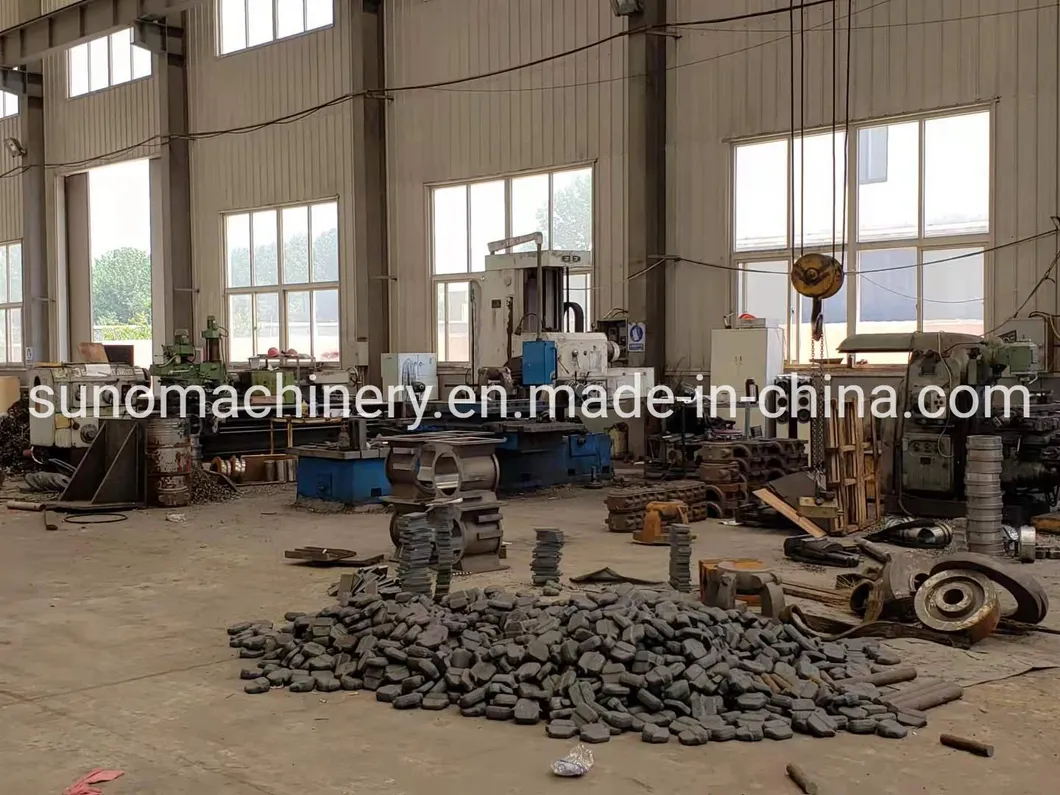

Factory 1
Factory 2

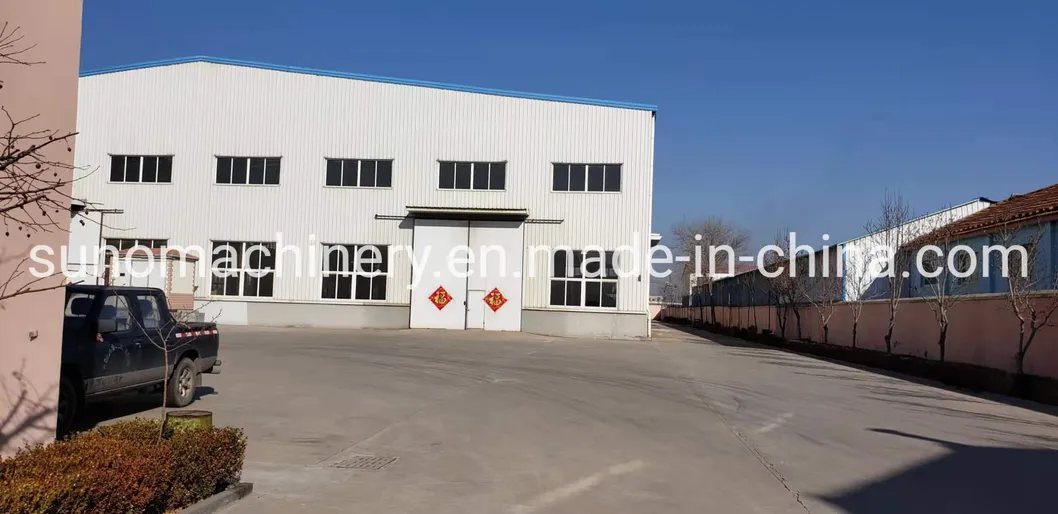

Factory 3
After-Sales Service
  • Online Support: Training and installation guidance provided online.
  • Warranty: One-year standard warranty for the entire machine.
  • Fast Response: Technical support response within 2 hours; replacement parts dispatched within 7 working days.
  • Free Spare Parts: 6 months of free wear parts provided with the initial shipment.
  • Life-long Support: Wear parts available at factory price after the warranty period.
Frequently Asked Questions (FAQ)
Q1: What materials can this extrusion line process? A: This production line is specifically designed for processing rigid PVC (Polyvinyl Chloride) to create wiring ducts and profiles.
Q2: Does the machine support automatic operation? A: Yes, the line features a PLC control system that ensures stable, automatic operation throughout the extrusion and cutting process.
Q3: How is the precision of the duct length maintained? A: The production line includes an automatic cutting machine where users can set specific lengths for highly accurate and consistent results.
Q4: Are the produced wiring ducts suitable for outdoor use? A: Yes, the raw materials used are stabilized with unleaded additives and are ultraviolet (UV) resistant, making them suitable for both indoor and outdoor applications.
Q5: What is the production capacity of the SJSZ-55/110 model? A: The SJSZ-55/110 model has a production capacity ranging from 80 to 120 kg per hour, depending on the specific profile dimensions.
Q6: What kind of warranty and technical support do you offer? A: We provide a one-year warranty, online installation guidance, and a rapid response system for parts and technical inquiries within 2 hours.
