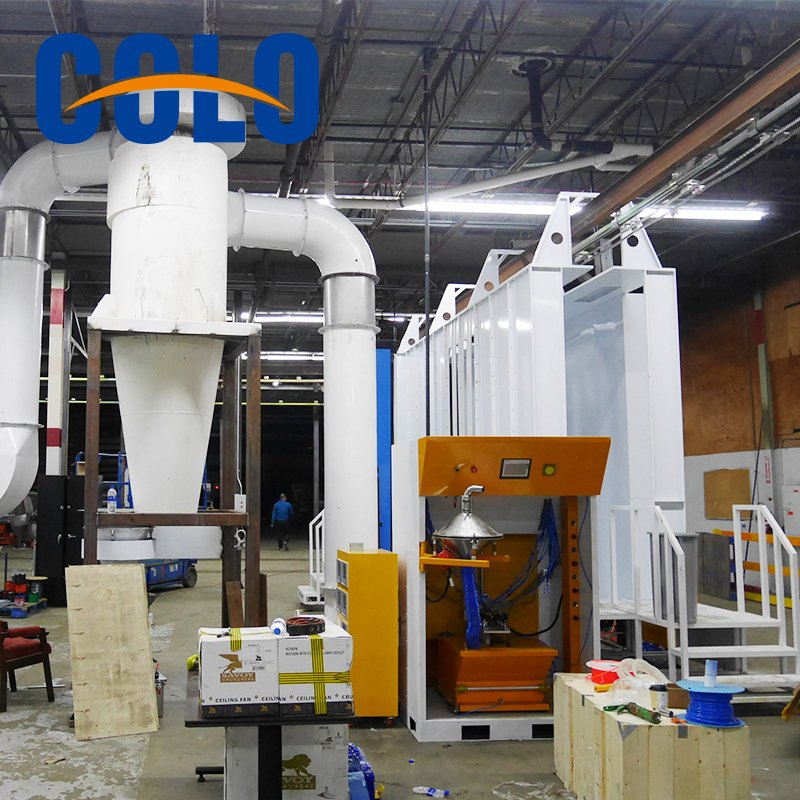

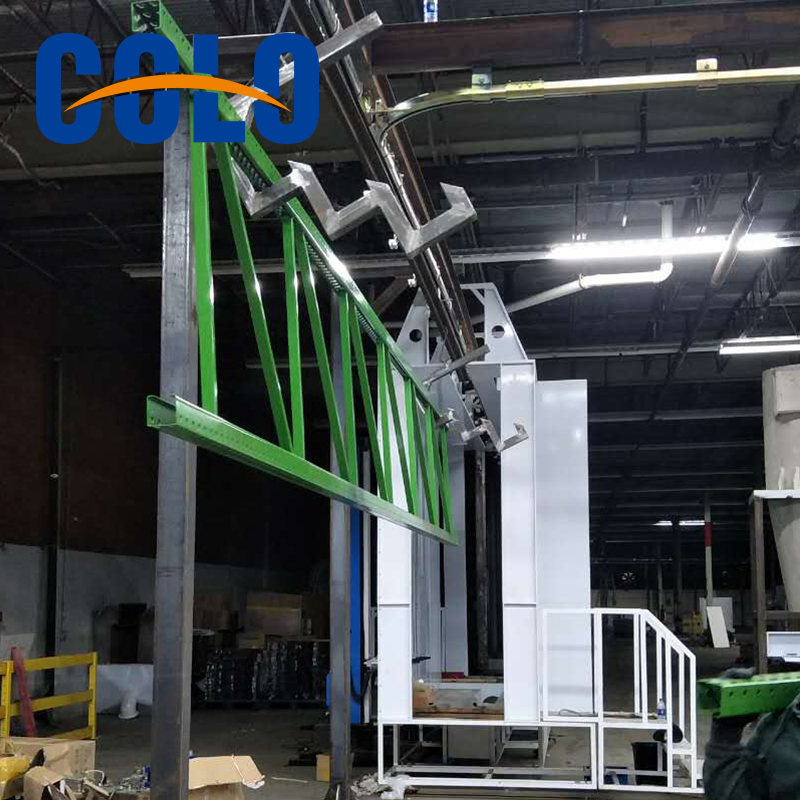

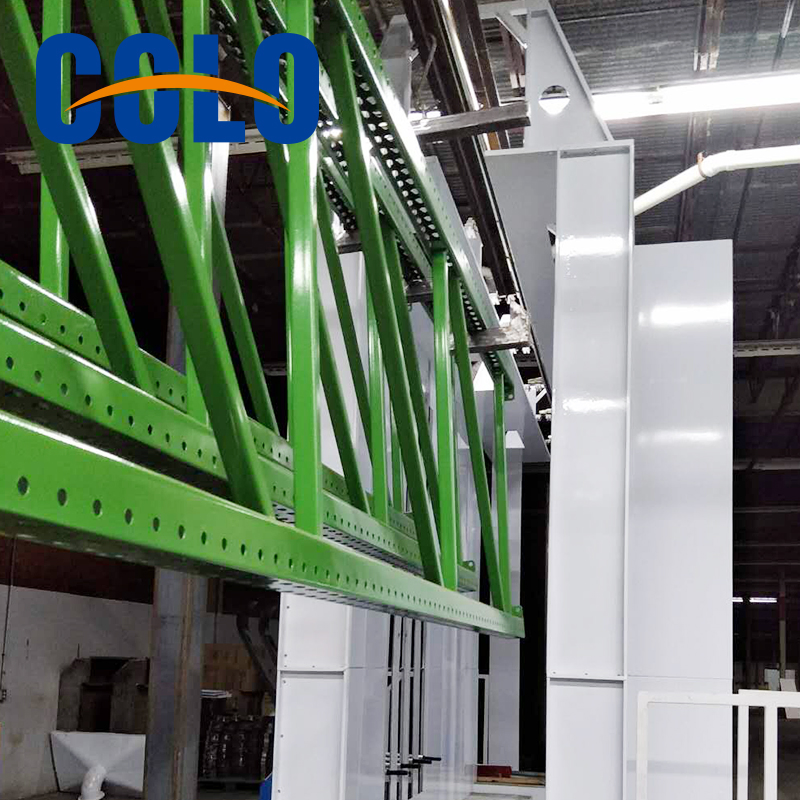

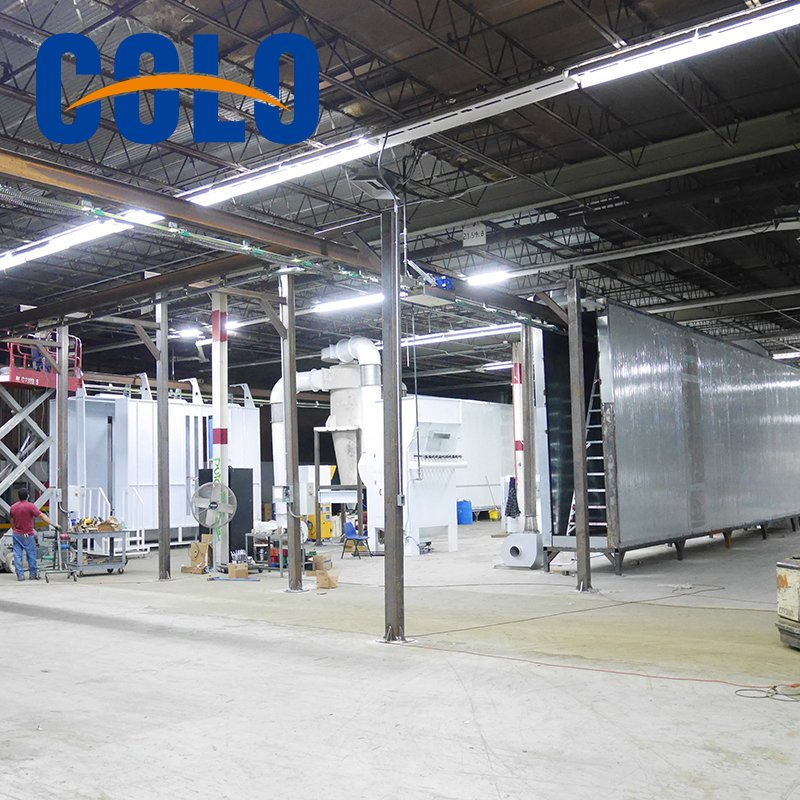

Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
1 / 5
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting
Fully Automatic Powder Coating Line for Door /Metal Painting

Fully Automatic Powder Coating Line for Door /Metal Painting

Application: Aerospace Industry, Appliance Industry, Automotive Industry, Construction Industry, Electronics Industry, Furniture Industry, Hardware Spraying Equipment
Coating Type: Electrostatic Coating
Heating system: Diesel, electric, gas, LPG
Send Inquiry

Product Description

Product Overview

This fully automatic powder coating line is designed for high-efficiency metal painting, specifically optimized for doors and various metal components. It integrates advanced electrostatic spraying technology with a robust curing system to ensure a professional finish.

Basic Specifications
Model NO.
USA-Line
Warranty
1 Year
Operation
Automatic
Heating up Time
30 Mins
Type
Electrostatic Spraying
Coating
Powder
Certification
CE, ISO
Capacity
1000 PCS/Year
Detailed Gallery

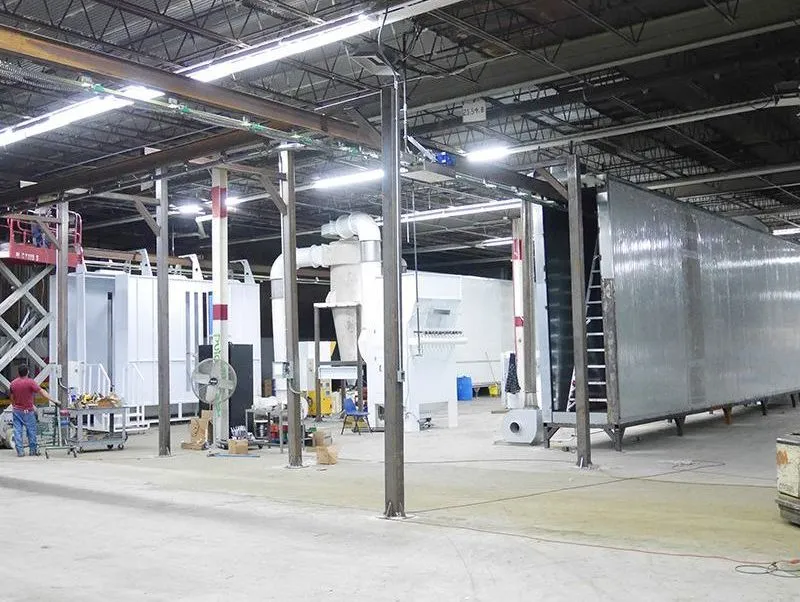

Automatic Line 1

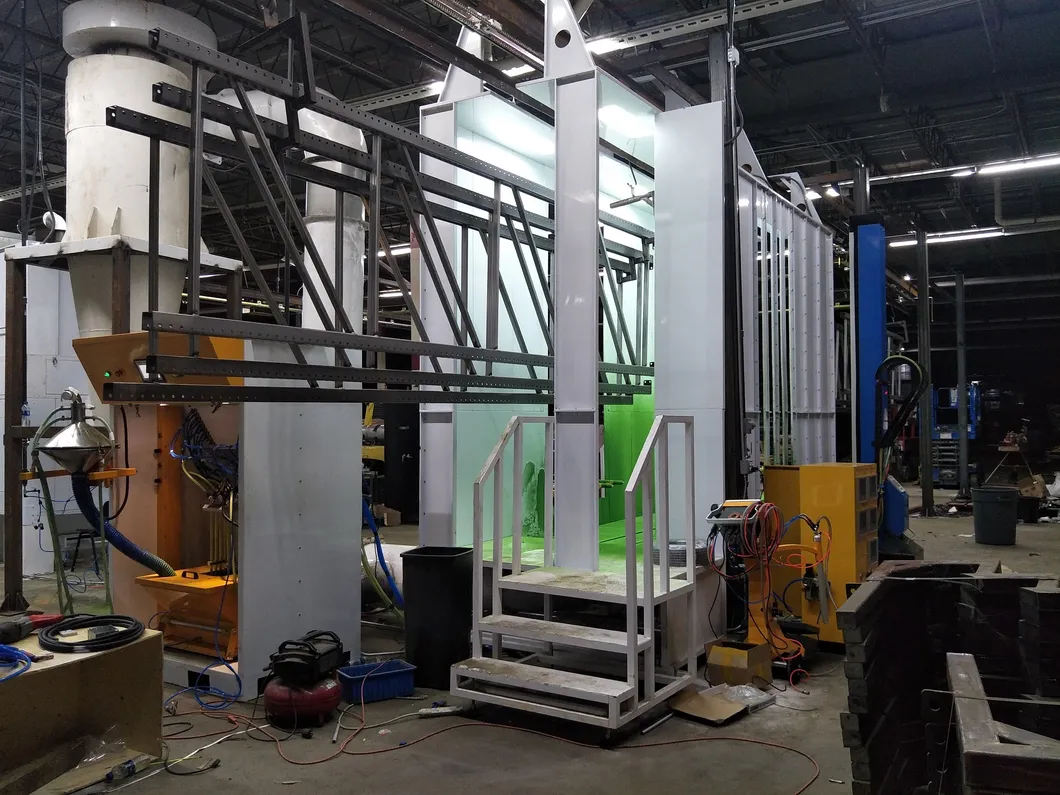

Automatic Line 2

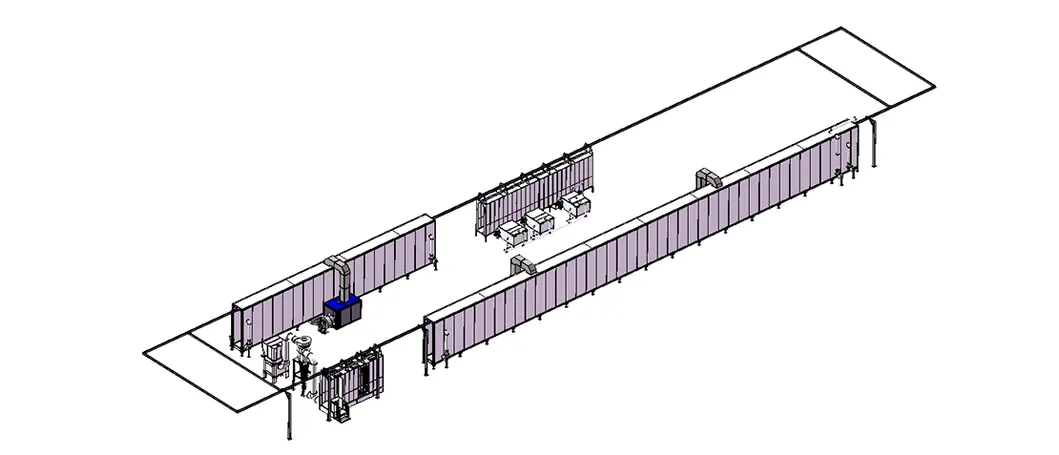

Line Detail 1

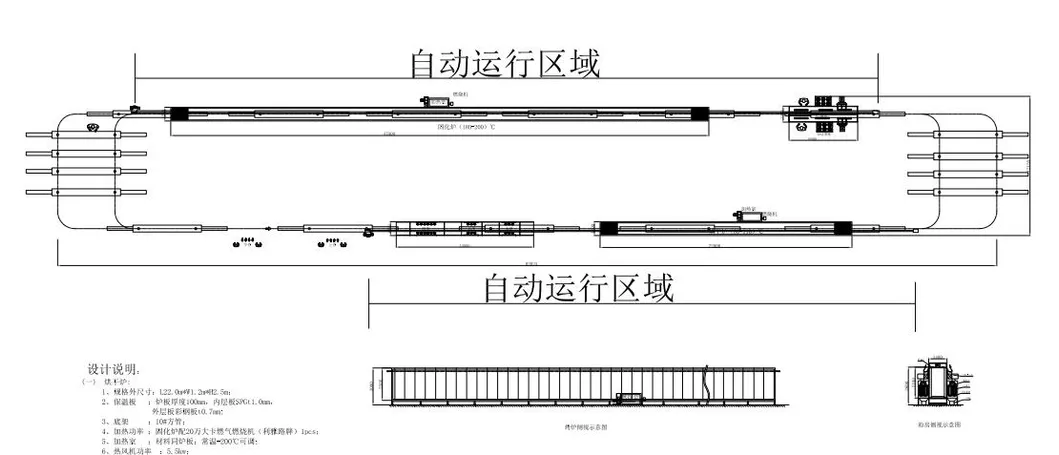

Line Detail 2
Production Process

Standard Sequence: Upper hanging → Spraying (Automatic/Manual) → Baking Curing (180-220ºC, 20min) → Cooling → Down hanging.

Process Step Equipment Temp (ºC) Duration Type Options
Loading/RTAdjustableManual/Auto
Pre-treatmentSpraying System50-6010 minsDip tank/Spraying
DryingDrying Oven12010 minsCustom sizes
Powder CoatingReciprocator & BoothRT3-5 minsRobot Spraying
CuringBridge Oven180-22020 minsTunnel/Bridge
CoolingAutomaticRT10-15 minsAir Cooled
System Components

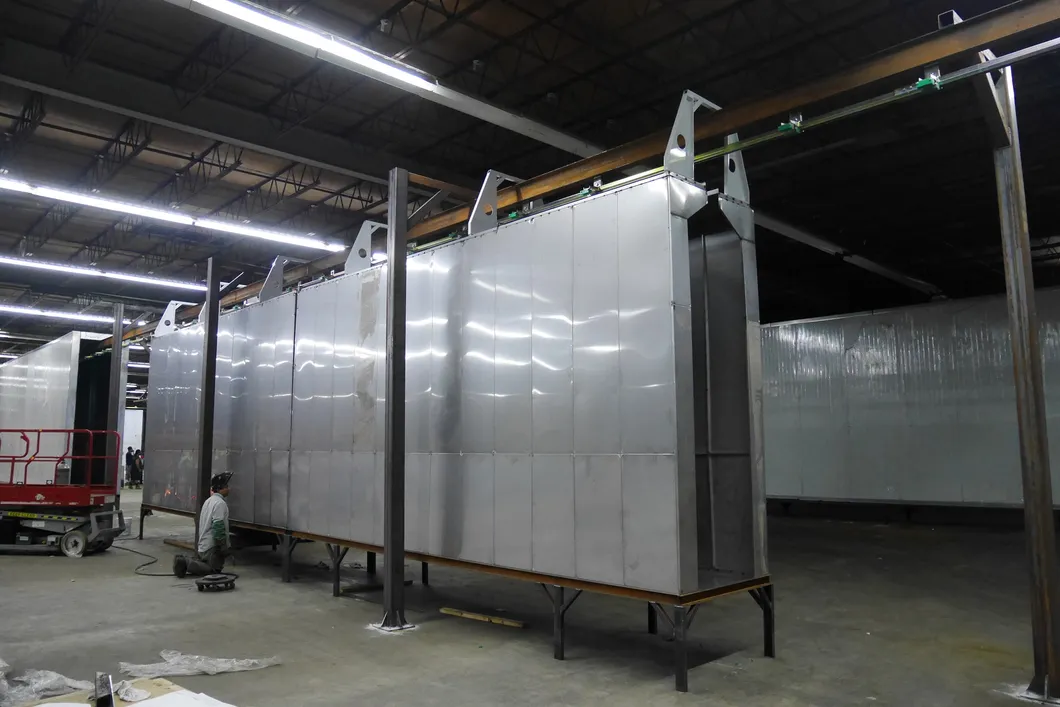

Pre-treatment System
Pre-treatment
  • Pre-degreasing
  • Degreasing
  • Water washing & Pure water washing
  • Nano ceramic coating
Automatic Spray System

Includes cyclone powder coating booth, reciprocators, and automatic feed center for seamless color changes and consistent thickness.

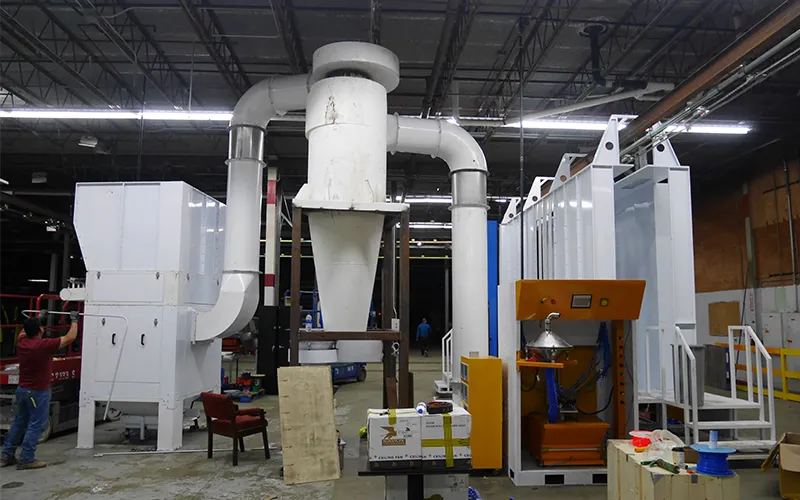

Spray Booth 1

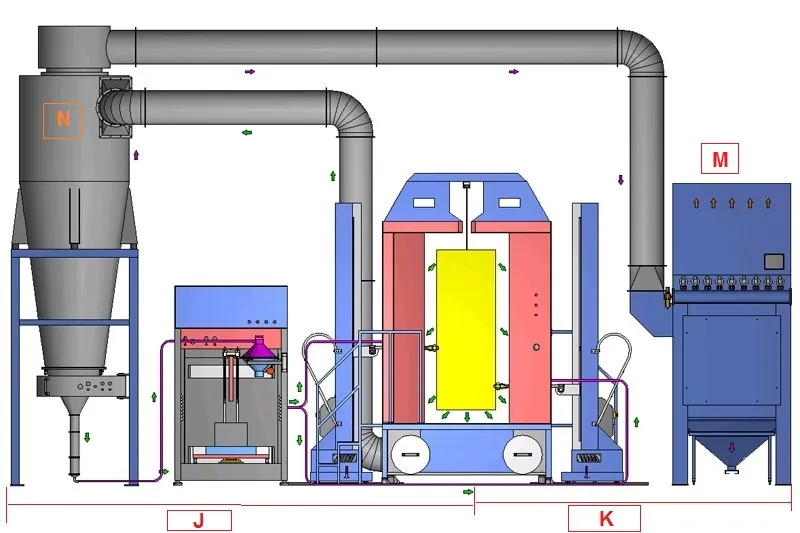

Spray Booth 2

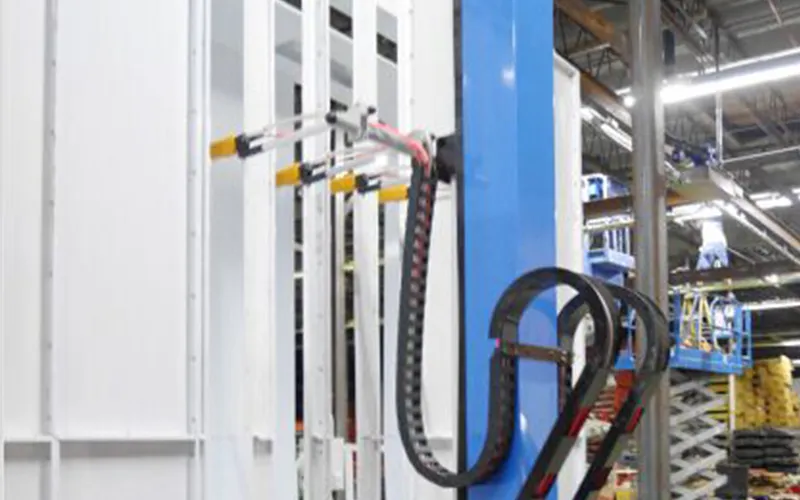

Spray System 1

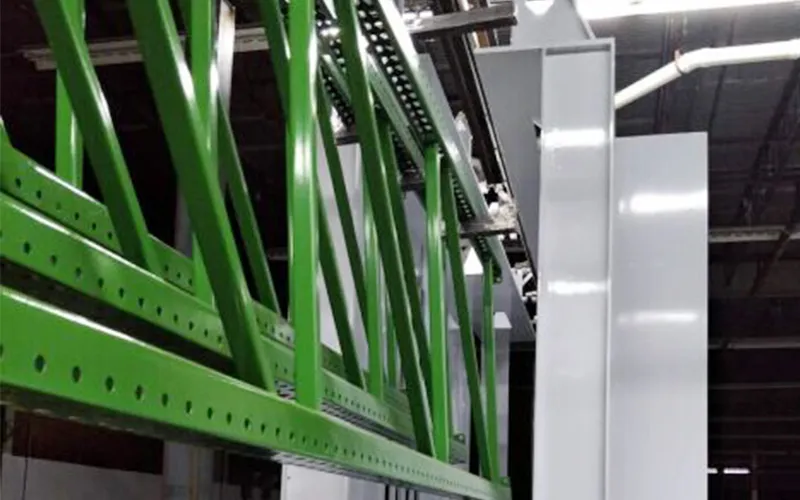

Spray System 2
Why Choose Our Solutions
  • Complete Documentation: Equipment drawings, electrical charts, and maintenance manuals provided.
  • Troubleshooting Support: Rapid response within 12 hours for any equipment issues.
  • Consumables Management: Comprehensive list to help establish maintenance systems.
  • Post-Delivery Tracking: Professionals assigned for 60-day equipment tracking.
  • Warranty Assurance: 2-year warranty with free spare parts for non-human factors.
Packaging
Certifications
Global Experience

Successfully completed projects worldwide across Europe, New Zealand, Middle East, Asia, Latin America, and Africa.

Global Projects
Customer Visit
Frequently Asked Questions
Q1: What materials can this coating line handle? It is specifically designed for metal products such as doors, furniture, and various industrial metal parts.
Q2: What is the standard curing temperature? The curing temperature is adjustable between 180-220ºC, typically requiring about 20 minutes for optimal results.
Q3: Does the system support quick color changes? Yes, the automatic cyclone booth and powder feed center are designed for efficient powder recovery and fast color switching.
Q4: What energy sources can be used for the ovens? The drying and curing ovens can be powered by electricity, gas, or diesel, depending on your facility's requirements.
Q5: Can the dimensions be customized for specific factory layouts? Absolutely. All production lines are customized according to the customer's space requirements and production capacity needs.
Q6: What kind of after-sales support is provided? We offer a 2-year warranty, professional tracking for 60 days post-delivery, and technical solutions within 12 hours.
