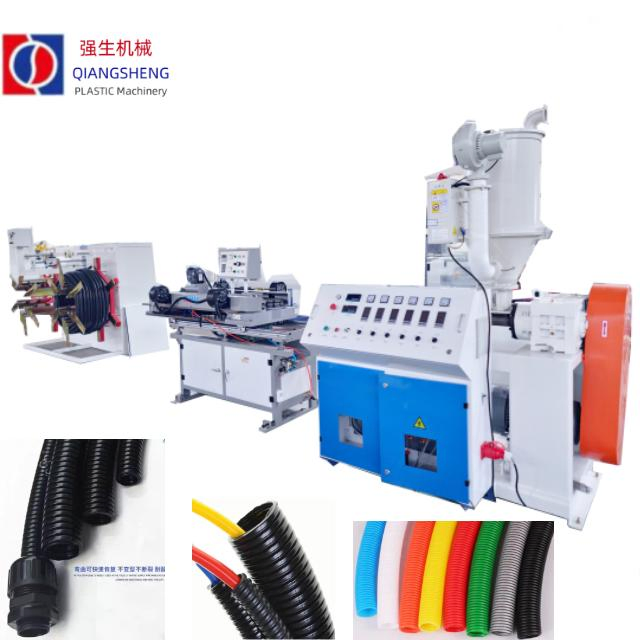

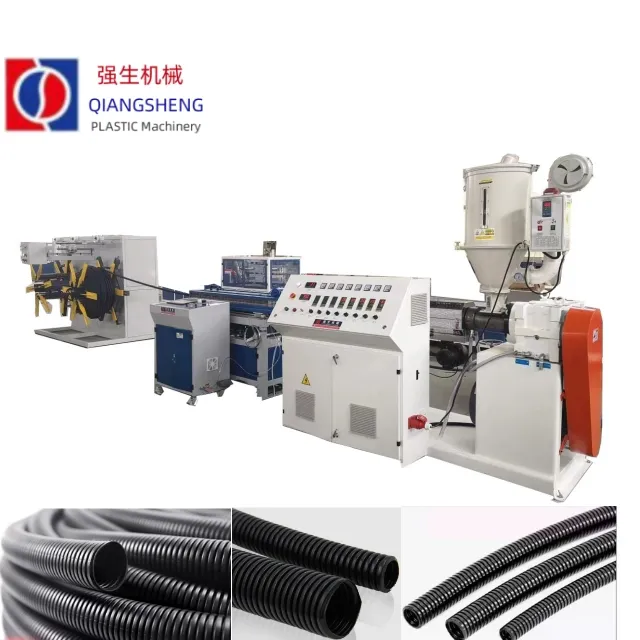

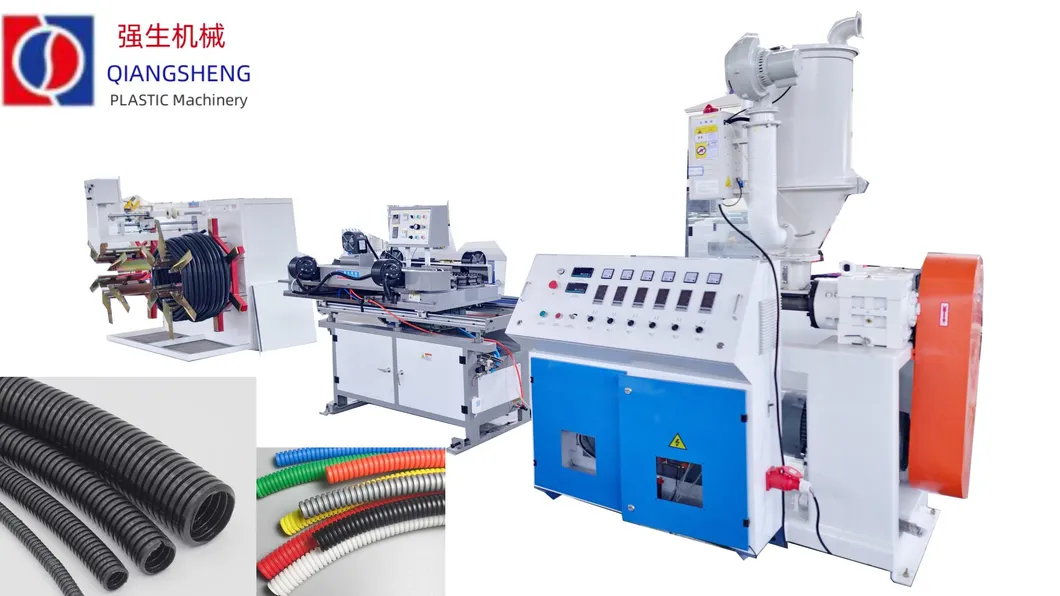

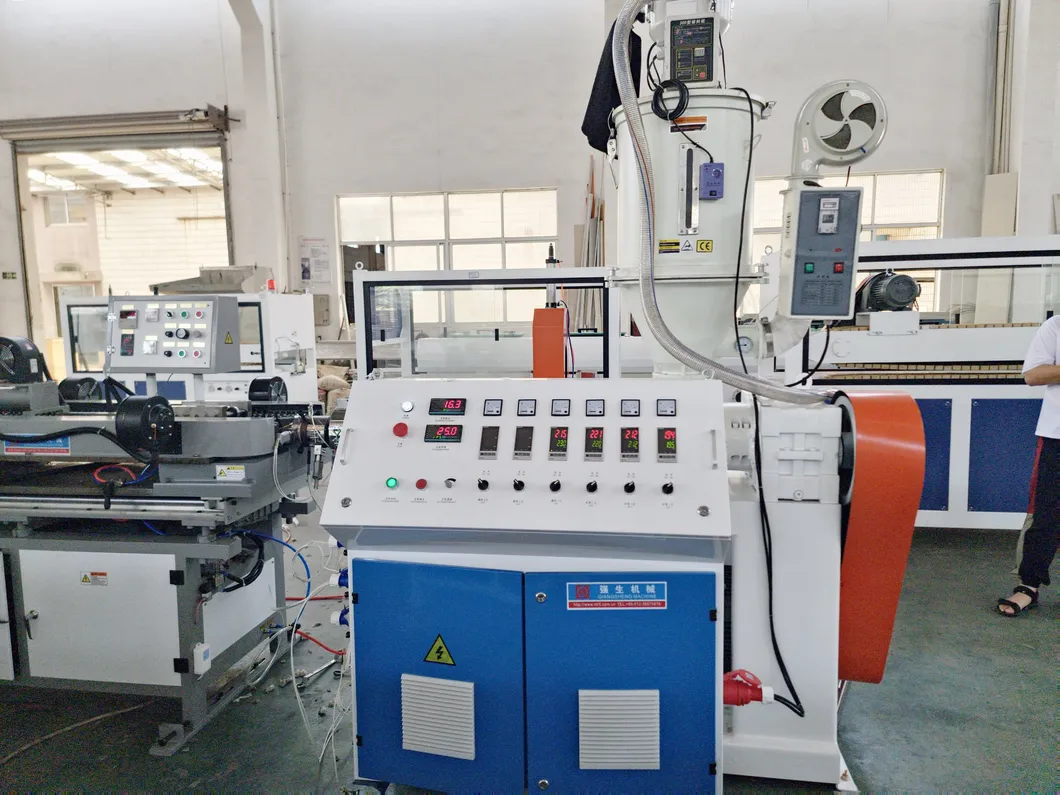

High Speed Single-Wall PE Corrugated Pipe Production Line

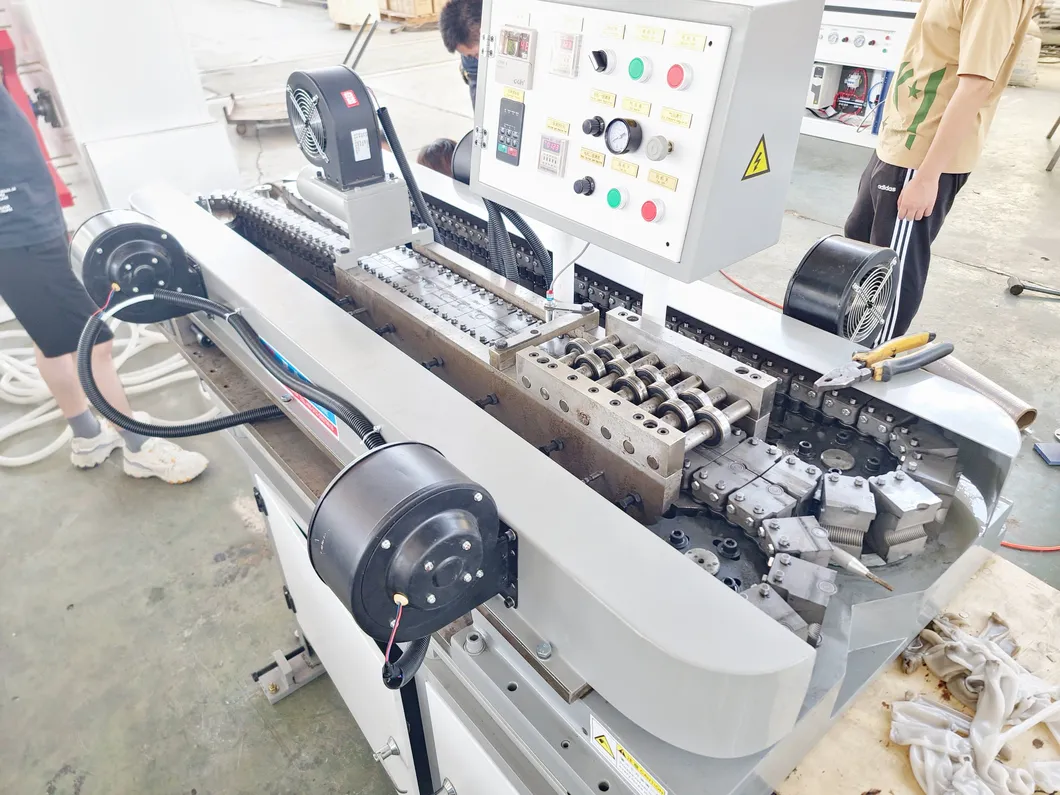

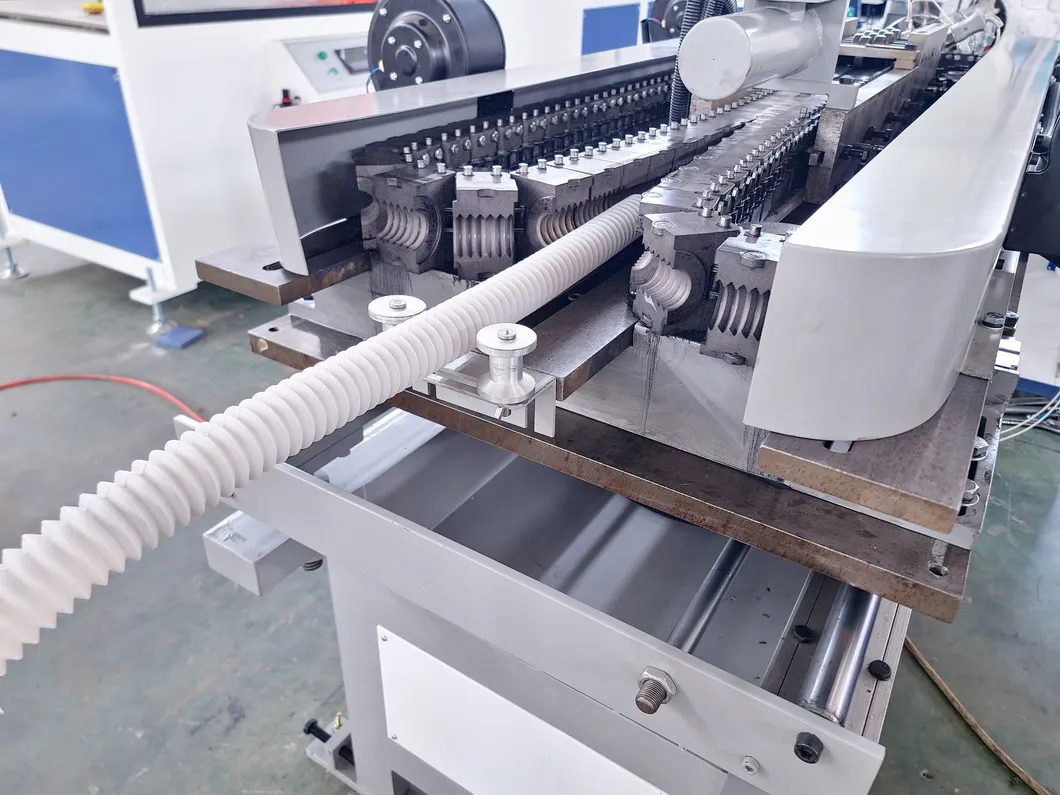

The plastic single-wall corrugated pipe production line adopts gears to run moulds and templates so as to realize water circulating cooling air of the products, which ensures high-speed moulding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of up-market cars. Production speed: 20-30m/min.
| Pipe range (mm) | Extruders | Max.output(kg/h) | Motor power(kw) |
|---|---|---|---|
| ∅12-36 | SJ45/28 | 20-30 | 11 |
| ∅35-55 | SJ55/28 | 30-40 | 15 |
| ∅55-75 | SJ65/28 | 40-60 | 22 |
| ∅75-120 | SJ65/132 | 60-150 | 37 |
Flow Chart of PE Pipe Extrusion Line:

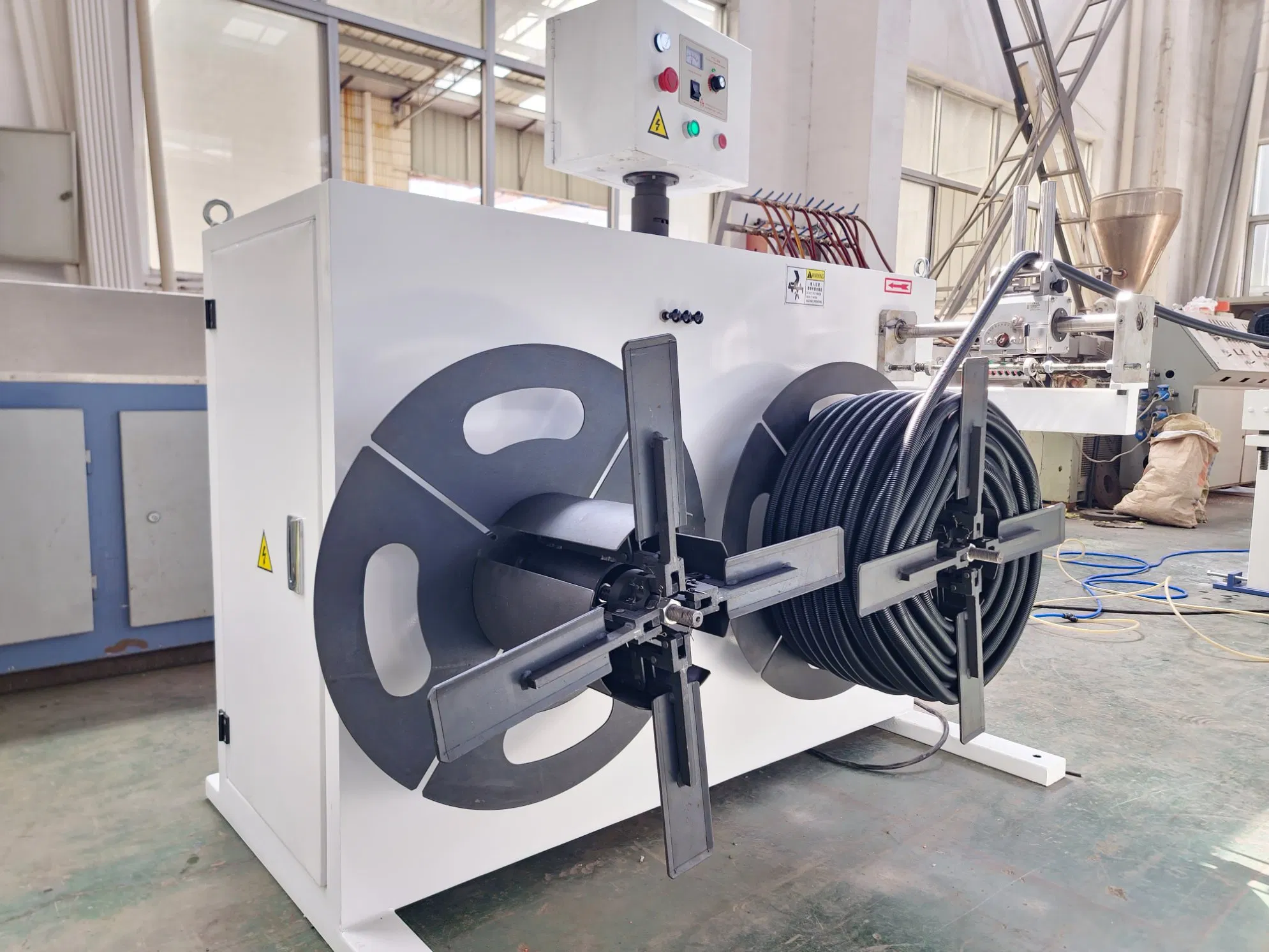

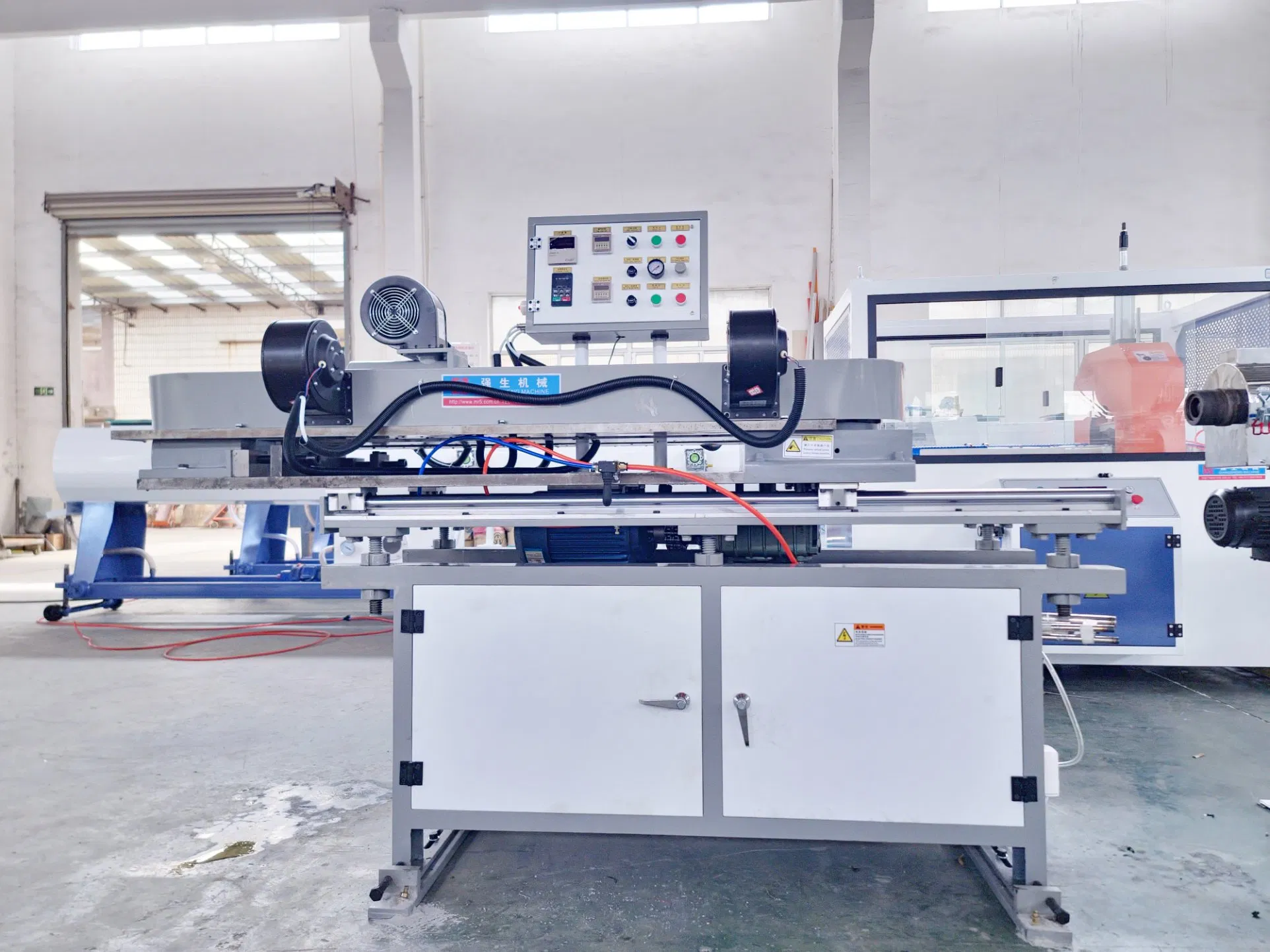

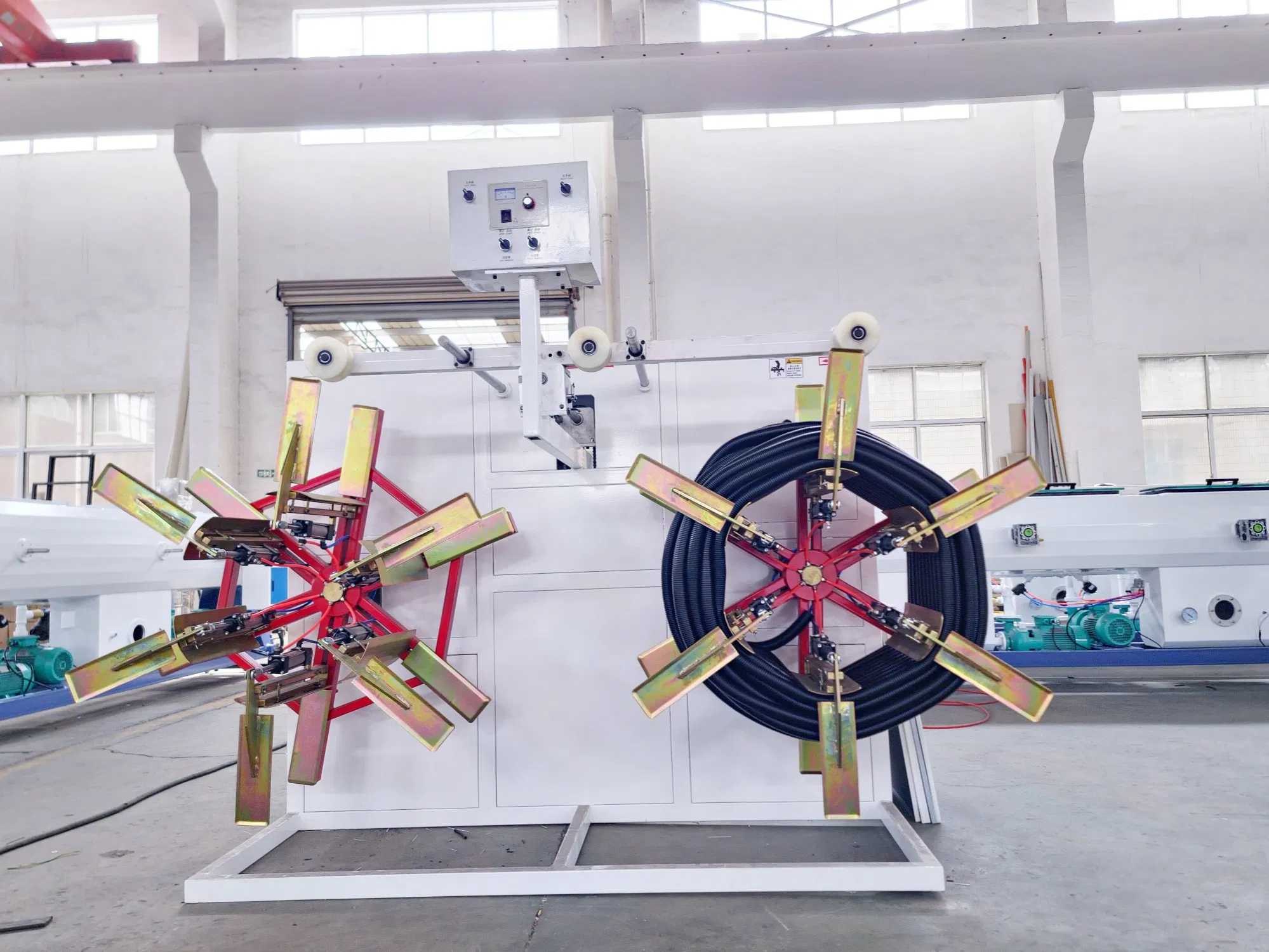

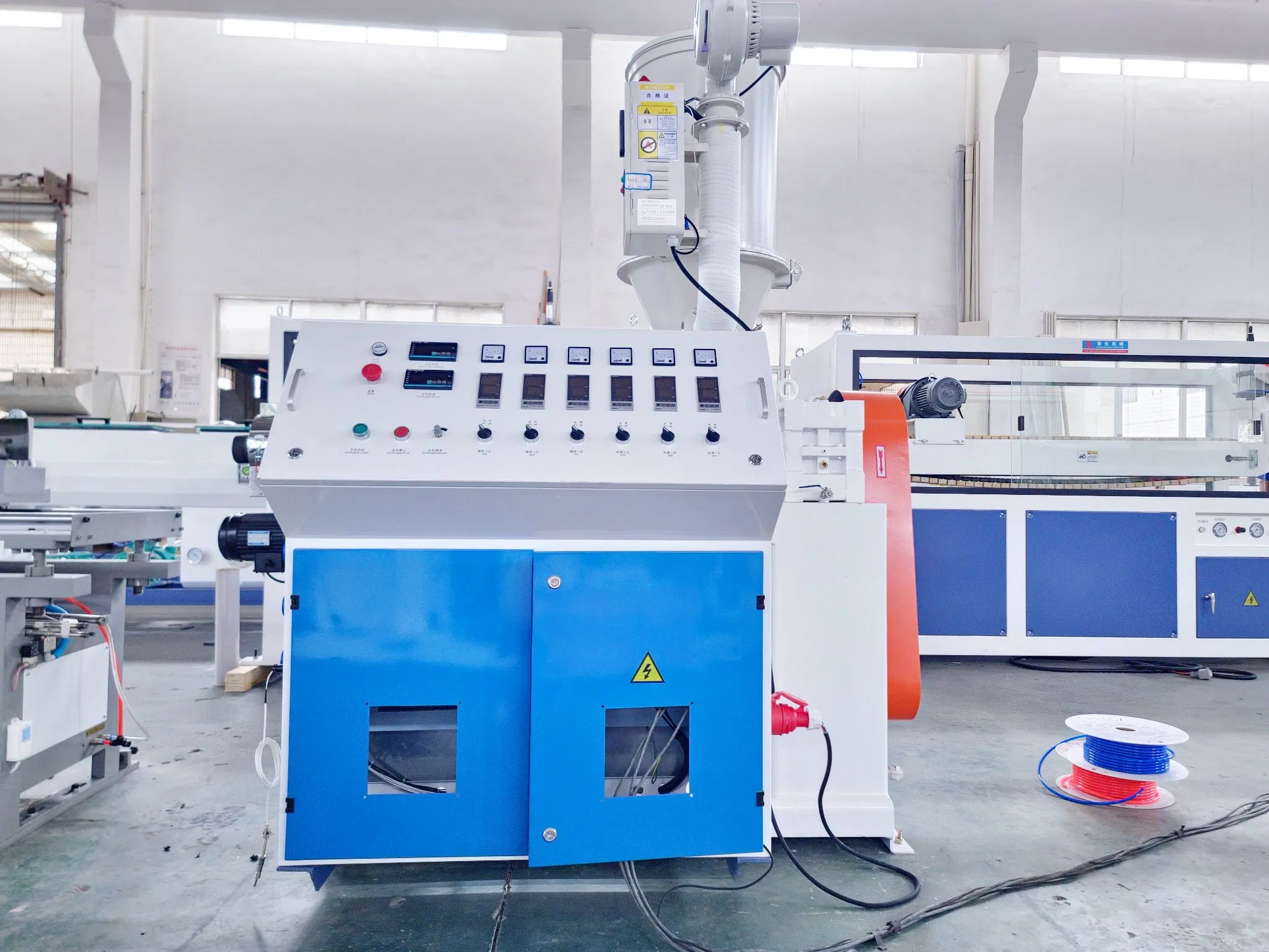

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → mould and calibrator → forming machine → stacker (Winding machine)
Widely used for auto wire, electric thread-passing pipes, machine tool circuits, protective pipes for lamps, and tubes for air conditioners/washing machines.
