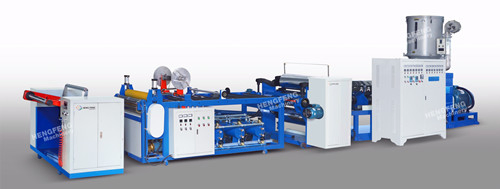

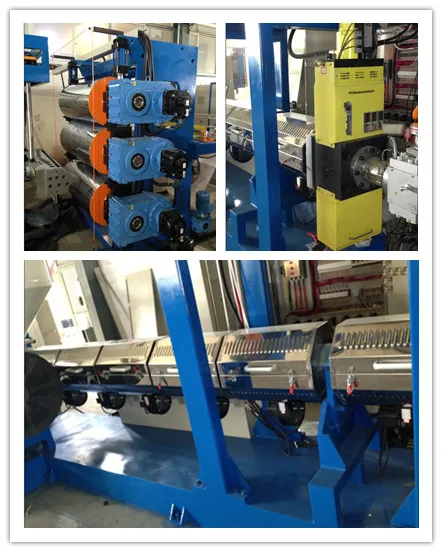

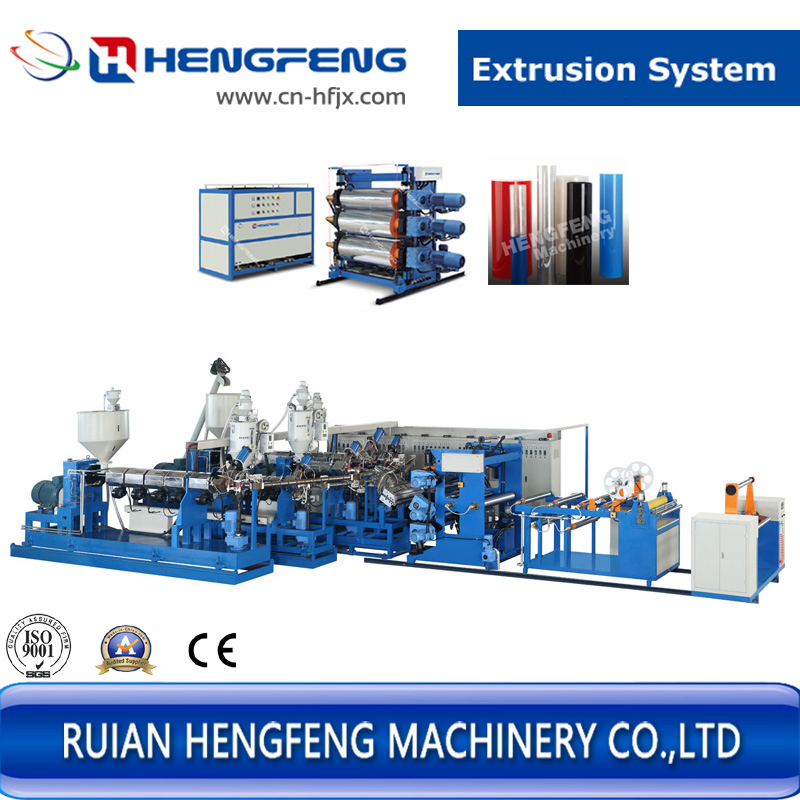

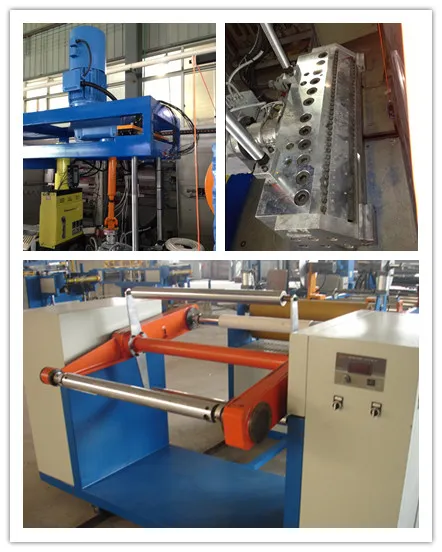

The Sheet Extruder is a comprehensive combination of extruder, head, calender, haul-off, rewinder, and electric control box. The drum, screw, screen changer, and die head are crafted from high-quality alloyed steel featuring high hardness, strong corrosion resistance, and extended operating life following nitrogen treatment.
The head utilizes a T-type branch pipe decreasing construction, ensuring solution flow without stagnation for smooth and even product thickness. The felt-wrapped circulation and internal cooling rolls provide a perfect finishing effect.
| Parameter Item | Specification Data |
|---|---|
| Max. output | 160kgs/hr |
| Thickness range of sheet | 0.2-2.0mm |
| Sheet Width | 700mm |
| Screw Diameter | 100mm |
| Lip Thickness | 0-3mm |
| Roller Diameter | 350mm |
| Adjust Distance of roller | 0-50mm |
| Screw Ratio | 30.1 |
| Width of die mouth | 800mm |
| Barrel heating treatment | 1000mm |
| Number of roller | 3 |
| Extruder motor | 45kw |
| Air pressure | 0.6Mpa |
| Water consumption | 20m³ /h |

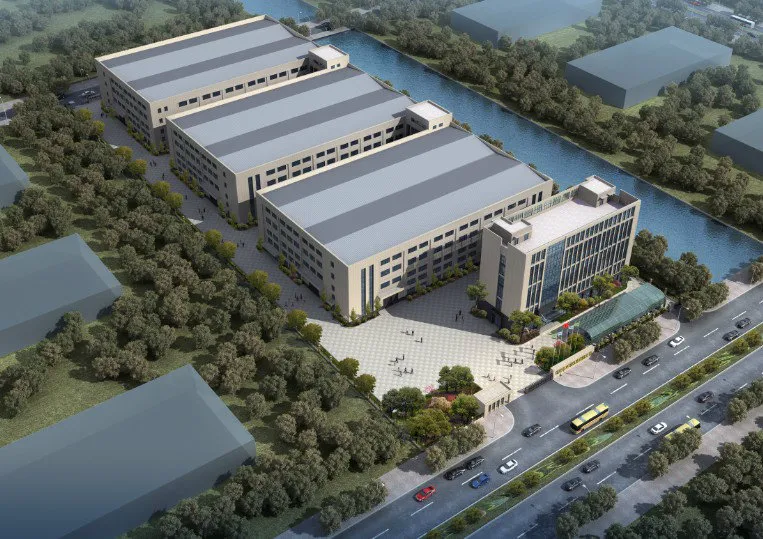

Founded in 2008, our facility has focused on researching, developing, manufacturing, and marketing thermoforming machines and plastic sheet extrusion lines for over 10 years. Our equipment is utilized in more than 72 countries and regions, including the USA, South Korea, Turkey, Canada, Russia, Brazil, and Saudi Arabia.
