| Feature | Details |
|---|---|
| Automatic Grade | Automatic |
| Warranty | 2 Years |
| Certification | CE, ISO |
| Wire Diameter | 0.6mm-4.5mm |
| Zinc Coating Thickness | 10-30 G/M² |
| Annealing Method | On Line Annealing |
| Pickling System | Smokeless Environmental Protection |
| Production Capacity | 10 Sets Per Month |

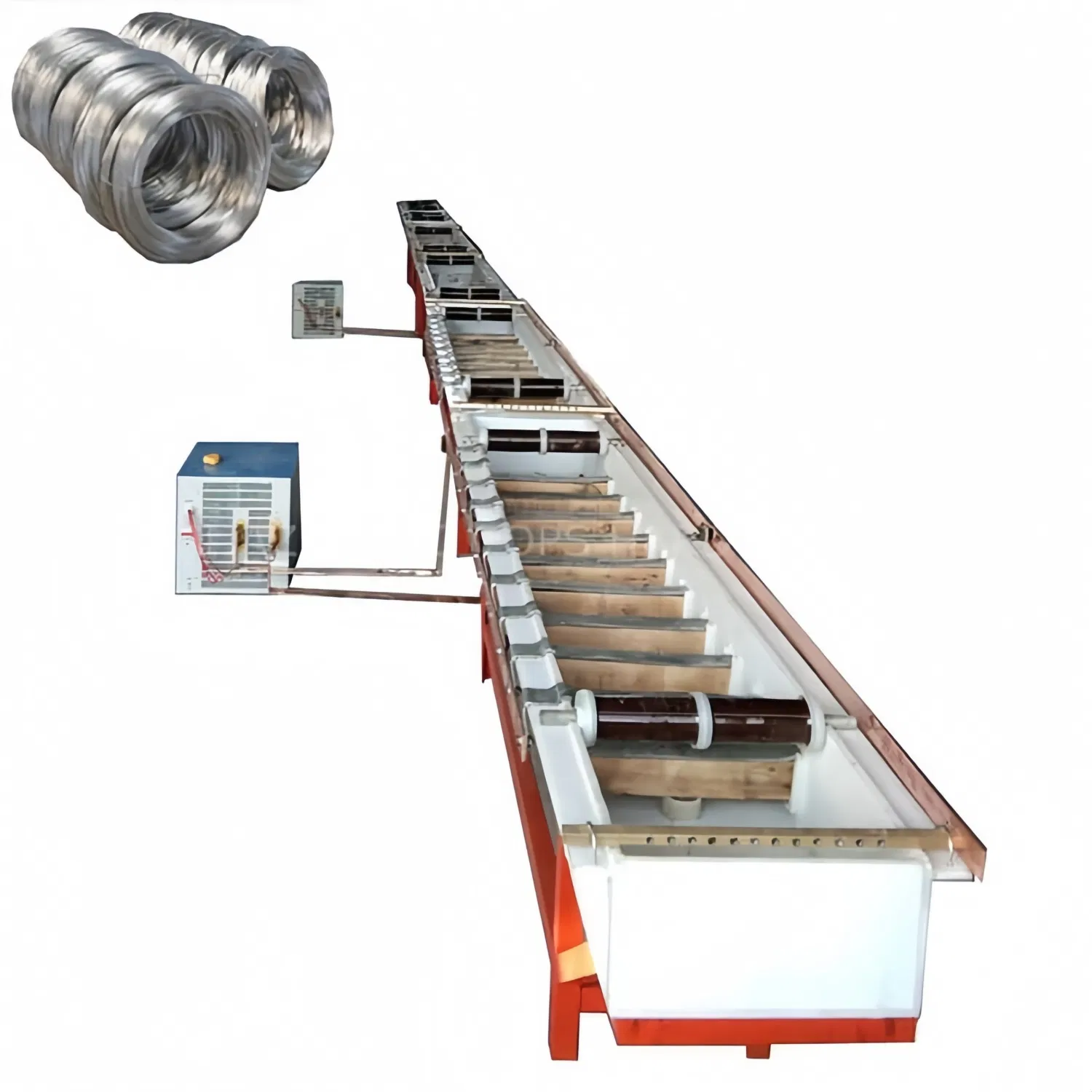

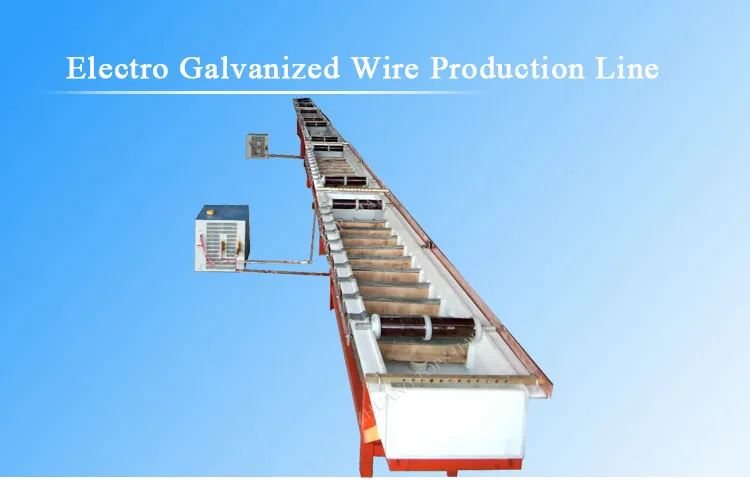

This electro galvanized wire production line is designed for zinc plating on black iron wire and black annealing wire. Utilizing advanced technology with a sealed acid pickling process, it ensures minimal acid odor and high environmental safety. The final product features a brilliant, shining surface with excellent zinc adhesion, making it ideal for construction, wire mesh, fencing, and daily industrial use.

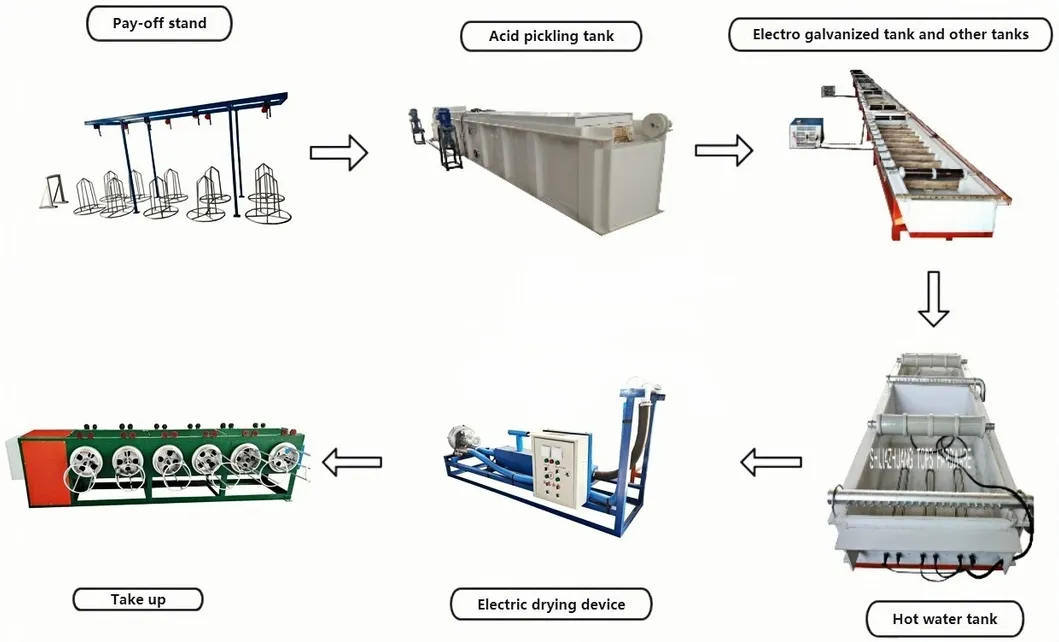

Production Process:
| Production Line Parameters | |
| Wire Diameter Range | 0.6mm-1.6mm / 1.6mm-4.5mm |
| Zinc Coating | 10 - 30 g/m² |
| Number of Wires | 8, 10, 20 wires (Customizable) |
| Raw Material | Carbon steel wire, iron wire |
| Tank Material | High anticorrosive PP material |
| Output | 545kgs per hour (for 2.0mm wire) |

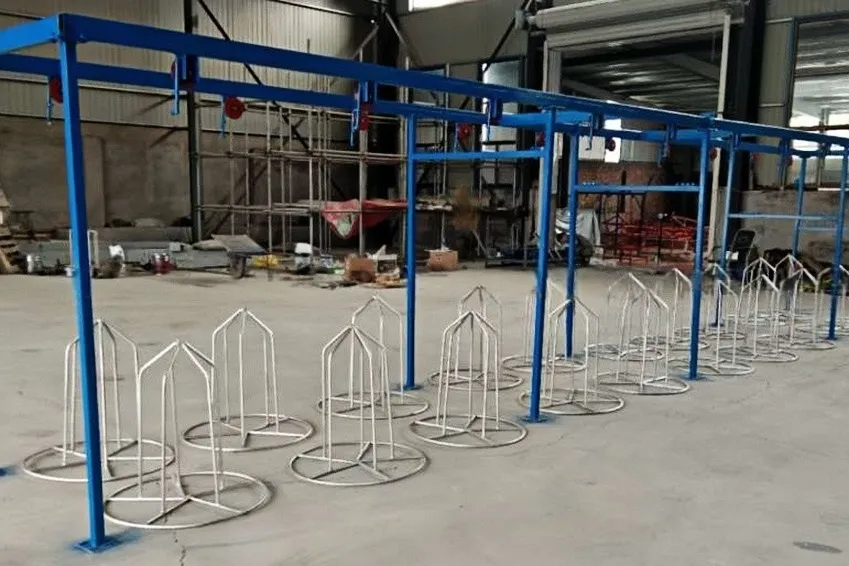

Wire Paying-off Stand
Quantity matches the take-up capacity.

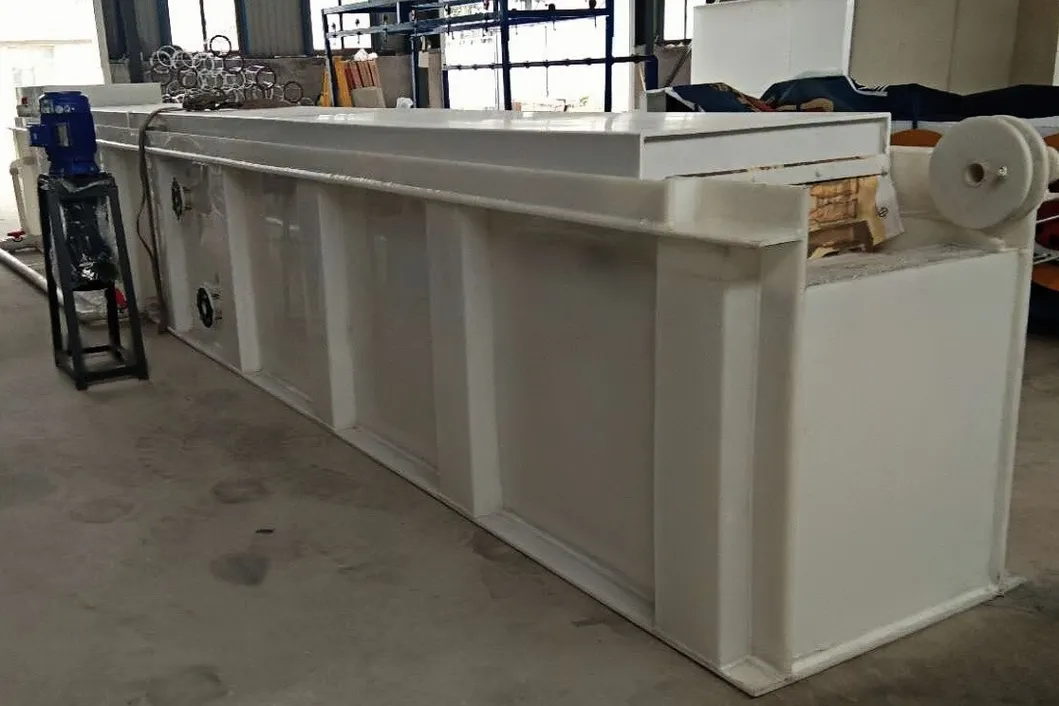

Acid Pickling Tank
Includes acid pump and motor power of 1.1kw.

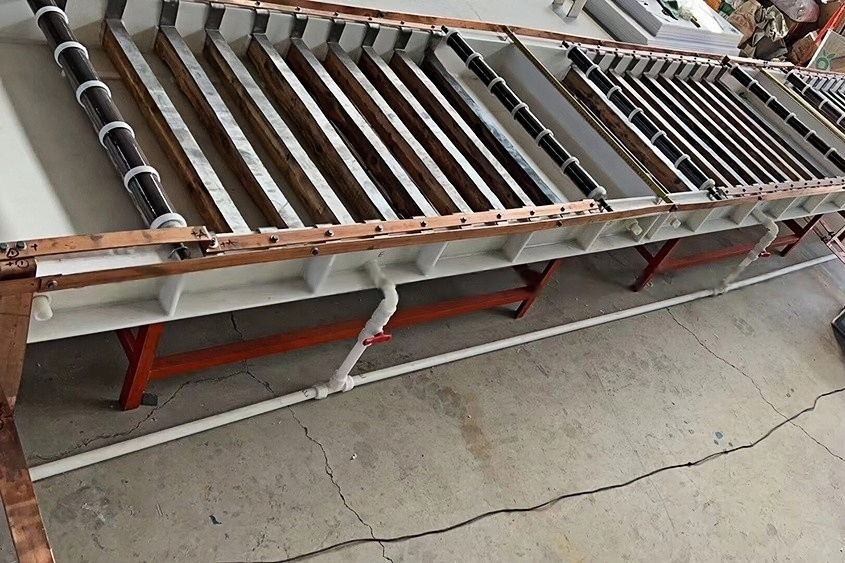

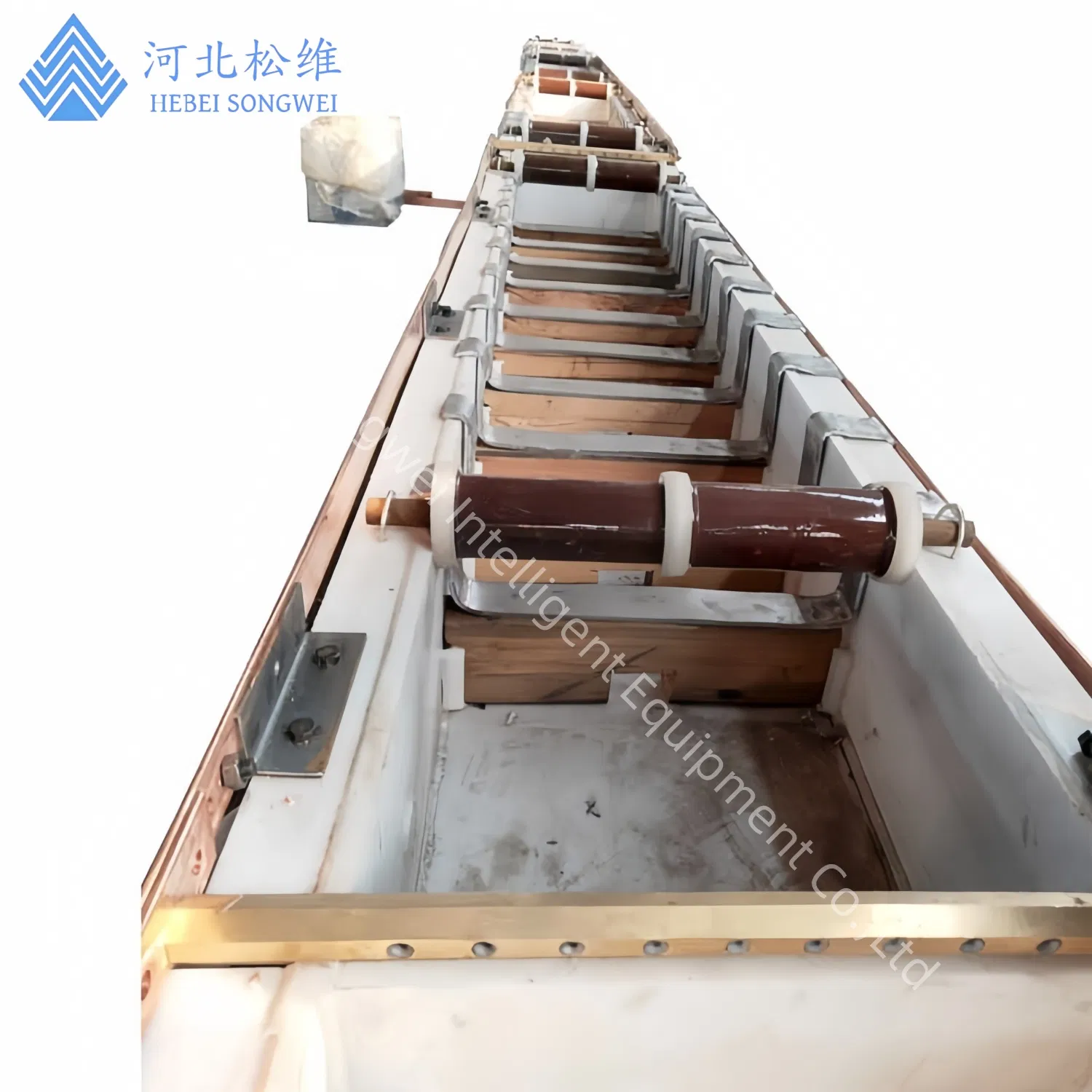

Electro Galvanized Tank
4m per tank, totaling 16m with high frequency inverter.

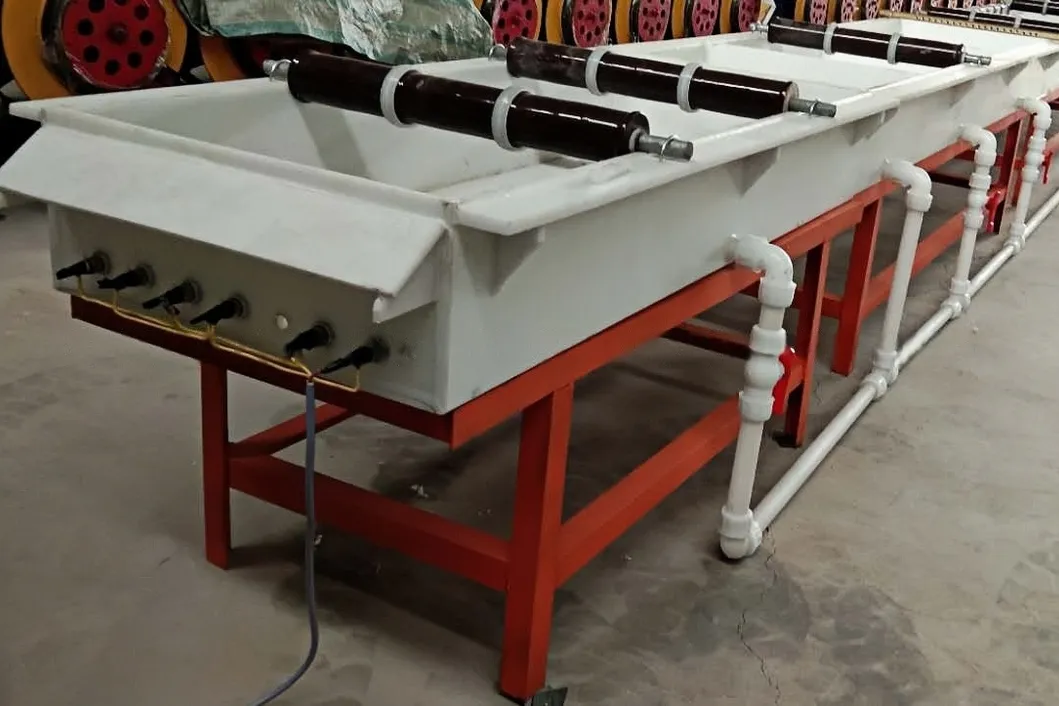

Cleaning Tank
Features air blowing and hot water cleaning.

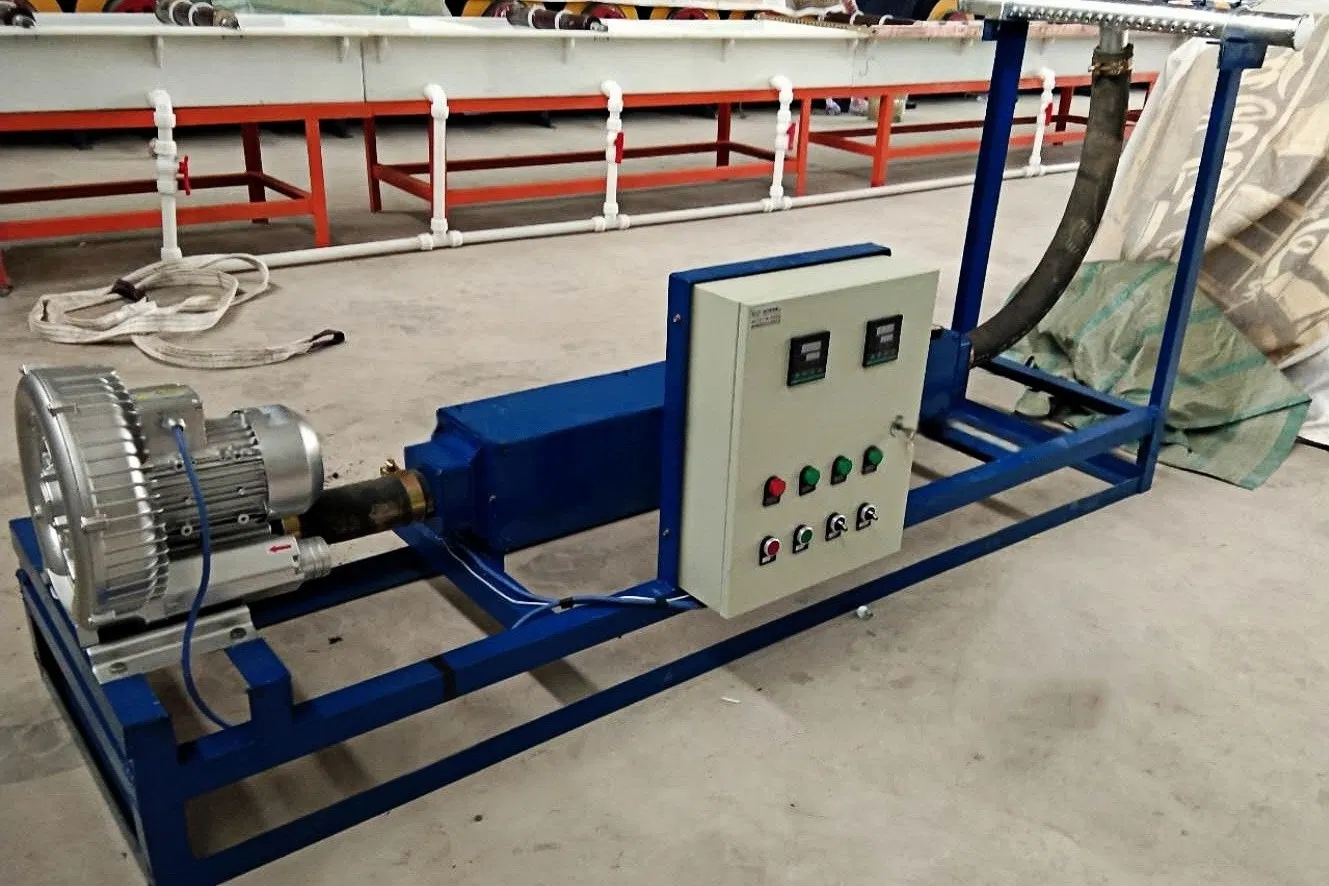

Electric Drying Device
Far infrared heating (2KW) with air-blowing.

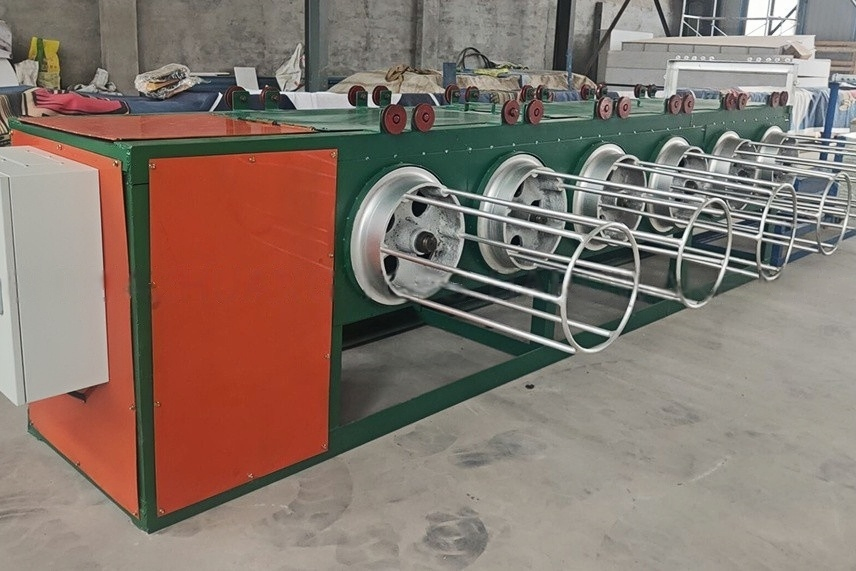

Wire Take-up Machine
Frequency speed control with electrical cabinet.

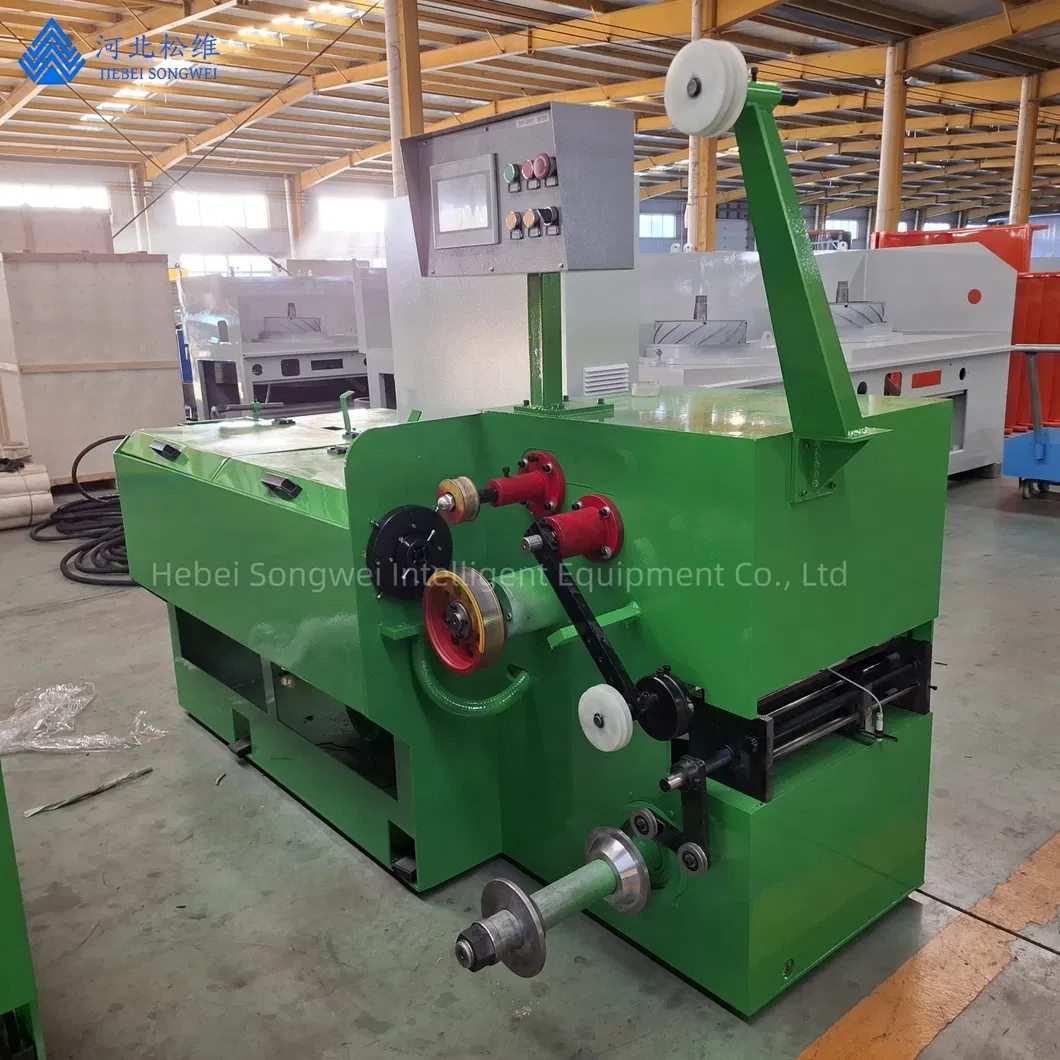

Water Tank Wire Drawing Machine

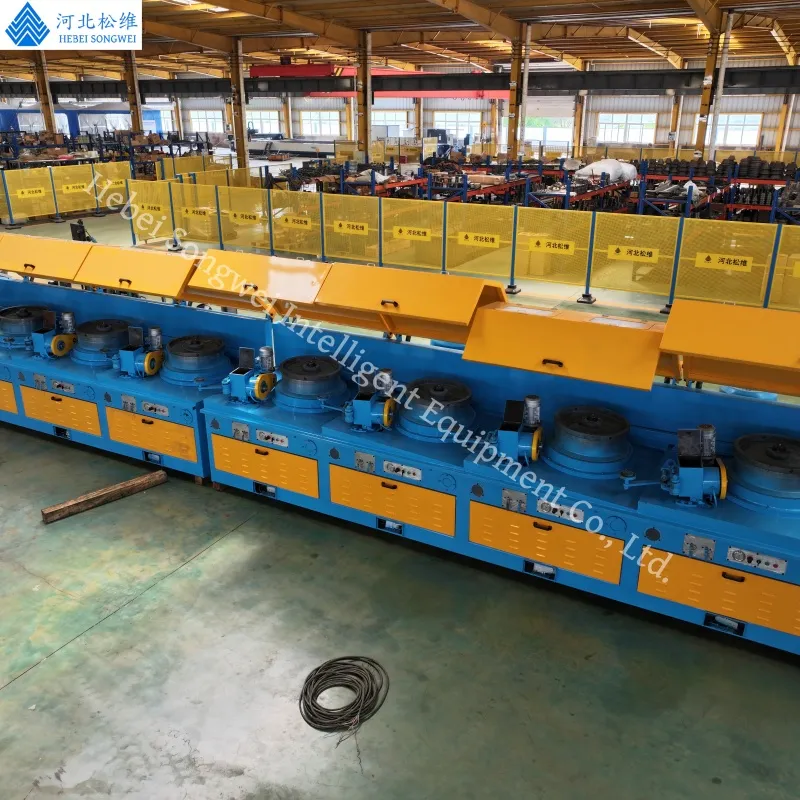

Straight Line Wire Drawing Machine

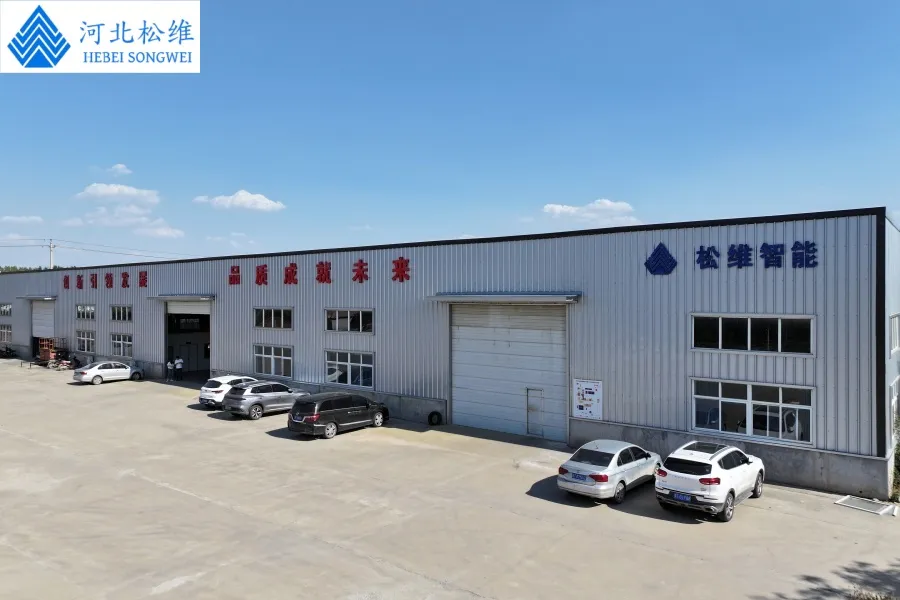

All key spare parts are independently produced to control processing accuracy and quality, extending the service life of the machinery. The facility maintains ISO9001:2008 quality system certification and EU CE product safety certification. With over 30,000 square meters of production space across 8 workshops, advanced equipment like plasma welding and CNC lathes are utilized for precision manufacturing.
